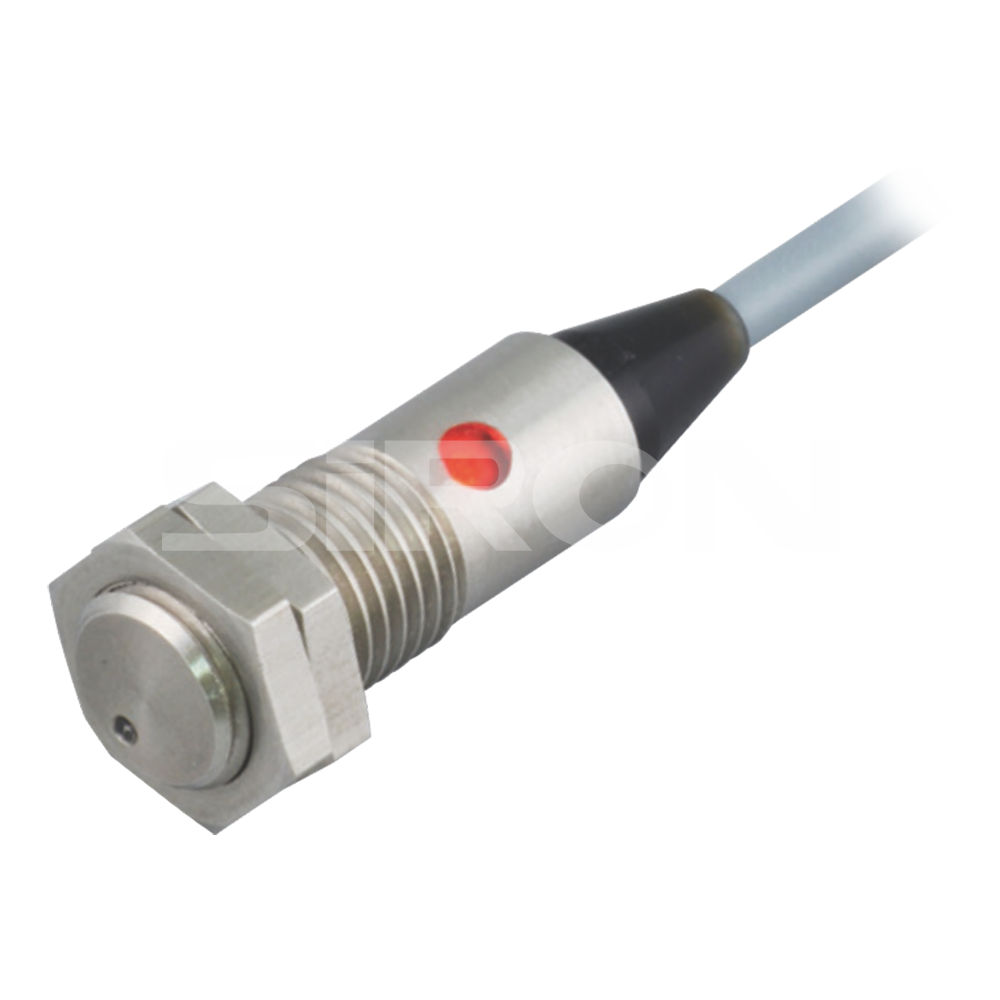

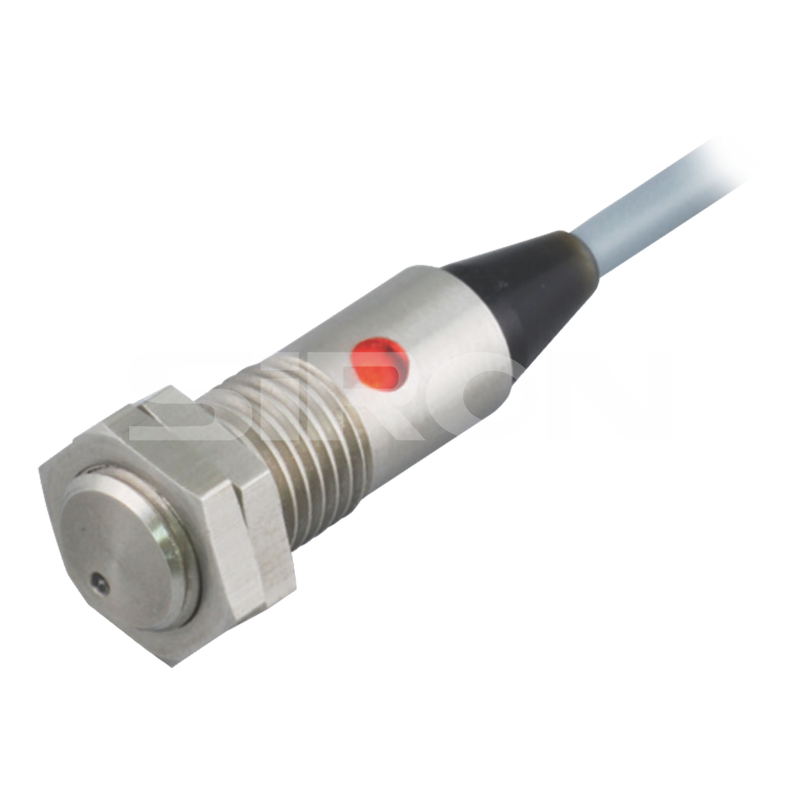

SiRON K072-4 Series Magnetic Proximity Sensor

Name: SiRON K072-4 Series Magnetic Proximity Sensor
Brand: SiRON
Rating: 5.0 (8 reviews)

Features:

* Small size, high sensitivity and large detection distance；Strong anti-electromagnetic interference, strong reliability;

* Sensors that perform ON and OFF operations according to changes in magnetic field strength.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K072-4 Series
Brand:
SiRON
Code:
9031809090

Magnetic Sensor Magnetic Proximity Sensor high sensitivity Small size 3-wire type IP67 S pole N pole

Product Description

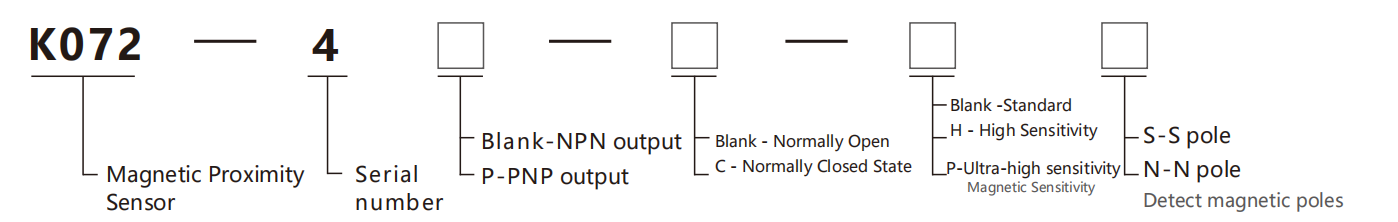

About selection

Selection example：

K072-4-HS indicates the K072 series, 4 serial number, NPN normally open, high sensitivity, and the detection magnetic pole is the S pole;

K072-4P-P indicates the K072 series, 4 serial number, PNP normally open, ultra-high sensitivity.

Note: 1. When the magnetic sensitivity is P-ultra-high sensitivity, the magnetic pole cannot be selected. 2. For the PNP output mode, only the normally open state is available.

Specifications

Name	Magnetic Proximity Sensor
Model	K072-4S/K072-4N	K072-4-HS	K072-4-HN	K072-4-P
Detection surface	Head detection
Magnetic pole detection	S pole/N pole	S pole	N pole	/
Type	standard form	High-sensitivity type		Ultra-high sensitivity type
Output method	NPN normally open (ON when approaching); NPN normally closed (OFF when approaching); PNP normally open (ON when approaching)
Appearance
Output currentcurrent	15mA MAX	80mA MAX(High/Ultra-high sensitivity type NPN output; Standard/High/Ultra-high sensitivity type PNP output)
Consumption	8mA MAX	15mA MAX(High/Ultra-high sensitivity type NPN output; Standard/High/Ultra-high sensitivity type PNP output)
Voltage	DC5～24V
Magnetic sensitivity	2.5～3.5mT	0.8±0.2mT	0.9±0.2mT	0.5±0.1mT
Magnetic detection direction	Forward
Response time	5μs
Repeatability	AC1000V(1 minute, between the charging unit as a whole and the casing)
Working frequency	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Working temperature	-20℃~+85℃(No condensing)
Working environmenthumidity	20～95%RH
Material	Shell: SUS303
Install/Indicator light	M9 nut, tightening torque 0.5N.m(installation hole diameter processing size: φ 9+8-5)/ red
Protection class / Cable	IP67/Cable length 1M;S pole: Grey; N-pole: Black
