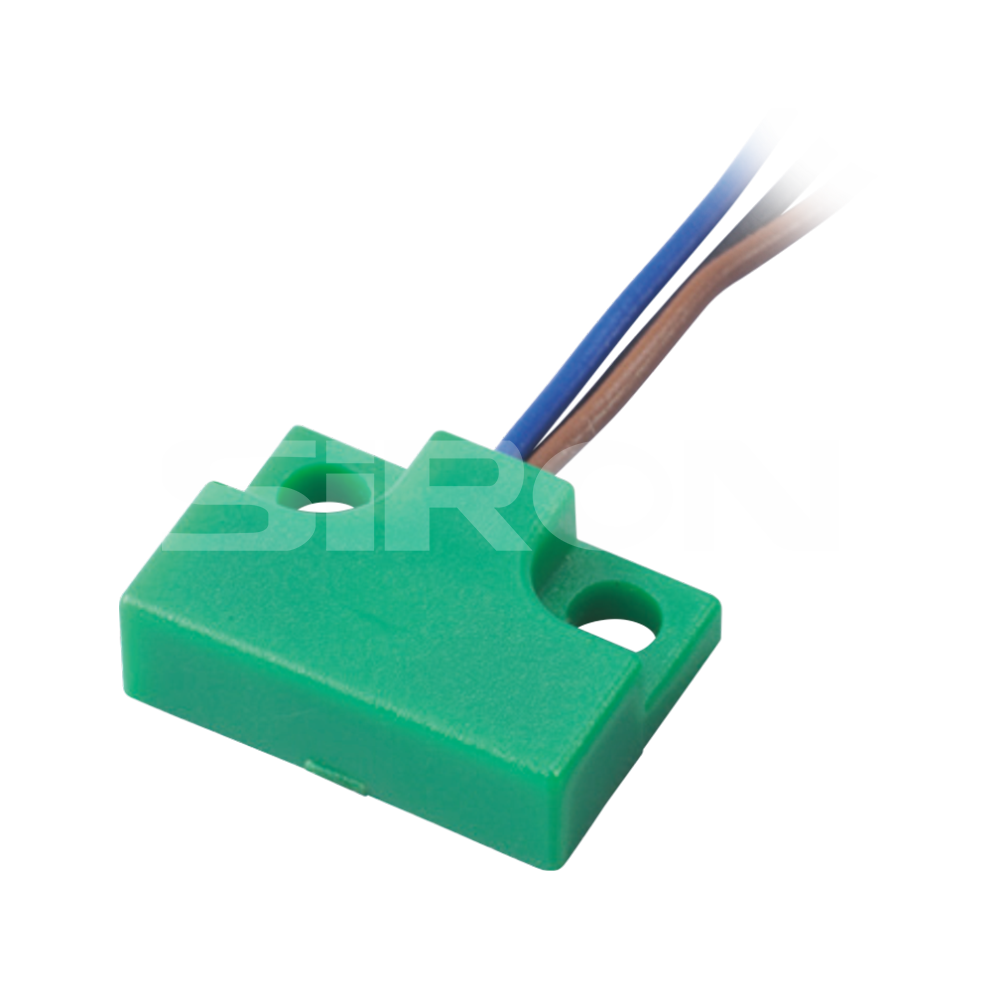

SiRON K072-1 Series Magnetic Proximity Sensor

Name: SiRON K072-1 Series Magnetic Proximity Sensor
Brand: SiRON
Rating: 5.0 (84 reviews)

Features:

* Small size, high sensitivity and large detection distance；Strong anti-electromagnetic interference, strong reliability;

* Sensors that perform ON and OFF operations according to changes in magnetic field strength.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K072-1 Series
Brand:
SiRON
Code:
9031809090

Magnetic Sensor Magnetic Proximity Sensor high sensitivity High positioning accuracy Small size 3-wire type IP65

Product Description

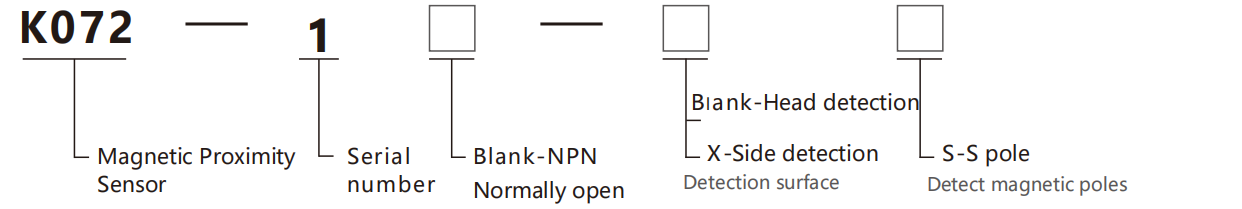

About selection

Selection example：

K072-1-S indicates the K072 series, with a serial number of 1, NPN normally open, the detection surface is head detection, and the detection magnetic pole is the S pole;

K072-1-XS indicates the K072 series, with a serial number of 1, NPN normally open, the detection surface is side detection, and the detection magnetic pole is the S pole.

Specifications

Name	Magnetic Proximity Sensor
Model	K072-1-S(Head detection)	K072-1-XS(Side detection)
Magneic pole delcionMagneic deleciondrecion	S-pole/upward	S-pole/forward
Output method	NPN Normally Open (ON when Detected)
Appearance
Output currentcurrent	15mA MAX
Consumption	8mA MAX
Voltage	DC5～24V
Magnetic sensitivity	2.5～3.5mT
Response time	5μs
Repeatability	AC1000V(1 minute, between the charging unit as a whole and the casing)
Working frequency	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Ambient temperature/humidity	- 2 0 ℃ ~ + 8 5 ℃ ( No condensing) ; 2 0 ～ 9 5 % R H
Material /Install	Glass fiber reinforced resin (green) M2 screw, tightening torque 0.15 N.m
Protection class/Cable	IP65/Cable length 0 . 3M
