SiRON K072-6 Series Magnetic Proximity Sensor

About selection

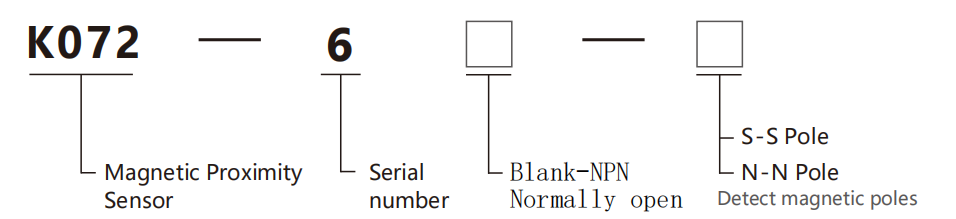

Selection example：

Specifications

Name	Magnetic Proximity Sensor
Model	K072-6-S
Detection surface	Head detection
Magnetic pole detection	S Pole
Output method	NPN Normally Open (ON when Detected)*

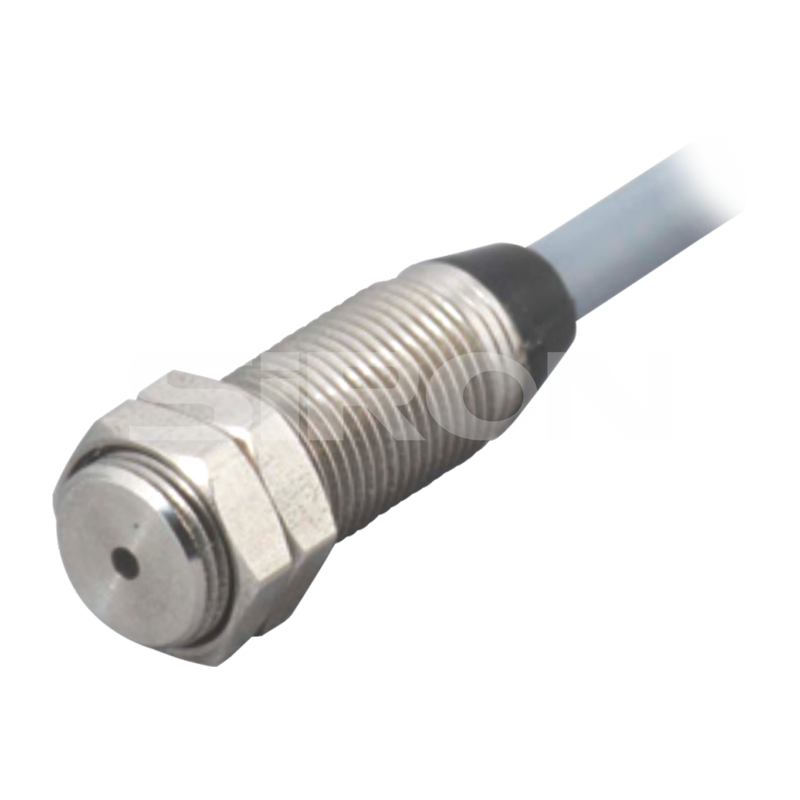

Appearance
Output currentcurrent	20mA      MAX*1
Consumption	8mA     MAX
Voltage	DC5～24V
Magnetic sensitivity	3～4mT
Magnetic detection direction	Forward
Response time	16μs
Repeatability	AC1000V(1 minute, between the charging unit as a whole and the casing)
Working frequency	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
Working temperature	- 20℃~+85℃(No condensing)
Working environment humidity	20～95%RH
Material	Shell:   SUS303
Install	M6 nut, tightening torque 2N.m(Installation hole diameter processing size: middle 6+8-5)
Protectionclass	IP67
Cable	Cable length  1 M ; Grey

Example

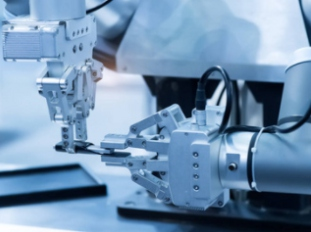

Applications on mechanical arms                                                             Testing of printing inks
