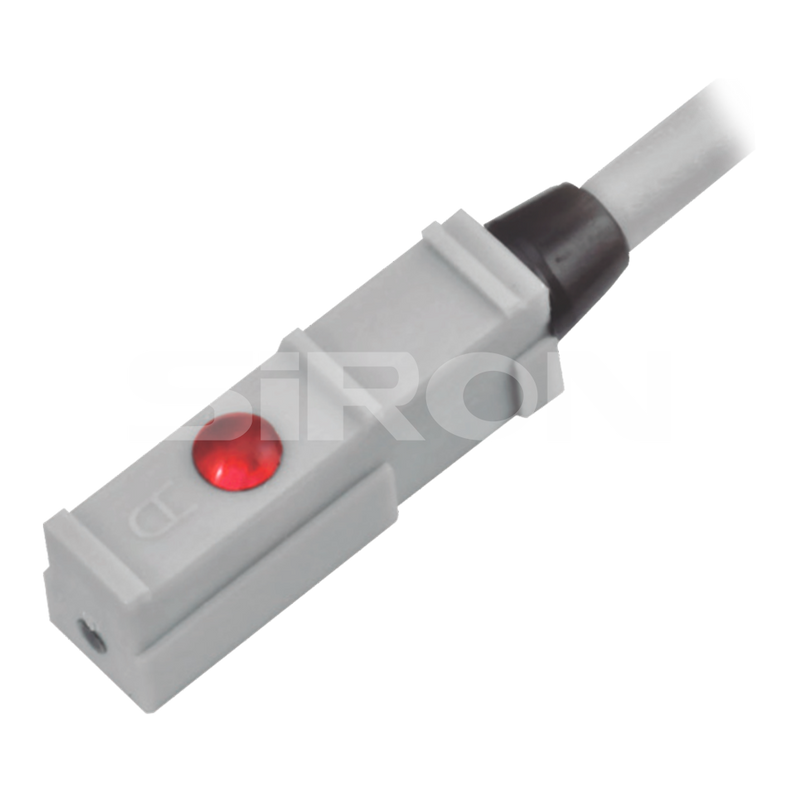

SiRON K072-9 Series Magnetic Proximity Sensor

Name: SiRON K072-9 Series Magnetic Proximity Sensor
Brand: SiRON
Rating: 5.0 (81 reviews)

Features:

* High sensitivity, can detect S pole and N pole at the same time; Environment-resistant, high-sensitivity magnetic proximity sensor;

* Identification sensor used to detect moving in or out (S N is for moving in, N S is for moving out, etc.).

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K072-9 Series
Brand:
SiRON
Code:
9031809090

Magnetic Sensor Magnetic Proximity Sensor High positioning accuracy 3-wire type IP65

Product Description

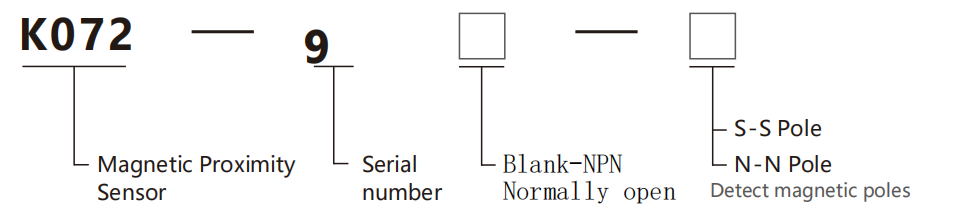

About selection

Selection example：

K072-9-S indicates K072 series, serial number 9, NPN normally open, and the detection magnetic pole is S pole;
K072-9-N indicates K072 series, serial number 9, NPN normally open, and the detection magnetic pole is N pole.

Specifications

Name	Magnetic Proximity Sensor
Model	K072-9-S		K072-9-N
Detection surface/Magnetic pole detection	Head detection /S pole		Head detection/N-pole
Output method	NPN Normally Open (ON when Detected)*
Appearance
Output currentcurrent	50mA MAX	Working temperature		- 20℃~+85℃(No condensing)
Leakage current	When O F F ， 0 . 5 m A M A X	Working environment humidity		20～95%RH
Voltage	DC12~24V	Material		Shell: Glass fiber reinforced resin (gray)
Magnetic sensitivity	2.5～3.5mT	install		M 3 nut, tightening torque 0 . 3 N . m
Magnetic detection direction	Downward	Indicator light		Red
Response time	50μs	Protection class		IP67
Repeatability	AC1000V(1 minute, between the charging unit as a whole and the casing)	Cable		Cable length 1M;S pole: Grey; N-pole: Black
Working frequency	DC250V(above 20MΩ, between the charging unit as a whole and the casing)
