X907/X937
SiRON
8538900000

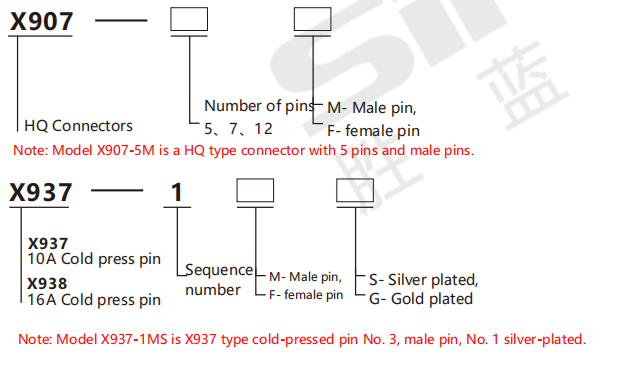

About selection
Crimp needle
| Crimp needle | Model(male) | Model (female) | Wire gauge | D | Stripping length | |
| X937-1M | X937-1F | 0.14-0.37mm² | AWG 26-22 | 0.9 | 8mm |
| X937-2M | X937-2F | 0.5mm² | AWG 20 | 1.1 | 8mm | |
| X937-3M | X937-3F | 0.75mm² | AWG 18 | 1.3 | 8mm | |
| X937-4M | X937-4F | 1.0mm² | AWG 18 | 1.45 | 8mm | |
| X937-5M | X937-5F | 1.5mm² | AWG 16 | 1.75 | 8mm | |
| X937-6M | X937-6F | 2.5mm² | AWG 14 | 2.25 | 6mm | |
10 pcs/ pack
Note: The cold-pressing needle needs to be ordered separately. For silver-plated models, add 'S'; for gold-plated models, add 'G'.
Crimp needle
| Crimp needle | Model(male) | Model (female) | Wire gauge | Stripping length | |
 | X938-1M | X938-1F | 0.14-0.37mm² | AWG 26-22 | 7.5mm |
| X938-2M | X938-2F | 0.5mm² | AWG 20 | 7.5mm | |
| X938-3M | X938-3F | 0.75mm² | AWG 18 | 7.5mm | |
| X938-4M | X938-4F | 1.0mm² | AWG 18 | 7.5mm | |
| X938-5M | X938-5F | 1.5mm² | AWG 16 | 7.5mm | |
| X938-6M | X938-6F | 2.5mm² | AWG 14 | 7.5mm | |
| X938-7M | X938-7F | 3mm² | AWG 12 | 7.5mm | |
| X938-8M | X938-8F | 4mm² | AWG 12 | 7.5mm | |
10 pcs/ pack
Note: The cold-pressing needle needs to be ordered separately. Add '2' after the silver-plated model
For S 'gold-plated models, add' G 'after them. When the wire gauge is less than 0.75mm, it is recommended to use an auxiliary needle loading tool
Type selection reference
Model | Pin(Male insert) | X907-5M | X907-7M | X907-12M |
| Jack(Female insert) | X907-5F | X907-7F | X907-12F | |

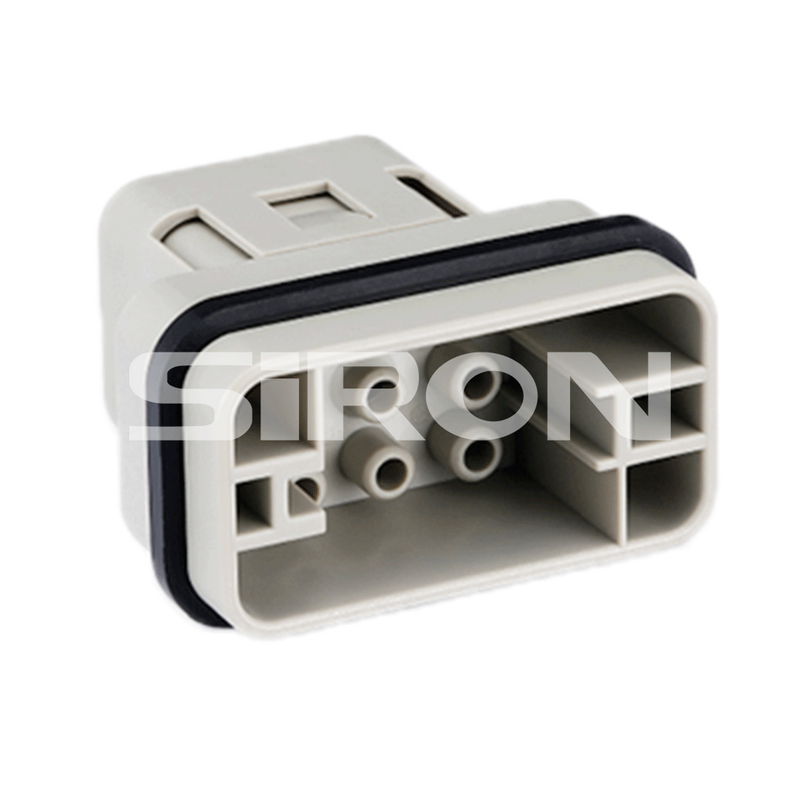

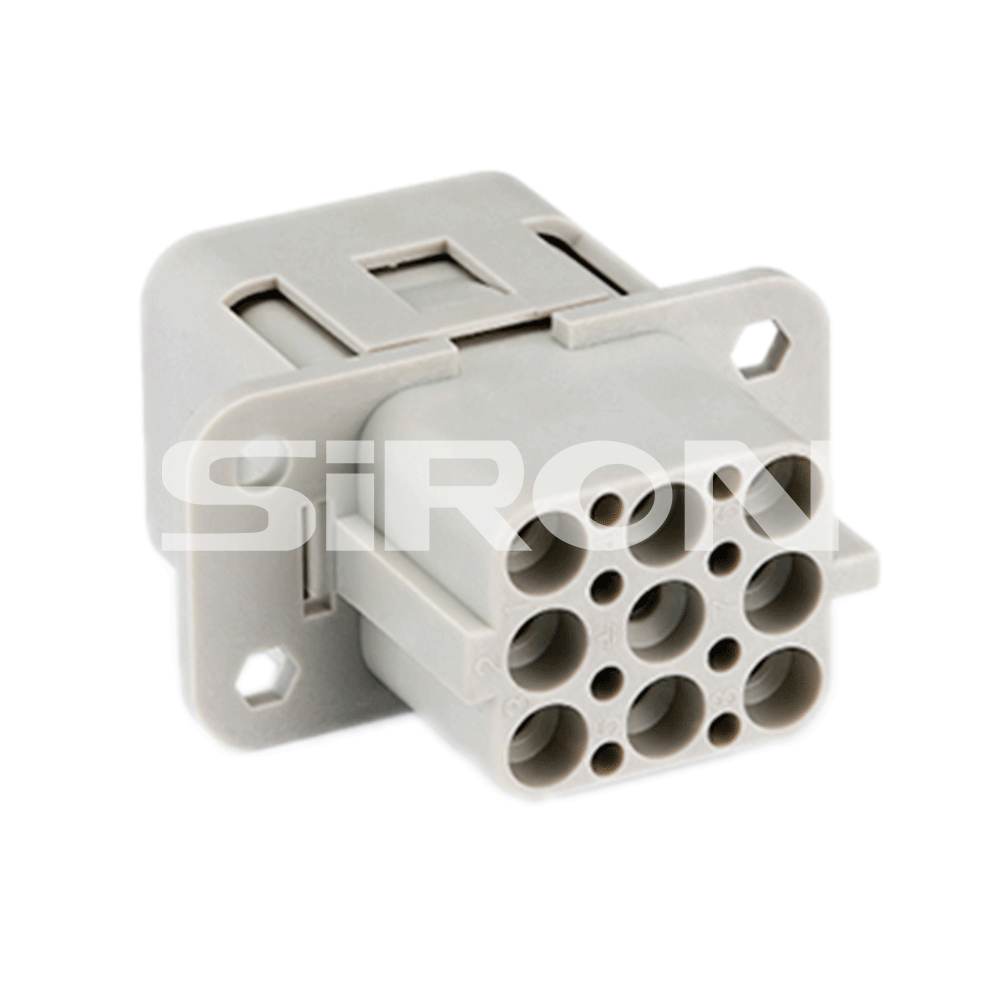

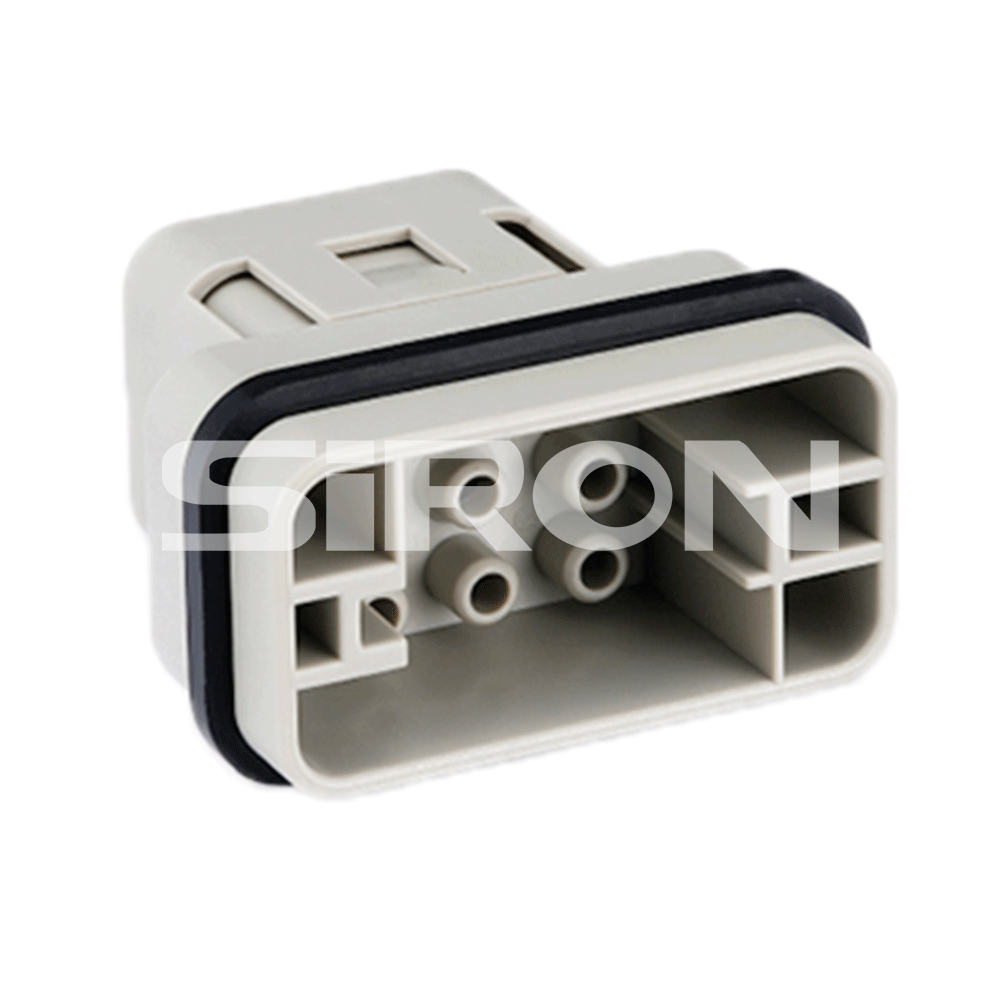

| Appearance |  | |||
| Connector core number | 5 | 7 | 12 | |
| Working current | 16A | 10A | ||
| Working woltage | 230V/400V | 400V | ||
| Contacis | Contact resistance | ≤1mΩ | ≤3mΩ | |
| Wregauge | 0.14-4.0mm²(AWG26-12) | 0.14-2.5mm²(AWG26-14) | ||
| Wre gauge | 2.5mm²(AWG14) | 2.5mm²(AWG14) | 0.5-2.5mm²(AWG20-14) | |
| Connection form | Cold pressure crimping | |||
| Apply lid(Upper cover) | X 9 2 0 series ▶P.028 | |||
| Apply the base(lower cover) | ||||
| Rated impulse Voltage | 4KV | 6KV | ||
| Pollution degree | 3,When the pollution level =2(10A 230/400V 4KV 2) | |||
| Insulation resistance | ≥10¹°Ω | |||
| Fammability ac.to(UL94) | Vo | |||
| Limiting temperatures | -40℃~+125℃ | |||
| Mechanical working life | ≥500 | |||
| Working wltage acc.to UL/CSA | 600V | |||
