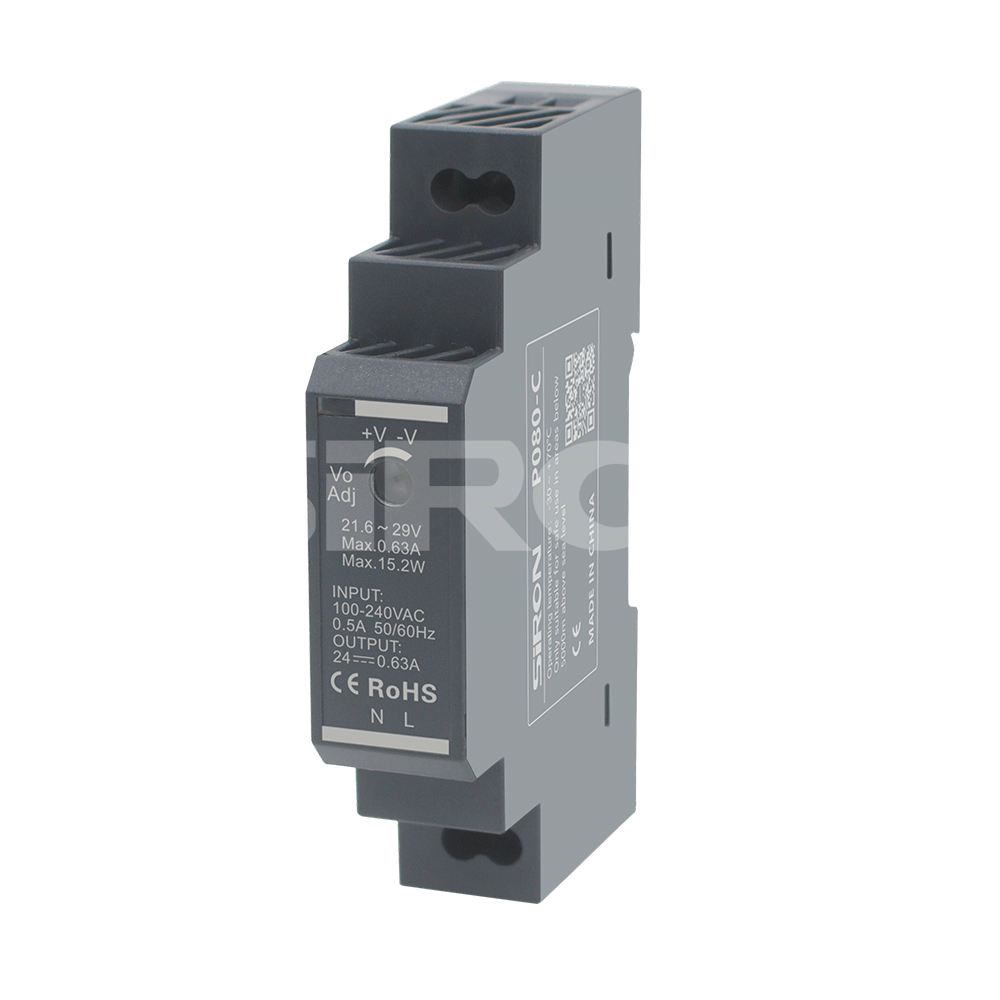

P080-C~P080-12-C
SiRON
8504401400
Order
Product Attributes
| Model | P080-C | P080-12-C |
| Dc output voltage | 24V | 12V |
Rated current |
0.63A | 1.25A |
| Ripple &Noise(Max) | 150mVp-p | 120mVp-p |
| Voltage regulation range | 21.6~27.5V | 10.2~13.8V |
| Start &rise time | 1500ms,30ms/230VAC;2000ms,30ms/115VAC(full load) | |
| Holding time | 30ms/230VAC;10ms/115VAC(full load ) |
|
| Input parameter | 90~264VAC/120~373VDC;50/60Hz | |
| Efficiency | 86% | 85% |
| Input current | 0.5A/115VAC;0.25A/230VAC | |
| Power factor | 0.65/115VAC;0.5/230VAC | |
| Input current | 45A/230VAC | |
| Leakage current | <1.0mA/240VAC | |
Overload protection |
Rated power105%~150% | |
| Protection mode: When the output voltage is less than 50%, it is in hiccup mode. It can automatically recover after the abnormal load conditions are removed | ||
| The output voltage is in constant current mode when it is between 50% and 100%, and it can automatically recover after the abnormal load conditions are removed | ||
| Overvoltage protection | have | |
| Protection mode: Hiccup protection |
||
| Shortcircuit protection | Short circuit between the positive and negative terminals of the output |
|
| Protection mode: Hiccup mode, automatically recovers after abnormal conditions are removed | ||
| Operating environment | -30℃~70℃(Refer to the reduction curve) | |
| With stand voltage | Input to output: 1000VAC; Input to ground: 1500VAC; Output to ground 500VAC |
|
| Insulation impedance | Input to output, input to ground, output to ground 100M Ohms/500VDC/25℃/70%RH |
|
| Electromagnetic compatibility | GB9254 CLASS A | |
| Safety specification | reference GB4943.1-2011 |
|
| Product size | 17.5×90×54.5(W×H×D) | |
| Package | 74g;160pcs/12.9kg/1.09CUFT | |
