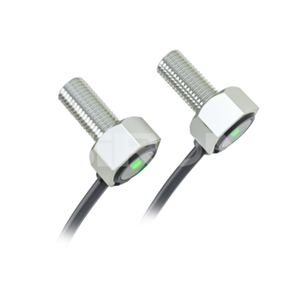

K009-19 Small Laser Beam

Engineered for precision and versatility, the high-precision K009-19 small laser beam by SiRON Electrical offers outstanding accuracy in measurement, positioning, and targeting tasks. Built for demanding operations, the high-power K009-19 small laser beam delivers strong, consistent output, while the high-speed K009-19 small laser beam ensures rapid response and seamless integration into fast-paced automation lines. With its adjustable K009-19 small laser beam design, operators can easily customize beam alignment and focus for specific applications, achieving optimal results. The lightweight K009-19 small laser beam structure minimizes installation complexity, making it ideal for compact machinery and precision equipment. Designed for reliability in challenging conditions, the waterproof K009-19 small laser beam maintains stable performance even in environments exposed to moisture and dust. Reflecting SiRON’s philosophy of “Endless innovation, Everlasting operation,” this laser solution is trusted by industries worldwide for its durability, adaptability, and exceptional performance.

Specifications

Model	NPNN.O	K009-19
	NPN N.C	K009-19C
	PNPN.O	K009-19P
	PNPN.C	K009-19P-C

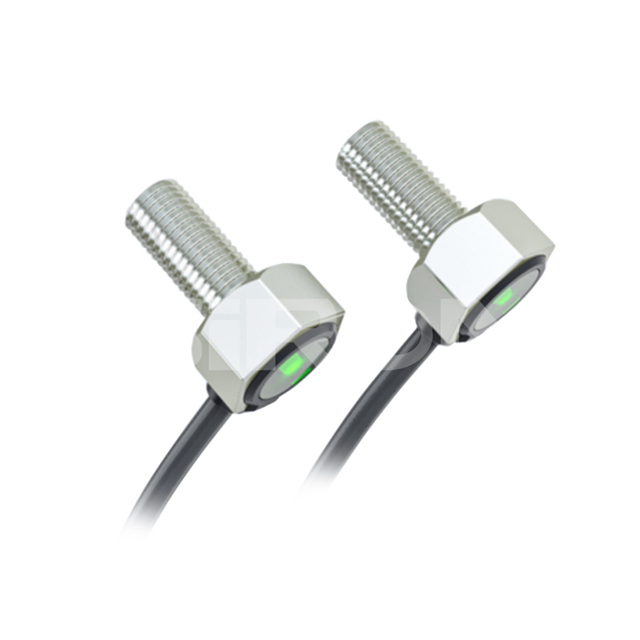

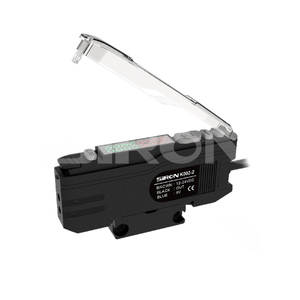

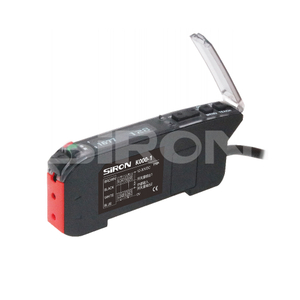

Appearance
Types of	Transmissive
Detection distance	1m
Standard detectable substance	An opaque object with a minimum diameter of 1mm
Smallest detectable substance	An opaque object with a minimum diameter of 0.5mm
Reaction time	≤1ms
Contioloutput7	NPN/PNP≤100mA(≤40V),residual          voltage:≤1V
Light source	Laser 655nm
Protect the circuit	Reverse current protection,over current protection,over voltage protection
Power supply	12~24VDC±10%
Current consumption	≤30mA
Protection level	IP64
Ambient luminosity	Incandescent lamp:≤3,000lux,Daylight:≤10,000lux
Ambient temperature	-20~+55℃,no freezing
Environment humidity	35~+85%,no coagulation
Shell material	Amplifier.PC,sensor:nickel-plated brass
Cable length	2M
Weight	About 70g

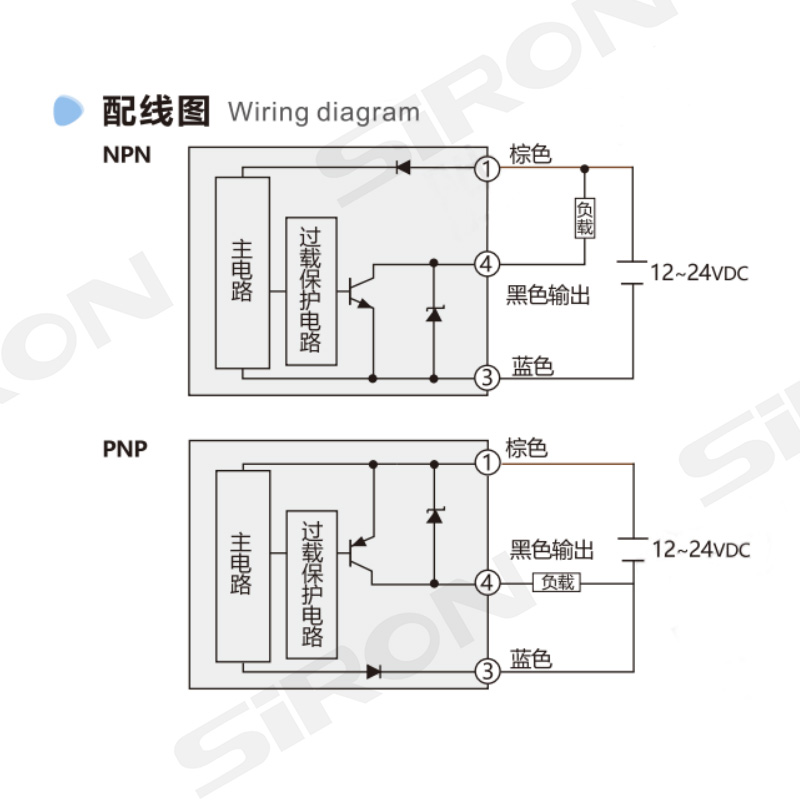

Wiring Diagram

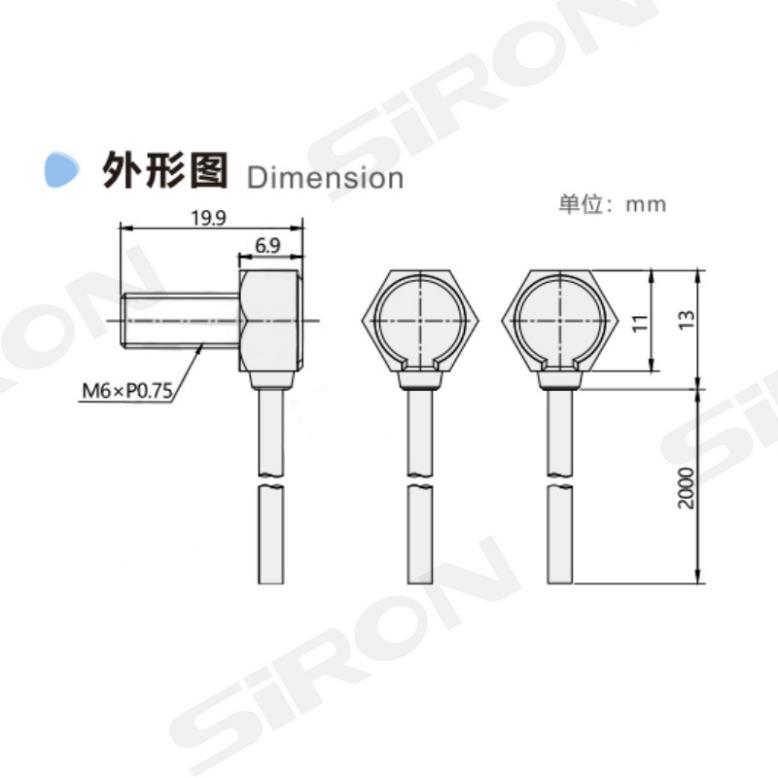

Dimension
