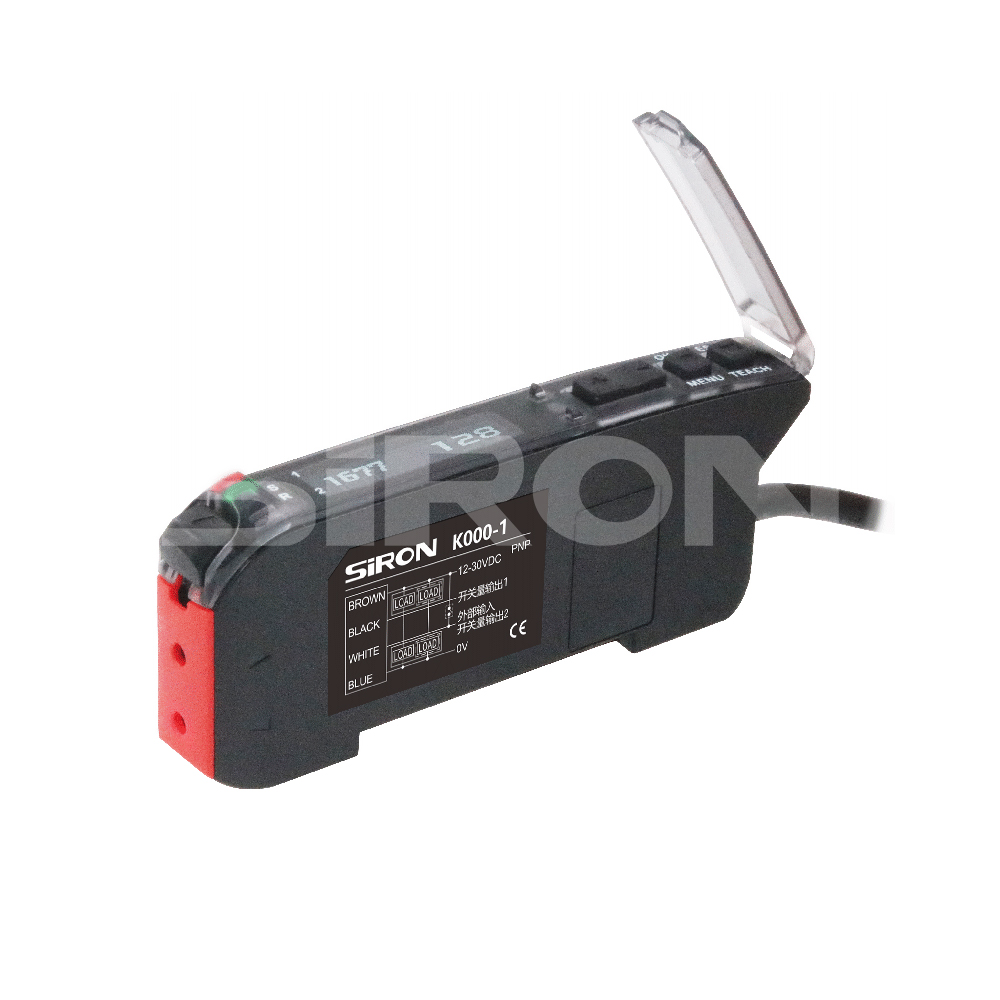

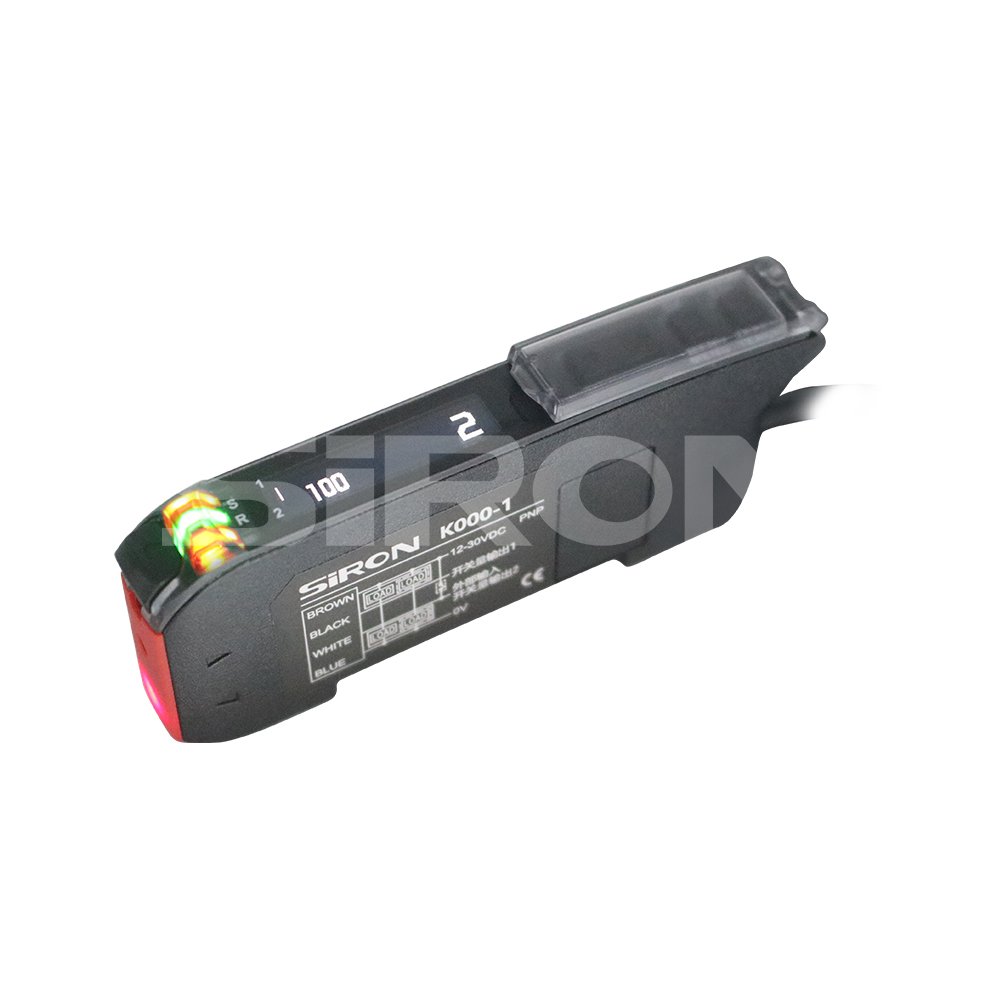

SiRON K000-1 Series Fiber Amplifier 16us Ultra-high-speed Response Type

About selection

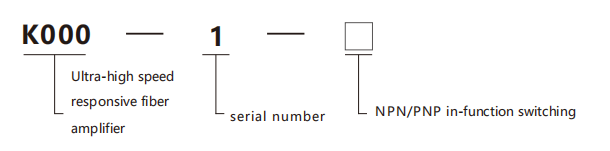

Selection example: K000-1 indicates K000 series, serial number 1,  NPN/PNP function in-function switching.

Specifications

Name	UIra-ligi speedresponsive fiher ampifer
Mode	K000-1

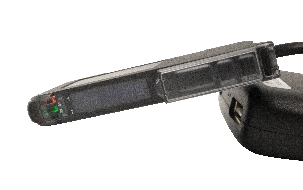

Appearance
ligfit souroe	Red LED(wave length 660nm)
Opeaing Valage	12~30V     DC±10%
Cumentorsumpfion	Standard mode can be set: 52mA(12V)/33mA(24V)/29mA(30V)
	Standard mode can be set: 43mA(12V)/29mA(24V)/26mA(30V)
Output mode	Single channel
	NPN/PNP collector open circuit, in-function switching
	≤100mA, residual voltage below 1.8V
Swich mode	L.on (light-entering action)/Don(light-blocking action) can be switched
Language	Chinese/English/Japanese/Korean/Spanish
Crait stablfizaionfrme	300ms
ncaborlight	Output indicator light (orange)/ Power indicator light (green)
DepLay soreen	Organic EL display screen
Respons tine	16us/70us/250us/500us/1ms/2ms/8ms
ONOFF deby funchon	ON delay, OFF delay, single pulse output, ON+OFF delay, ON delay + single pulse output (1 to 30,000 ms)
Sensy equafion	Teaching adjustment/manual adjustment
Eemalpu	Teaching input/Light stop input/Calculator reset input
Operafing bemperatune	-25℃~+55℃
Wbking humidiy	35%~85%RH(No condensation)
Ambiemluminosity	sunniness≤10000Lux,Incandescent lamp irradiation≤3000Lux
Prolecion croui	Overload protection, short-circuit protection
An5itbafon	10~55Hz, dual amplitude 1.5mm,XZY, three directions, each for 2 hours
hsulafon resistance	>20MΩ(DC500V)
impact resetance	50G(500m/S⊃2;), 3 times each in the X and ZY directions
Pmobeclian das	IP54
Mabeis	Shell:P P E   Panel:  P C

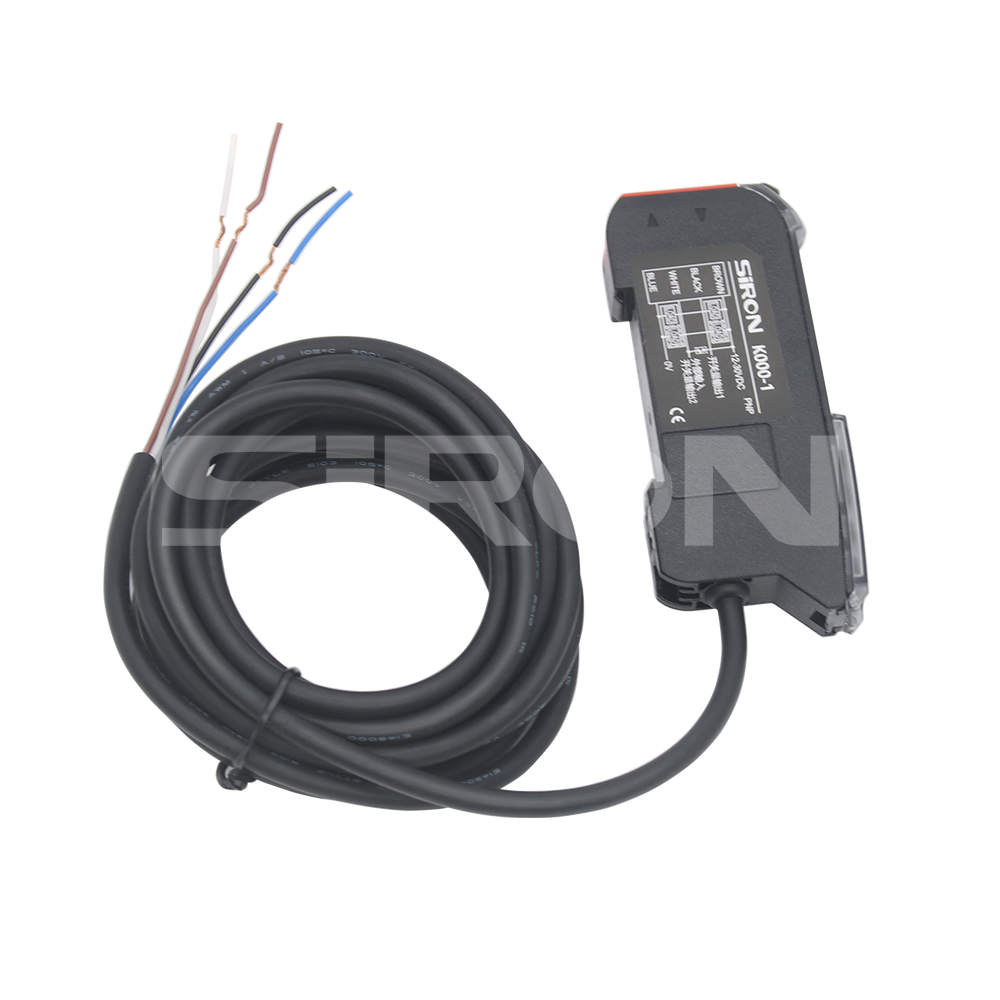

Odet mode	2 m cable ( 4 core )
Weigi	719

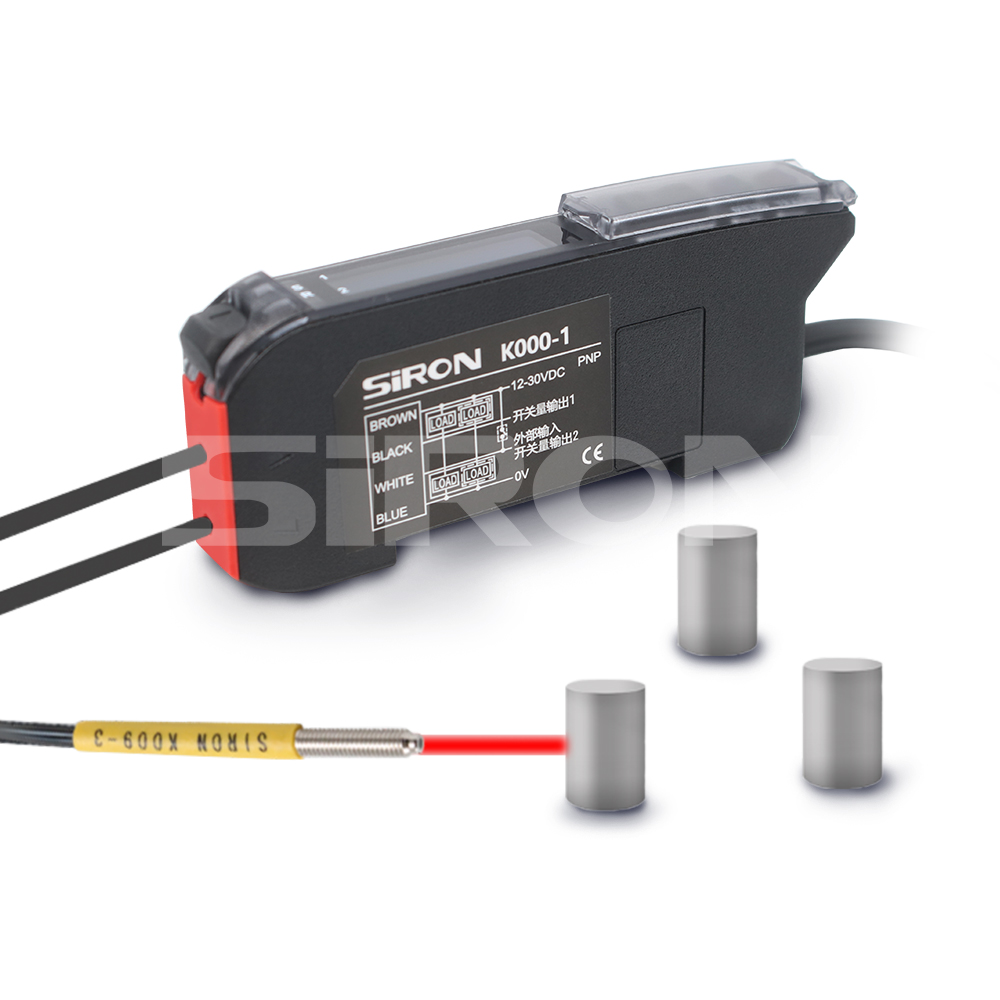

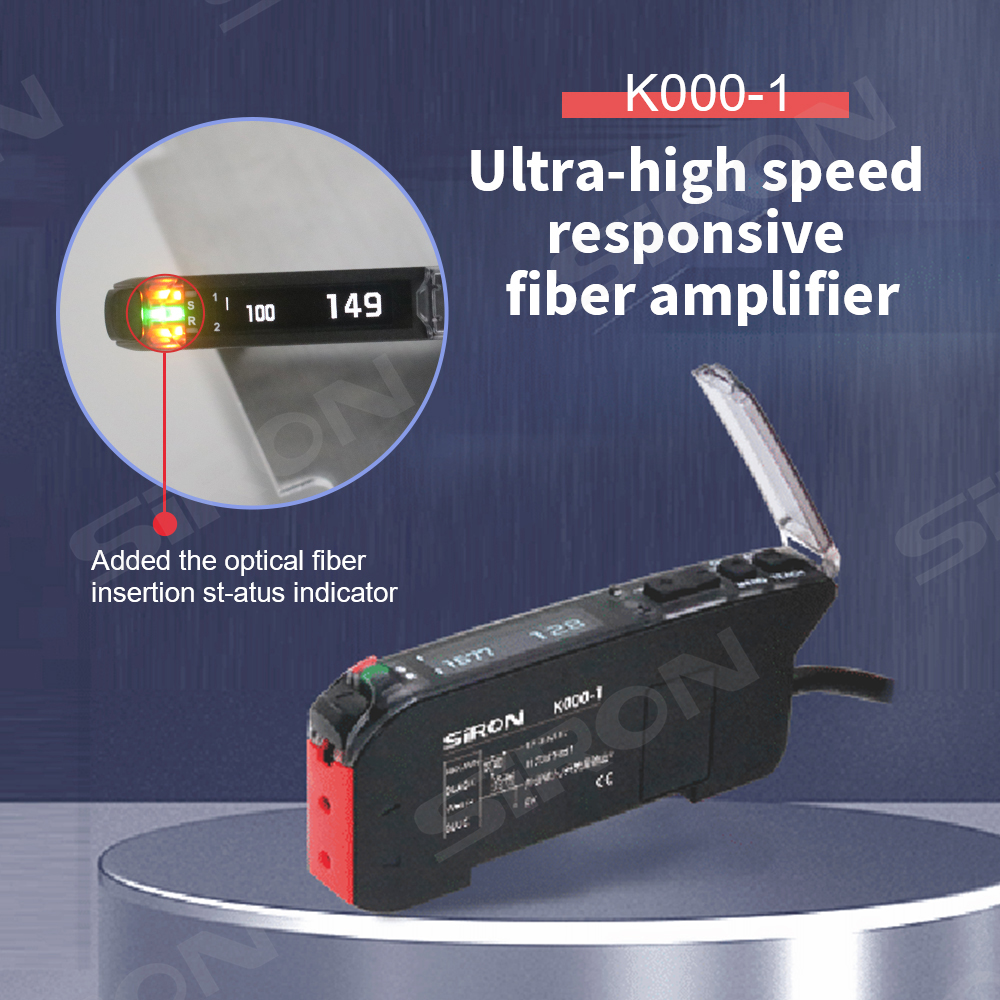

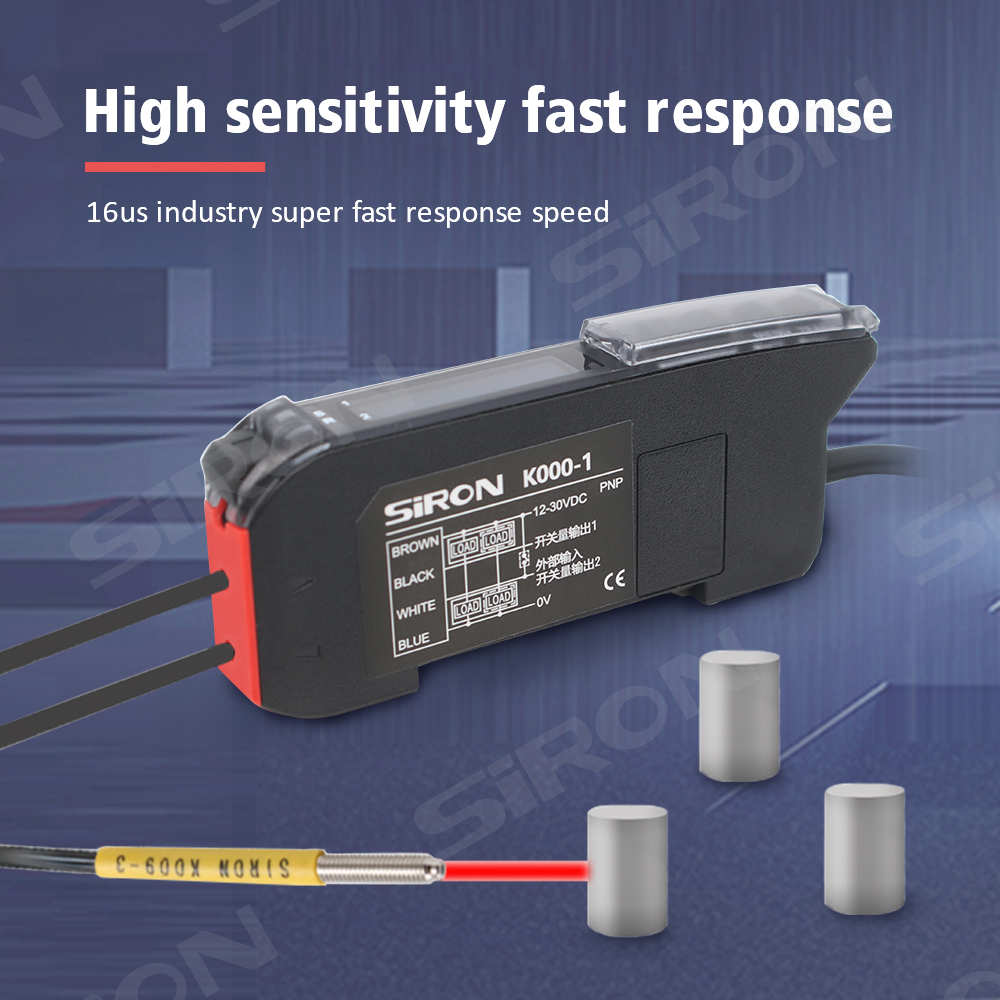

K000-1          Ultra-high speed responsive fiber amplifier       Added the optical fiber insertion st-atus indicator	High sensitivity fast response                16us industry super fast response speed

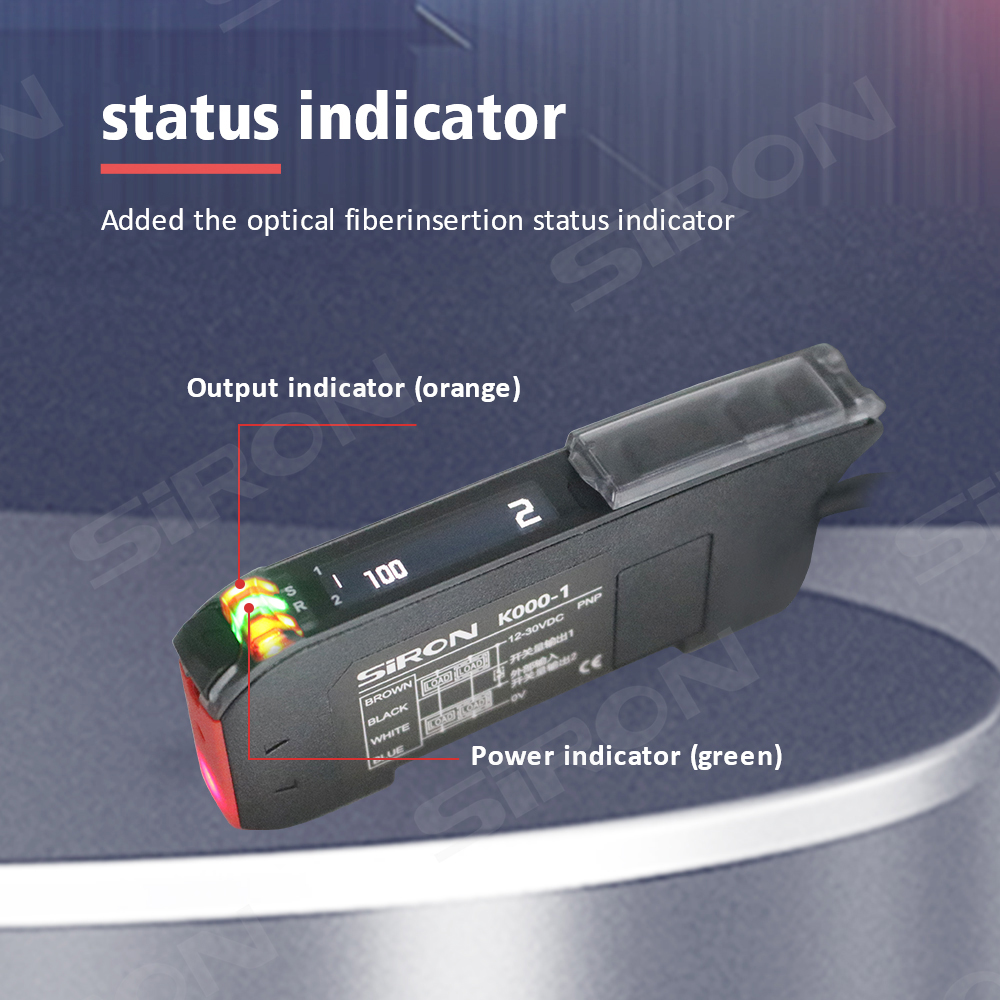

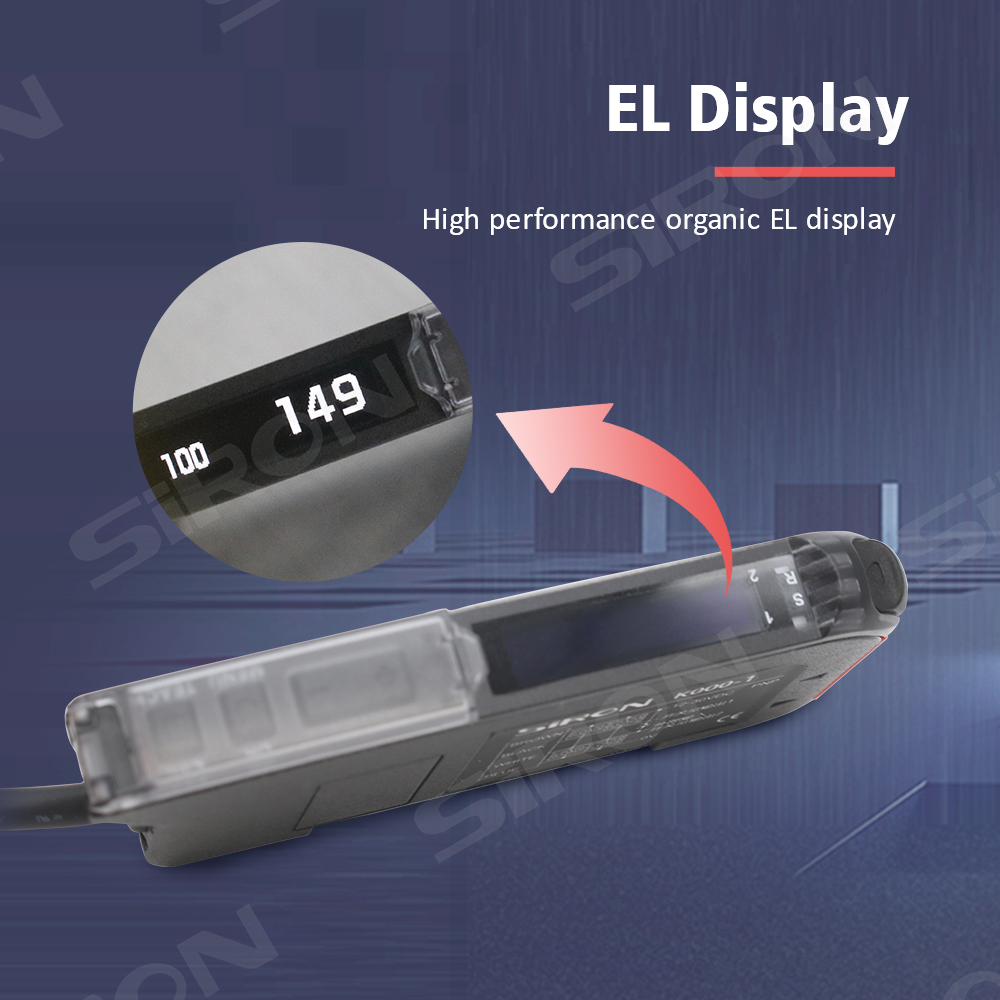

EL Display               High performance organic EL display	status indicator         Added the optical fiberinsertion status indicator                                  Output indicator (orange)                                  Power indicator (green)

High-performance organic EL display	A new optical fiber insertion status indicator light has been added

Example

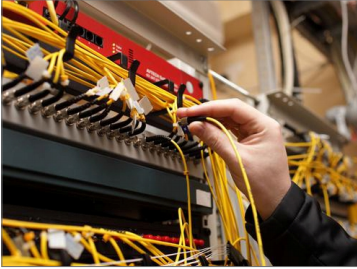

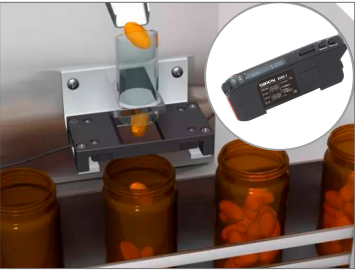

Small item quantity detection                                                     Communication application

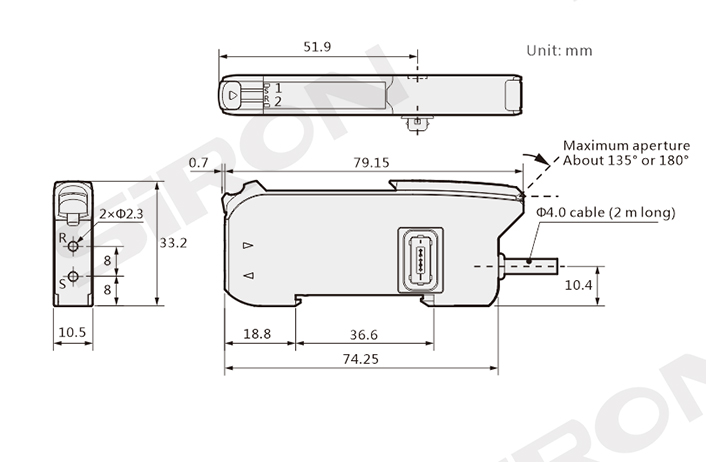

Dimension

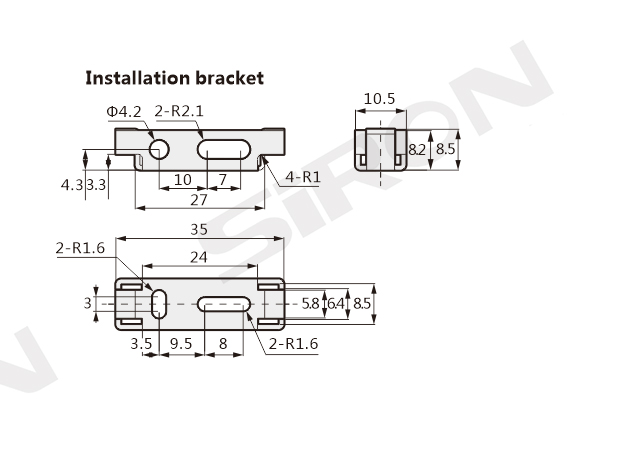

Installation bracket

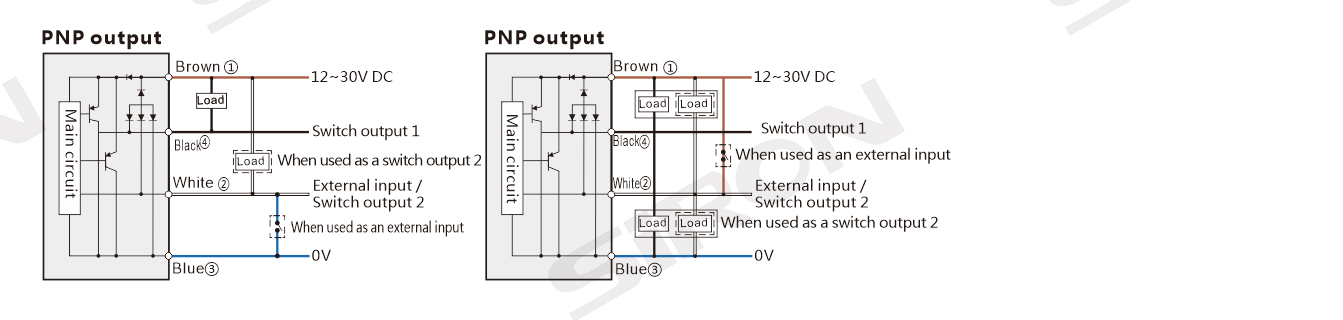

Wiring diagram
