SiRON K003-2 Series Even Digital Display Fiber Amplifier

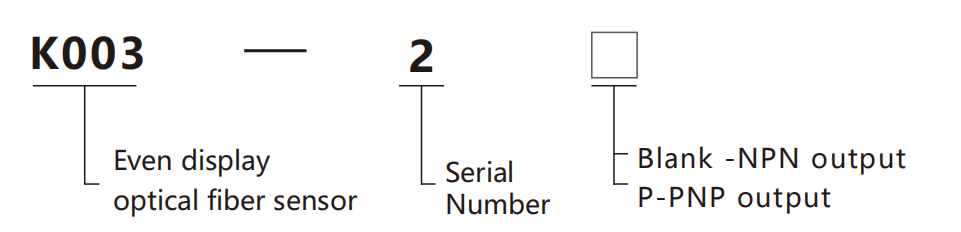

About selection

Selection example: K003-2 indicates K003 series, 2 serial number, NPN output;

                                     K003-2p indicates K003 series, 2 serial number, PNP output;

Specifications

Name	Even digital display fiber amplifier
Model	K003-2	K003-2P

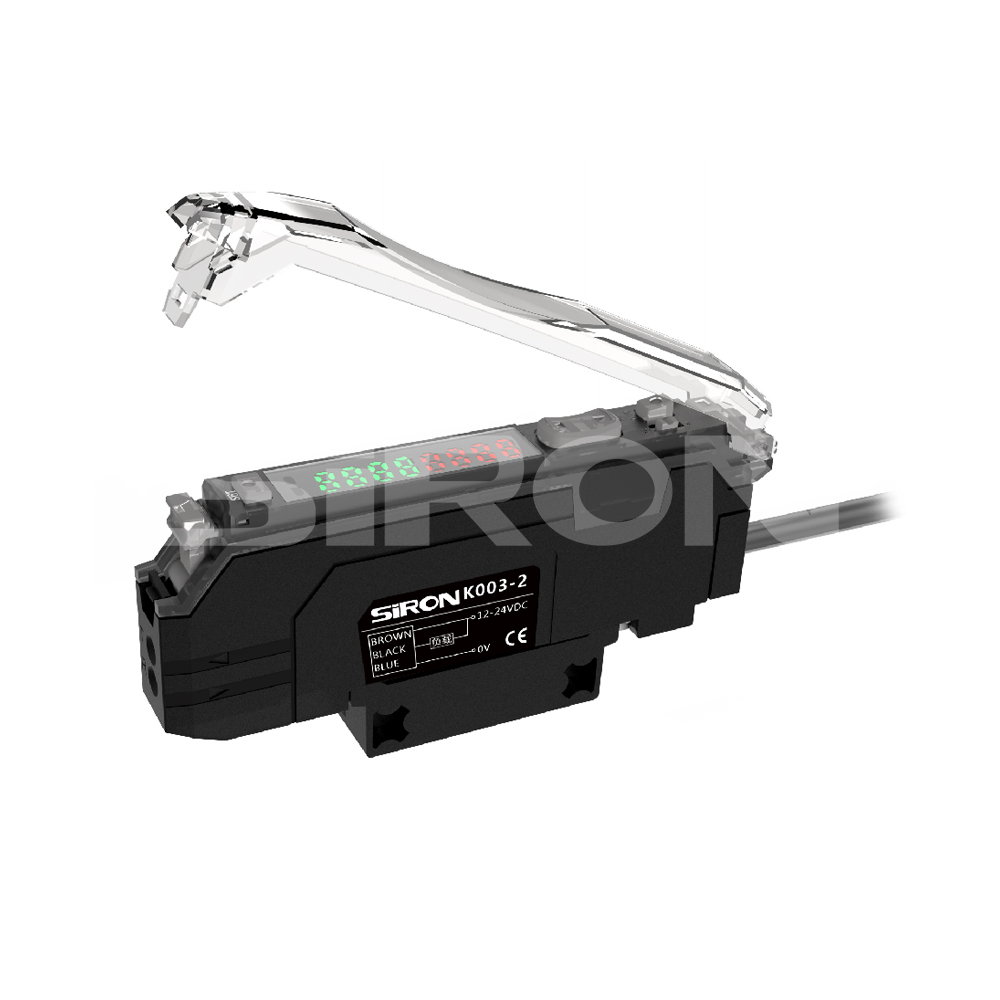

Appearance
Type	1 output,lead out type
Control the output	1 output,equipped with short circuit protection,equipped with automatic anti-interference function
Light source	Red,4-element LED body
Reaction time	P0:25μs,P1:50μs,P2:100μs,P3:200μs,P4:800μs
Output selection	LIGHT-ON/DARK-ON(keypad selection)
Displays an indicator	Operation indicator:red LED,dual digital monitor:dual 7-digit display,The threshold value(4-digit green LED indicat or)lights up with the current value(4-digit red LED indicator).Current value range:0 to 9999
Detection method	Light intensity (area detection possible,automatic sensitive tracking available)
Delay function	Open delay timer/Open delay timer/Single timer/Open delay timer,optional.The meter display can be selected in duration:1ms to 9999ms
Control the output	NPN/PNP open collector 24V,Max 100mA(only main parts)Max 20mA(Residual voltage :1V when expansion parts are connected)
Power supply	12 to 24V DC±10%,floating ratio(P-P):maximum 10%
Class oflaser	IEC Class 2
Ambient illumination	Incandescent lamp:≤20,000lux,sunlight:≤30,000lux
Power consumption	Standard mode:Maximum 300mW Maximum voltage:24V
Vibration resistance	10~55Hz,Double amplitude:1.5mm,X,Y,Z Axes are 2 hours
Ambient temperature	-10～+55℃,non-freezing
Output mode	NPN collector open                                                         PNP collector open

Example

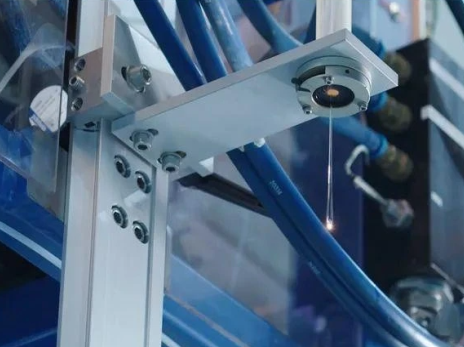

Check for the presence or absence of the wafer box                Used for cutting or welding metal materials

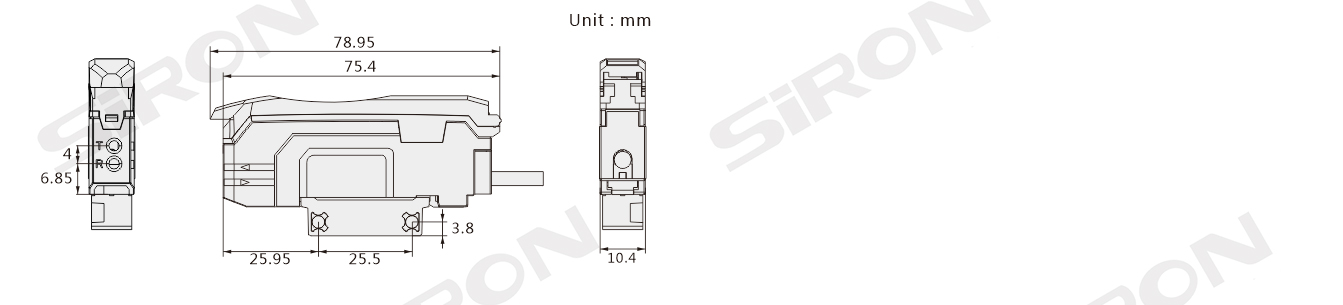

Dimension

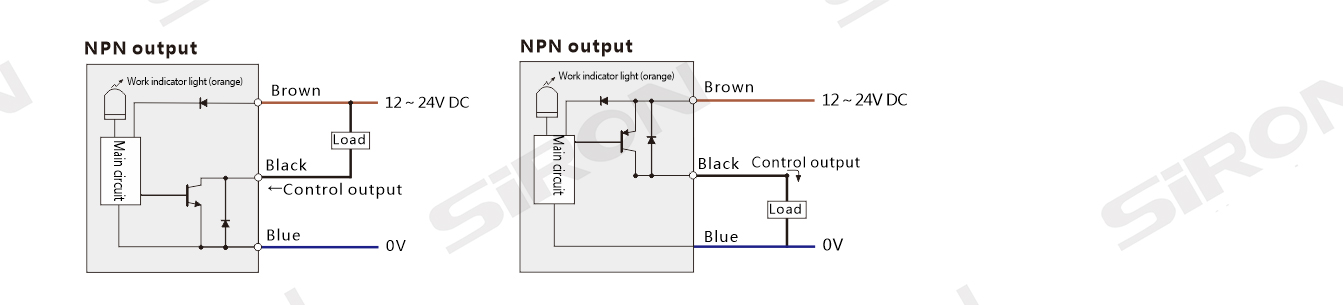

Wiring diagram
