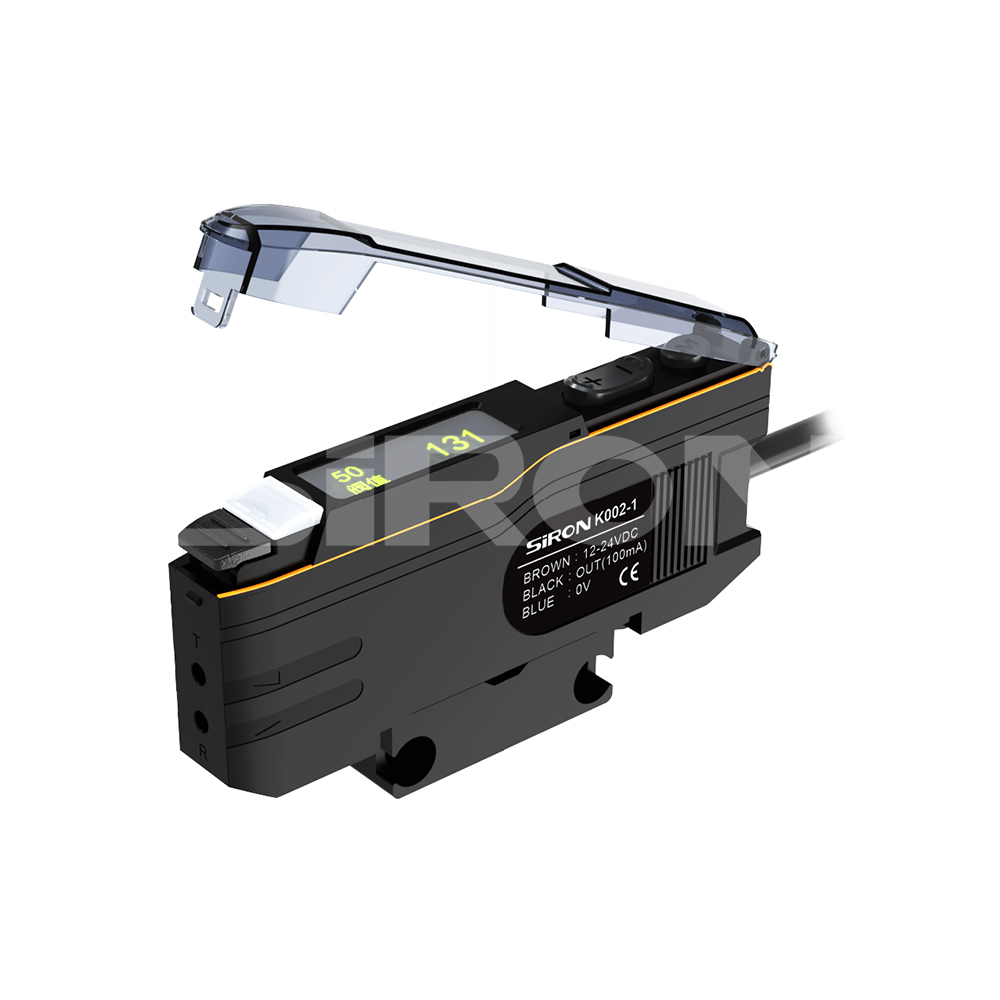

K002-1 Series
SiRON
8409999990
About selection
Selection example: K002-1 indicates the K002 series, serial number 1, with NPN output.
K002-1P indicates the K002 series, serial number 1, with PNP ouput.
Specifications
Name | Chinese display fiber amplifier | ||
Model | K002-1 | K002-1P | K002-1V |
Type | N P N Output | P N P Ouput | NPN Output and analog voltage |
Appearance |
| ||
Light source | Red, 4-element light-emitting diode body | ||
Supplyvoltage | DC 12~24V±10%, floating P - P, below 10% | ||
Consumption current | ≤30mA | ||
Detection mode | Diffuse reflection, through-beam (determined by the type of optical fiber component) | ||
Working mode | Standard: Diffuse reflection: 200mm, through-beam: 700mm; Long-distance: Diffuse reflection: 300mm, through-beam: 1200mm | ||
Detection output | NPN collector open circuit output Maximum input current 100mA, Maximum external voltage 30VDC, Residual voltage less than 1V | NPN collector open circuit output Maximum input cuurent 100mA, Maximum external voltage 30VDC, Residual voltage less than 2V | / |
Analog woltage output | / | 0~5V | |
Output state | Normally open / Normally closed can be switched | ||
Delay function | Four output modes are selectable: normal output, extended output, delayed output, and one-time output. Three delay times are adjustable: 1ms ~ 9999ms | ||
Reaction time | High speed: less than 80μs; Standard: Less than 500μs; Long distance: less than 3ms | ||
Display | 0LED screen display | ||
Protection circuit | Reverse polarity protection for power supply; Output short circuit or overload protection | ||
Ambient brightness | incandescent light：Maximum 20000lux; white light：Maximum 30000lux | ||
Vibration resistance | 10–55 Hz, double amplitude: 1.5 mm, 2 hours for X, Y, Z axes respectively | ||
Ambient temperature | - 25~+55℃, No freeze | ||

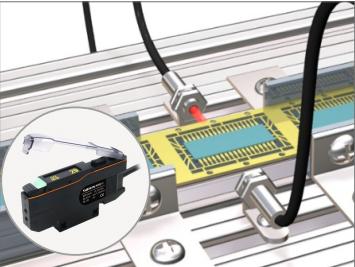

Example

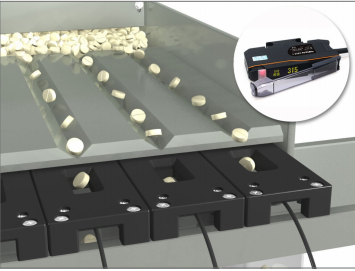

Small item quantity detection Application in the pharmaceutical industry

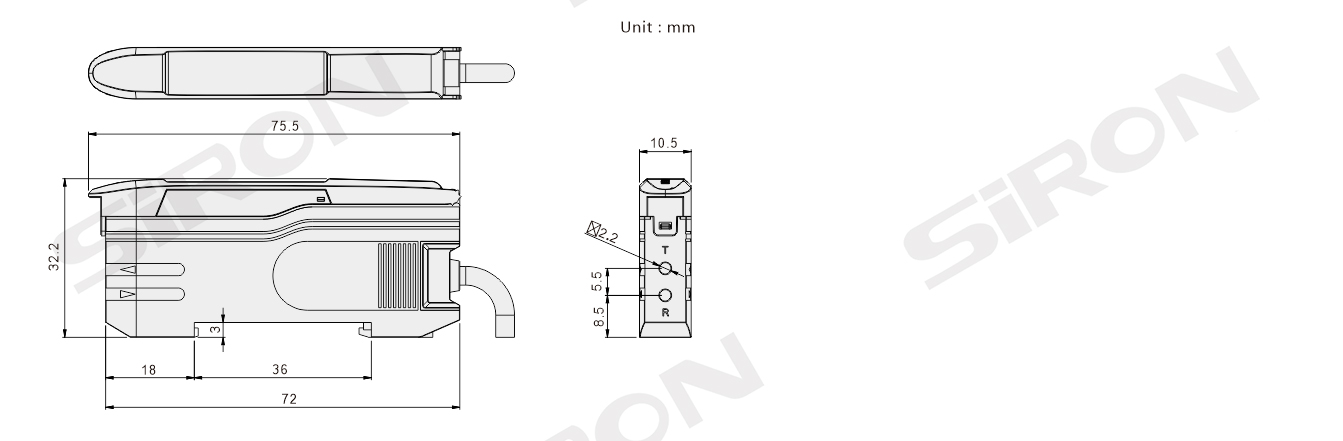

Dimension

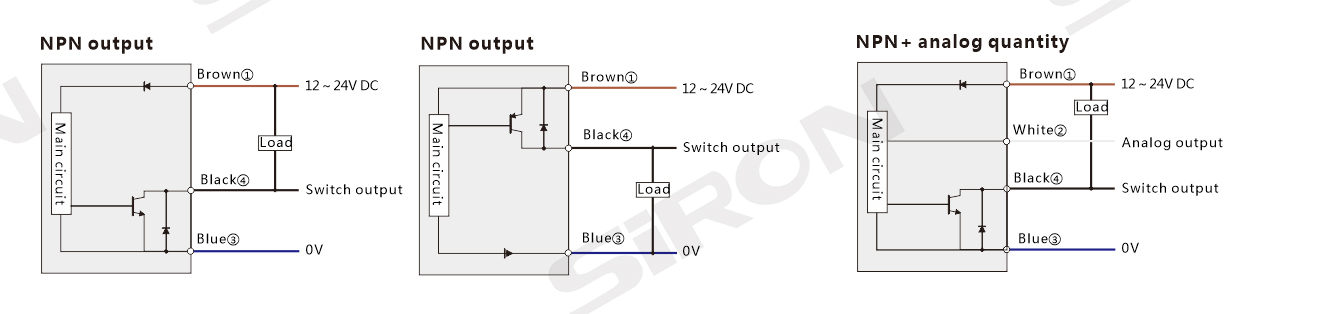

Wiring diagram
