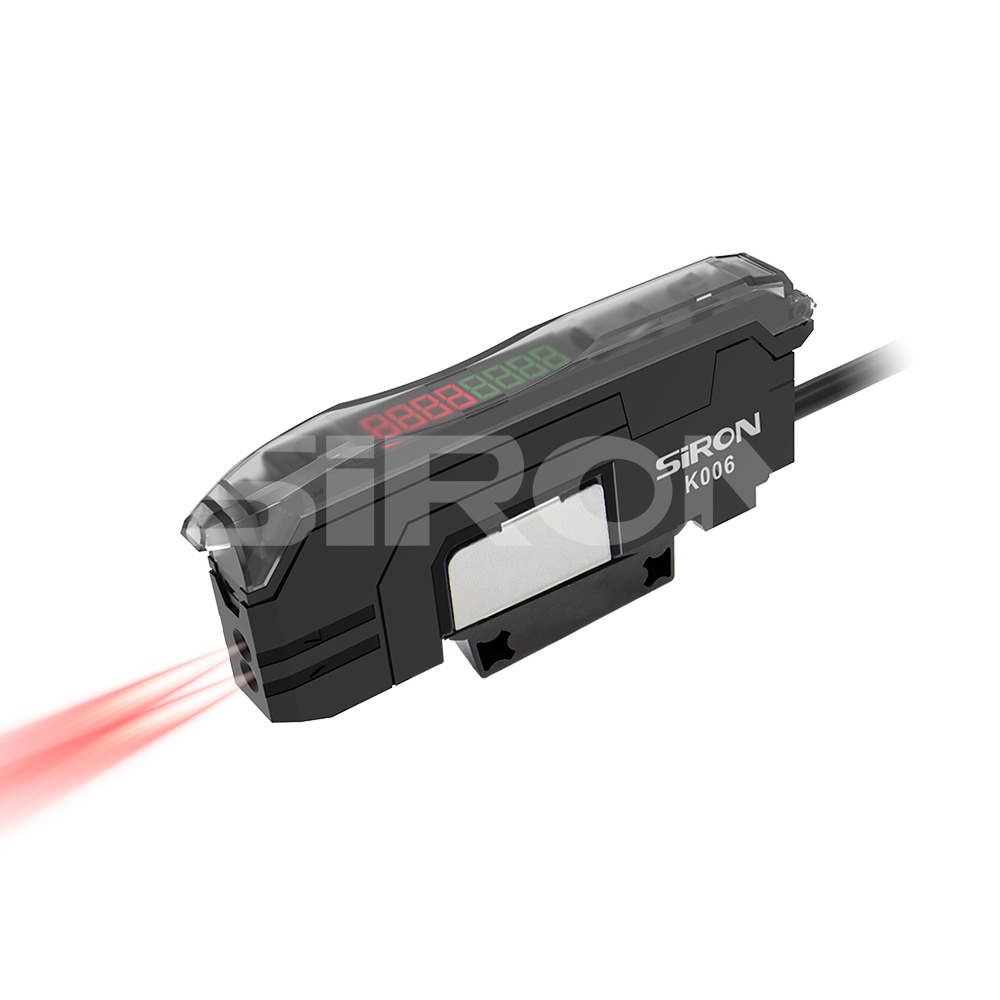

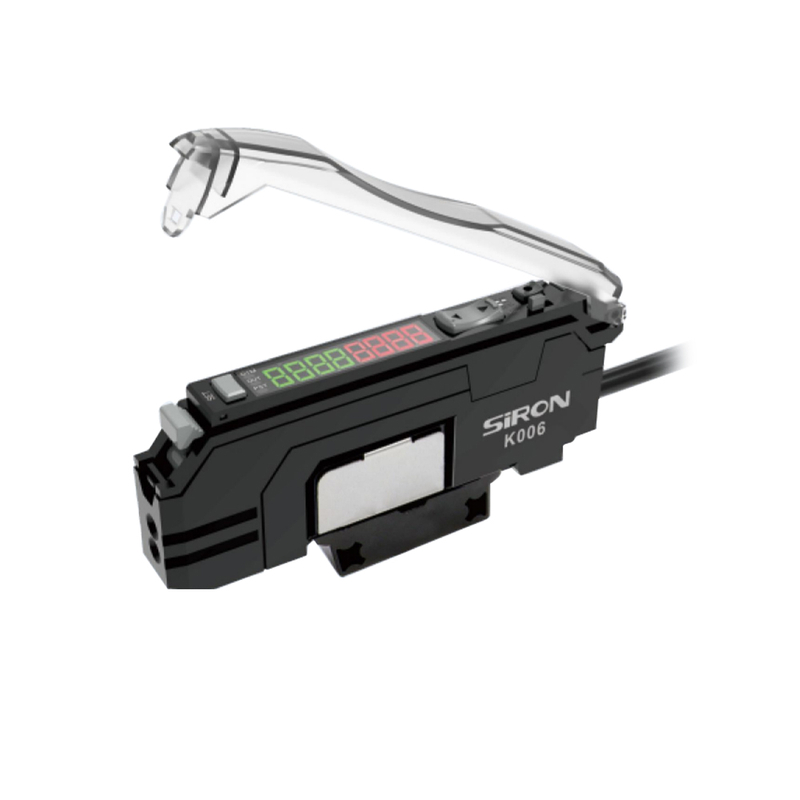

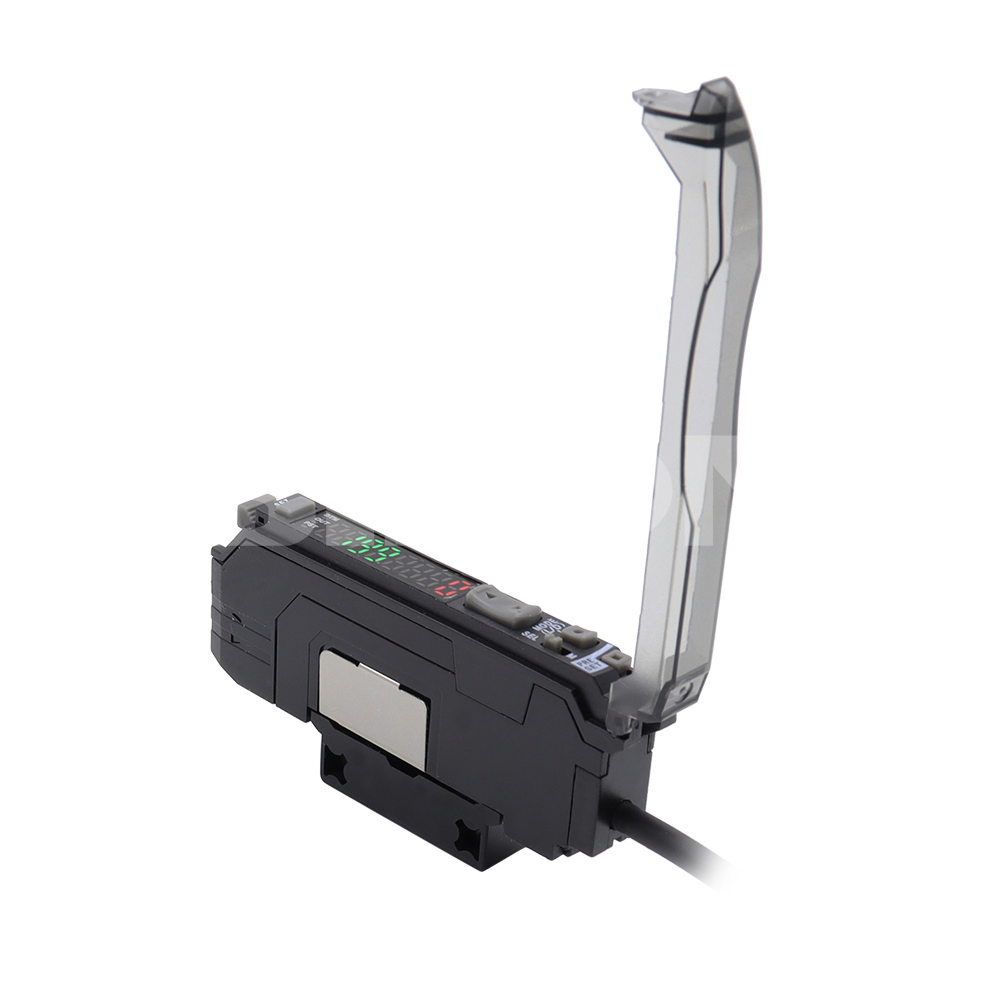

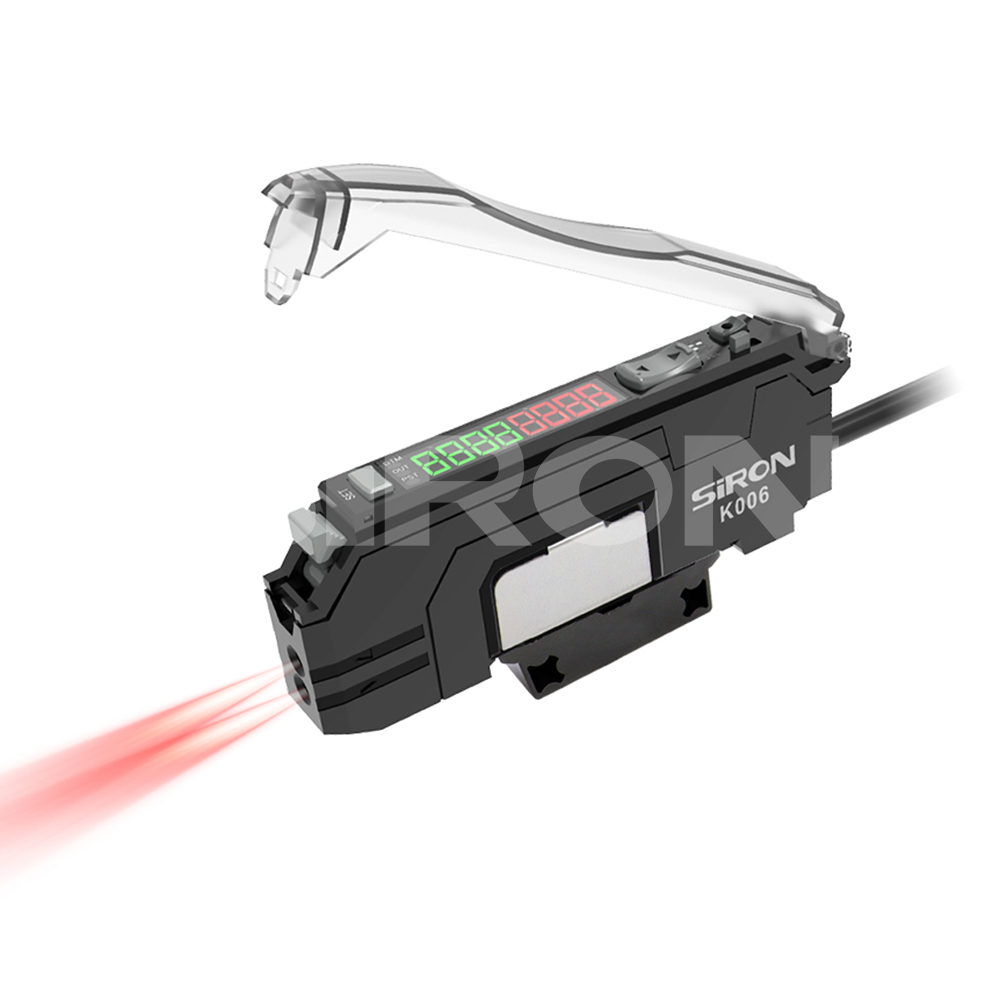

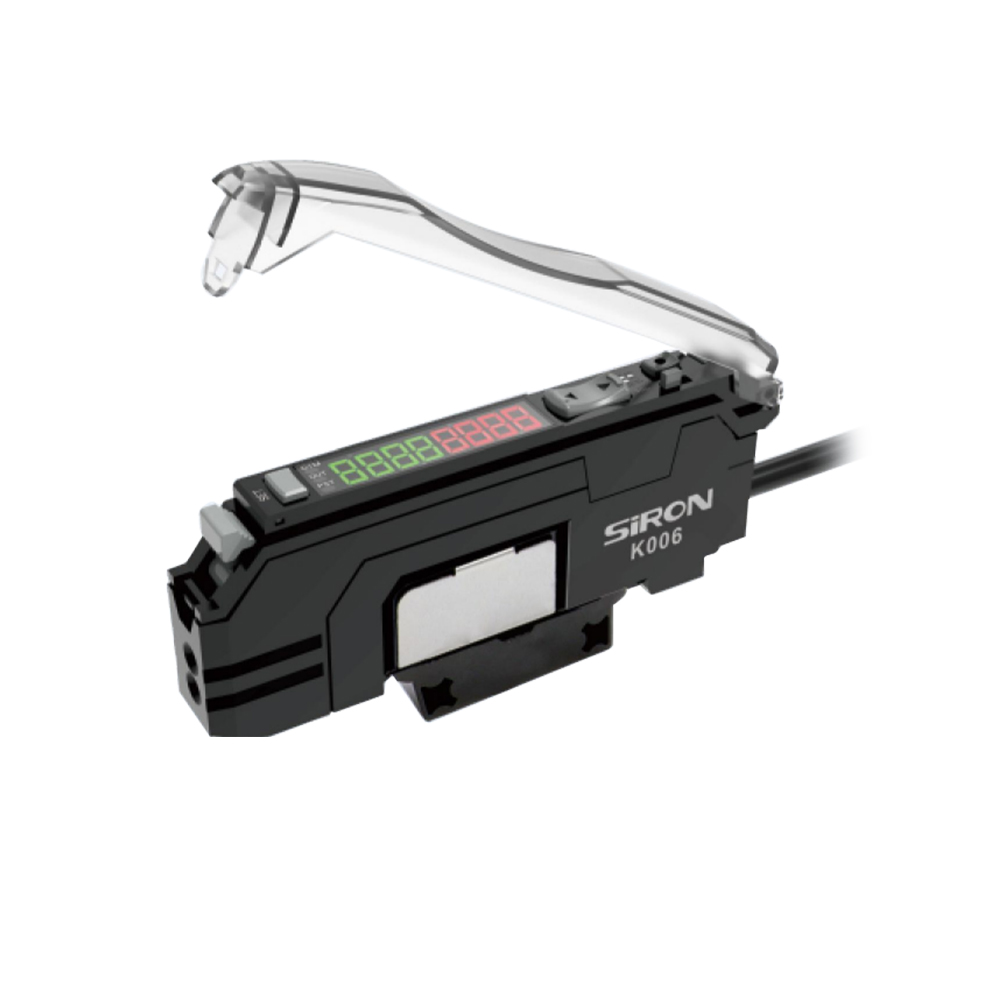

SiRON K006 Series Intelligent Digital Optical Fiber Amplifier

Name: SiRON K006 Series Intelligent Digital Optical Fiber Amplifier
Brand: SiRON
Rating: 5.0 (90 reviews)

Features:

*Flexible choice of four application modes,The fastest response speed of 50us;
*Perfect circuit protection;Counting, zero shift, anti-light interference, delay and other powerful functions.

Quantity:
Availability:





Inquire Add to Basket

Model:
K006 Series
Brand:
SiRON
Code:
8409999990

Optical Fiber Sensor Intelligent Digital Optical Fiber Amplifier stable detection resistance to light interference ultra-high-speed response delayed detection

Product Description

About selection

Selection example: K006 indicates the K006 series, with NPN output;
K006-P indicates the K006 series, with PNP output.

Specifications

Name		Intelligent digital fiber Amplifier
Model	NPN	K006
	PNP	K006-P
Appearance

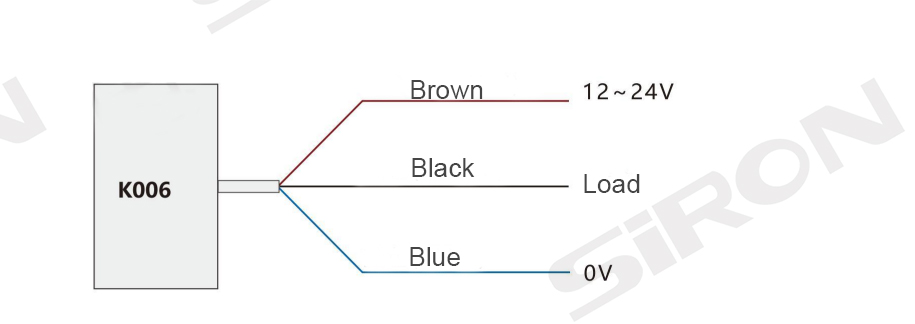

Connection		Cable
Light source		Red light-emitting diode LED tube body
Response time		50μs(HIGH SPEED)/250μs(FINE)/1ms(SUPER)/16ms(MEGA)
Output selection		LIGHT-ON/DARK-ON
Delay function		Disconnect delay timer/Start delay timer/single timer
Controlthe output	NPN	The collector of the NPN is open at 24V. Maximum output: 100mA or less; (Connect multiple sub-modules); Residual voltage 1V or less
	PNP	The collector of PNP is open-circuited at 24V. Maximum output of 1 channel: 100mA. Less: Residual voltage 1V or less
Protection circuit		Reverse circuit protection (power supply), overcurrent protection (output), overcurrent (output)
Power supply valtage		Between 12 and 24VDC±10%, ripple voltage (P-P): maximum 10%
Current consumption	NPN	Normal: Maximum 900 mW(maximum 36mA at 24V; At 12V, the maximum is 48mA. Energy-saving mode: Up to 800mW(up to 32mA at 24V; At 12V, the maximum is 39mA. Note: When using the "high-speed" mode, power consumption will increase by 160mw(7mA).
	PNP	Normal: Maximum 950 mW(at 24V, maximum 39mA; At 12V, the maximum is 52mA. Energy-saving mode: Up to 850 mW(up to 35mA at 24V; At 12V, the maximum is 44mA. Note: When using the "high-speed" mode, power consumption will increase by 160mw(7mA).
Emironmental photometic		Incandescent lamp: Maximum 20,000 lux; Daylight: Maximum 30,000 lux;
Environment temperature		-20 to +55℃(No freezing)
Relative humidity		3 5-85 % R H (No coagulation)
Vibration resistance		10 to 55Hz, with a compound amplitude of 1.5 mm, for 2 hours each in the X, Y, and Z directions
Shock resistance		500m/s², 3 times each in the X, Y and Z directions
Material		polycarbonate

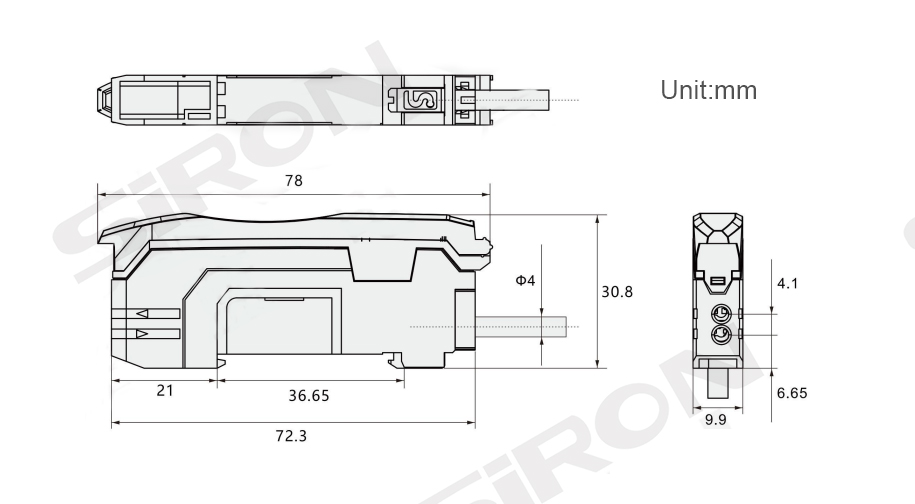

Size		30 . 3mm(hight)X9 .8mm(wide)X71 .8mm(deep)
Weight		About 50g
Cable length		2M
