SiRON K000 Series Fiber Amplifier Ultra-high-speed Response Type

About selection

Selection example: K000 indicates the K000 series, with NPN output；

                                     K000-P indicates the K000 series, PNP output.

Specifications

Name	Ultra high speed responsive dual digital display fiber amplifier
Model	KO00/K000-P

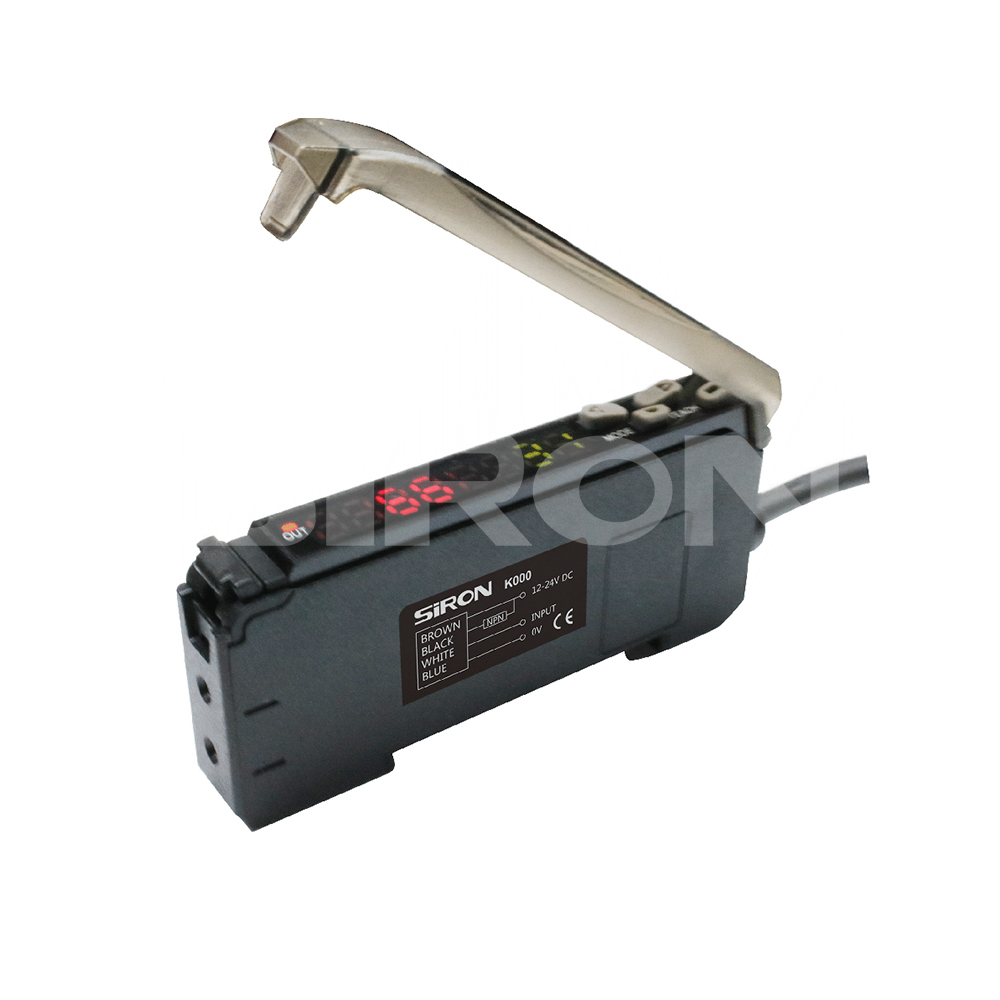

Appearance
light source	Red      LED(660nm)	External input function	Remote teaching,light emission stop input,synchronous trigger inpu
Operating Voltage	12~24V    DC	Operating temperature	-25℃~+55℃
Current consumption	Stander mode:36mA max(Single channel)energy-saving mode 25mA max(Single channel)	Working humidity	35-85%RH
Output mode	Single channel	Ambient luminosity	sunniness≤10000lux,Incandescent lamp irradiation≤3000lux
	≤100mA/30V DC,Load≤100mA,residual voltage≤1.8V Always open(Light entry action)/normally closed(ight-blocking action)mode is optional	Protect the circuit	Overload protection,short-circuit protection
Switch mode	L.on (Light entry action))/D.on(Light-blocking action)can be set	Anti-vibration	10～55Hz double-amplitude 1.5mm,XYZ three directions, 2hours each 50G(500m/S2),
Pilot lamp	Single-channel output indicator light(red)	Impact resistant	XYZ three directions
Display screen	7-section 8-digit digital display (red:4 digits,orange:4 digits)	Protectionlevel	IP50
Response time	15us/22us(1-HS),70us(2-FS),250us(3-ST),500us(4-LG), 1ms(5-PL),2ms(6-UL),8ms(7-EL)	Material	Shell:PPE,Panel:PC
ON/OFF delay function	ON delayed.OFF delayed、Single-pulse output、ON+OFF delayed ON delayed+Single-pulse output 0.1~9999ms	Cable	5-core cable
Detection distance	correlation:4000mm     diffuse     reflection:1200mm	Cablelength	2M
Sensitivity adjustment	Teaching    adjustment/manual    adjustment	Weight	50g

Example

package test                                                                                         Pharmaceutical industry testing

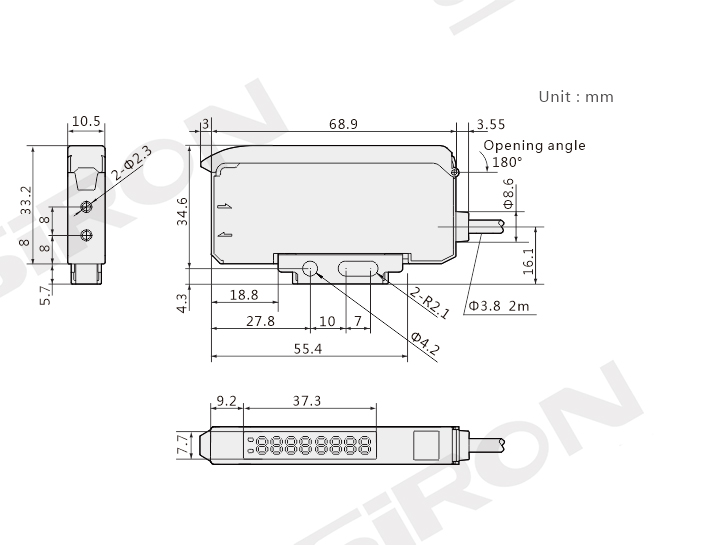

Dimension

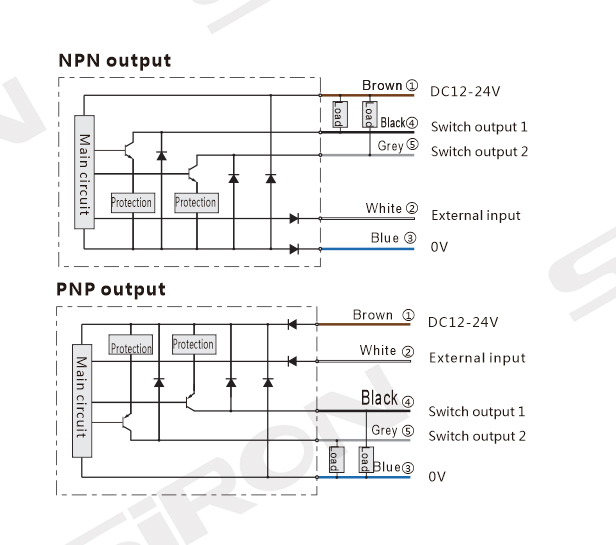

Wiring diagram
