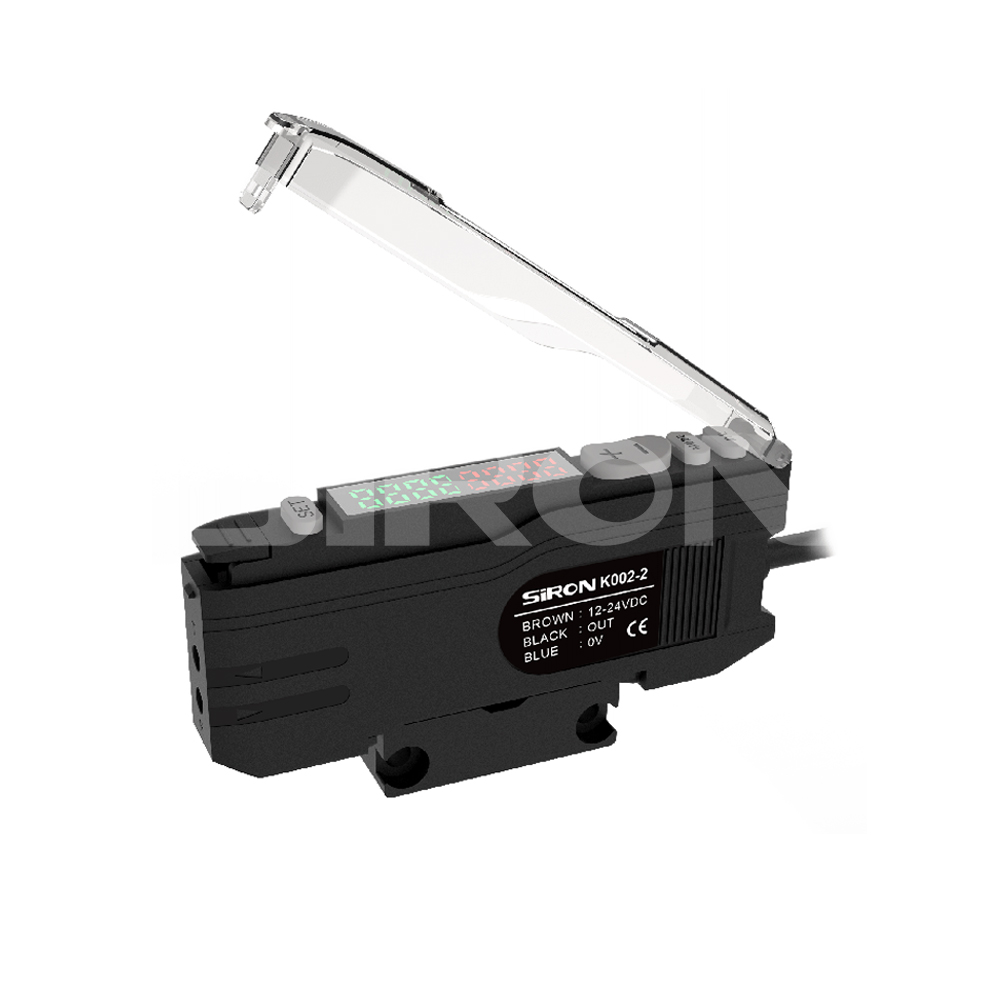

K002-2 series
SiRON
9031900090
About selection
Selection example: K002-2 indicates the K002 series, serial number 2, with NPN output.
K002-2P indicates the K002 series, serial number 2, with PNP ouput；
Specifications
Name | Chinese display fiber amplifier | ||
Model | K002-1 | K002-1P | K002-1V |
Type | N P N Output | P N P Output | NPN Output analog voltage |
Appearance |
| ||
Light source | Red, 4-element light-emitting diode body | ||
Supplyvoltage | DC 12-24V±10%, floating P-P, below 10% | ||
Consumption current | ≤30mA | ||
Detection mode | Diffuse reflection, through-beam (determined by the type of optical fiber component) | ||
Working mode | Standard: Diffuse reflection: 200mm, beam reflection: 700mm; Long-distance: Diffuse reflection: 300mm, beam reflection: 1200mm | ||
Detection output | NPN open-collector output Maximum input current 100mA, Maximum external voltage 30VDC, Residual voltage less than 1V | NPN open-collector output Maximum input current 100mA, Maximum external voltage 30VDC, Residual voltage less than 2V | / |
Analog woltage output | / | 0~5V | |
Output state | Normally open/normally closed can be switched | ||
Delay function | Four output modes are available for selection: normal output/output extension/delayed output/and one-time output. Three adjustable delay times: 1ms to 9999ms | ||
| Reaction time | High speed: less than 80μs; Standard: Less than 500μs; Long distance: less than 3ms | ||
| Display | 0LED screen display | ||
| Protection circuit | Reverse polarity protection for power supply; Output short circuit or overload protection | ||
| Ambient brightness | Incandescent lamp: Maximum 20000lux;White light: Maximum 30000lux | ||
| Vibration resistance | 10 ~ 55Hz, dual amplitude: 1.5mm,X, Y, Z axes each 2 hours | ||
| Ambient temperature | - 25~+55℃,No freeze | ||
| Ambient humidity | Operating condition: 35%~85% RH; Storage condition: 35%~95% RH, no condensation | ||
| Protection circuits | Reverse polarity protection/surge protection/short circuit protection | ||
| Degree of protecion | IP64 | ||
| Connection | Wire lead-out type (3 cores, standard wire length 2 meters) | ||
| Housing material | ABS | ||
| Vibration resistant | 10 to 55Hz, dual amplitude 1.0mm, 30 minutes in each of the X/Y/Z directions | ||
| Impact-resistant | 300m/S², three times each in the X, Y and Z directions | ||
Example

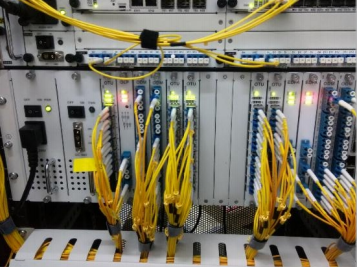

Inspection on the production line Communication application

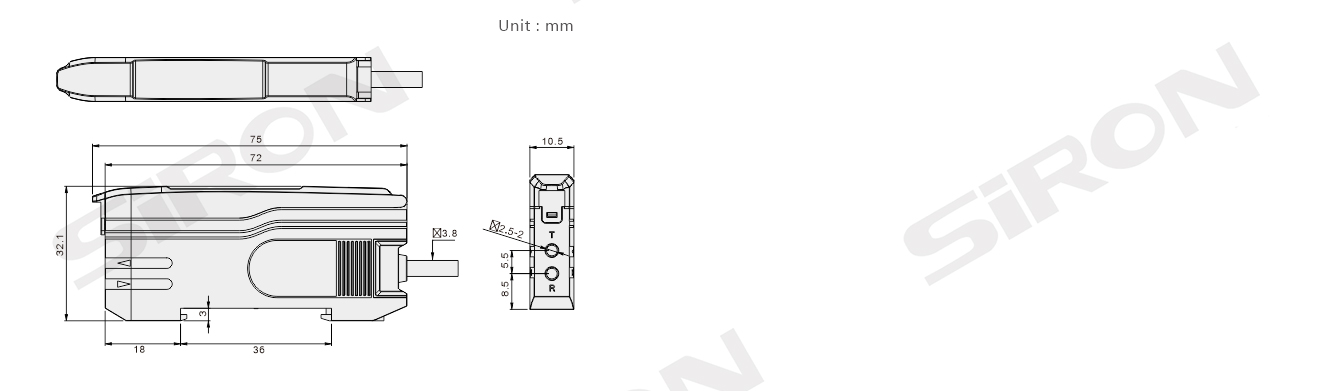

Dimension
Wiring diagram
