SiRON K003 Series Fiber Optic Sensor Double Digital Display

About selection

Selection example: K003 indicates the K003 series, with NPN output.

                                      K003-P indicates the K003 series, PNP output.

Specifications

Name	New dual digital display fiber optic sensor
Model	K003/K003-P

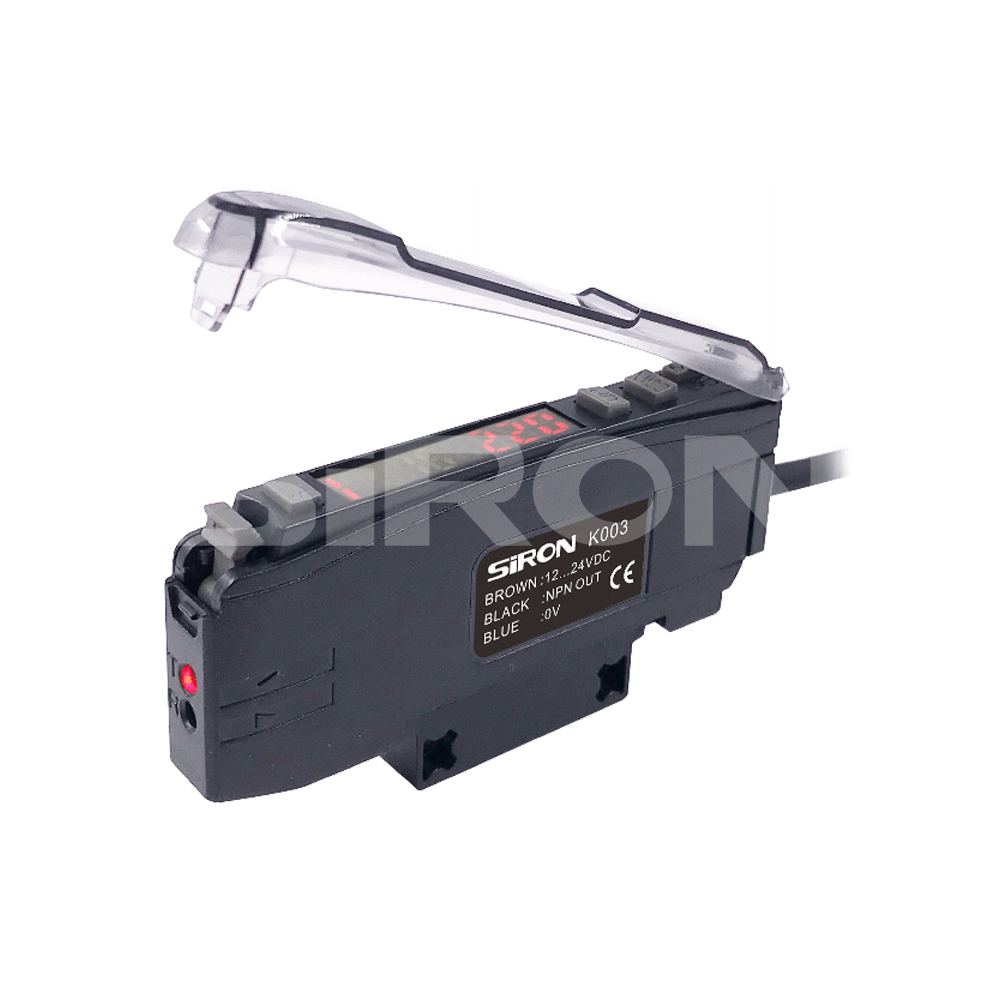

Appearance
Control output	One output port
light source	Red 4-element light-emitting diode (LED) chip
Reacion time	SHSP:13μs FINE:30 μs,SUPR:100μs TERA:200 μs
Output selecion	LIGHT - ON/DARK - ON(Briefly press MODE and then select with UP and DOWN)
Display indicator	Operating indicator light: Red LED, dual digital monitor: Dual 7-digit display, threshold (4-digit green LED body indicator) It lights up together with the current value (a 4-digit red LED body indicator). Current value range: 0-9999
Detection method	Light intensity (area detection is available, and automatic sensitive tracking function can be provided
Delay function	1ms~9999ms
Control output	Open collector of NPN/PNP, maximum 100mA, residual voltage: 1V
Power supply	12~24VDC±10%
Work envinonment brightness	incandescent light bulb≤20000lux,sunlight≤30000Lux
Power consumption	Standard mode：Max 300mW
Vibration resistance	10-55Hz, dual amplitude; 1.5mm,X, Y, and Z axes each have 2 hours
Ambient temperature	- 10℃~+55℃,No freeze
Cable length	2M

Example

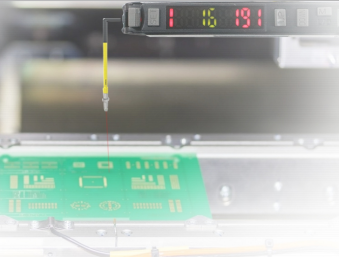

Testing of IC cards                                                                              Detect small components passing through at high speed

Dimension

Wiring diagram
