SiRON K003-1 Series Fiber Amplifier Sensor 5 Speed Adjustable Response IP50

About selection

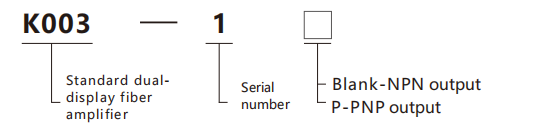

Selection example: K003- indicates K003-1 series, NPN output.

Note: K003-1P is under development.

Specifications

Name	Standard dual-display fiber amplifer
Model	K003-1	K003-1P(In development)

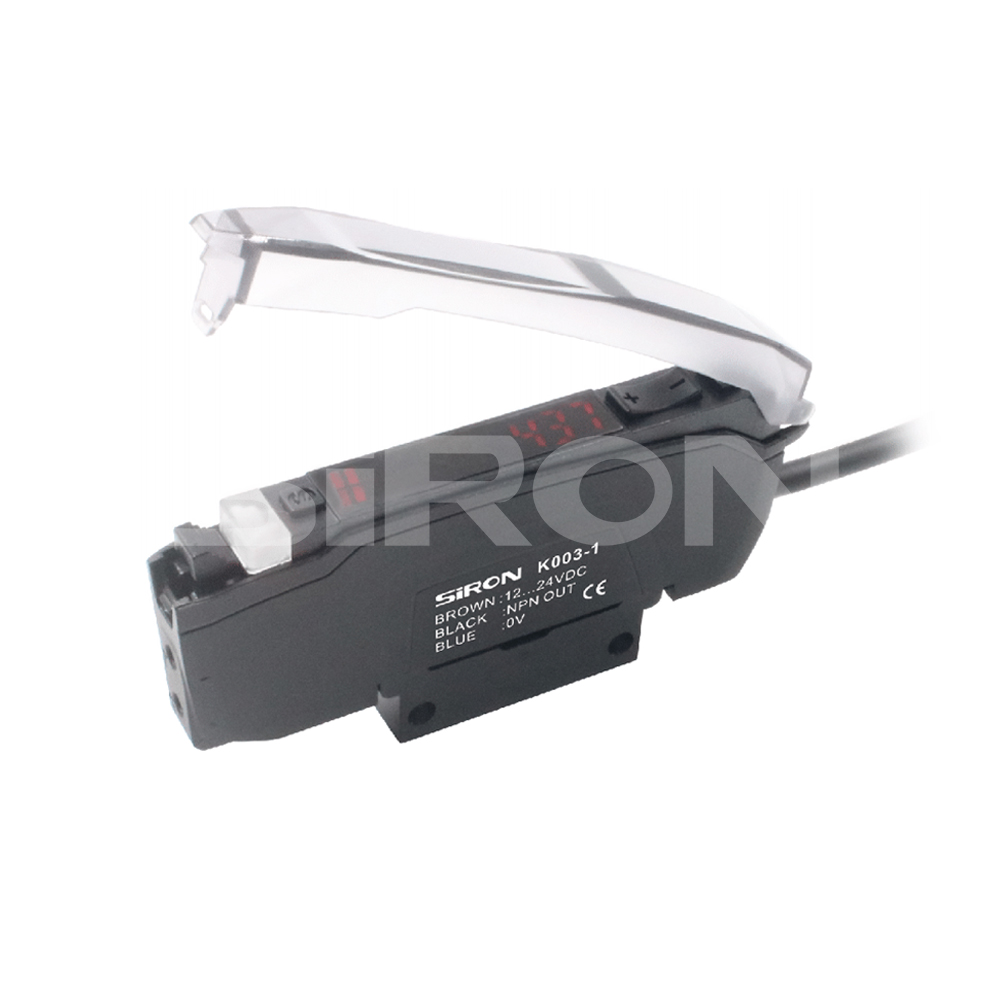

Appearance
Output mode	NPN open collector	PNP open collector
luminant	Red light modulated light 630nm
Operating voltage	12~24V      DC±10%
Working qurment	<40mA
Swiching mode	Lon(light-entering action /D.on(light-blocking action) can be switched
Dispiay screen	7-section 8-digit digital display (red: 4 digits; Green: 4 digits
Response time	160μs(1-HS)/320μs(2-FS)/960μs(3-ST)/1.92ms(4-LG)/3.84ms(5-PL)
Computer function	Timer off, disconnect delay, start delay, single (output delay mode)
Sensitivity regula fion	Teaching adjustment, manual adjustment
Practical funcfion	Background elimination, one-click teaching, two-point teaching, parameter initialization
Retumrange	≤20%SN
Pilot lamp	Work indicator light: Green; Action indicator light: Red
Residual voltage	<1 . 5V(load current <100mA)
Maximumload aumrent	100mA
Protection circuit	Power reverse polarity protection/surge protection/short circuit protection
Ambient temperature	Operating temperature: -10 to +55℃, no freezing. Storage temperature: -30 to +70℃
Ambient humidity	When in operation: 35% to 85%RH without condensation. Storage: 35% to 95%RH
Insulation	The insulation resistance value between all terminal blocks and the housing is greater than 20MΩ at DC500V
Withstand voltage	±1000V    50/60Hz    60s
Sta fic electicity	±8000V(air discharge)
Grouppulse	±2000V(5kHZ/50kHZ)
Vibration resistance	10~50Hz,double-amplitude 1 . 5mm,X、Y、Z Each of the three directions takes 2 hours
Ambient ilumination	incandescent light bulb ：under 3000lux；sunlight ：under  10000lux
Class of protection	IP50
Shell	PC
Cable	3-core cable 4 m m Diameter
Cable length	2M

Example

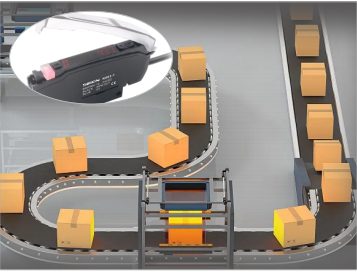

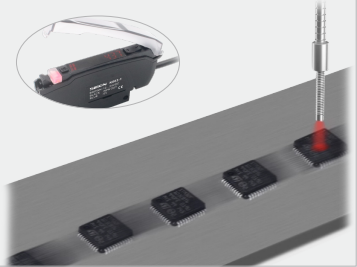

Detection of the quantity of products                                         Detect small components passing

 on the conveyor belt                                                                       through at high speed

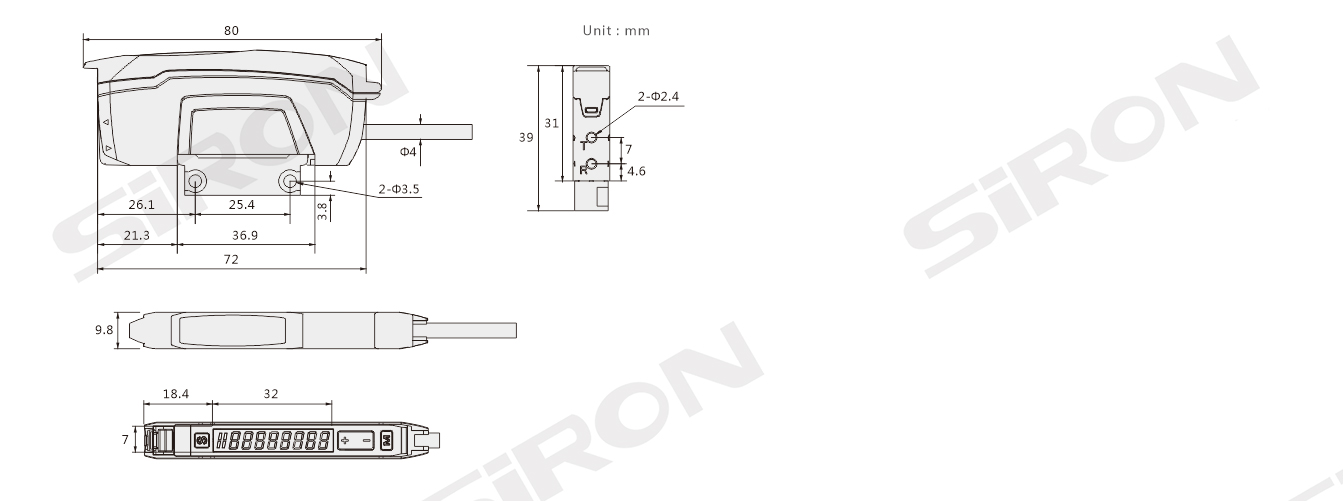

Dimension

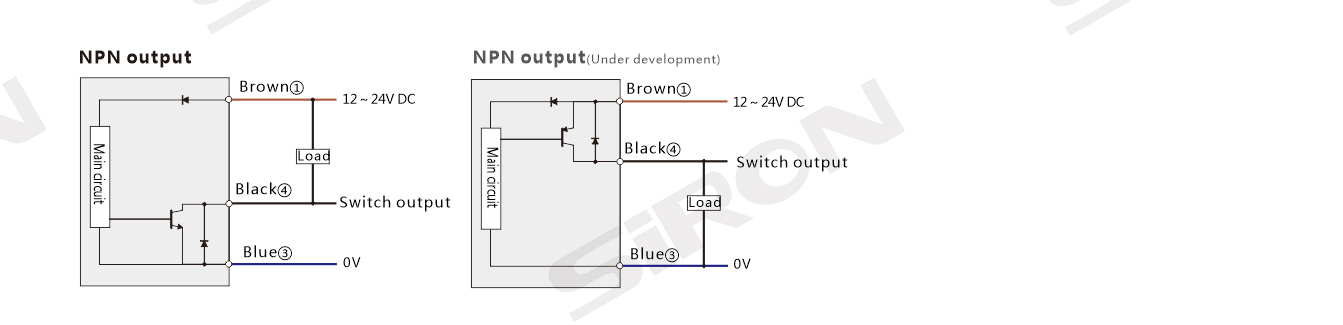

Wiring diagram
