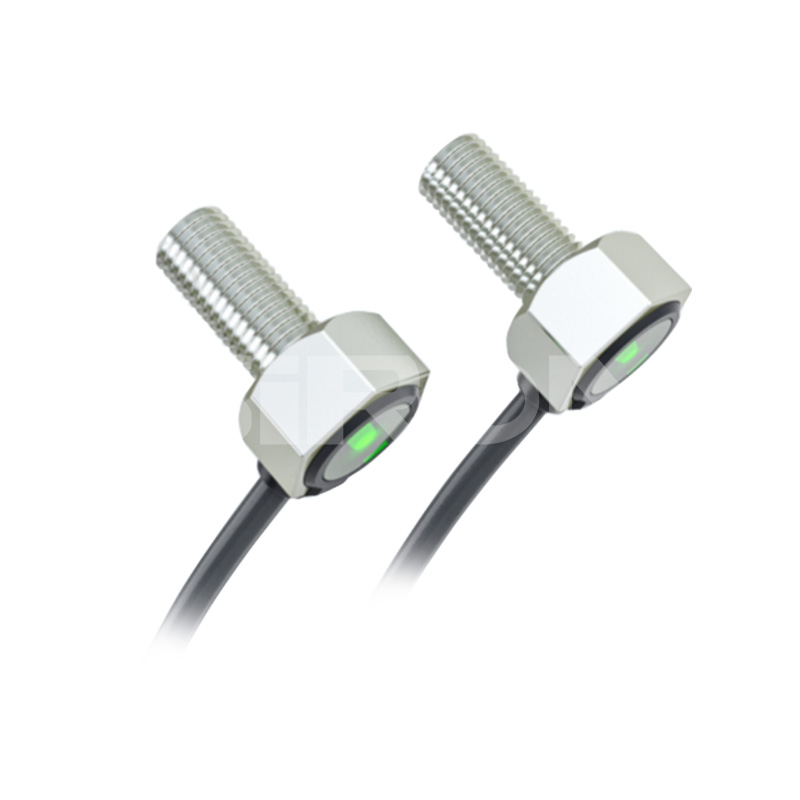

SiRON K009-19 Series Small Laser Beam

Name: SiRON K009-19 Series Small Laser Beam
Brand: SiRON
Rating: 5.0 (93 reviews)

Features:

* 90° right-angle installation, simple, quick and space-saving installation; Normally open and normally closed can be interchanged.
* Laser small spot light source, capable of detecting opaque objects over 1mm. The built-in amplifier type and the chip independent control type are suitable for different application requirements.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K009-19 series
Brand:
SiRON
Code:
8409999990

Small laser beam four-wire type Super small Sensor head Overvoltage protection IP67

Product Description

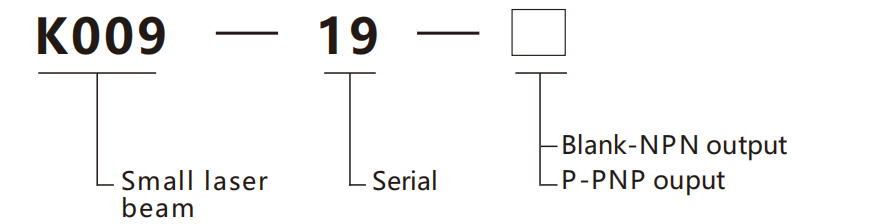

About selection

Example of selection: K009-19 indicates K009 series, serial number 19, NPN output;

K009-19P indicates K009 series, serial number 19, PNP output.

Specifications

Small laser beam
Model	NPN	K009-19
	PNP	K009-19P
Appearance
Types of		Through-beam type
Detection distance		1m
Standard detectable substance		Opaque objects with a minimum diameter of 1mm
Smallest detectable substance		Opaque objects with a minimum diameter of 0.5mm
Reaction time		Maximum 1ms
Controloutput		NPN maximum 100mA(maximum 40V) Residual voltage: maximum 1V
Light source		Red laser 655nm
Protect the circuit		Reverse current protection, overcurrent protection, overvoltage protection
Power supply		12~24VDC±10%
Current consumption		Maximum 30mA
Protecion level		P67
Ambient luminosity		Incandescent lamp: ≤3,000lux, sunlight: ≤10,000lux
Ambient temperature		-20~+55℃,No freezing
Environment humidity		35~+85%,No condensation
Shell material		Nickel plated brass
Cable length		2M
Weight		About 5g
