K009-A series
SiRON
8409999990
Specifications
Name | Small spot mediumlong distance lens | Small spot short distance lens | Parallel beam lens | Small spot side view lens | Long-distance micro-spot lens | ||
Model | K009-14 | K009-15 | K009-A1 | K009-A2 | K009-A3 | K009-A4 | |
Appearance |   |  |  |  |  |  | |
Caliber | φ7.4 | φ10.6 | φ4.3 | φ4.3 | φ3.7 | φ6.0 | |
Detection distance | 15±2mm | 35±3mm | 7±2mm | 0~20mm | 8～30mm | <33mm | |
Small spot | Φ0.5mm | φ0.2mm | Φ0.1～0.4mm | φ4mm | φ0.5～3mm | / | |
Ambient temperature | -40～+300℃ | -40～+70℃ | -40～+300℃ | -40～+300℃ | -40～+100℃ | / | |
Suitable for fiber head diameter | M3 | M3 | M3 | M3 | M3 | M3 | |
The lens material | Glass | Acrylic | Glass | Glass | Glass | Glass | |
Shell material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | |
Name | Side viewlens | Long detection distance lens | Small spot long distance lens | Long distance lens | Side view lens with mounting hole | |
Model | K009-A5 | K009-A6 | K009-A7 | K009-A8 | K009-A10 | K009-A11 |
Appearance |  |  |  |  |  |  |
Caliber | φ4 | φ4 | φ4.3 | φ10.6 | φ11 | φ3.1 |
Detection distance | 1800mm | 3600mm | 3600mm | 50±2mm | 55±10mm | 3600mm |
Small spot | / | / | / | φ3.0mm | / | / |
Ambient temperature | -40～+300℃ | -40～+300℃ | -40～+300℃ | -40～+70℃ | / | -40～+300℃ |
Suitable for fiber head diameter | M4 | M4 | M4 | M4 | M6 | M4 |
The lens material | Glass | Glass | Glass | Glass | Glass | Glass |
Shell material | Nickel plated brass | Nickel plated brass | Aluminum | Aluminum | Aluminum | Aluminum |

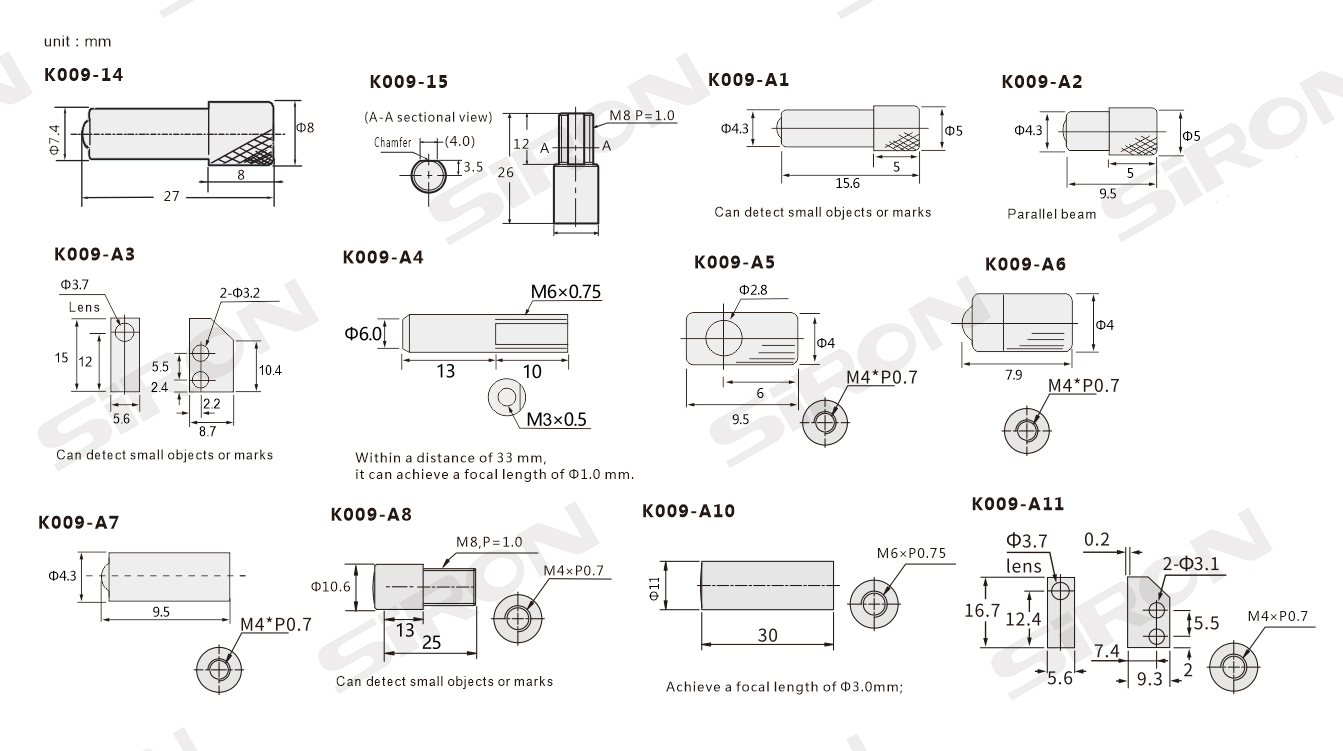

Dimension
