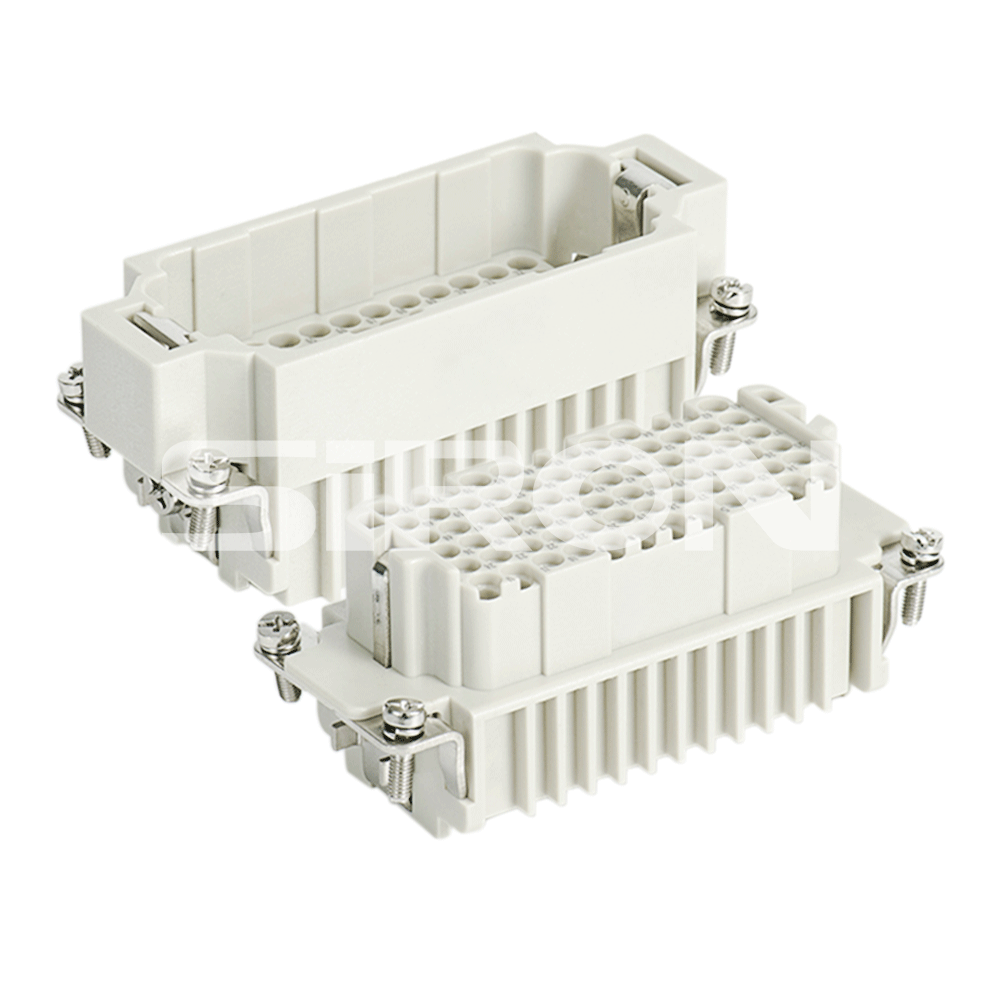

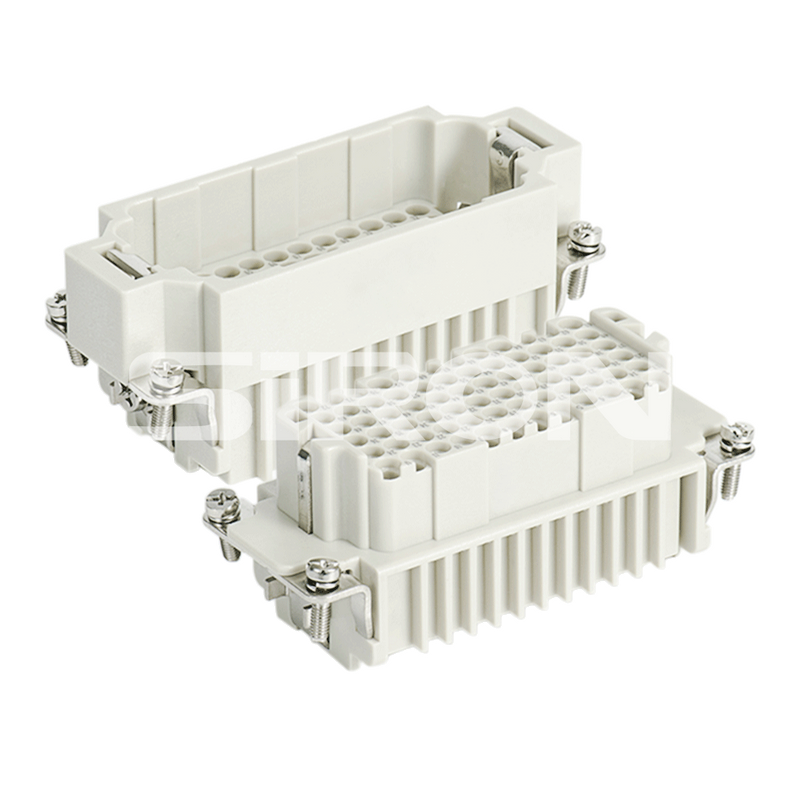

X902/X937
SiRON
8538900000
About selection
Plug the needle
| Material | Cuprum | Connection form | Cold pressing and crimping |
| Surface treatment | Silver plating/gold plating | Working current | 10A |
| Contact resistance | ≤3mΩ | Moment of screw tightening | 0.25Nm(3core/4core)0.5Nm(10core/16core) |

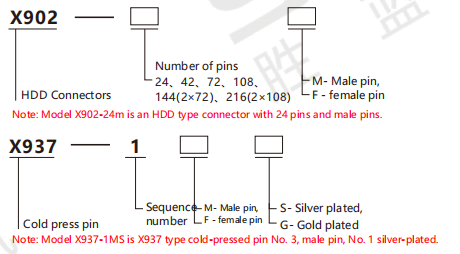

Crimp needle
| Crimp needle | Model(male) | Model (female) | Wire gauge | D | Stripping length | |
| X937-1M | X937-1F | 0.14-0.37mm² | AWG 26-22 | 0.9 | 8mm |
| X937-2M | X937-2F | 0.5mm² | AWG 20 | 1.1 | 8mm | |
| X937-3M | X937-3F | 0.75mm² | AWG 18 | 1.3 | 8mm | |
| X937-4M | X937-4F | 1.0mm² | AWG 18 | 1.45 | 8mm | |
| X937-5M | X937-5F | 1.5mm² | AWG 16 | 1.75 | 8mm | |
| X937-6M | X937-6F | 2.5mm² | AWG 14 | 2.25 | 6mm | |
10 pcs/ pack
Note: The cold-pressing needle needs to be ordered separately. For silver-plated models, add 'S'; for gold-plated models, add 'G'.
Type selection reference

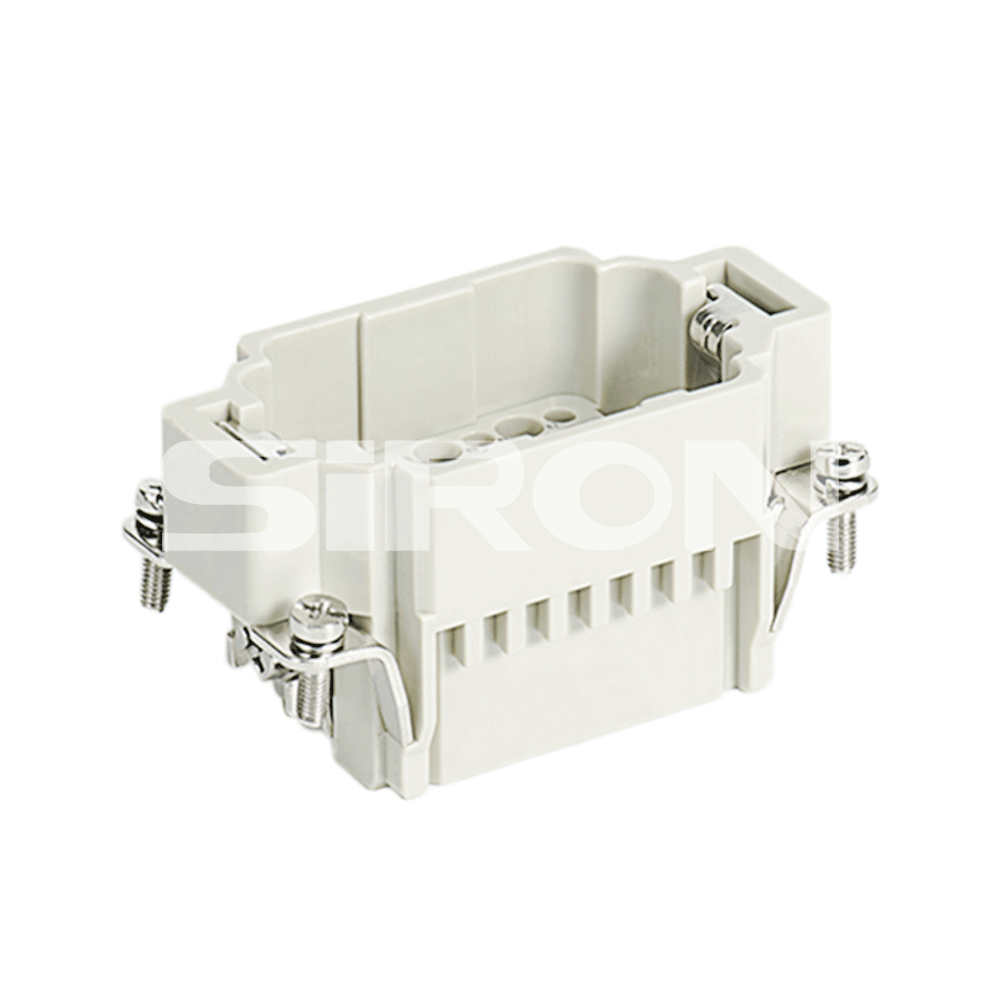

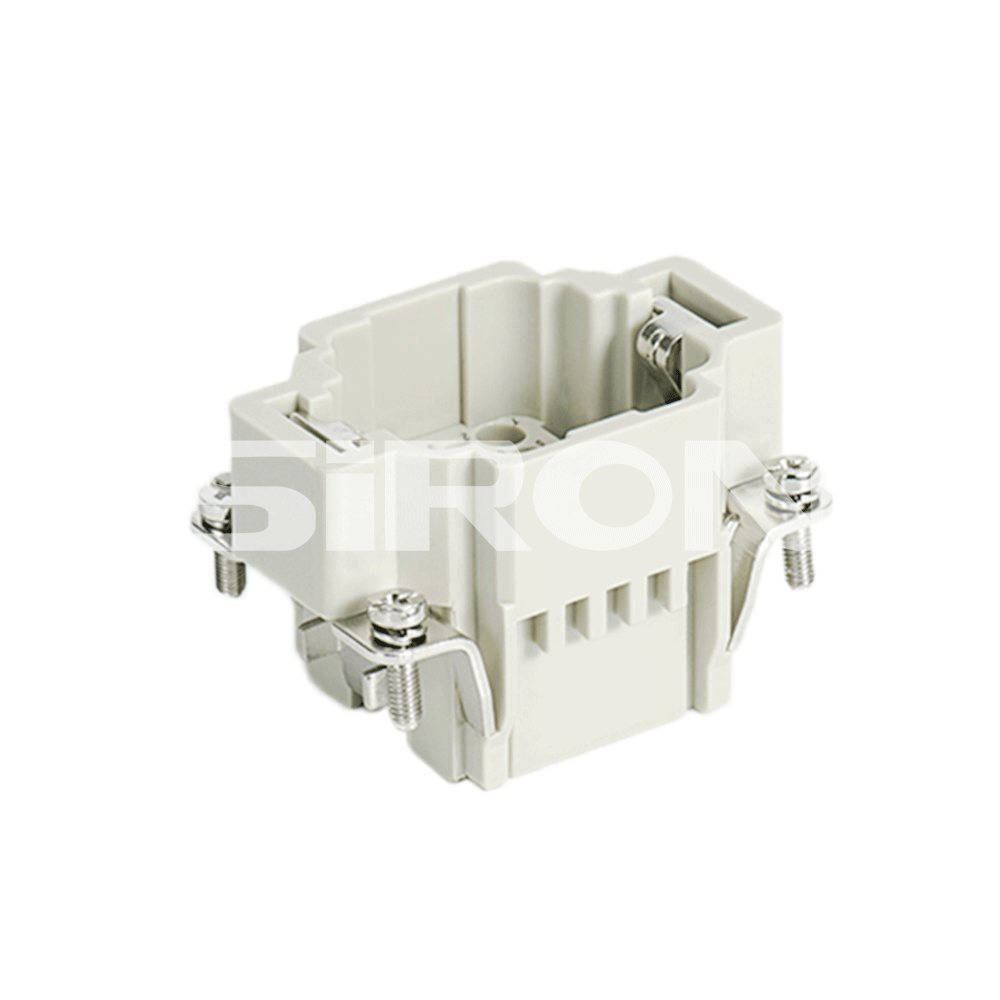

Model | Pin(Male insert) | X902-24M | X902-42M | X902-72M | X902-108M | X902-144M | X902-216M |
| Jack(Female insert) | X902-24F | X902-42F | X902-72F | X902-108F | X902-144F | X902-216F | |
| Appearance |  | ||||||
| Connector core number | 24 | 42 | 72 | 108 | 144(2×72) | 216(2×108) | |
| Working current | 10A | ||||||
| Working voltage | 250V | ||||||
| Apply lid(Upper cover) | X 9 3 0 series ▶P.031 | X 9 3 1 series ▶P.031 | X 9 3 2 series ▶P.031 | X 9 3 3 series ▶P.031 | X 9 3 4 series ▶P.031 | X 9 3 5 series P.031 | |
| Apply the base(lower cover) | |||||||
| Rated impulse voltage | 4KV | ||||||
| Pollution degree | 3,When the pollution leve= 2(10A 230/400V 4KV 2) | ||||||
| Insulation resistance | ≥10⊃1;Ω | ||||||
| Fammability ac.to(UL94) | VO | ||||||
| Limiting temperatures | -40℃~+125℃ | ||||||
| Mechanical working life | ≥500 | ||||||
| Working voltage acc.to UL/CSA | 600V | ||||||
