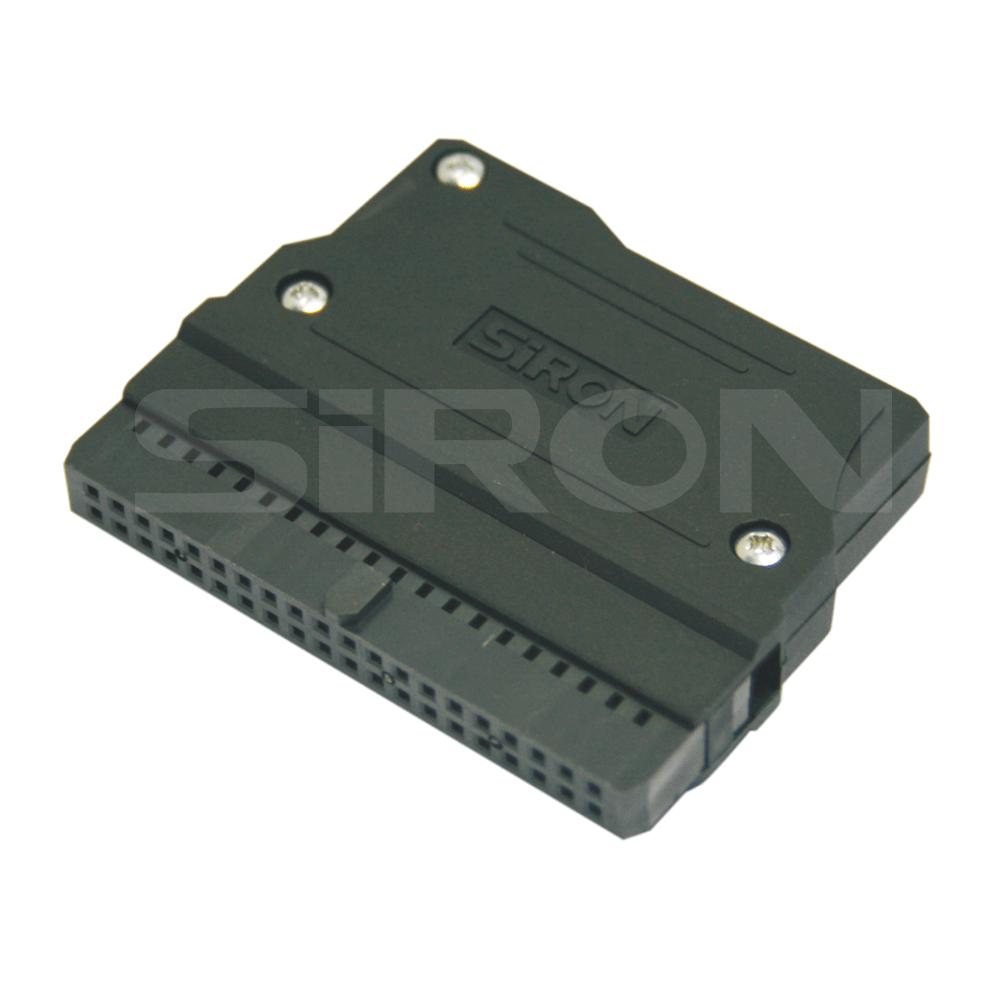

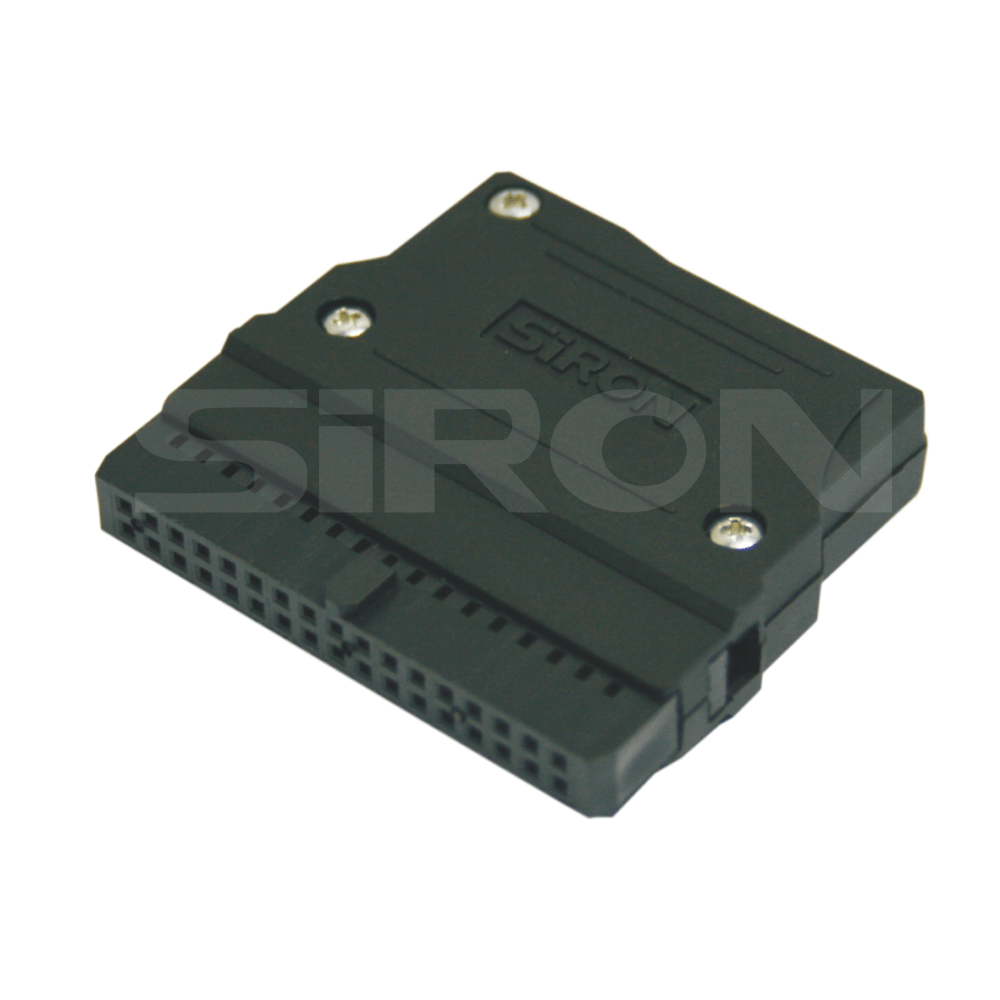

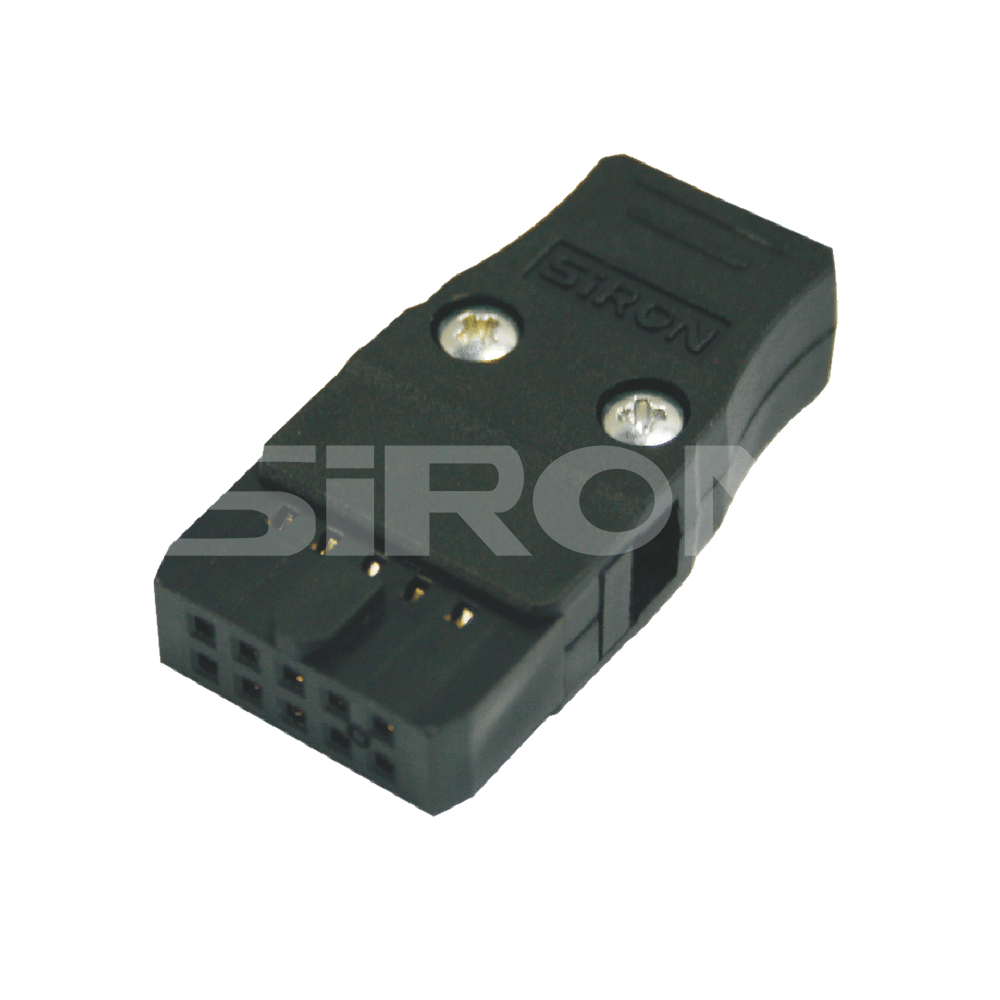

SiRON X800 Series Protecting MIL Connector

Name: SiRON X800 Series Protecting MIL Connector
Brand: SiRON
Rating: 5.0 (96 reviews)

Features

With black plastic shell of overall harmonious and beautiful color;
The protecting cover is fixed with M2 screws to ensure crimping force to cables;
Clamping lockout mechanism between the plug and the socket ensures tight contact even in vibration;
Environmental Protection Class meeting European and US standards,fireproofing grade of UL94V-0.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
X800/X801/X802
Brand:
SiRON
Code:
8504401400

X800 Protecting MIL Connector X801 Plug X802 Socket

Product Description

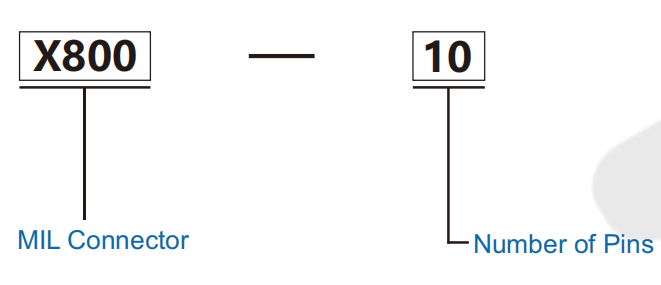

Order

重载1

Product Attributes

Model

X800

X801

X802

Name

Protecting Cover

Plug

Socket

Pins

10

20

34

40

10

20

34

40

10

20

34

40

Material

PA66、UL94HB

Black Glass Filled Polyester

Inflammability

UL94V-0

Color

Black

Fixing Material

S450 surface nickel plated

一

Fixing Screw

M2x6

一

Contact Mateial Copper Alloy

Fixing Nut

M2 Nut

一

Contact Head Joint Means

一

Pin Type

Substrate Welded Type

Suitable Cable

一

AWG24-28(used with pin)

一

ContactArea Electroplated

一

Contact processed with gilided terminal pin machine

Contact Resistance

一

15mQmin

Other

一

Rating Current&Insulation Resistance&Rating Temperature
2ADC/5000MΩ/500VAC 1min/- 55℃至+85℃

The various parts of connectors are sold separately. Please order them separately according to the model; The sizes and features vary depending on the manufacturer. Please confirm the sizes and features
