SiRON T330-N Functional module IP20 Plug-in Remote I/O Module

Name: SiRON T330-N Functional module IP20 Plug-in Remote I/O Module
Brand: SiRON
Rating: 5.0 (20 reviews)

Feature

* Supports AB orthogonal encoding, pulse + direction, single-phase counting, SSI encoder, etc. as input;
* Supports 422 level input and OC input;

* Each counting channel can be set with filtering, and supports electronic probe and position comparison outpu

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T330-N
Brand:
SiRON
Code:
8517623990

IP20 expansion module 4 channels counting input 2 channels counting input

Product Description

About selection

Selection example: T330-N3 represents the bladed I/O module series, with 2-channel counting input, supporting incremental encoders, pulse direction counting, SSI encoders, and Tama River encoders.

functional Characteristics

Code	Function
1	2-channel counting input,supporting incremental encoders,pulse direction counting,and SSl encoder
2*	4-channel counting input,4-channel position comparison output,and support for encoders

Specifications

Power supply parameters
Usys bus input power supply rated woltage	5V DC+20%115%(4.25V DC~6V DC)
Usys bus input power supply rated curent	<50mA(5VDC Time-typical value)
Terminal output power supply rated woltage	5V DC
Module anti-power failure difusion	support

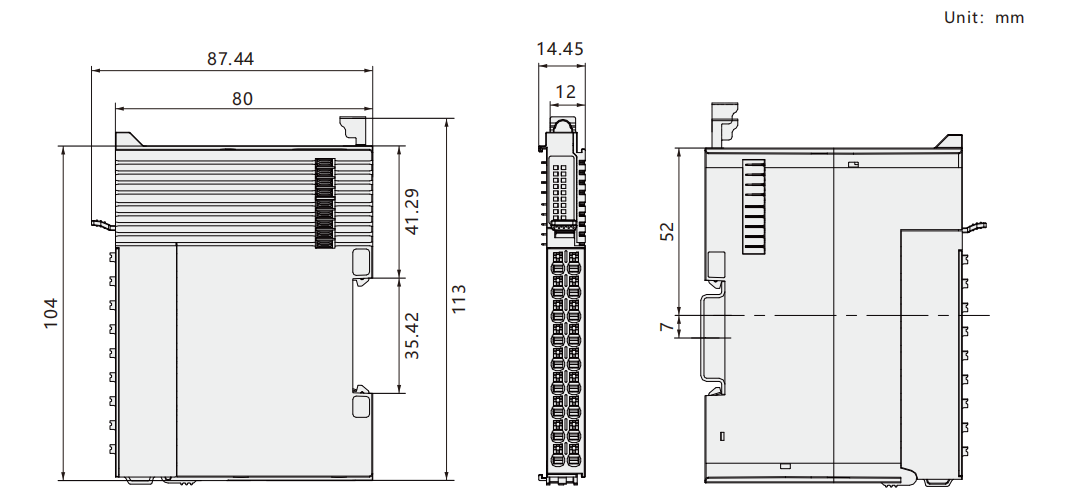

Connection parameters
Connection technology	PUSH-IN terminal blocks
Connection type	System/On-site power supply/input
Conductor cnmping area	26~16AWG/0.2~1.5mm²
Strip length	10mm
Installation method	DIN-35 din rail
Shell material	PC

Environmental conditions
Allowable ambient temperature(during operation)	-40~75℃
Alowable ambient temperature(for storage)	-40~85℃
Protection type	IP20
Pollution grade	2
Operating altitude	0~2000m
Relative humidity(without condensation)	5~95%RH

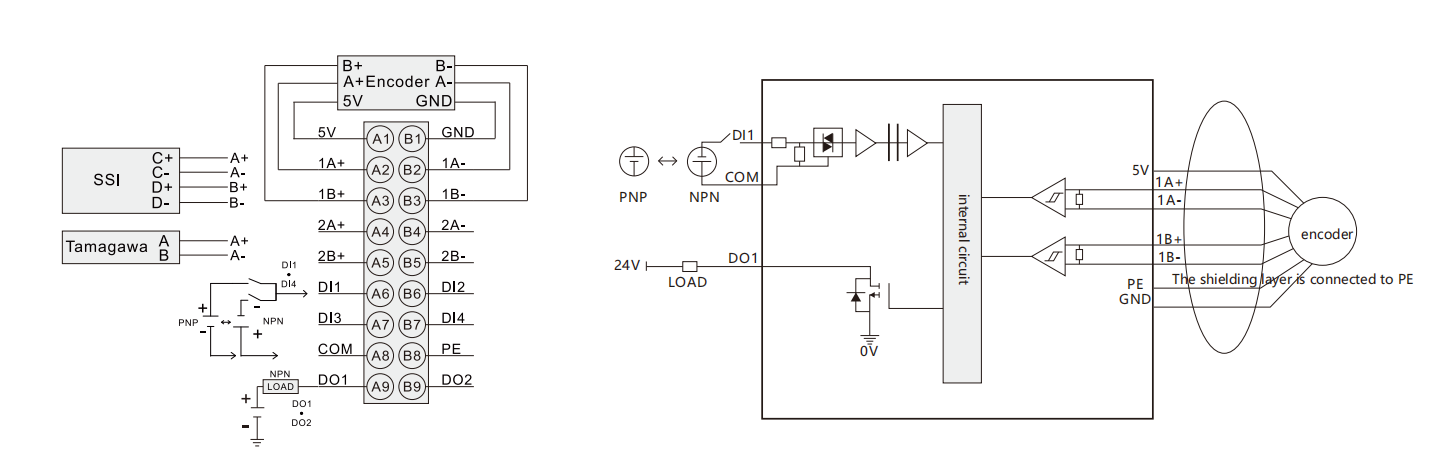

Function module parameters

Functional module
Module type	Counter input (single-phase pulse plus direction, A phase,B phase,AB phase,SSI)	Counting range	32 position
Input method	differential input	Frequency measurement range	0.04HZ~4Mhz
Number of channels	2	Counting accuracy	100ppm
Differentialinput voltagelevel	RS422 level (Logic O<200mA;Logic 1>200 mA)	Isolation	yes
Maximum input frequency	4Mhz	nput action display	When the input is in the driving state,the inputindicator lightis on hardware-controlled
Single-ended input type	Digital input	Output type	Digital output
Input method	single-ended input,NPN/PNP	Output mode	NPN
Input channel	4(The counting channel is 2 channels,with each channel being an AB phase)	Output channel	2
Frequency measurement range	0.04Hz~500kHz	Output voltage level	24V DC+20%115%(20.4V DC~28.8V DC
Input voltage level	24V DC+20%1-15%(20.4V DC~28.8V DC)	Output boad(resistance load)	0.5A point,1A/module
nput current(typical)	50mA(Typical value of 24V)	Output load(inductance load)	7.2W/point,1A/module
ON voltage	>15VDC	Output boad (light load)	5W/point,10W/module
OFF voltage	<5V DC	Output action display	When the output is in the driving state, the input indicator light is on(hardware-controlled)
lsolation status	Yes	Data size	72 Byte
Input action display	When the input is in the driving state,the input indicator light is on(hardware-controlled)	Error diagnosis	Communication diagnosis,configuration parameter diagnosis
Communication fault count status mode	Maintain the current count value,reset the count value,and continue counting	Communication fault output status mode	Tum off the output,enable the output, and keep the current output
I0 mapping	Supports bit,byte and word mapping modes.
