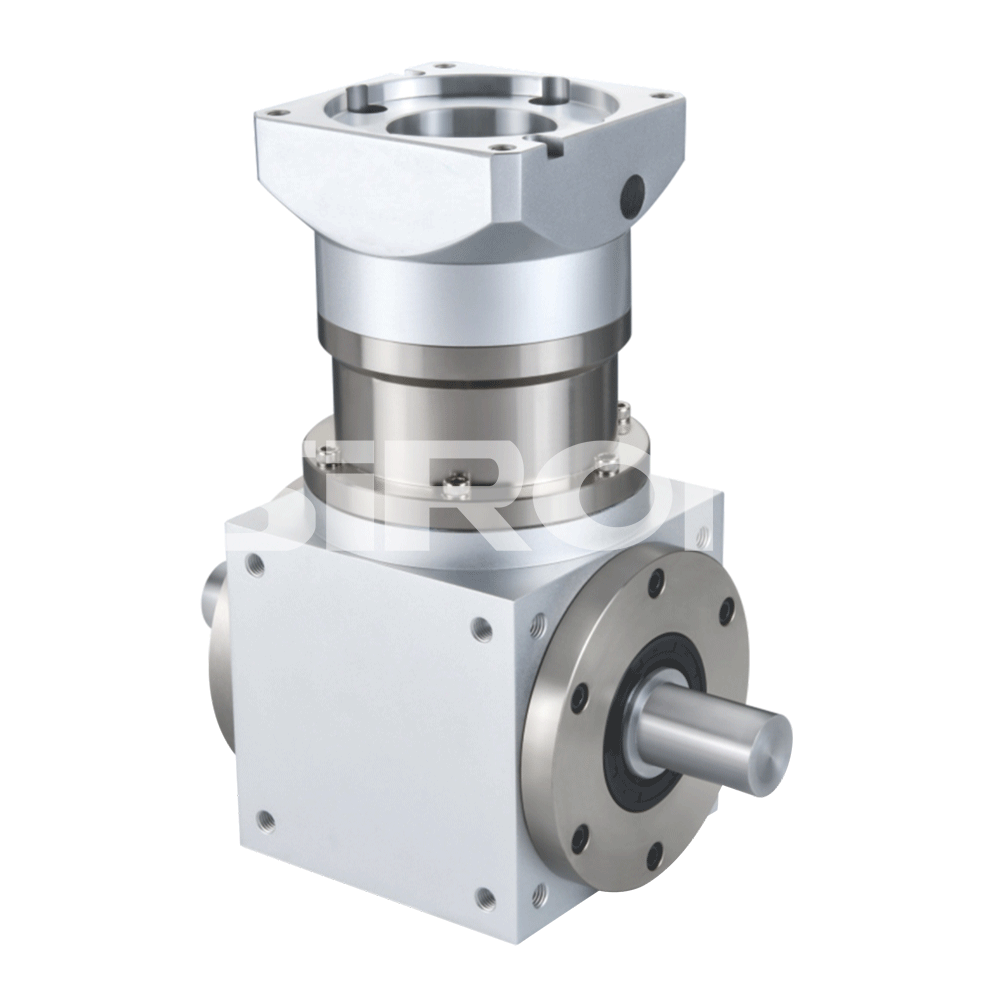

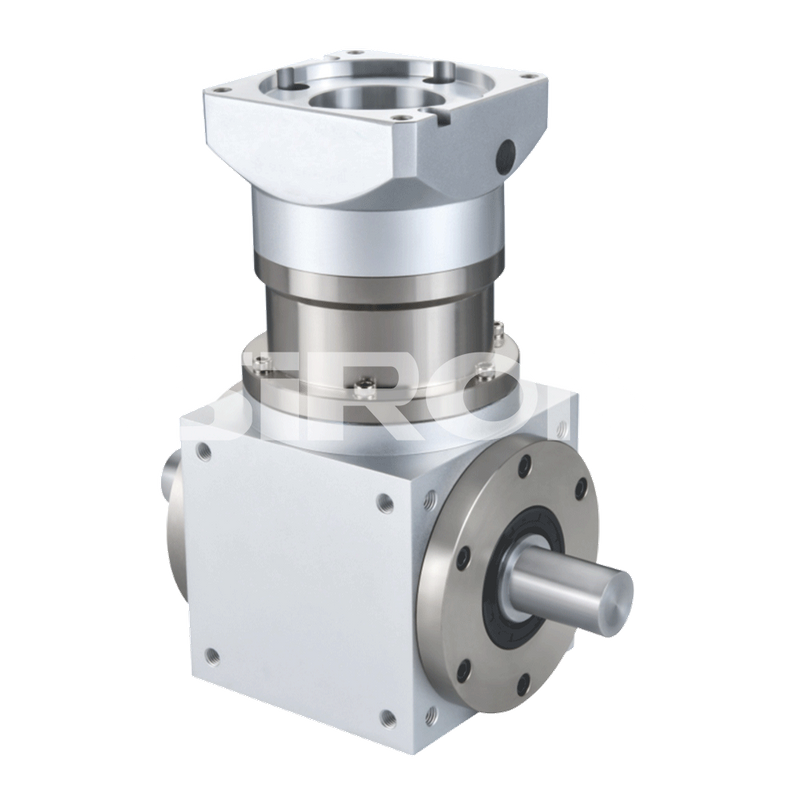

SiRON M422 Series Straight Gear Reducer

Name: SiRON M422 Series Straight Gear Reducer
Brand: SiRON
Rating: 5.0 (52 reviews)

Feature

* Adopt spur gear transmission, after carburizing and quenching treatment, tooth
profile modification treatment, to ensure operation smooth;
* Low noise, high speed input speed, low clearance, high torque, high efficiency,
high stability, synthetic grease lubrication;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M422
Brand:
SiRON
Code:
8501510090

Integral flange Reducer split flange Reducer single stage Reducer

Product Description

About selection

Selection example: M422-070-1L3-16-YT-19 represents the M422 series, with a flange size of 70, a single-section ratio of 3, an output shaft diameter of 16 shafts, an int egrated flange, and an input shaft diameter of 19.

Note: When placing an order, the motor drawing of the matching reducer must be provided.

Specification

Size	backlash	Qutput shaft diameter	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Noise	Emergency stop torque	EfficienAcv	fage lifetime	weight
Size	backlash	Qutput shaft diameter	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Noise	Emergency stop torque	EfficienAcv	fage lifetime	single stage	double stage	three stage
70	12-15 arc minute	16	3000	4000	950	425	70	Twice rated Output torque	Single 97%	20000	4.2	4.6	/
90	12-15 arc minute	18	2500	3500	1450	725	70				6.8	7.4	8.0
110	12-15 arc minute	22	2000	3000	2100	1050	70				11.6	13.8	16.0
140	12-15 arc minute	32	2000	3000	2700	1350	70		Double 95%		19.8	23.9	28.0
