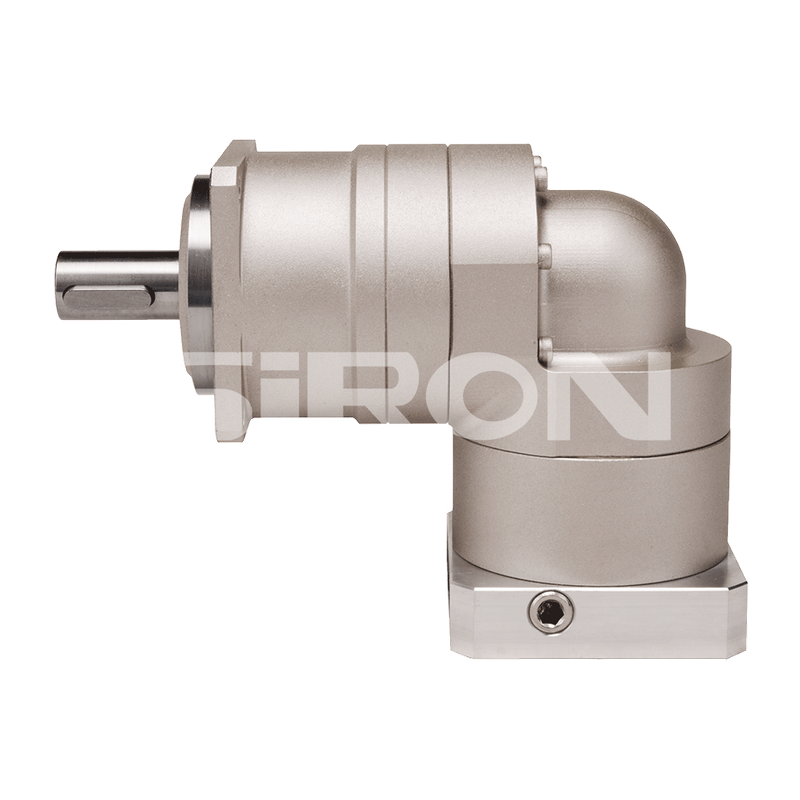

SiRON M402 Series Right Angle Reducer

Name: SiRON M402 Series Right Angle Reducer
Brand: SiRON
Rating: 5.0 (80 reviews)

Feature

* Use spiral bevel gears to achieve 90° turning, saving installation space;
* The reduction ratio is 3～100, and the selection is more convenient;
* Full needle design, greatly improving rigidity and transmission torque;
* No need to replace the grease during the life of the product;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M402
Brand:
SiRON
Code:
8501510090

5arc-min Right Angle Reducer 8arc-min Right Angle Reducer 10arc-min Right Angle Reducer

Product Description

About selection

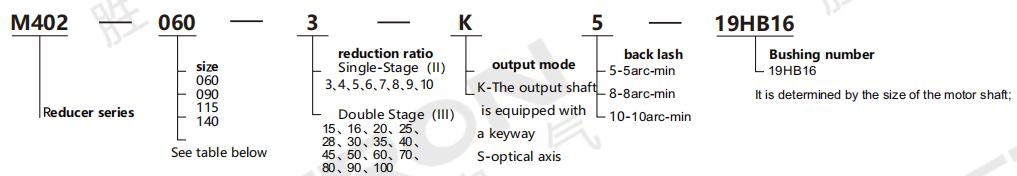

Selection example: M402-060-3-K5-19HB16 indicates the M402 series, with a flange size of 60, a single-section ratio of 3, a keyway on the output shaft, a backlash of 5 arc minutes , and a shaft sleeve number of 19HB16.

Note: When placing an order, please provide the motor drawing of the matching reducer.

Specification

Size	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Backlash
60	3000	6000	1200	1100	Single Stage≤5/8 Double Stage:≤8/10
90	3000	6000	2400	2200
115	3000	6000	4300	3900
140	2000	4000	9100	8200
