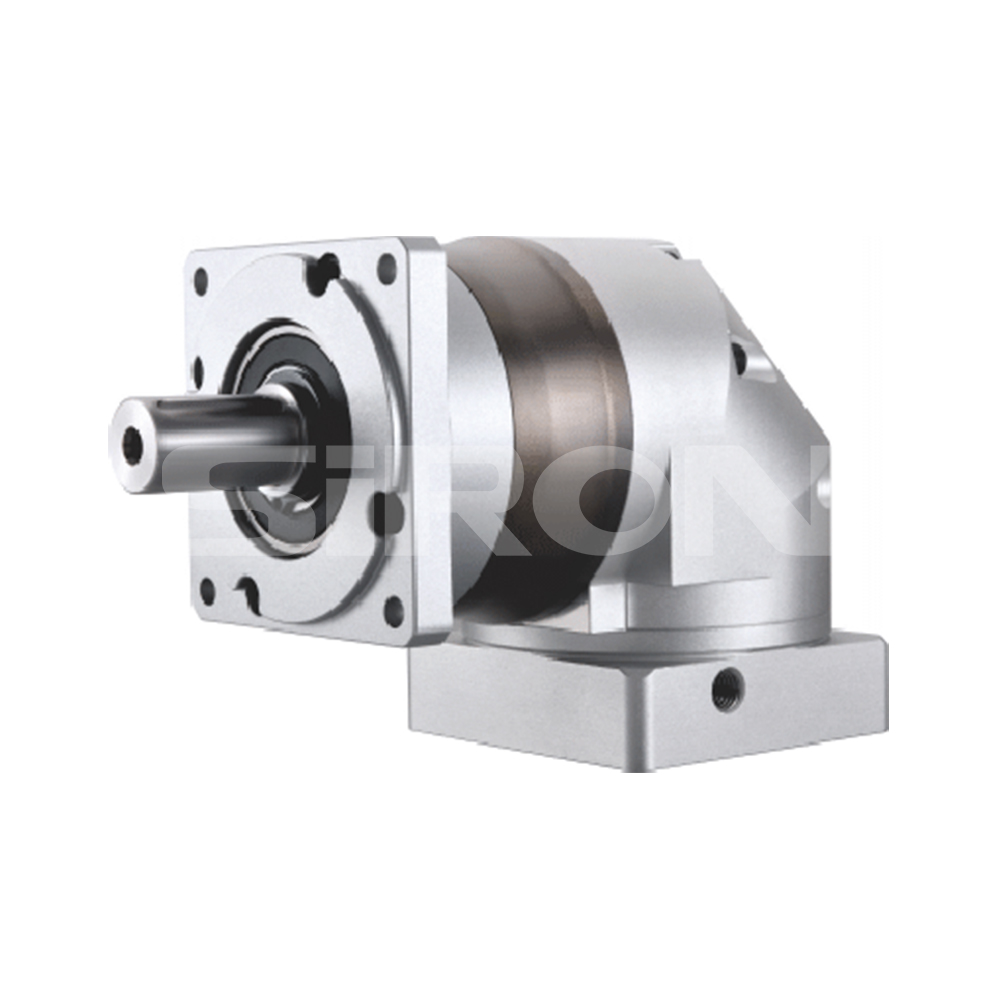

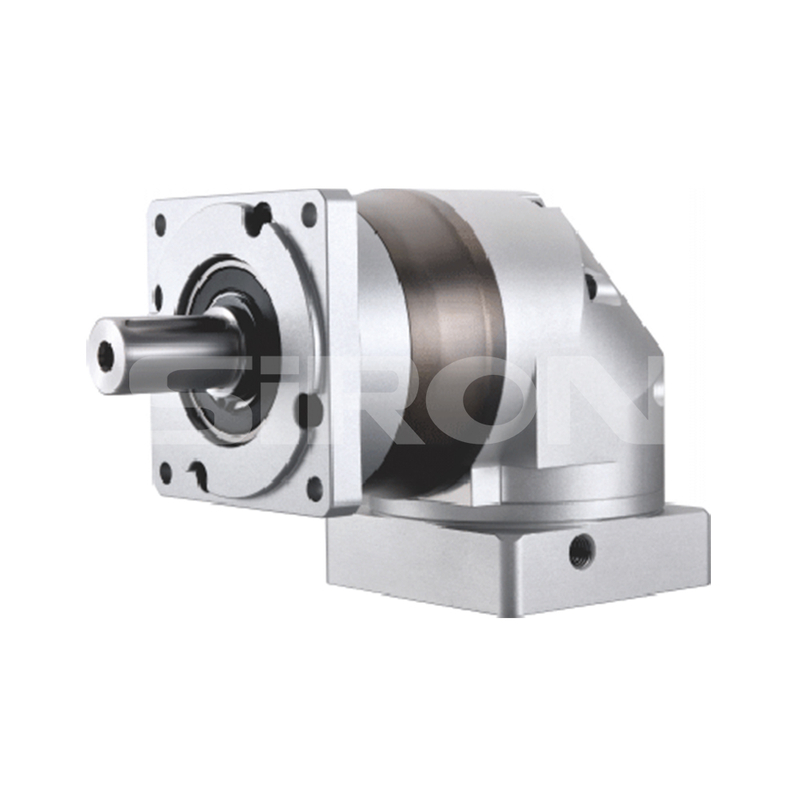

SiRON M402Z Series Precision Straight Gear Reducer

Name: SiRON M402Z Series Precision Straight Gear Reducer
Brand: SiRON
Rating: 5.0 (17 reviews)

Feature

* Use spiral bevel gears to achieve 90° turning, saving installation space;
* The reduction ratio is 3～100, and the selection is more convenient;
* Full needle design, greatly improving rigidity and transmission torque;
* No need to replace the grease during the life of the product;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M402Z
Brand:
SiRON
Code:
8501510090

hole output Reducer axis output Reducer Compact reducer

Product Description

About selection

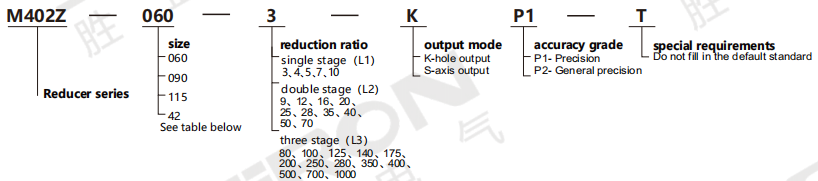

Selection example: M402Z-060-3-KP1 indicates the M402Z series, with a flange size of 60, a single-section ratio of 3, hole out put, precision accuracy, and standard type.

Note: When placing an order, the motor drawing of the matching reducer must be provided.

Specification

Size	60	90	115	42	Stages
Max.radial force	400	1050	2200	230	1-Stages
	500	1300	2600	320	2-Stages
	800	1500	2900	/	3-Stages
Max.axial force	300	850	1600	180	1-Stages
	390	1100	2100	260	2-Stages
	700	1300	2600	/	3-Stages
Torsional stiffness	3.2	8.5	17.5	2.8
Lifetime	20000
Min./Max.operating temp	-25/-90
Full load eficiency	90%(1-Stages)、88%(2-Stages)、84%(3-Stages)
Failure stagnation torqueT2N	Twice the rated output torque
Turn out inertia	L1:<6(P1)/<11(P2) L2:<10(P1)/<15(P2)L3:<13(P1)/<18(P2)
Rated output torque	0.24	0.8	1.4	2.5
Rated input speed	3000	3000	3000	2500
Maximum inpuf speed	7000	6000	5000	4200
Noise	≤62	≤65	≤68	≤70
