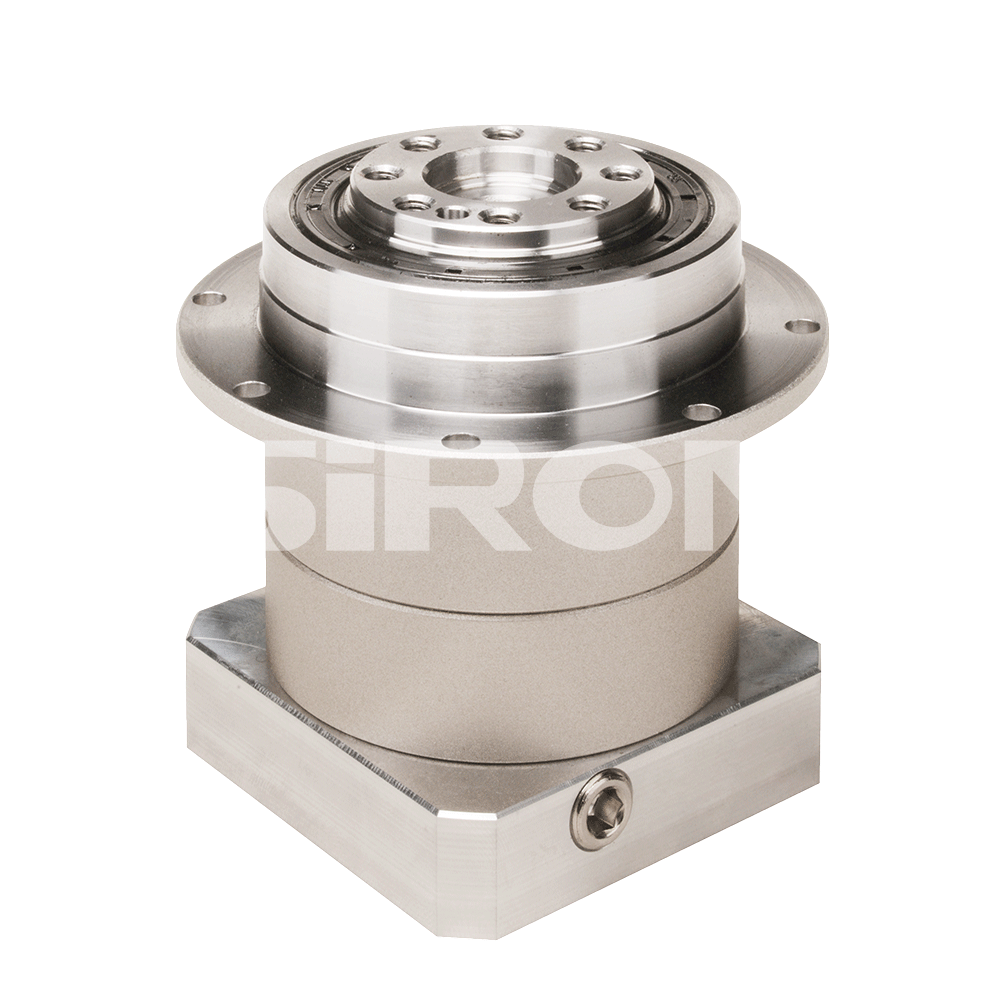

SiRON M401 Series Flange Reducer

Name: SiRON M401 Series Flange Reducer
Brand: SiRON
Rating: 5.0 (1 reviews)

Feature

* It can be adapted to any servo motor in the world;
* Use top-level ultra-precision machine tool processing combined with the world's leading tooth technology;
* Adopting cage planetary support structure, integrated design with output shaft to achieve highrigidity and high precision;
* The wheel bearing adopts full needle bearing without cage to increase the
output torque and rigidity of the reducer;
* Use synthetic grease, and adopt lP65 seal design, no leakage and no maintenance.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M401
Brand:
SiRON
Code:
8501510090

Flange reducer 3arc-min Flange reducer Double stage reduction ratio

Product Description

About selection

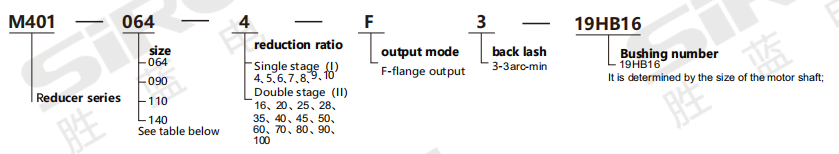

Selection example: M401-064-4-F3-19HB16 indicates the M401 series, with a flange size of 64, single-section ratio of 4, fl ange output, backlash of 3 arc minutes, and shaft sleeve number 19HB16. Note: When placing an order, please provide the motor drawing of the matching reducer.

Specification

Size	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Backlash
64	3000	6000	1500	750	≤3
90	3000	6000	3300	1700
110	3000	6000	8500	4300
140	2000	4000	19000	14000
