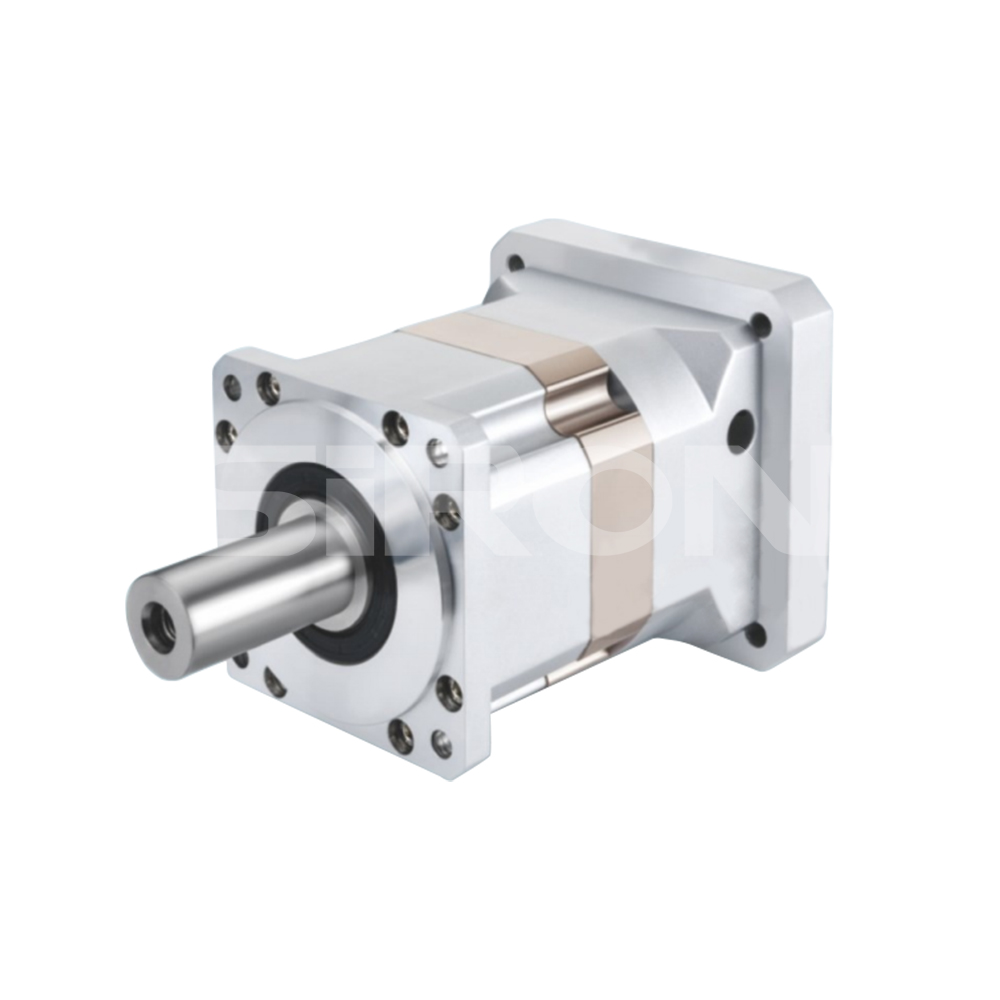

SiRON M414 Series Straight Gear Reducer

Name: SiRON M414 Series Straight Gear Reducer
Brand: SiRON
Rating: 5.0 (92 reviews)

Feature

* Adopt spur gear transmission, after carburizing and quenching treatment, tooth
profile modification treatment, to ensure operation smooth;
* Low noise, high speed input speed, low clearance, high torque, high efficiency,
high stability, synthetic grease lubrication;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M414
Brand:
SiRON
Code:
8501510090

Integral flange Reducer split flange Reducer IP65 reducer

Product Description

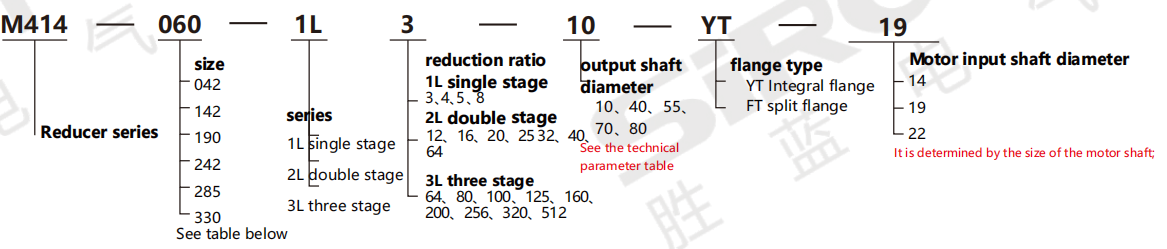

About selection

Selection example: M414-060-1L3-10-YT-19 represents the M414 series, with a flange size of 60, a single-section ratio of 3, an output shaft diameter of 10 shafts, an integrated flange, and an input shaft diameter of 19.

Note: When placing an order, the motor drawing of the matching reducer must be provided.

Specification

Size	backlash	Qutput shaft diameter	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Noise	Emergency stop torque	EfficienAcv	fage lifetime	weight
Size	backlash	Qutput shaft diameter	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Noise	Emergency stop torque	EfficienAcv	fage lifetime	single stage	double stage	three stage
42	10 arc minute	10	3000	6000	185	150	60	Twice rated Output torque	Single 97%	20000	0.5	0.6	0.7
142	12-15 arc minute	40	2000	3500	3200	3000	70				17	23	29
190	15-18 arc minute	55	1500	2500	13000	20000	70				42	50	58
242	15-18 arc minute	70	1000	1500	12000	6400	70				71	75	92
285	15-18 arc minute	70	1000	1500	15000	12000	70				113	136	140
330	15-18 arc minute	80	1000	1500	17000	15000	70				245	290	326
