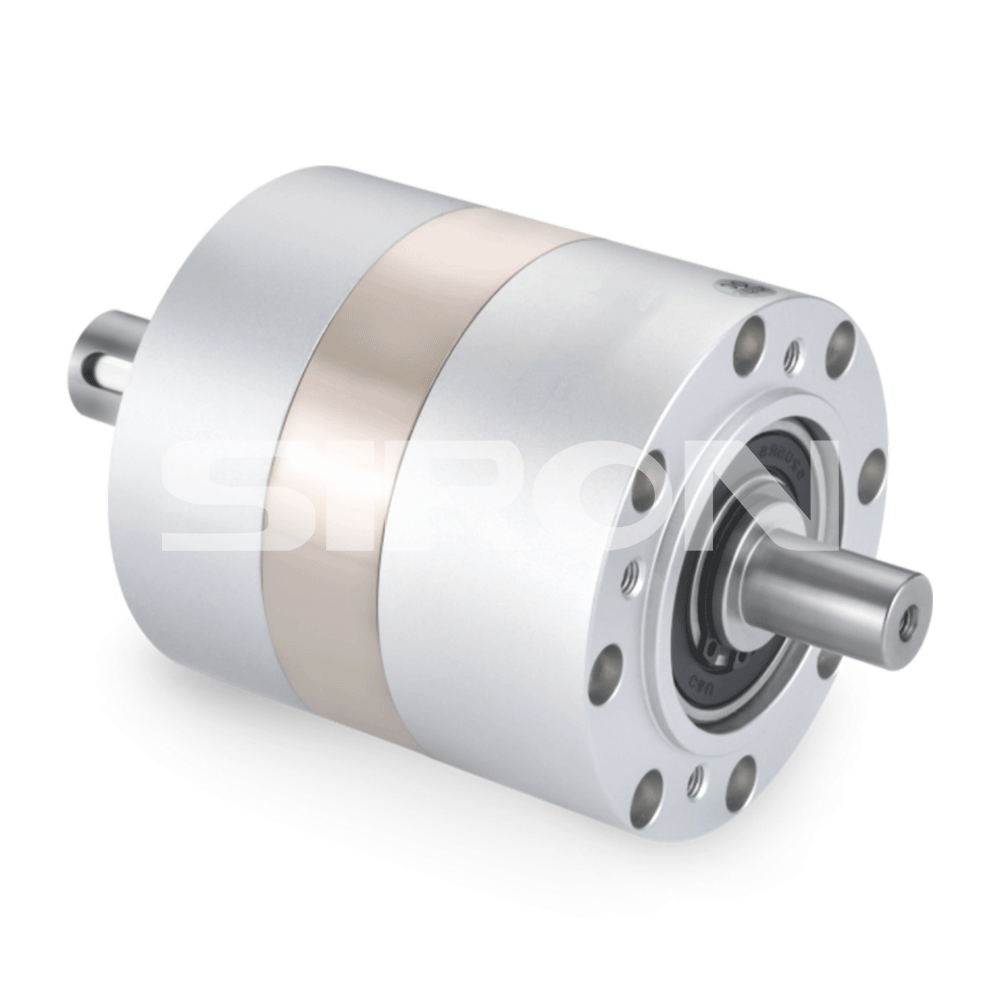

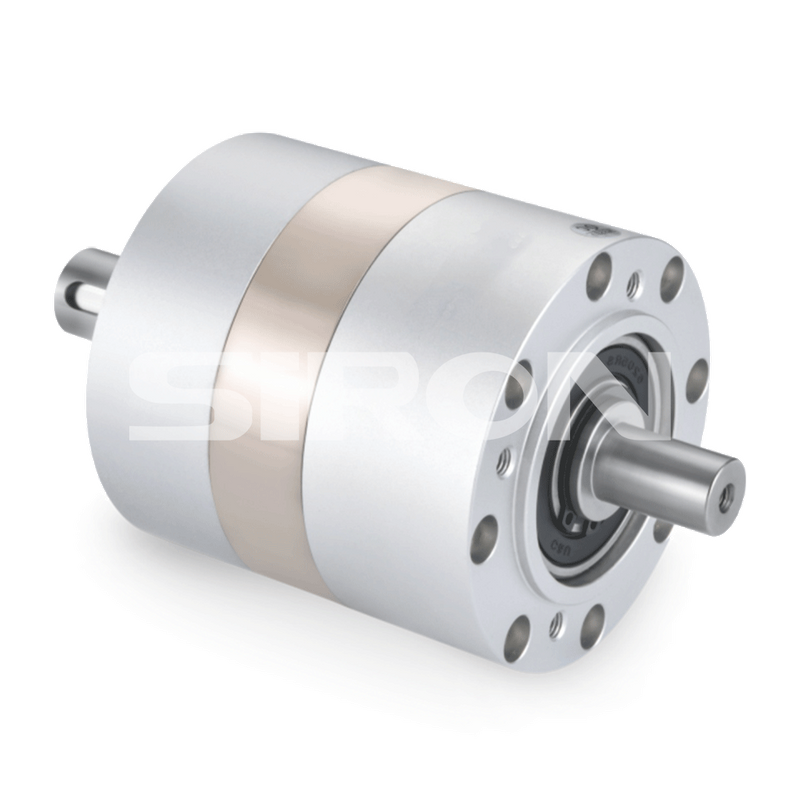

SiRON M417 Series Straight Gear Reducer

Name: SiRON M417 Series Straight Gear Reducer
Brand: SiRON
Rating: 5.0 (97 reviews)

Feature

* Adopt spur gear transmission, after carburizing and quenching treatment, tooth
profile modification treatment, to ensure operation smooth;
* Low noise, high speed input speed, low clearance, high torque, high efficiency,
high stability, synthetic grease lubrication;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M417
Brand:
SiRON
Code:
8501510090

Integral flange Reducer split flange Reducer single stage Reducer

Product Description

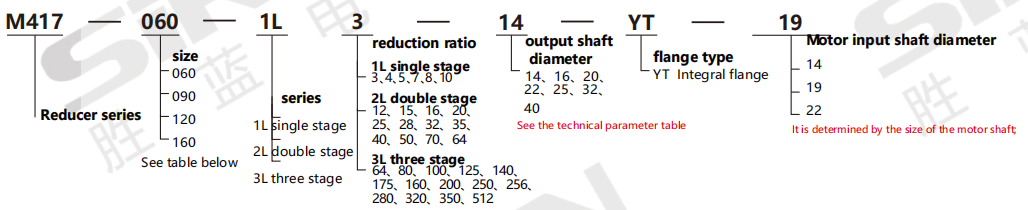

About selection

Selection example: M417-060-1L3-14-YT-19 represents the M417 series, with a flange size of 60, a single-section ratio of 3, an output shaft diameter of 14 shafts, an integrated flange, and an input shaft diameter of 19.

Note: When placing an order, the motor drawing of the matching reducer must be provided.

Specification

Size	backlash	Qutput shaft diameter	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Noise	Emergency stop torque	EfficienAcv	fage lifetime	weight
Size	backlash	Qutput shaft diameter	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Noise	Emergency stop torque	EfficienAcv	fage lifetime	single stage	double stage	three stage
60	10-12 arc minute	14/16	3000	6000	170	120	60	Twice rated Output torque	Single 97%	20000	1.4	1.6	1.8
90	12-15 arc minute	20/22	3000	6000	1020	850	65		Single 97%		4.7	5.3	5.9
120	12-15 arc minute	25/32	2000	3500	2230	1550	68		Double 95%		6.9	8.9	11.2
160	12-15 arc minute	40	2000	3500	3200	1550	70		Double 95%		19	25	31
