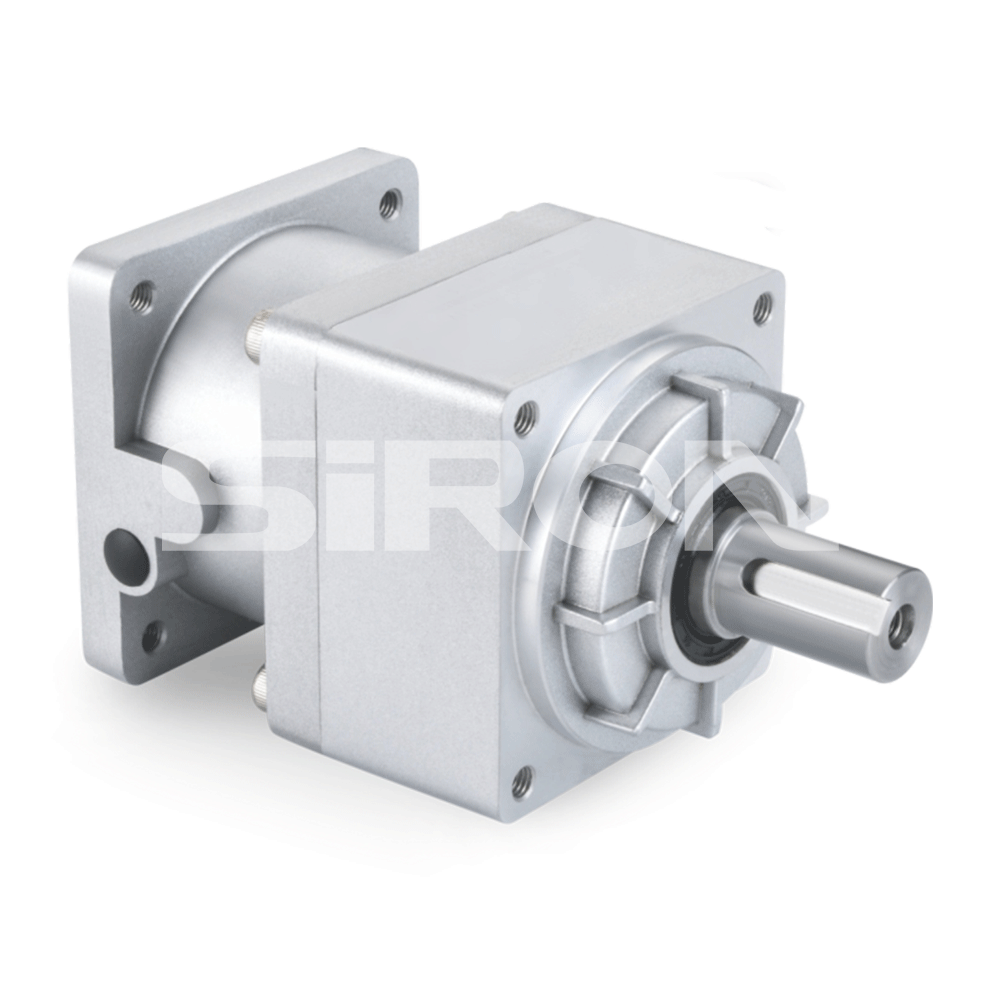

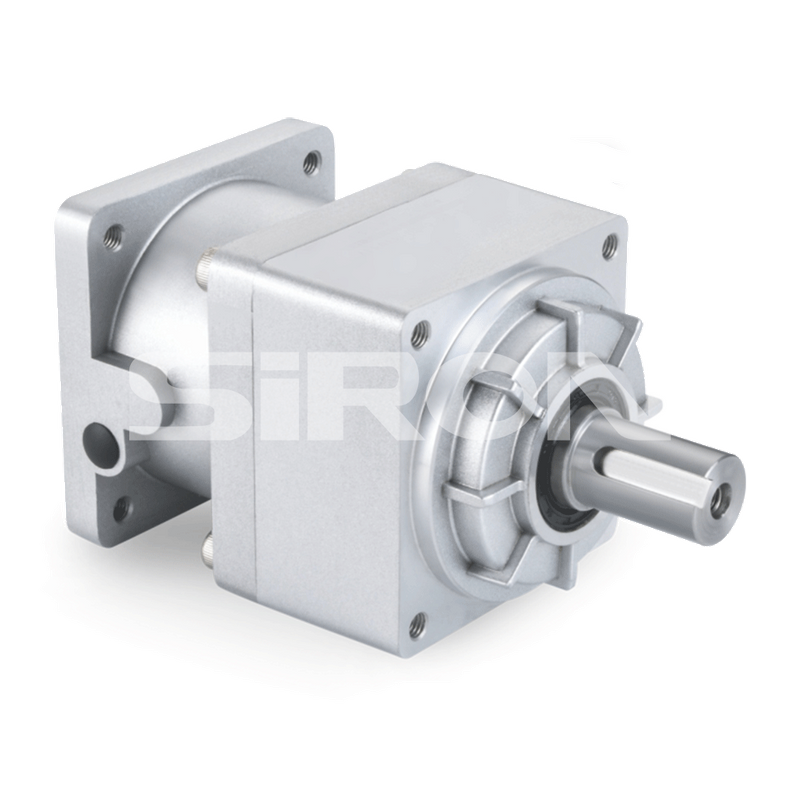

SiRON M412 Series Straight Gear Reducer

Name: SiRON M412 Series Straight Gear Reducer
Brand: SiRON
Rating: 5.0 (79 reviews)

Feature

* Adopt spur gear transmission, after carburizing and quenching treatment, tooth
profile modification treatment, to ensure operation smooth;
* Low noise, high speed input speed, low clearance, high torque, high efficiency,
high stability, synthetic grease lubrication;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M412
Brand:
SiRON
Code:
8501510090

Integral flange Reducer split flange Reducer IP65 reducer

Product Description

About selection

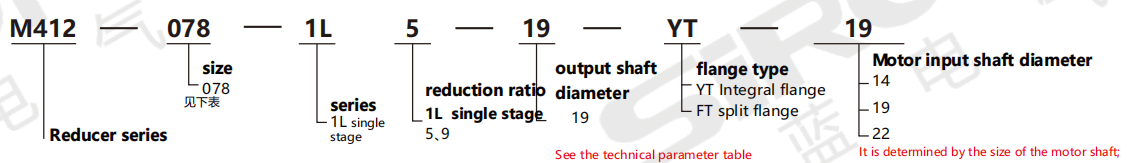

Selection example: M412-078-1L5-19-YT-19 represents the M412 series, with a flange size of 78, a single-section ratio of 5, an o utput shaft diameter of 19 shafts, an integrated flange, and an input shaft diameter of 19.

Note: When placing an order, the motor drawing of the matching reducer must be provided.

Specification

Rated output torque	Reduction ratio 5	92
	Reduction ratio 9	41
Backlash		7 to 8 arc minutes
Output shaft diameter		19
Emergency stop torque		Twice the rated output torque
Norminal input speed		3000
Maximum input speed		6000
Maximum radialforce		2000
Maximum axial force		1800
Efficiency		Single 97%
Averag lifetime		2000
Weight		3.7
Reduction ratio 5		0.291
Moment of inertia Reduction ratio 9		0.12
Noise		65
Lubricating		Synthetic grease lubrication
Levels of protection		IP65
