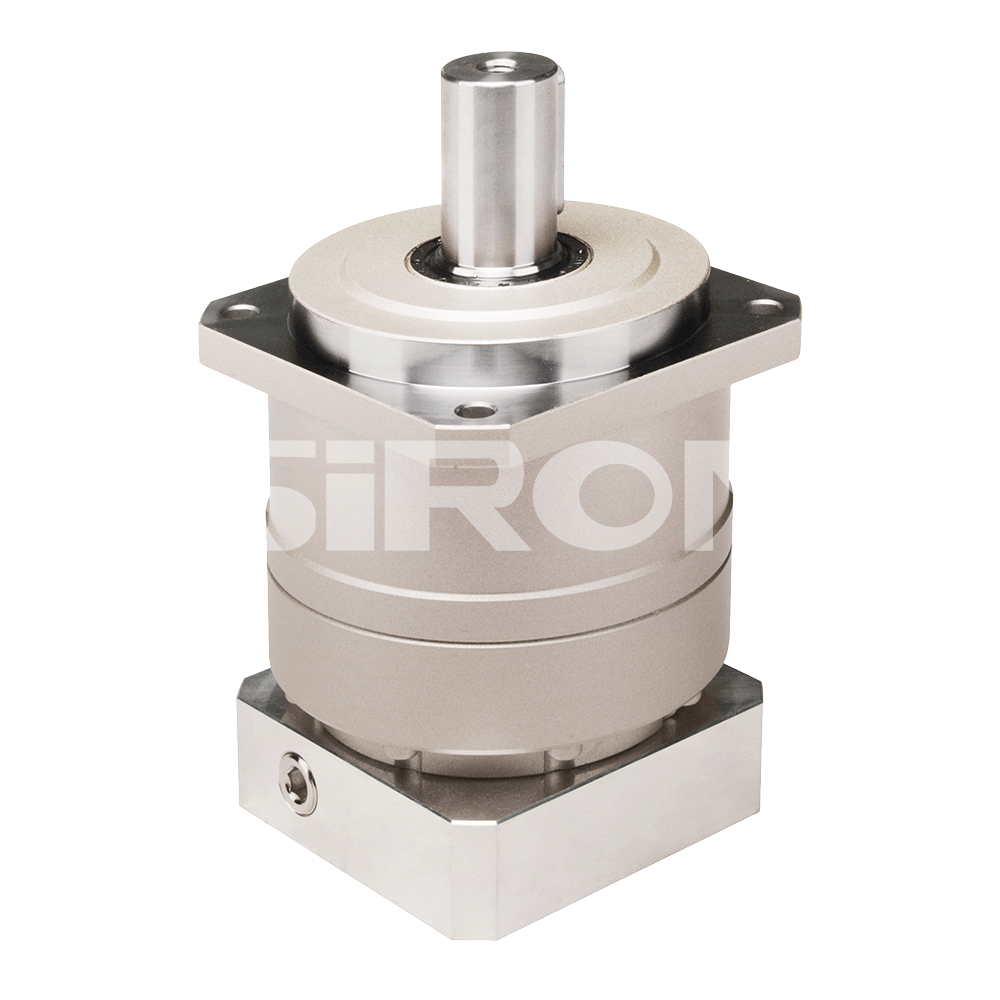

SiRON M400 Series Parallel Shaft Reducer

Name: SiRON M400 Series Parallel Shaft Reducer
Brand: SiRON
Rating: 5.0 (95 reviews)

Feature

* It can be adapted to any servo motor in the world;
* Use top-level ultra-precision machine tool processing combined with the
world's leading tooth technology;
* Adopting cage planetary support structure, integrated design with output
shaft to achieve highrigidity and high precision;
* The wheel bearing adopts full needle bearing without cage to increase the
output torque and rigidity of the reducer;
* Use synthetic grease, and adopt lP65 seal design, no leakage and no maintenance.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M400
Brand:
SiRON
Code:
8501510090

Parallel shaft reducer 3arc-min Parallel shaft reducer 5arc-min Parallel shaft reducer

Product Description

About selection

Selection example: M400-042-3-K3-19HB16 indicates the M400 series, with a flange size of 42, a single-section ratio of 3, a keyway on the output shaft, a backlash of 3 arc minutes, and a shaft sleeve number o f 19HB16.

Note: When placing an order, please provide the motor drawing of the matching reducer.

Specification

Size	Nominal input speed	Maximum input speed	Maximum radial load	Maximum axial load	Backlash
42	4000	8000	710	640	single stage:≤3、、double stage:≤5
60	3000	6000	1200	1100	≤3
90	3000	6000	2400	2200	≤3
115	3000	6000	4300	3900	≤3
140	2000	4000	9100	8200	≤3
180	1500	3000	15000	14000	≤3
