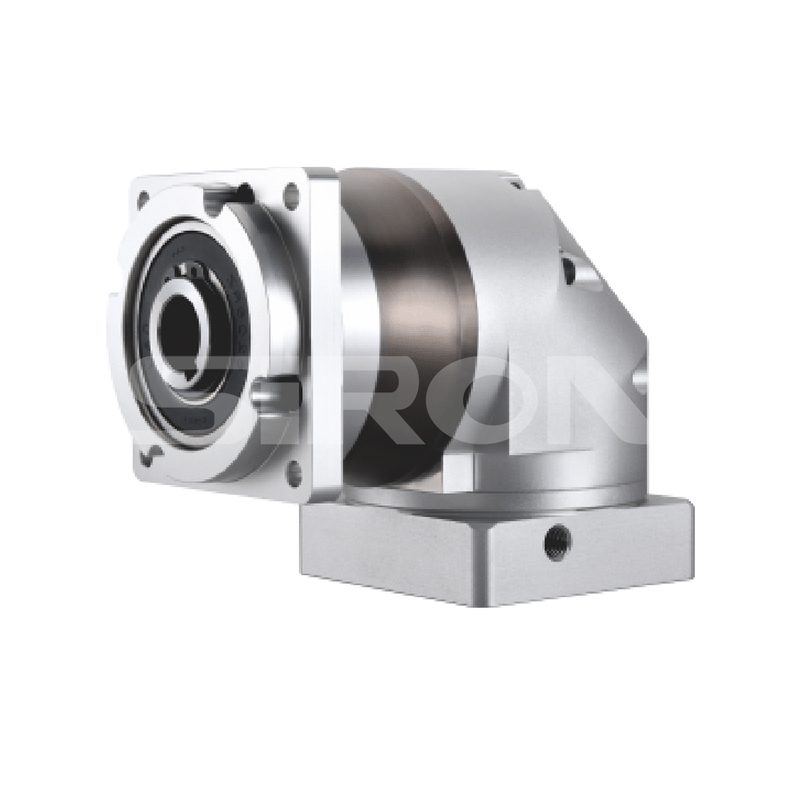

SiRON M403Z Series Precision Straight Gear Reducer

Name: SiRON M403Z Series Precision Straight Gear Reducer
Brand: SiRON
Rating: 5.0 (27 reviews)

Feature

* Use spiral bevel gears to achieve 90° turning, saving installation space;
* The reduction ratio is 3～100, and the selection is more convenient;
* Full needle design, greatly improving rigidity and transmission torque;
* No need to replace the grease during the life of the product;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M403Z
Brand:
SiRON
Code:
8501510090

hole output Reducer axis output Reducer Compact reducer

Product Description

About selection

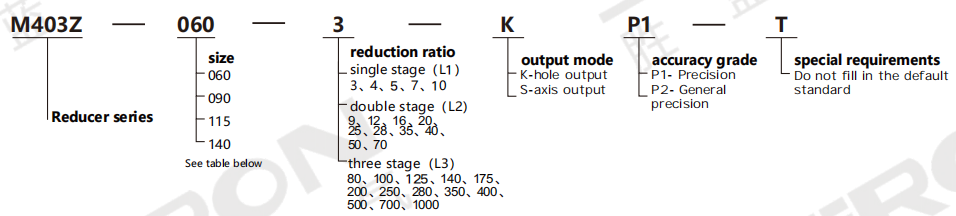

Selection example: M403Z-060-3-KP1 indicates the M403Z series, with a flange size of 60, a single-section ratio of 3, hole output, precisio n accuracy, and standard type.

Note: When placing an order, the motor drawing of the matching reducer must be provided.

Specification

Size	60	90	115	140	Stages
Maxradial force	800	2100	4400	7300	1-Stages
	1000	2600	5200	9300	2-Stages
	1600	3000	5800	10800	3-Stages
Maxaxiai force	400	1000	1700	2000	1-Stages
	520	1300	2400	2700	2-Stages
	850	1800	3000	5500	3-Stages
Torsional stiffness	3.2	8.2	18.5	30.0
Lifetime	20000
Min.MaX.operating tamp	-25/-90
Fulload efficiency	94%(1-Stages)、92%(2-Stages)、88%(3-Stages)
Falure stagnation torquaT2N	Twice the rated output torque
Turn out inertia	L1:<6(P1)/<11(P2) L2:<10(P1)/<15(P2) L3<13(P1)/<18(P2)
Rated outpu torque	0.24	0.8	1.4	2.5
Ratedinput speed	3000	3000	3000	2500
Maximum input speed	7000	6000	5000	4200
Noise	≤58	≤60	≤62	≤65
