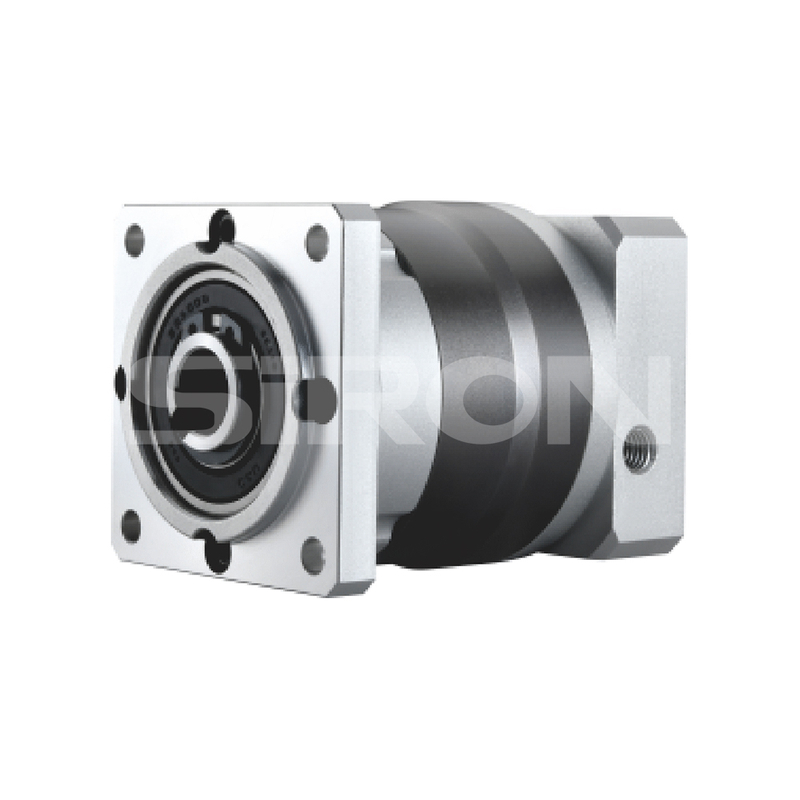

SiRON M401Z Series Precision Straight Gear Reducer

Name: SiRON M401Z Series Precision Straight Gear Reducer
Brand: SiRON
Rating: 5.0 (64 reviews)

Feature

* Economical and cost-effective;
* Method orchid output, more flexible installation, lifelong lubrication;
* Simple motor assembly, the whole machine frosted treatment;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
M401Z
Brand:
SiRON
Code:
8501510090

hole output Reducer axis output Reducer Precision Straight Gear Reducer

Product Description

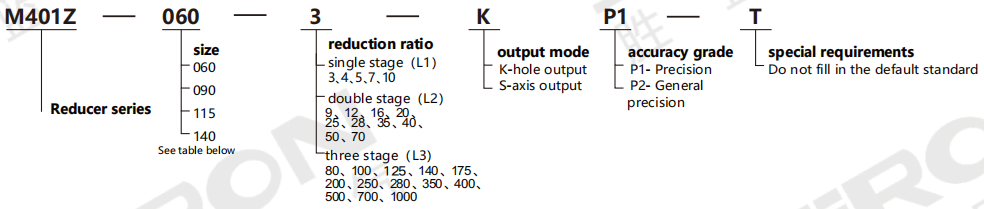

About selection

Selection example: M401Z-060-3-KP1 indicates the M401Z series, with a flange size of 60, a single-section ratio of 3, hole output, precision accuracy, and standard type.

Note: When placing an order, the motor drawing of the matching reducer must be provided

Specification

Size	60	90	115	42	Stages
Max.radial force	400	1050	2200	230	1-Stages
	500	1300	2600	320	2-Stages
	800	1500	2900	/	3-Stages
Max.axial force	300	850	1600	180	1-Stages
	390	1100	2100	260	2-Stages
	700	1300	2600	/	3-Stages
Torsional siffness	3.2	8.5	17.5	2.8
Lifetime	20000
Min.Max.operating temp	-25/-90
Full loadefficiency	94%(1-Stages)、92%(2-Stages)、88%(3-Stages)
Failure stagnation tonqueT2N	Twice the rated output torque
Turn out inertia	0.18(L1)/0.17(L2)/0.16(L3)
Rated output torque	L1:<4(P1)/<8(P2) L1:<8(P1)/<12(P2) L2<10(P1)/<14(P2)
Rated input speed	3000	3000	3000	2500
Maximum input speed	7000	6000	5000	4200
Noise	≤58	≤60	≤62	≤65
