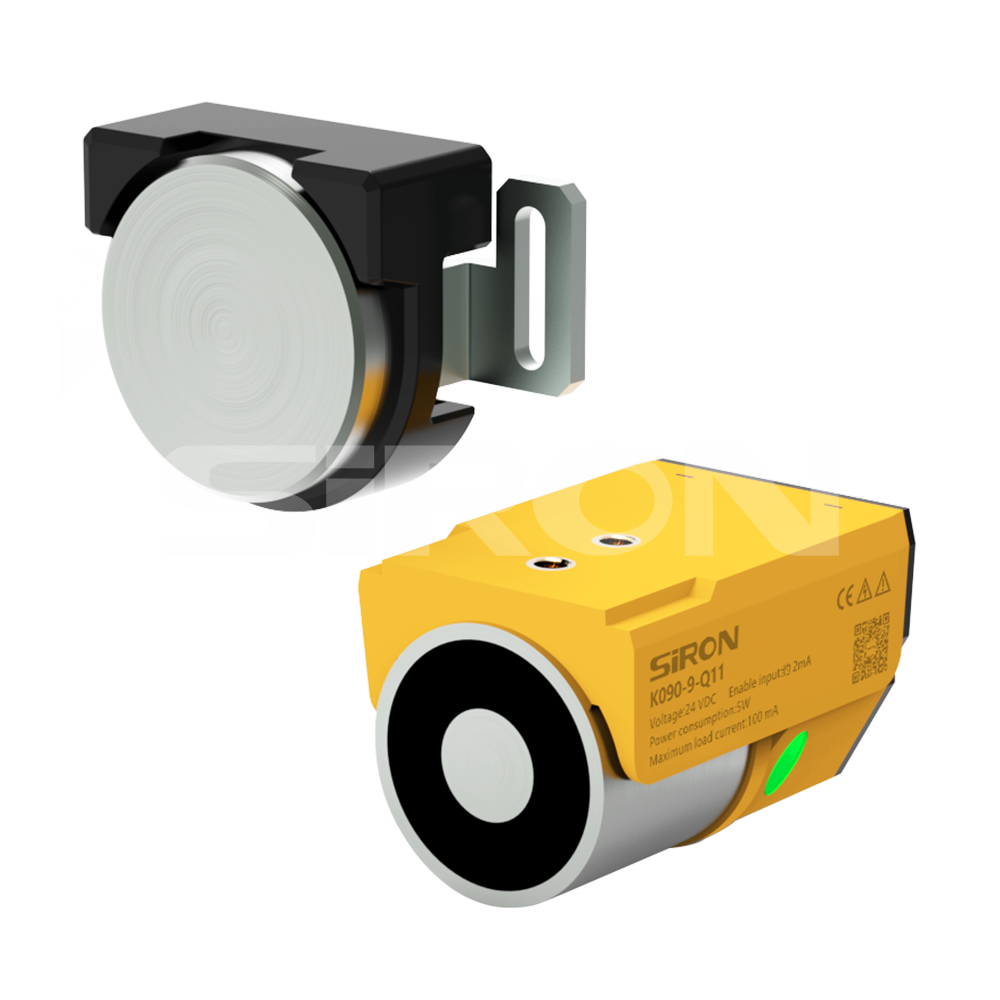

SiRON K090-9-Q11 Electromagnetic Lock Safety Door Switch

Name: SiRON K090-9-Q11 Electromagnetic Lock Safety Door Switch
Brand: SiRON
Rating: 5.0 (93 reviews)

Features:

* Easy and tight locking by electromagnetic force;
* It has a planar electromagnetic locking structure, which can effectively solve the problem of gate deviation and has dual hall recognition;

* Not only no key, simple structure, greatly improve security;
* The ultra-small body does not need to worry about the installation location, even if the space is small can be installed and used.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K090-9-Q11 Series
Brand:
SiRON
Code:
9031809090

Security Door Sensor Electromagnetic lock safety door switch Electromagnetic locking simple structure ultra-small body dual hall recognition

Product Description

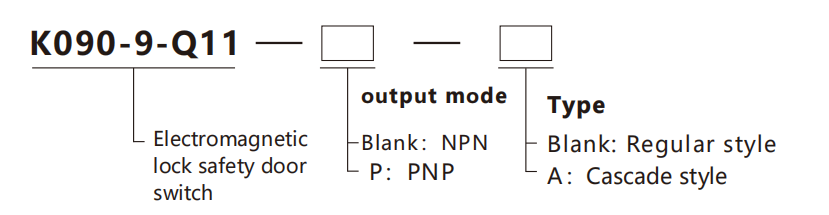

About selection

Selection example: K090-9-Q11-P indicates the K090-9-Q11 series electromagnetic lock safety door switch, with PNP wiring mode, and it is a standard model.

Note: Cascaded models used in series must be either NPN or PNP simultaneously.

Specifications

Model number		K090-9-Q11	K090-9-Q11-A	K090-9-Q11-P	K090-9-Q11-P-A
Signal		Dual-channel NPN		Dual-channel NPN
Type		Electromagnetic locking safety door lock
Lock holding force		450N
Lock release holding force		About 1N
Working distance		2mm
Response time	Lock→Lock release	250ms
	Lock release→Lock	50ms
Control output	Output type	Transistor output×2
	Maximum load curent	100 mA
	Residual voltage	Maximum 2V(When the cable is 2M)
	OFFvoltage	Maximum 2.0V(When the cable is 5M)
External input	Enableinput	About 2mA
	Lock control input	About 2.5 mA
Protection circuit		Power reverse connection protection, each output short-circuit protection, each output surge protection, output reverse connection protection
Power source	Supply voltage	24V DC±20% including ripple (P-P) 10% Class2
	Power consumption	5W
Environmental tolerance	Case protection dass	IP65
	Operating ambienttemperature	-20 to 55℃(No freezing)
	Storage ambienttemperature	-25 to 70℃(No freezing)
	Ambient humidity	5 % 至 9 5 % R H
	Shock resistance	10 to 55Hz, dual amplitude 2.0 mm, 5 minutes in X, Y, Z directions (IEC 60947-5-3)
	Impact resistance	6 times in each direction of 30GX, Y and Z (IEC 60947-5-3)
