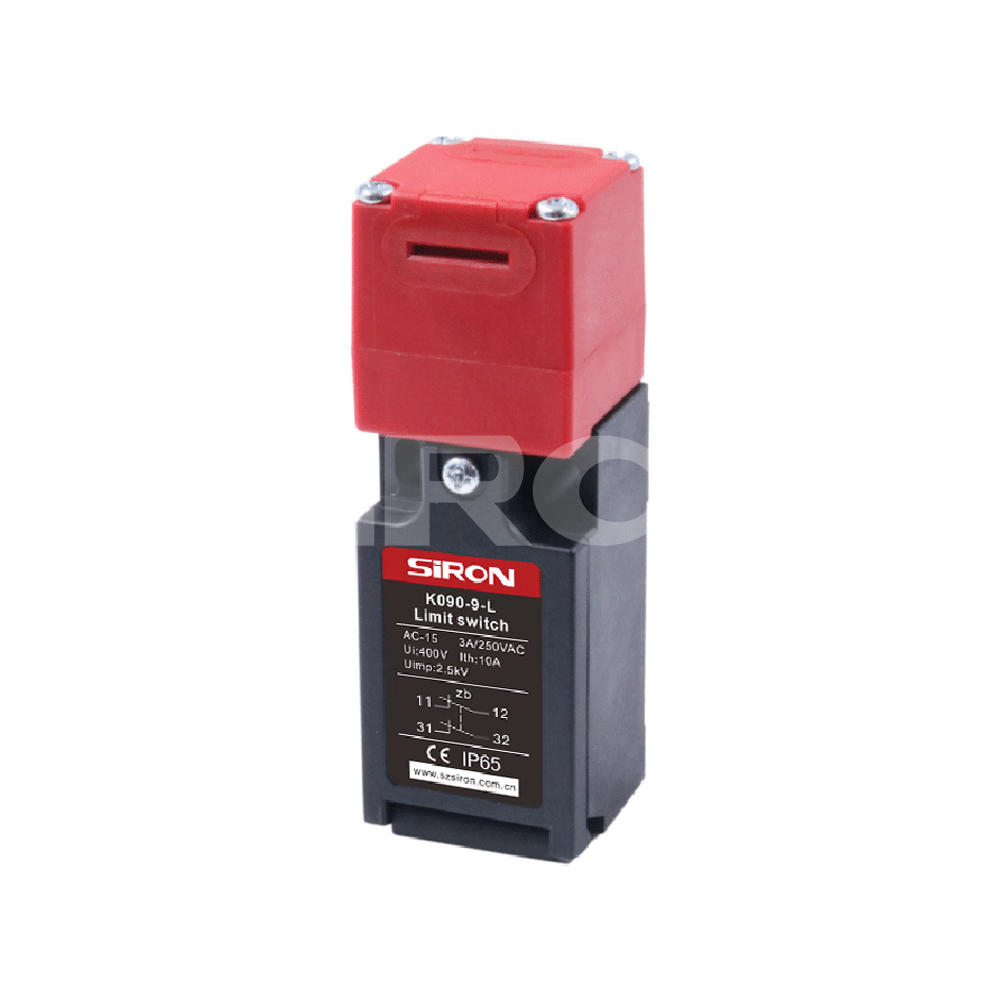

K090-9-L Series
SiRON
9031809090
About selection

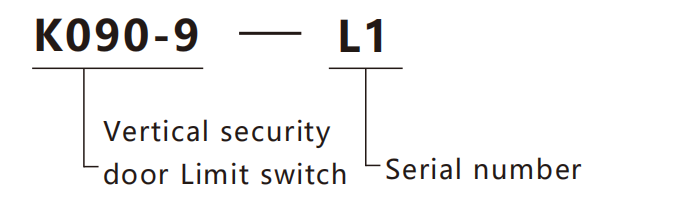

Model selection example: K090-9-L1 indicates K090-9 series, serial number L1.

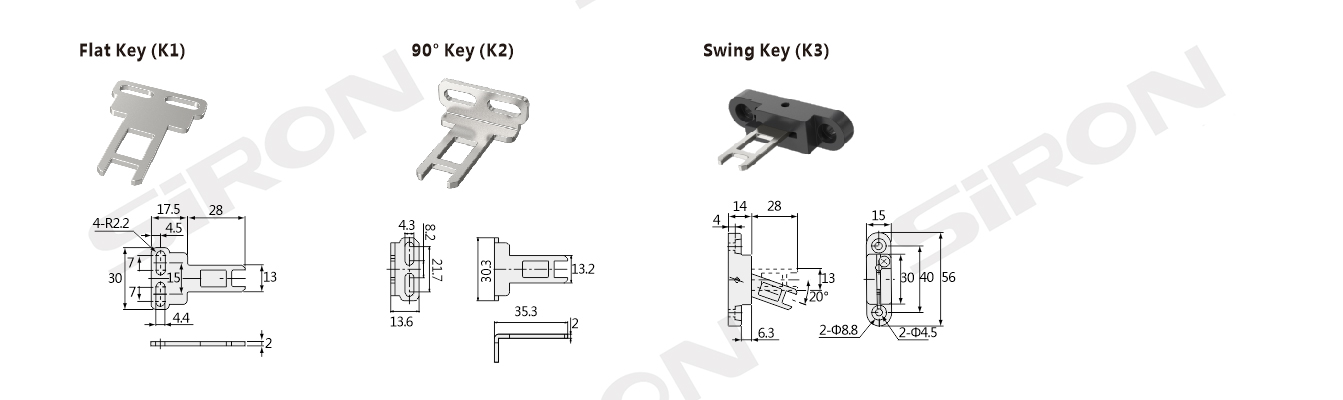

Note: Separately order the operating key model: K090-9-L-K1, K090-9-L-K2, K090-9-L-K3.
Specifications
Name | Vertical safety door limit switch | ||||||
Model | K090-9-L1 | K090-9-L2 | K090-9-L3 | K090-9-L4 | K090-9-L5 | K090-9-L6 | |
Contact form | Two normally closed | One normally open and one normally closed | |||||
Conduit/connector size | M20×1.5 | ||||||
Key type | Flat key | 90°key | Swing the key | Flat key | 90°key | Swing the key | |
Rated current | 3A 240VAC(A300) | Vibration | 10~55Hz 1 . 5mm double-amplitude | ||||
Operating snap | 0 . 1m to 0 . 5m/s | Shock | Mechanical durability:1000m/Sec⊃2; Malfuction durability:300m/Sec⊃2; | (About 100G′S) (About 30G′S) | |||
Action frequency | Electrical: 30 times per minute | ||||||
Contact resistance | 2 5 m Ω or less (initial) | Operating temperature | When in use: -20~+70°C (no freezing) | ||||
Insulation resistance | 100mΩ or more (at 500VDC or less) | Operating humidity | Below 9 5 % R H | ||||
Insulation voltage | 400V | Electrical life | More than 150,000 times | ||||
Dielectric strength | AC2500V/Umip 4KV | Waterproof level | IP65 | ||||
Operatinginsertion force | 14.7N(1500gf) | Total trip | 28mm | ||||
Operating pumping power | 29.42N(3000gf) | Forced disengagement force | 58.84N(6000gf) | ||||
Action distance | 6±3mm | Forced departure distance | 10mm | ||||

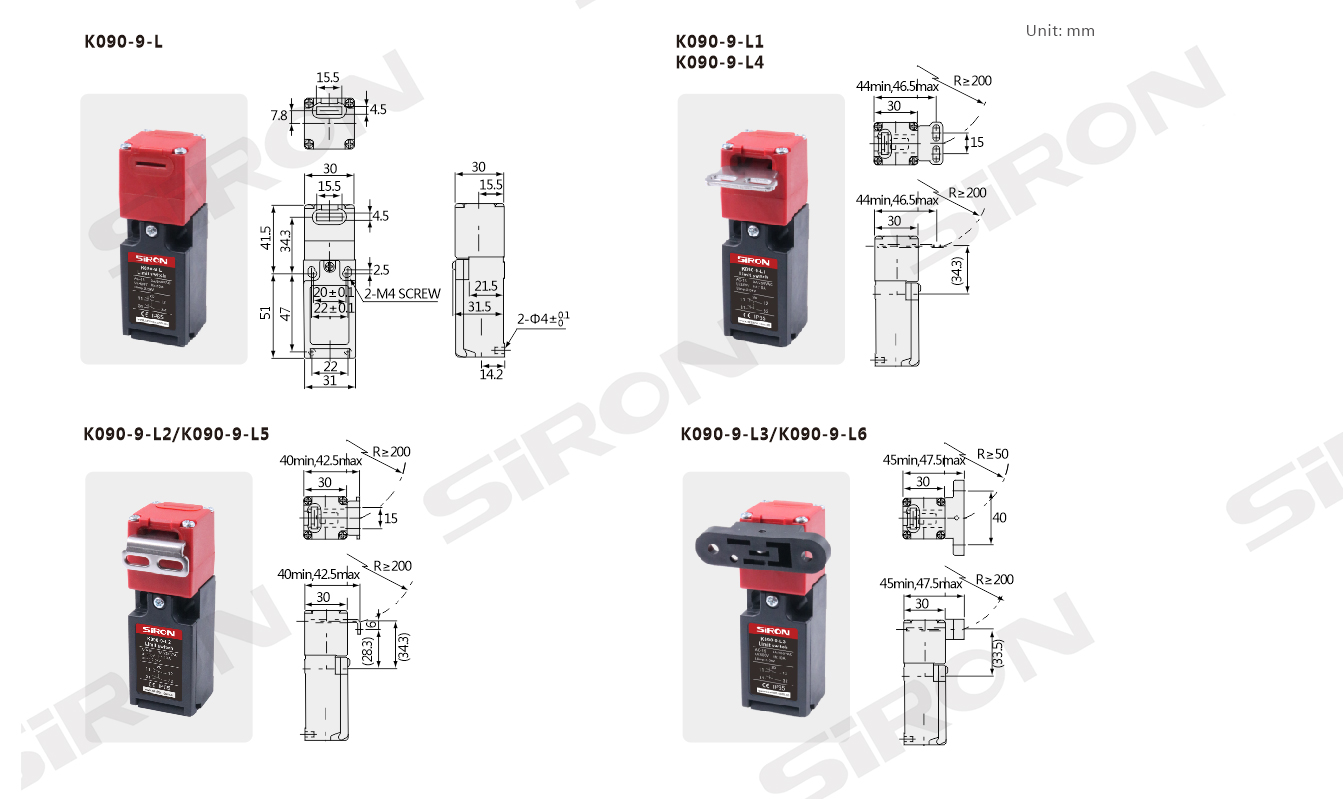

Dimension
