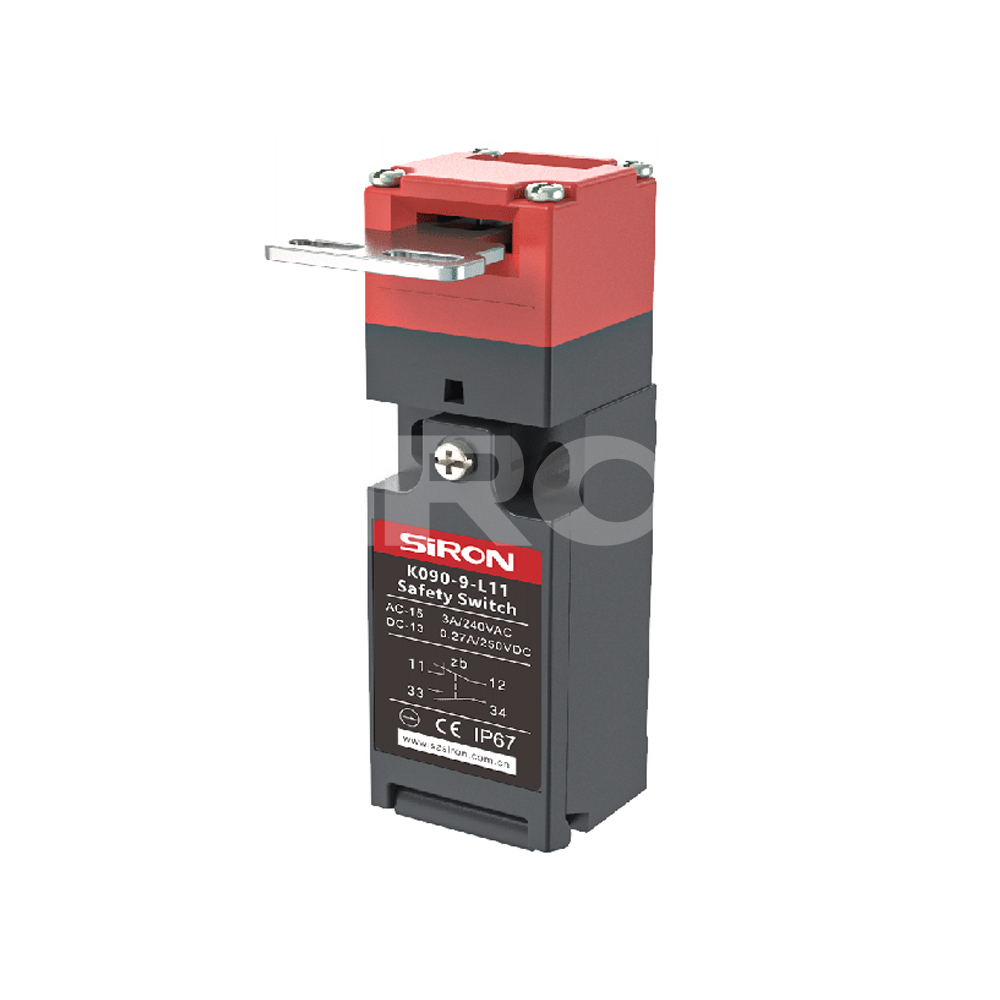

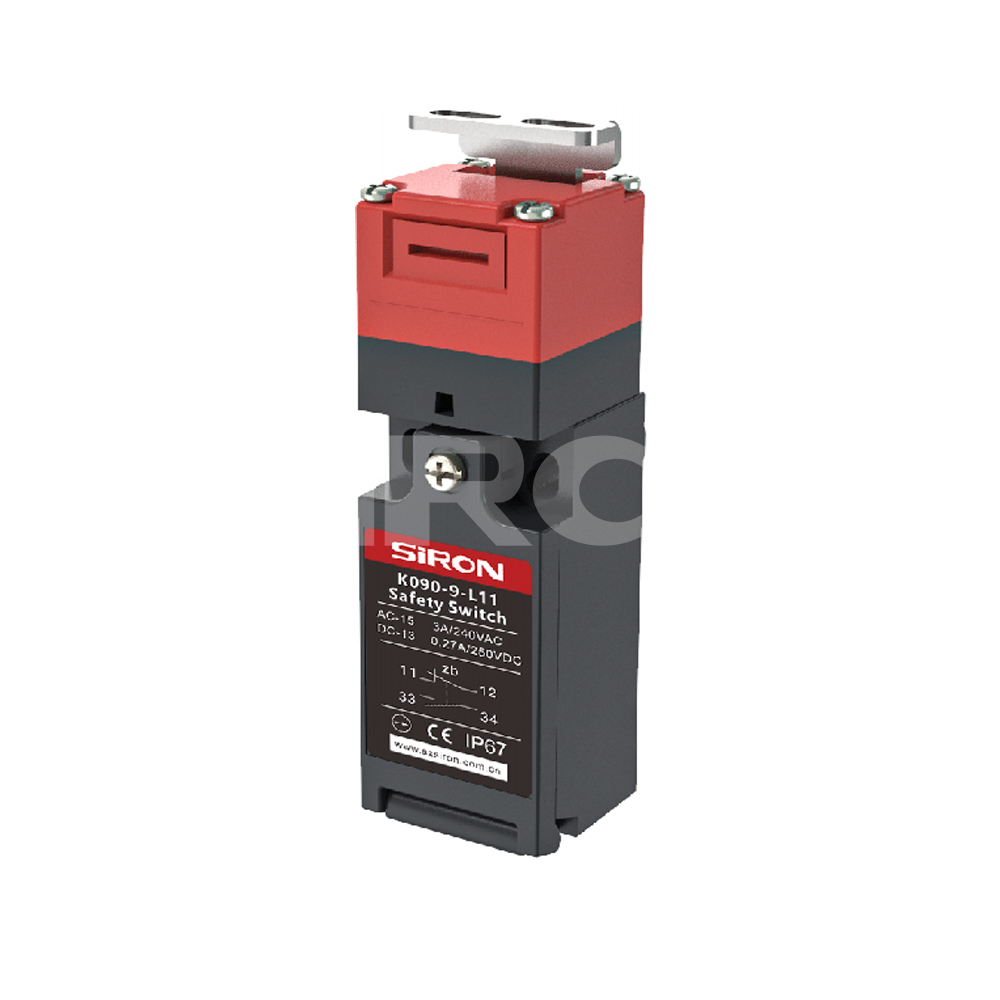

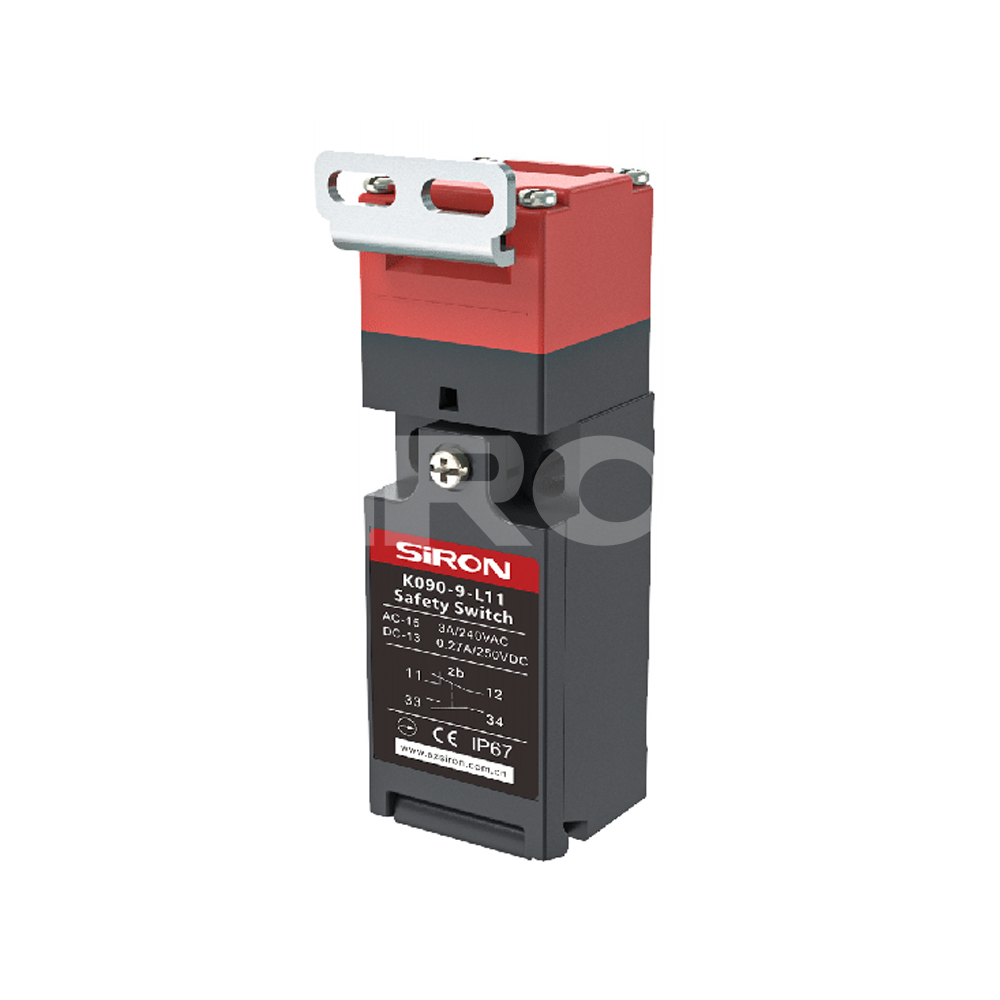

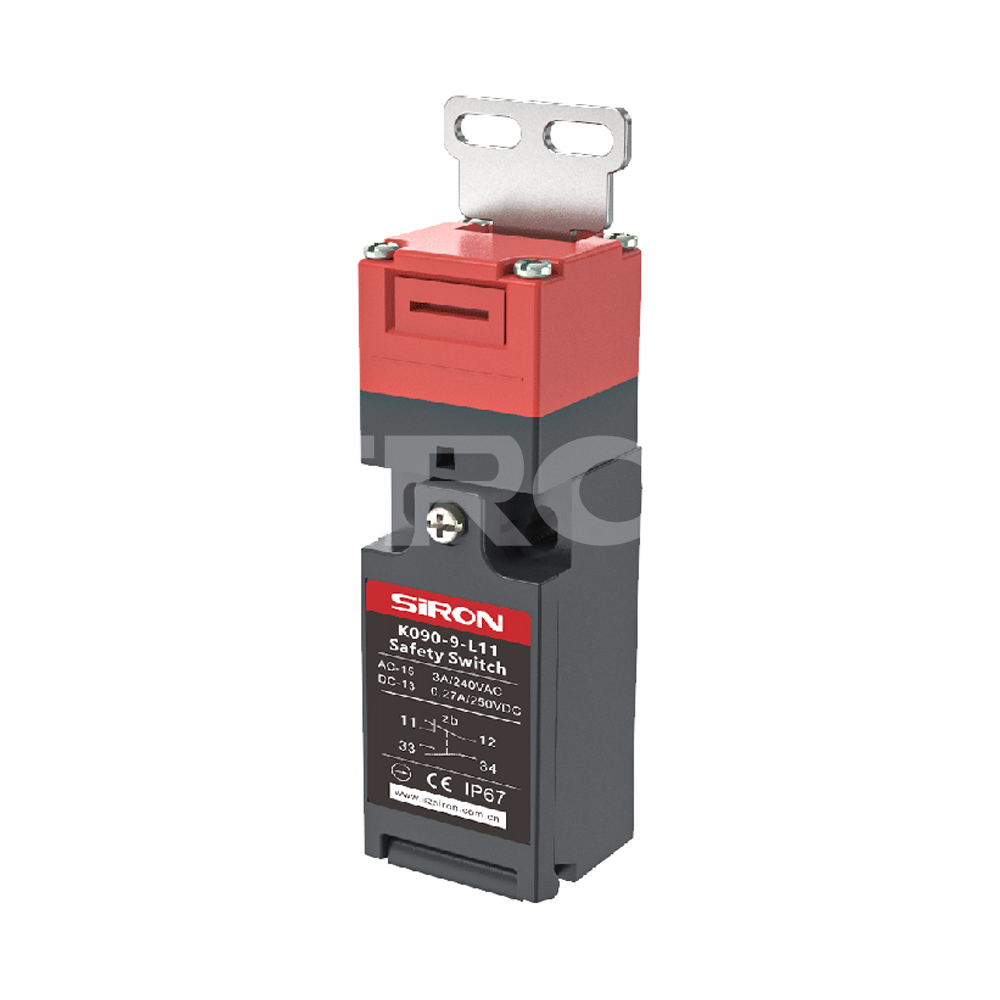

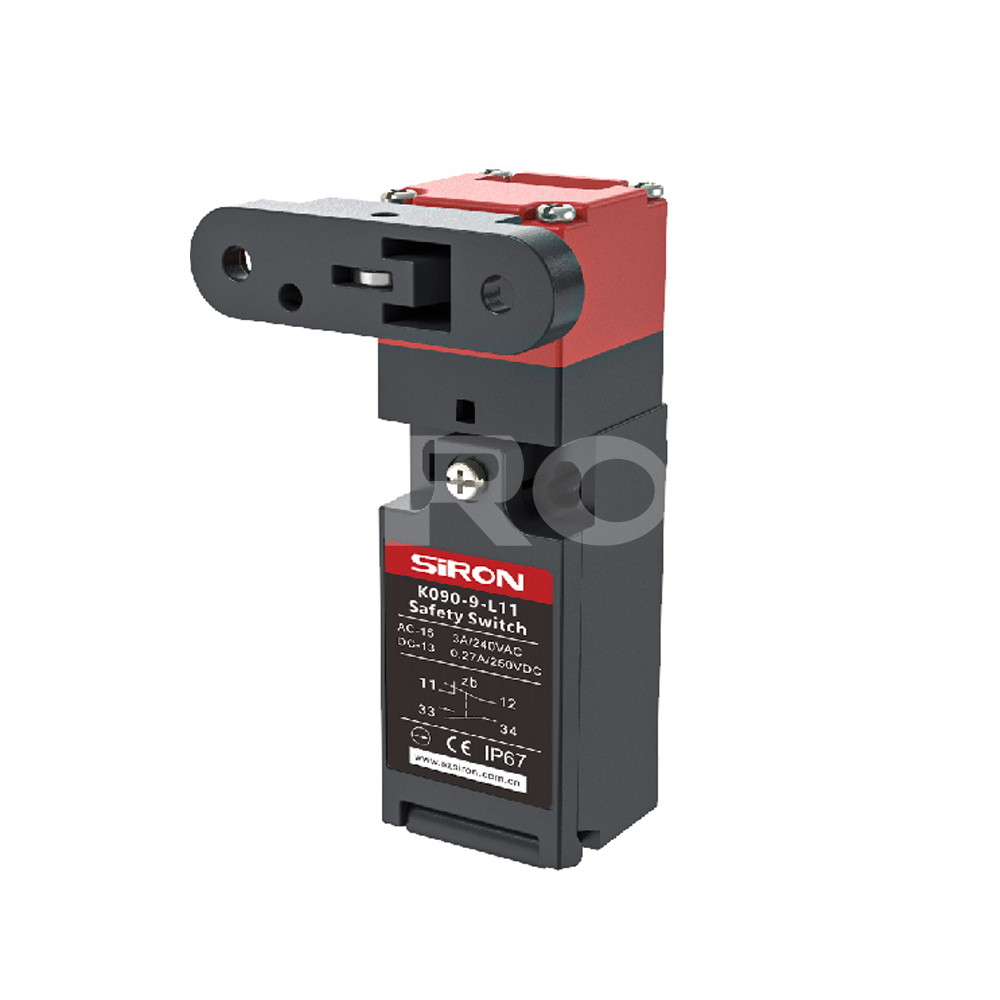

K090-9-L1 Series
SiRON
9031809090
About selection

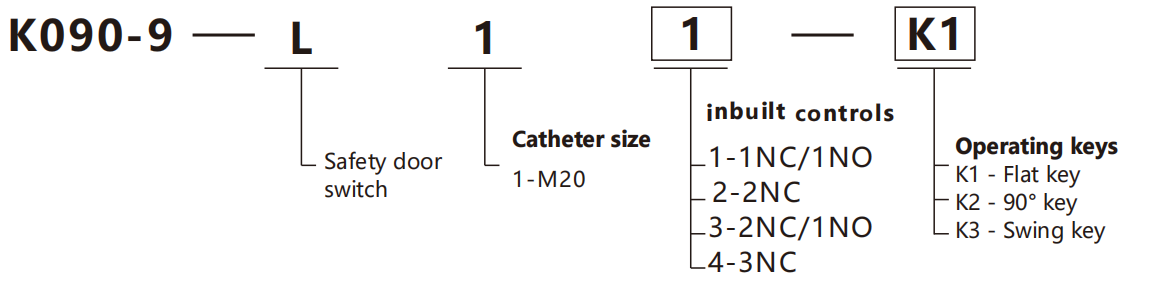

Selection example: K090-9-L11-K1 indicates the K090-9-L series, with a conduit size of M20, built-in switch 1NC/1NO, and a flat key.

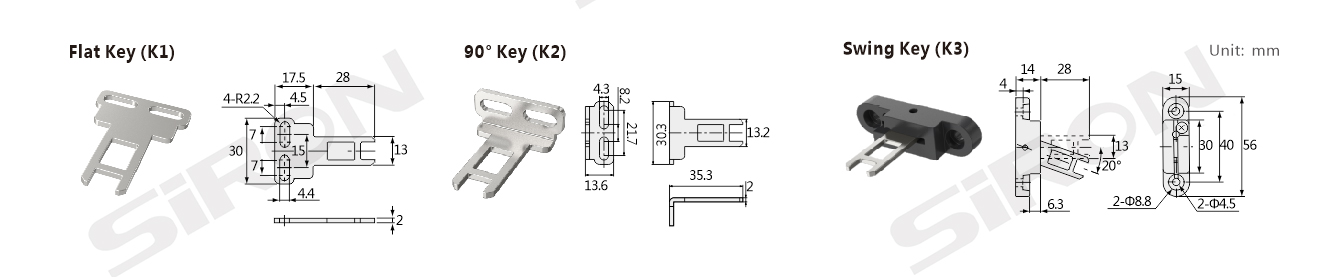

Note: Separately order the operating key model: K090-9-L-K1, K090-9-L-K2, K090-9-L-K3.
Specifications
Operating speed | 0.1m～0.5m/s | |
Operating frequency | 30 times/min | |
Contact resistance | Below 25m | |
Insulation resistance | Below 100mΩ (below 500VDC) | |
Insulation voltage(UI) | 400V | |
Class of protection | IP67 | |
Life span | Machine | More than one million times |
Electrc | More than 15,000 times | |
Dielectric strength | Between the same terminals: AC 1000V, 50/60Hz, 1s Between different terminals: AC 1500V, 50/60Hz, 1s Between each terminal and ground: AC 1500V, 50/60Hz, 1s | |
Strike | Durability | 1000m/s⊃2; |
Maloperation | 300m/s⊃2; | |
Vibration | 1 0 ～ 5 5 H z , 1.5 mm Double amplitude vibration | |
Ambient temperature/ambient humidity | - 1 0 ~ + 7 0 ℃ , Unfrozen ice ； 8 5 % R H | |
| Action characteristic | Operate key insertionforce | Maximum 15N |
Operation key pull out power | Maximum 50N | |
PT pretravel | 6±3mm | |
TT pretravel | 28mm | |
Operate key insertion force | Four installation directions are available (default front side); Plastic | |
Note: 1. Do not energize more than 2 circuits with AC 250V and 3A;
2. The test conditions for service life are: ambient temperature 5–35°C, ambient humidity 40–70%.

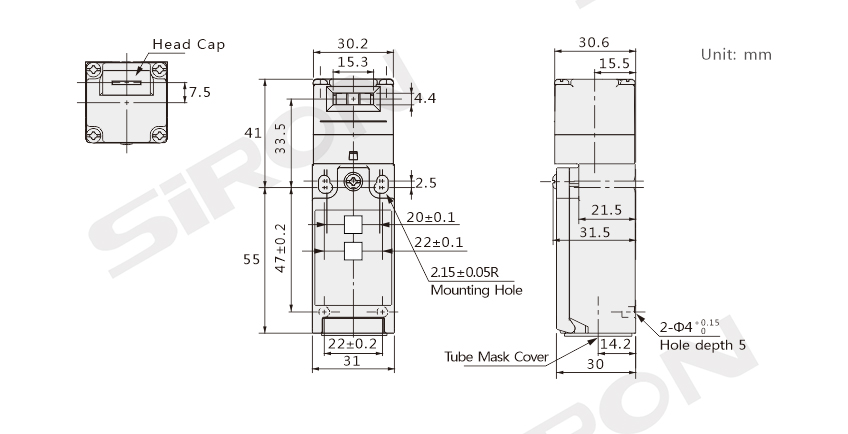

Dimension
