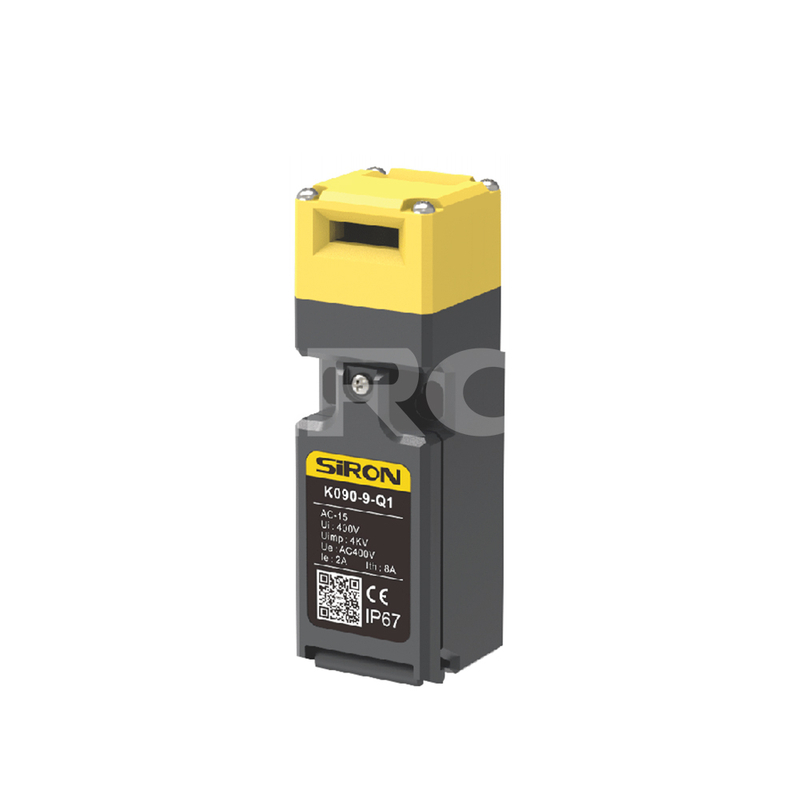

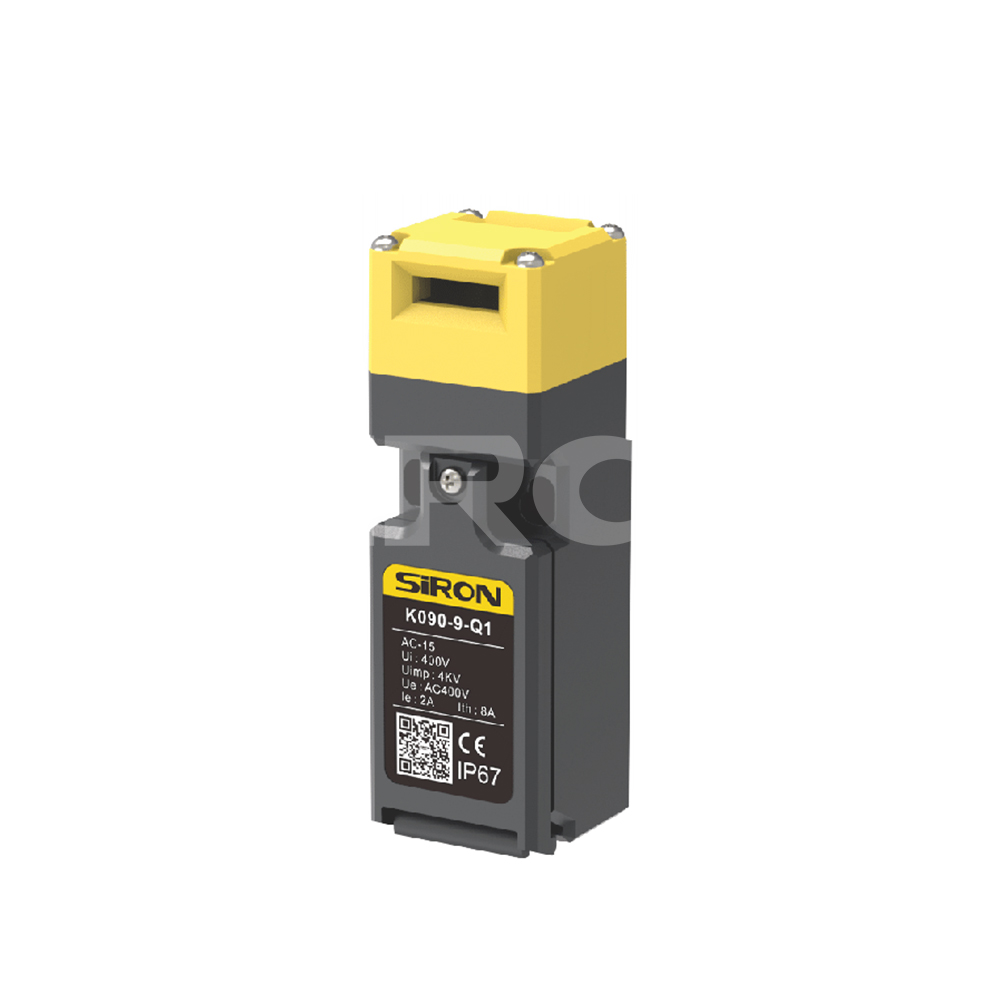

SiRON K090-9-Q1 Series Safety Door Switch

Name: SiRON K090-9-Q1 Series Safety Door Switch
Brand: SiRON
Rating: 5.0 (89 reviews)

Features:

Suitable for standard load and small load;
* The NC contact is a direct disconnect action contact;
* Up to 3 sets of contact structure, optional 2NC+1NO or 3NC;
* Can adjust 8 ways to insert the operating key to meet different installation positions;
* Operating key and electromagnetic lock safety door switch universal.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K090-9-Q1 Series
Brand:
SiRON
Code:
9031809090

Safety door switch Resin head 11 types of operation keys Conduit opening PG13.5

Product Description

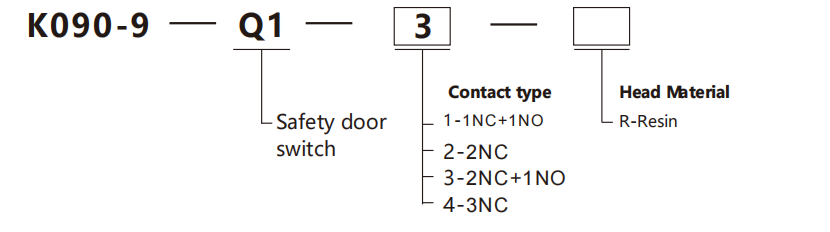

About selection

Selection example：K090-9-Q1-3-R indicates the K090-9-Q1 series, contact type is 2NC+1NO,

head material is resin.

Specifications

Series	K090-9-Q1 series
Rated insulation voltage(Ui)	400V
Rated impulse withstand voltage (Uimp)	4KV
Rated open thermal current(Ith)	8A
Category of use	AC-15
Rated operating voltage (Ue)	AC400V
Rated operating current(le)	2A
Rated limited short circuit current	1000A
Forced disengagement	≥60N
Forced separation distance	≥10mm
Operating frequency	≤20 times per minute
Ambient temperature	-20～60℃(Non-freezing)
Ambient humidity	Below 85%RH

Notes:

1. The above values are initial values;

2. The switch contacts are shared for standard and micro loads. However, a contact that operates with a specific load must not be connected to a load with a smaller capacity for use. Otherwise, it may cause damage to the contact surface and reduce contact reliability.

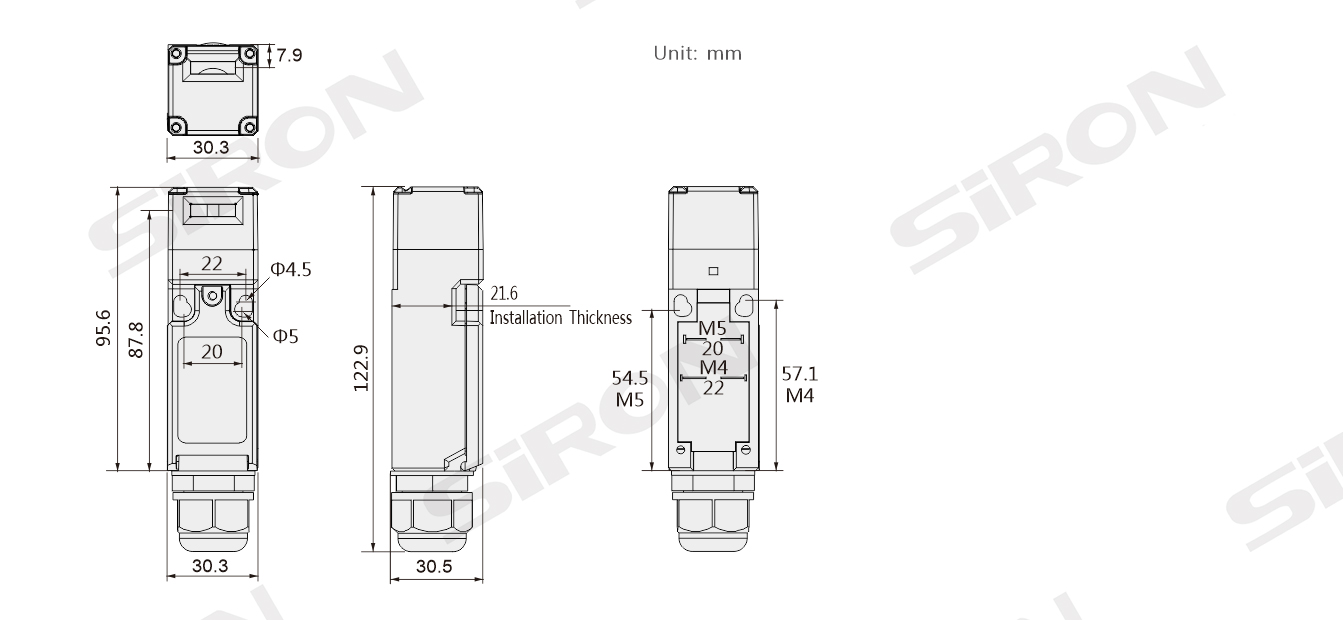

Dimension

外形图
