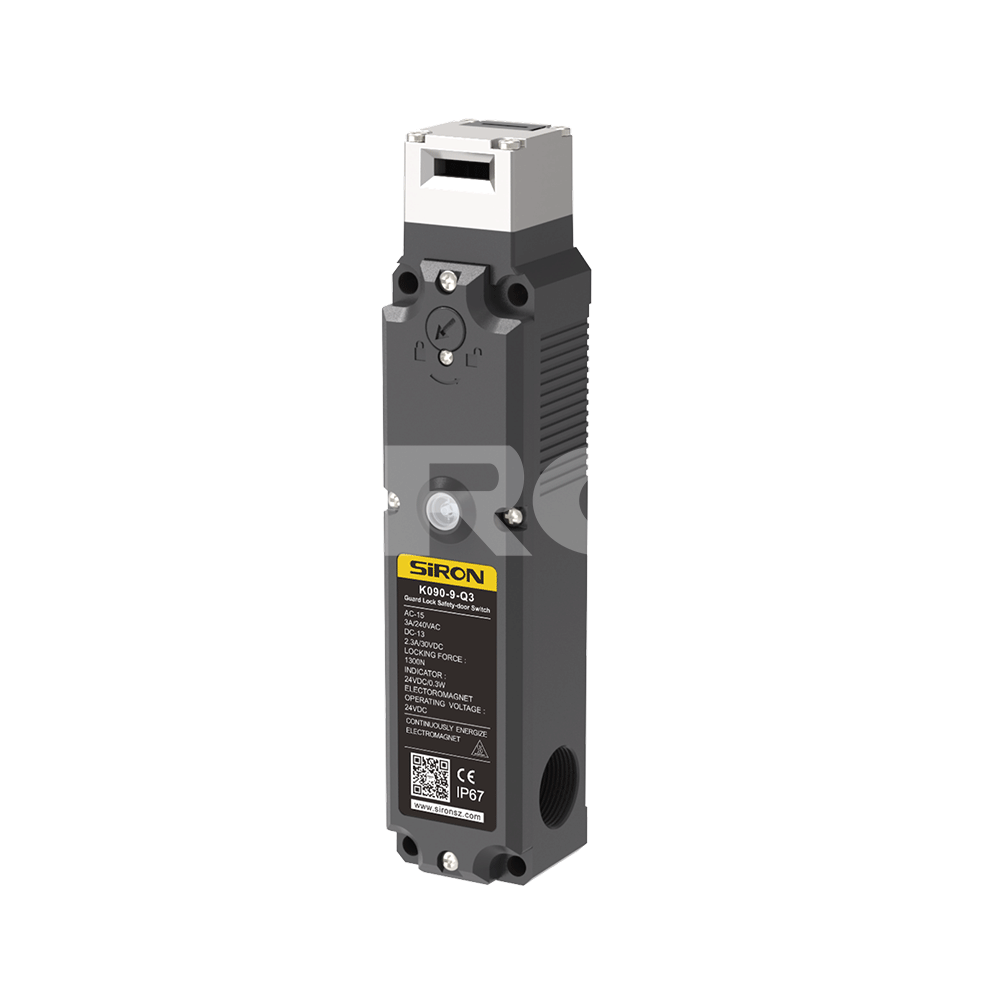

K090-9-Q3 Series
SiRON
9031809090

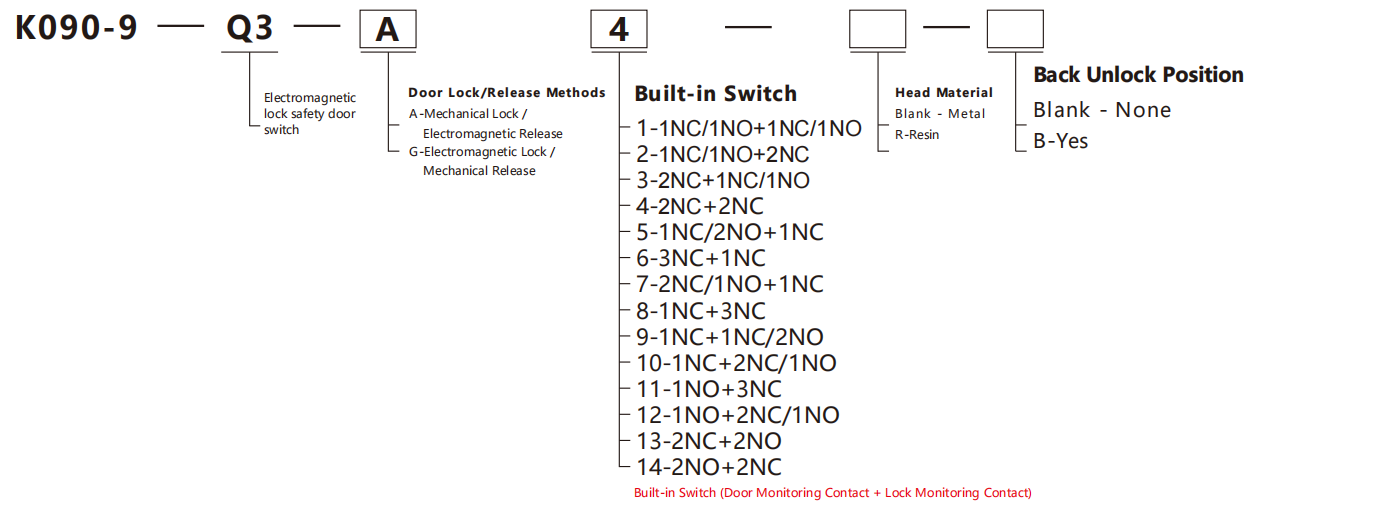

About selection
Selection Example: K090-9-Q3-A4-R-B Indicates the K090-9-Q3 series, with mechanical, lock/electromagnetic release, built-in switch (2NC + 2NC), resin head material, and back unlock position available.
Specifications
| Series K090-9-Q3 SERIES | |||
| Solenoid characteristic | |||
| Rated operating voltage | DC24V±5% | ||
| Rated current | 200mA(initial value) | ||
| Rated power | 4.8W | ||
| Insulation | ClassB(130℃) | ||
| Indicator characteristic | |||
| LED luminous color | Green | ||
| Rated voltage | DC24V | ||
| Rated current | 1mA | ||
| Peculiarity | |||
| Life span | Machanical | More than 1 million times | |
| Electric | More than 150,000 times | ||
| Allowable operating speed | 0.05～0.5m/s | ||
| Allowable operating frequency | Maximum 20 operations per minute | ||
| Forced breaking force | ≥80N | ||
| Force disconnect operating distance | ≥10mm | ||
| Drawing strength at lock | 1300N | ||
| Rated insulation voltage(Ui) | 300V | ||
| Rated impulse withstand voltage (Uimp) | 2.5kV | ||
| Category of use | AC-15 | DC-13 | |
| Rated operating voltage(Ue) | 240V | 30V | |
| Rated operating current(le) | 3A | 2.3A | |
| Rated limited short circuit current | 1000A | ||
| Rated open thermal current(Ith) | 10A | ||
| Ambient temperature | -20～60℃(no freezing) | ||
| Ambient humidity | Below 85%Rh | ||
| Head mounting direction | Four installation directions are available (default is the front side) | ||
| Pipe diameter | M20 | ||
| Shell material | PA66 flame retardant | ||
| Contact material | Silver alloy with gold plating | ||
| Class of protection | IP67 (except for the key operation hole) | ||
