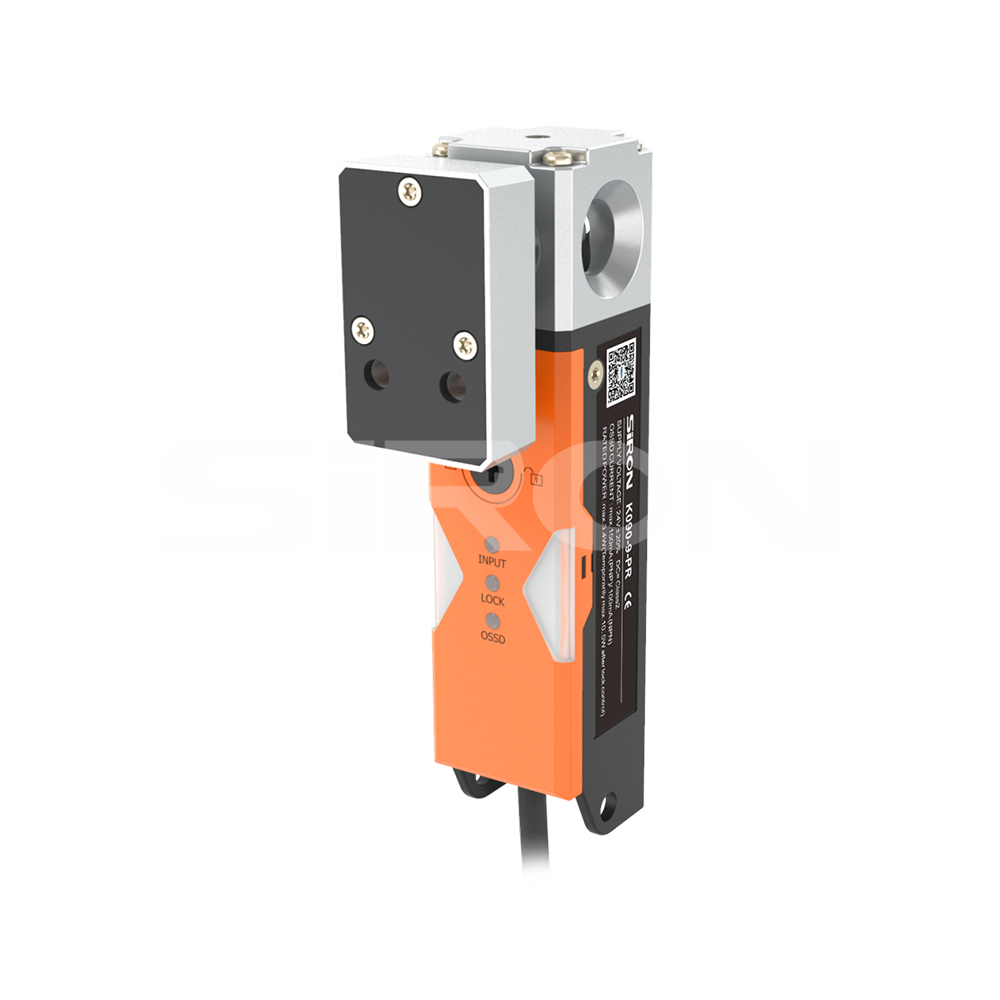

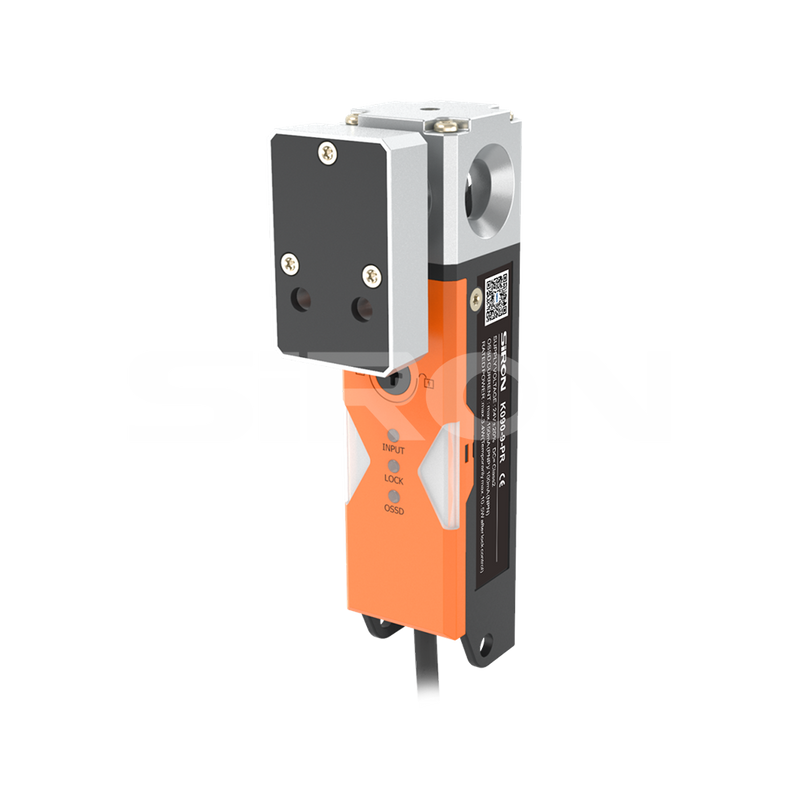

K090-9-PR Series
SiRON
9031809090
About selection

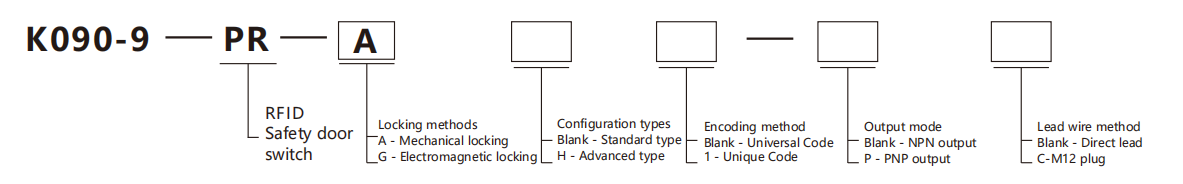

Selection example:K090-9-PR-A represents the K090-9-PR series, with locking method: mechanical locking, configuration type: standard type, coding method: universal coding, NPN output, and lead
wire method: direct lead wire.
K090-9-PR-GH1-PC indicates the K090-9-PR series, with locking method: electromagnetic locking, configuration type: advanced type, encoding method: unique encoding, PNP output, and lead wire method: M12 plug.
Configuration type description
| Type | Safe output channel | AUX output channel | Safe input channel | Lock the input channel | EDM | Reset |
| Standard Type | √ | √ | √ | √ | × | × |
| Advanced Type | √ | √ | V | √ | √ | √ |
Specifications
| Operating voltage | DC24V±15% | |
| Rated power | 4.6W(no - load) | |
| Locking mode | Mechanical locking /Electromagnetic locking | |
| Security outpu | NPN*2/PNP*2 | |
| Risk time | 100ms | |
| Start-up | 3.5s | |
| Timematerial | Nylon / Zinc Alloy / Stainless Steel | |
| Response time | Lock → Unlock | 100ms(independent operation) |
Unlock → Lock | ||
| Lock | Locking holding force Fzh | ≥2000N |
Lock bolt insertion deviation | ≤2mm | |
Mechanical endurance | >100万次(door operation speed 1m/s) | |
Operating frequency | 1Hz | |
Minimum radius of the revolving door | ≥220mm | |
Manual unlock | Front side, Back side | |
| Up to 20 units | ||
| Control output (OSSD output) | Output type | Transistor output ×2 |
Maximum load current | ≤200mA | |
Residual voltage(ON) | <2.5V@200mA | |
OFF voltage | ≤ 2 V @ Cable 5 m | |
Leakage current | ≤0.5mA | |
Maximum load capacity | 2.2μF | |
Load connection resistance | ≤2.50 | |
| AUX output (non-secure output) | Output type | Transistor output |
| Output quantity | 1 | |
| Maximum load current | 50mA | |
| Residual voltage (ON) | ≤2.5V@50mA | |
| External input | Secure input | 1.5mA*2 |
| Reset /EDMinput | About 10mA*1 | |
| Lock control input | About10mA*1 | |
| OSSDAction switch input | About10mA*1 | |
| Protection | Safety break protection, current limitation, overload protection, overvoltage protection, overheating protection shutdown and restart, reverse polarity protection, transient noise protection, failure pulse protection | |
| Case protection class | IP65 | |
| Operating temperature | -20℃～55℃(No freezing) | |
| Storage temperature | -25℃～70℃(No freezing) | |
| Working ambient humidity | 5%～95%RH | |
| Storage ambient humidity | 5%～95%RH | |
| Vibration resistance | 10 to 55 Hz, double amplitude 0.2 mm, 5 minutes for each direction (X, Y, Z) | |
| Impact resistance | 30g, 6 times for each direction | |
