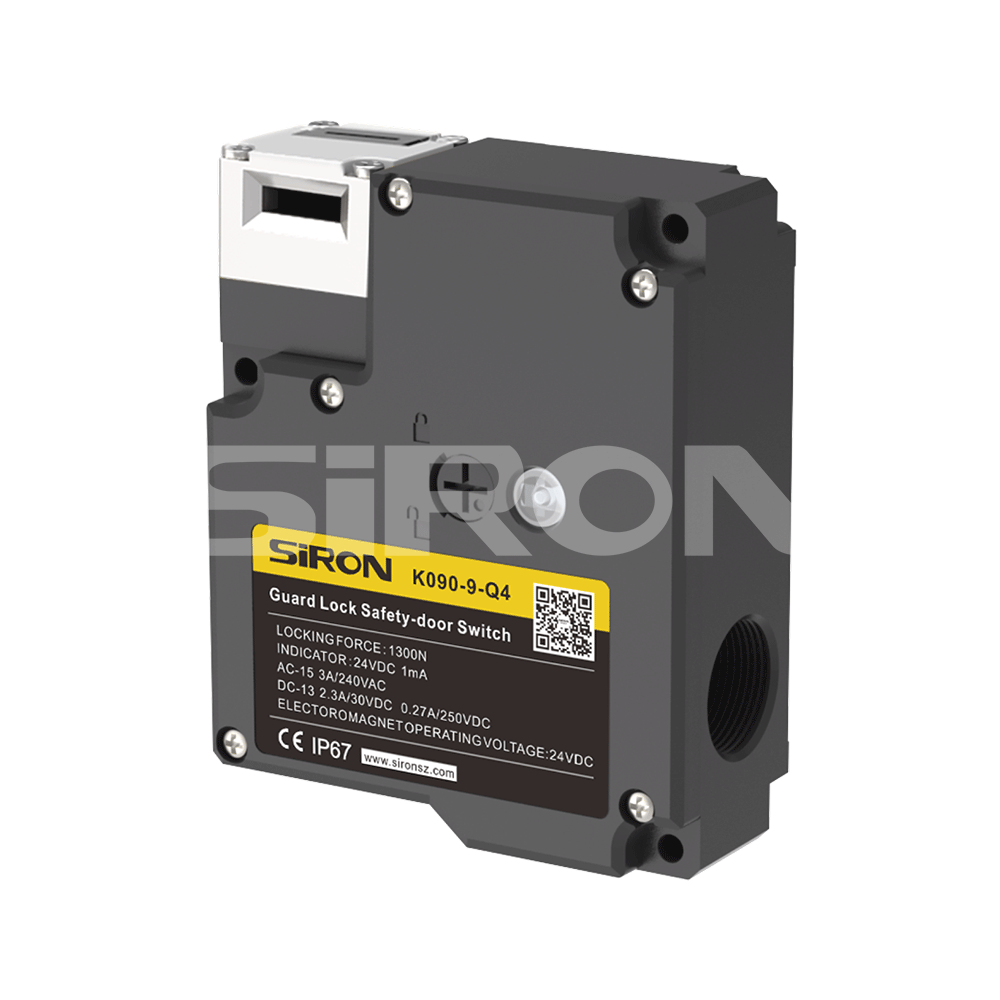

SiRON K090-9-Q4 Series Electromagnetic Lock Safety Door Switch

Name: SiRON K090-9-Q4 Series Electromagnetic Lock Safety Door Switch
Brand: SiRON
Rating: 5.0 (78 reviews)

Features:

*6 sets of gold-plated contacts; 4 contact combinations;
* Locking force 1300N; 11 kinds of operating keys are available;
* Indicator + emergency unlock;
* Optional front/side emergency unlock.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
K090-9-Q4 Series
Brand:
SiRON
Code:
9031809090

Electromagnetic lock safety door switch Mechanical locking Electromagnetic locking Catheter diameter M20 PG13.5 IP67

Product Description

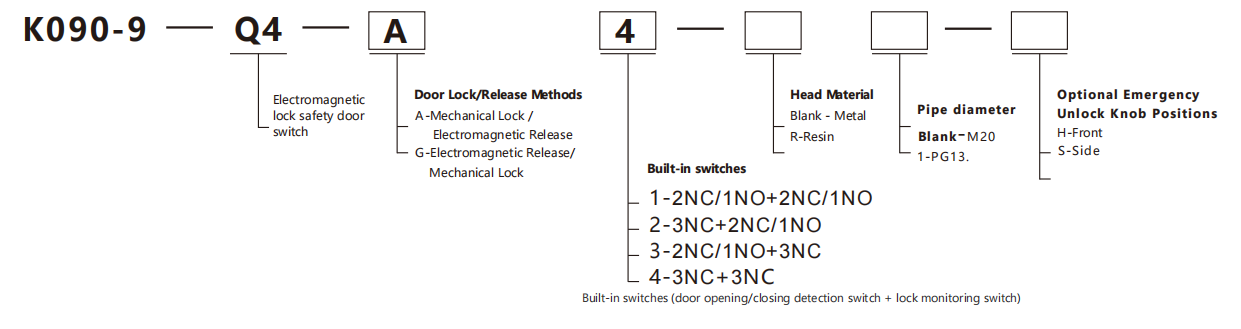

About selection

Selection Example：K090-9-Q4-A4-R1-H It indicates the K090-9-Q4 series, with mechanical locking/electromagnetic release, built-in switches (3NC + 3NC), resin head material, PG13.5 pipe diameter, and optional emergency unlock knob position at the front.

Specifications

Series K090 - 9 - Q4 series
Solenoid characteristic
Rated operating voltage		DC24V±5%
Rated current		200mA(initial value)
Rated power		4.8W
Insulation		ClassB(130℃)
Indicatorcharacteristic
LEDluminous color		Green
Rated voltage		DC24V
Rated current		1mA
Peculiarity
Life span	Machine	More than one million times
	Electric	More than 150,000 times
Allowable operating speed		0.05～0.5m/s
Allowable operating frequency		Maximum 20 operations per minute
Forced breaking force		≥80N
Force disconnect operating distance		≥10mm
Drawing strength at lock		1300N
Ratedinsulation voltage(Ui)		300V
Rated impulse withstand voltage (Uimp)		2.5kV
Category ofuse		AC-15	DC-13
Rated operating voltage(Ue)		240V	30V	250V
Rated operating current(le)		3A	2.3A	0.27A
Rated limited short circuit current		1000A
Rated open thermal current(Ith)		10A
Ambient temperature		-20～60℃(No freezing)
Ambient humidity		Below 85%Rh
Head mounting direction		Four installation directions are available (default front side)
Pipe diameter		M20/PG13.5
Shell material		PA66 Flame-Retardant
Contact material		Gold plating of silver alloy
Class of protection		IP67(except for the key operation hole)
