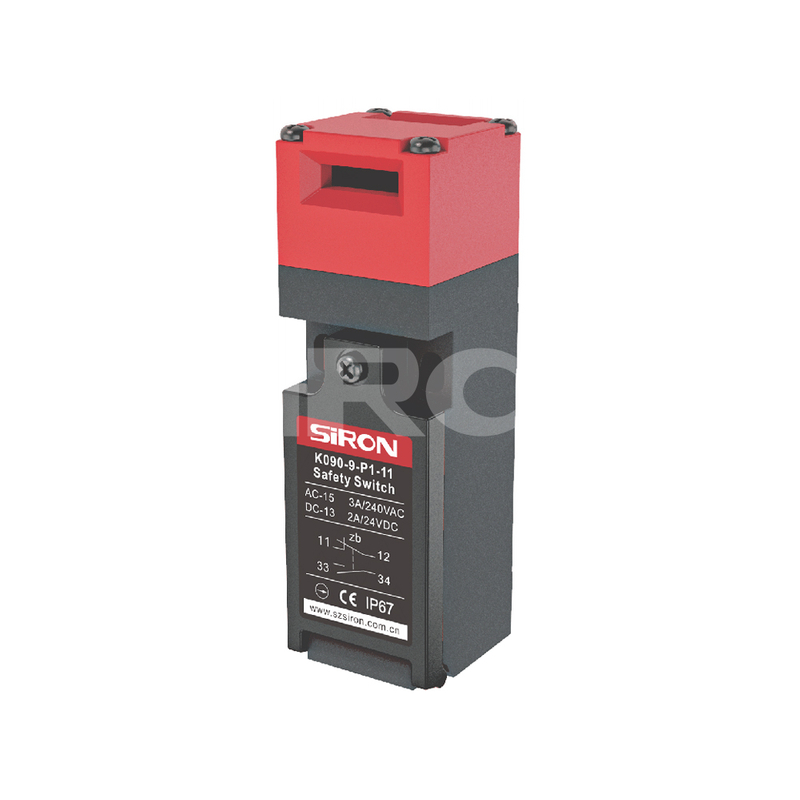

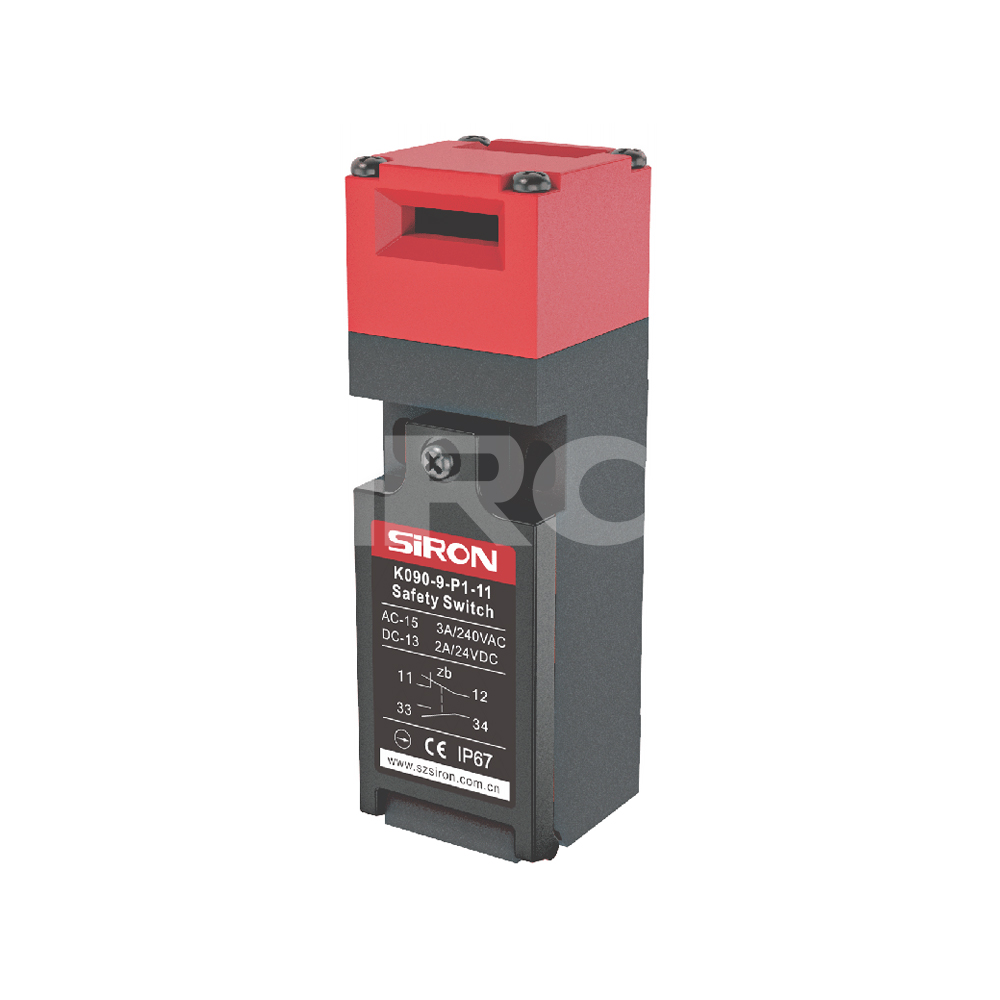

K090-9-P1 Series
SiRON
9031809090

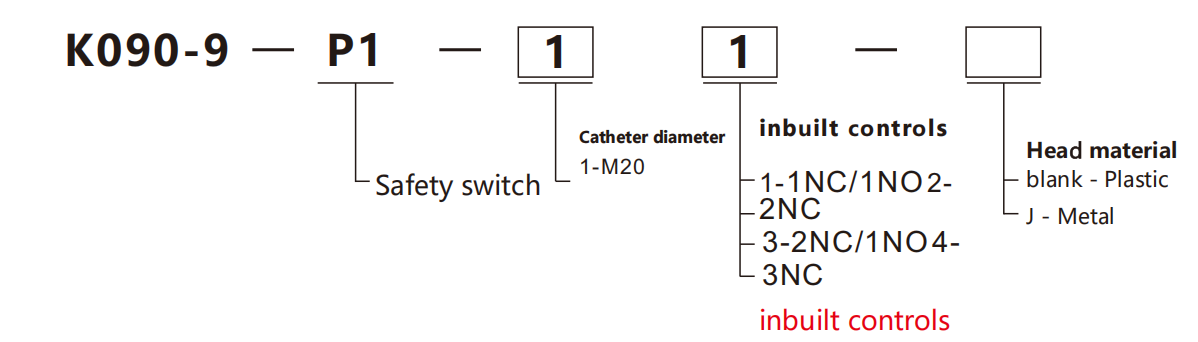

About selection
Selection example: K090-9-P1-11 indicates the K090-9-P1 series, with a conduit diameter of M20, a built-in switch of 1NC/1NO, and a head material of plastic.

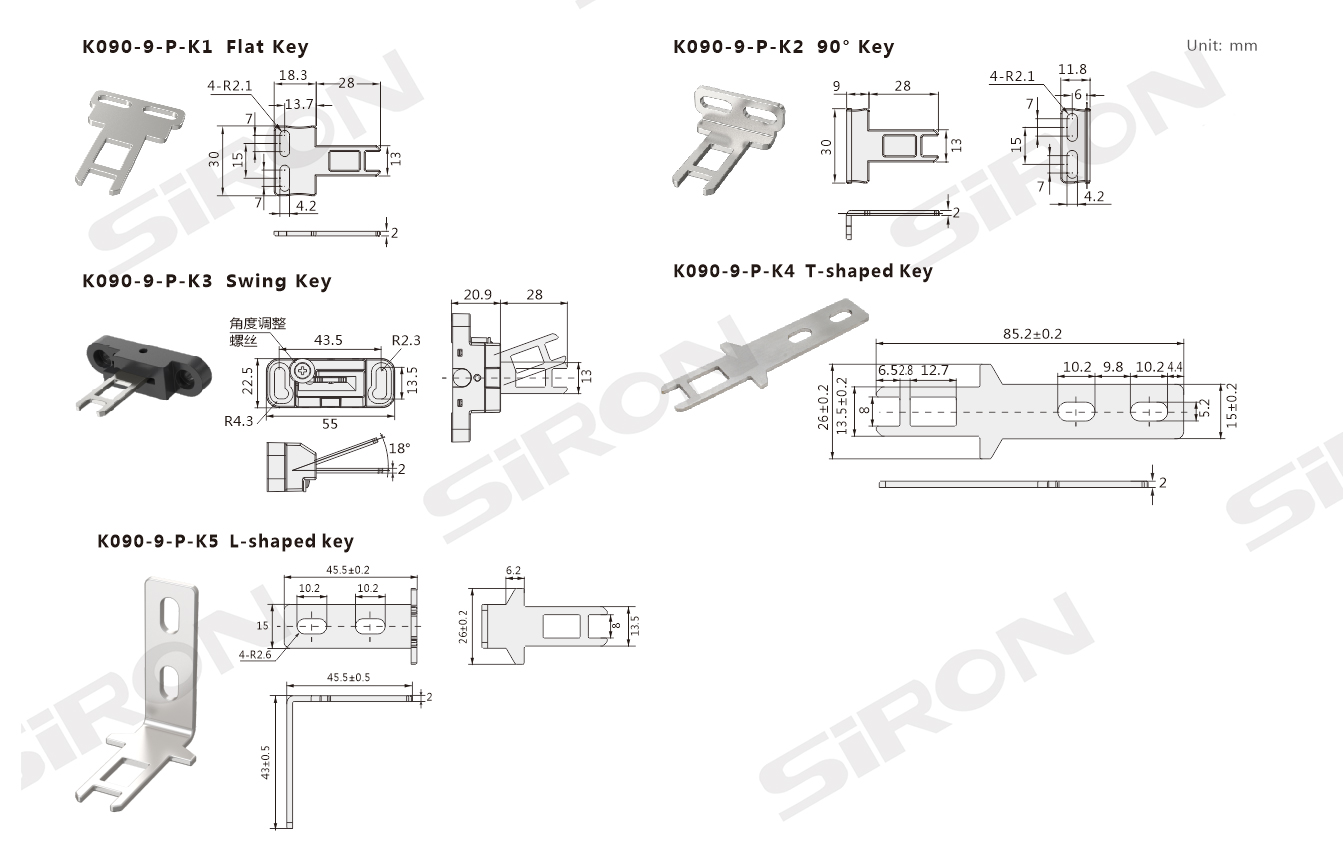

The operating key is ordered separately.
Specifications
| Type of use | Rated operatin voltage(Ue) | AC-15:240V;DC-13:24V |
Rated operating current(le) | AC-15:3A;DC-13:2A | |
| Electric gas | Contact resistance | Below 25mΩ |
Rated insulation voltage (Ui) | 300V | |
Protection level against electric shock | Class Ⅱ(double insulation) | |
Pulse withstand voltage | 2.5KV | |
Insulation resistance | Above 100MΩ (below 500VDC) | |
Short-circuit protection device | For 10A and 250V, a quick-blow fuse is required | |
Vibration resistance | 1 0 ~ 5 5 H z Double amplitude vibration 1 . 5 m m | |
Impact resistance | Durability: 1000m/s⊃2;, false operation: 300m/s⊃2; | |
| Conditional short-circuit current | 100A | |
| Contact spacing | 2 * 2 mm and above | |
| Action characteristic | Forced breaking force | Standard type: 60N Strong tensile type: Minimum 80N |
Forced dis connection of bank pre-travel | 1 0 m m 以 上 | |
Operating speed | 0.1m～0.5m/s | |
Allowable operating frequency | Maximum 20 operations per minute | |
| Environment | Degree of pollufion(environment ofuse) | 3 |
Operating ambient temperature | - 10℃~+70℃ No freezing | |
Ambient humidity | Below 8 5 % R H | |
| Safety level | Protection dass | IP67 |
Material | PA66 flame retardant | |
Mechanicallife | more than 1 million times | |
| Electrical life | More than 150,000 times |

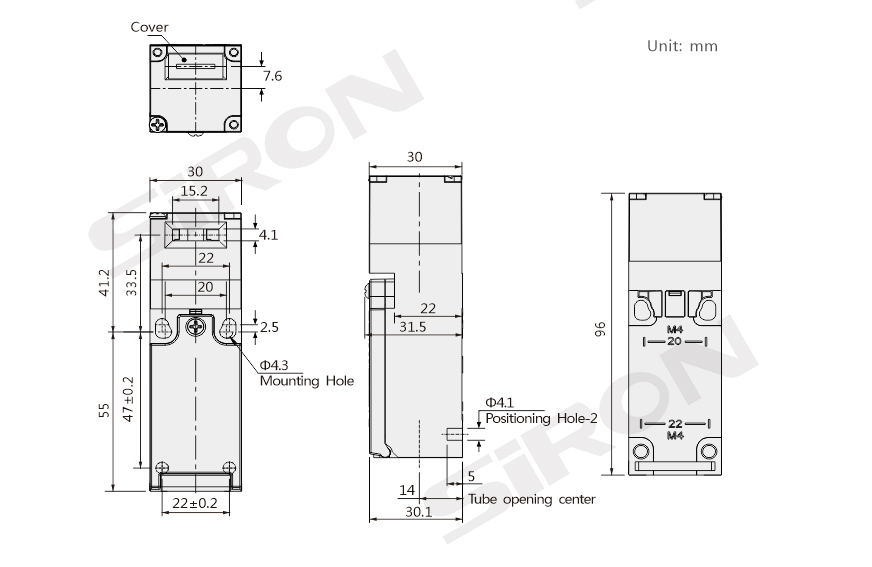

Dimension
