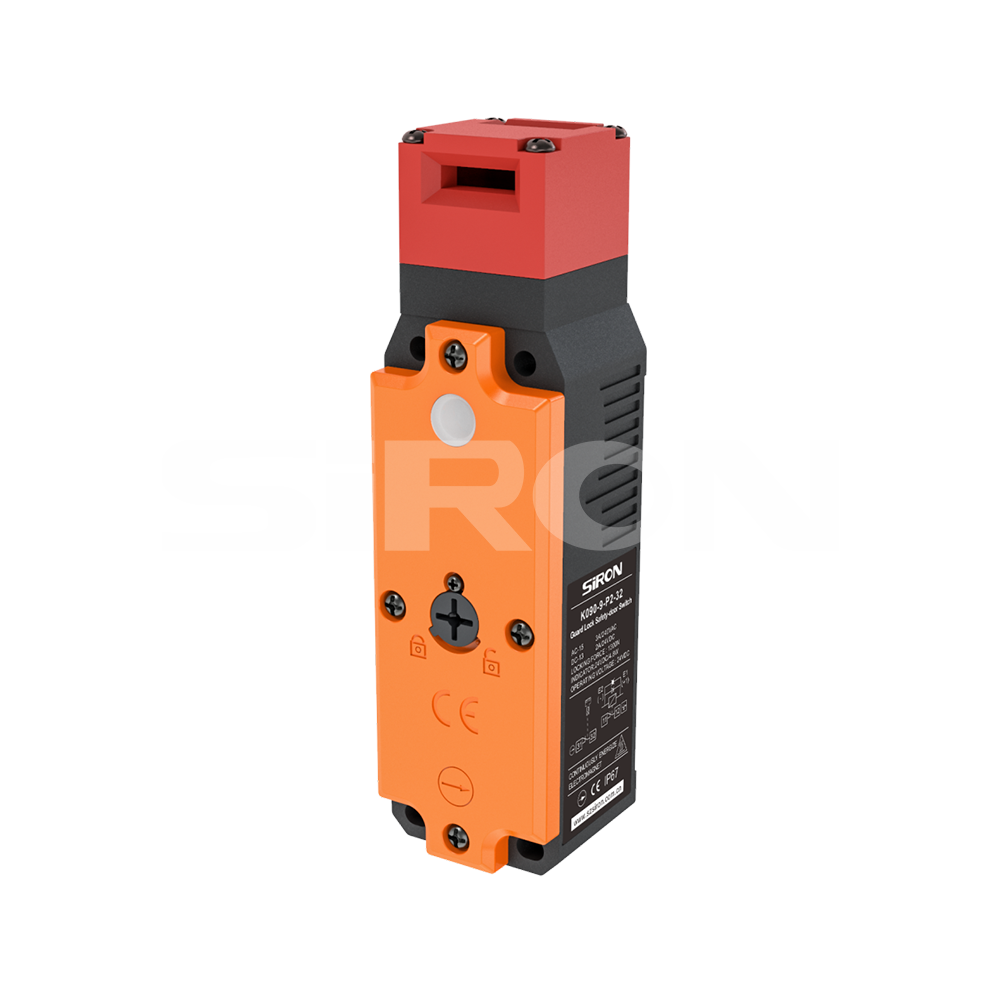

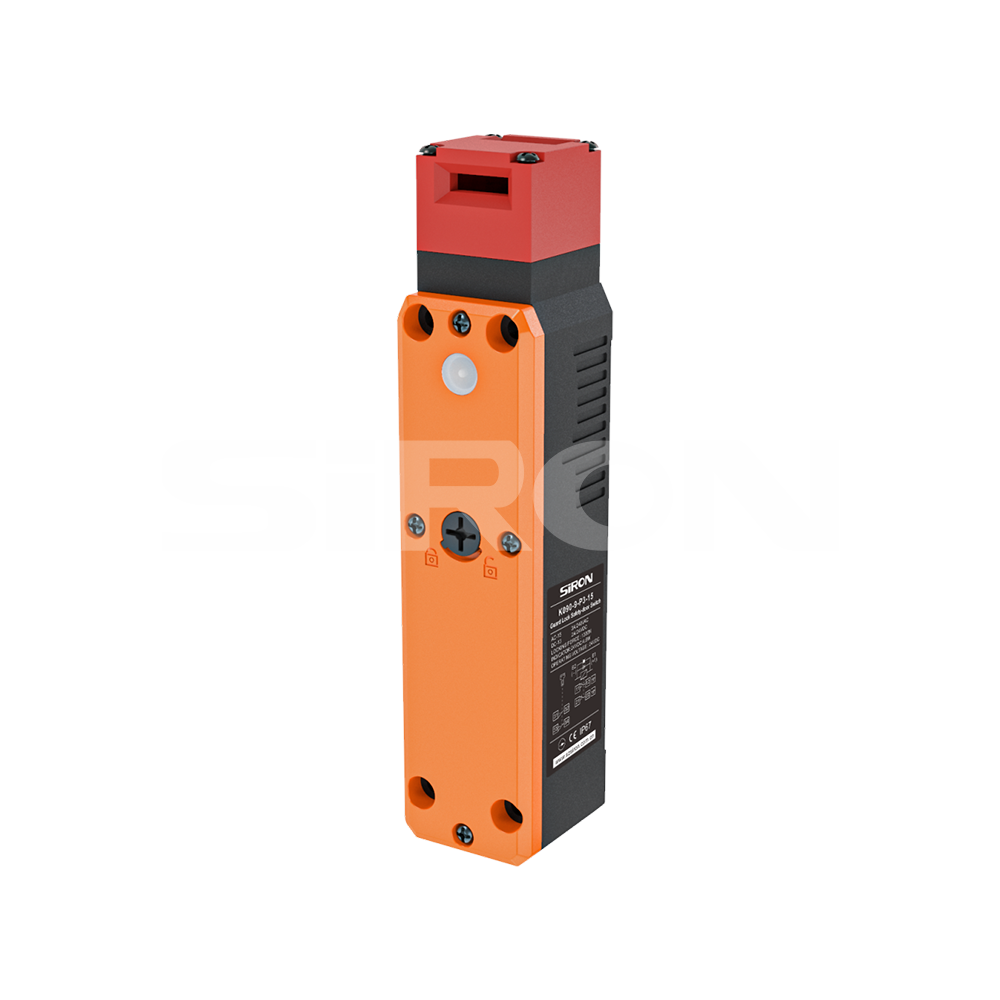

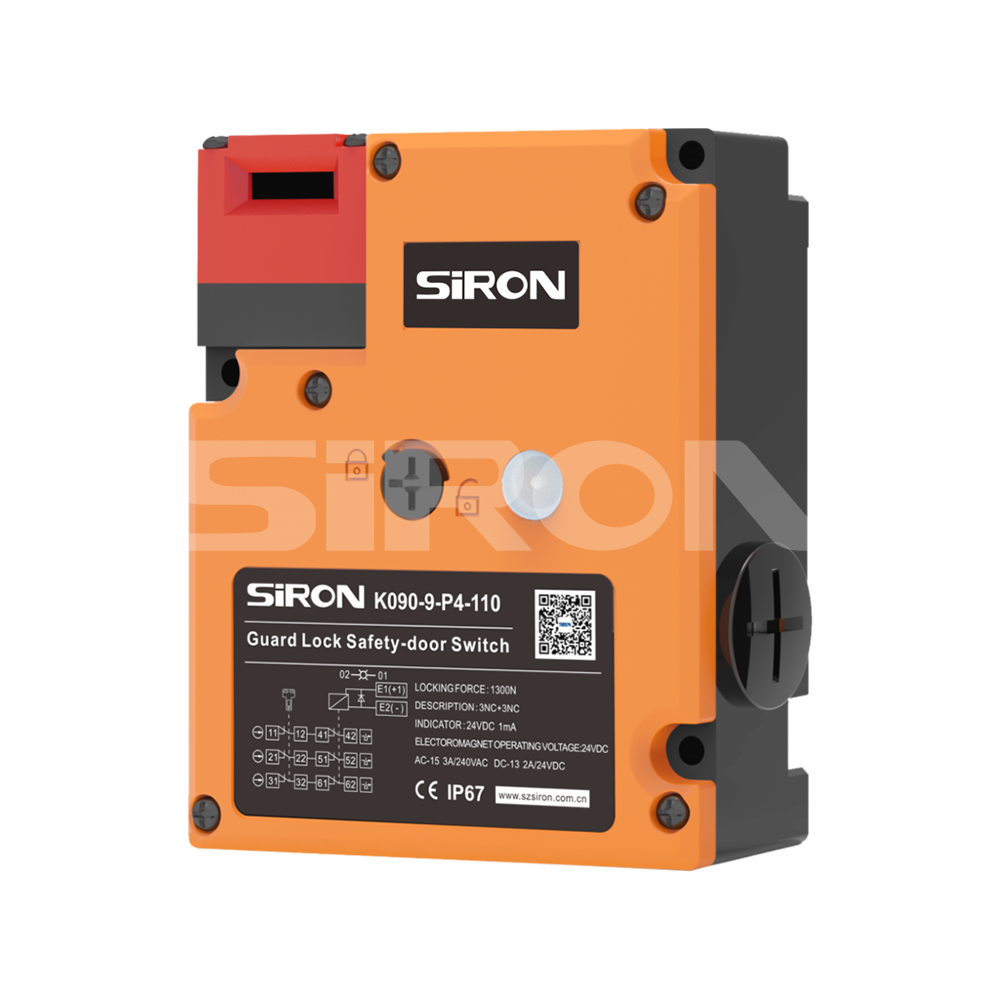

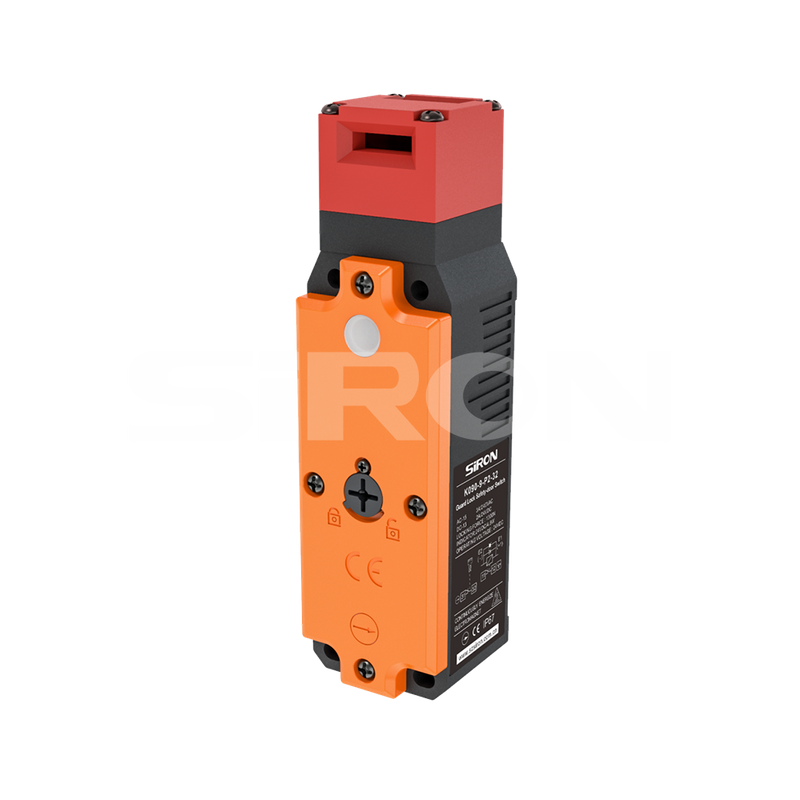

K090-9-P2/P3/P4 Series
SiRON
9031809090
About selection

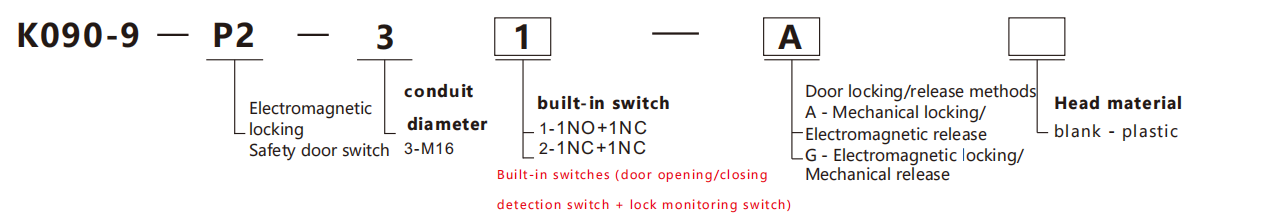

Selection example: K090-9-P2-31-A indicates the K090-9-P2 series, with a conduit diameter of M16, built-in
switches of 1NO + 1NC, mechanical locking/electromagnetic release, and the head
material is plastic.

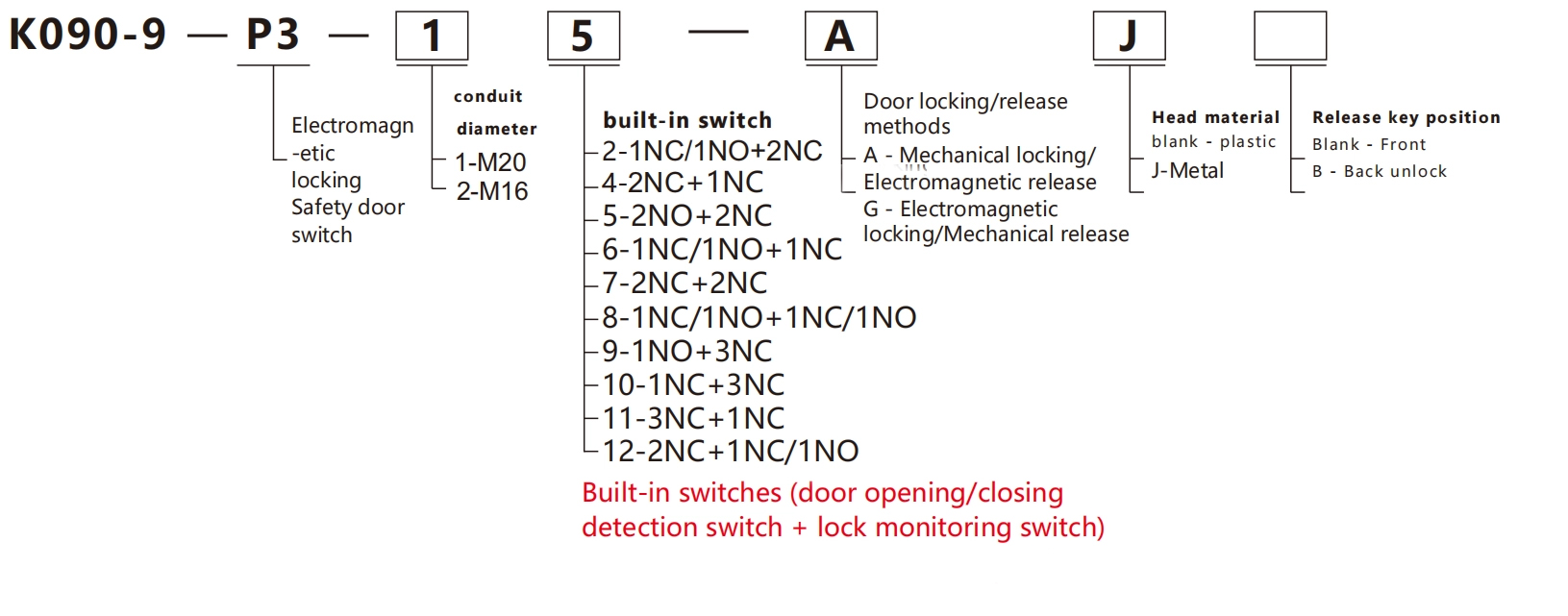

Selection example: K090-9-P3-15-A indicates the K090-9-P3 series, with a conduit diameter of M20, built-in switches
of 2NO + 2NC, mechanical locking/electromagnetic release, head material being plastic, and the release key position at the front.
Note: The diameters of the built-in switches 1 and 3 are M16, and there is no position for the release key.

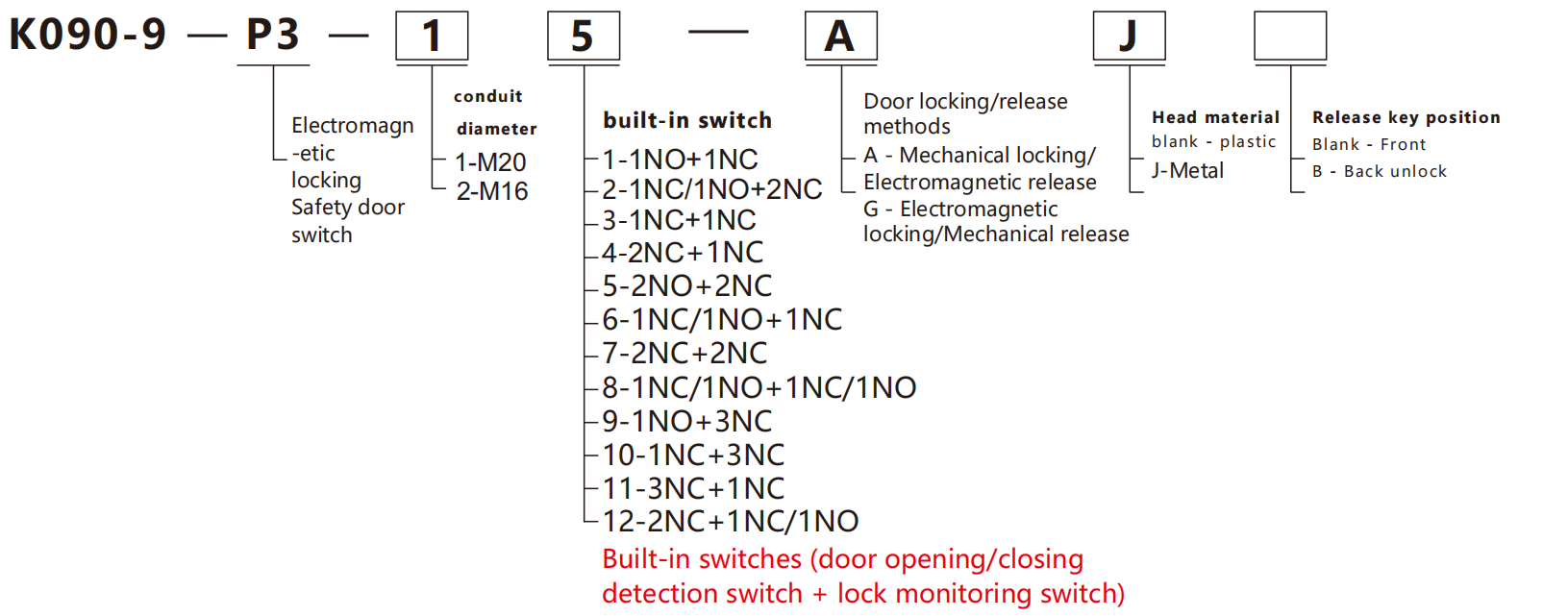

K090-9-P3-21-A indicates the K090-9-P3 series, with a conduit diameter of M16, built-in switches 1NO + 1NC, mechanical locking/electromagnetic release, head material is plastic, and no release key position.

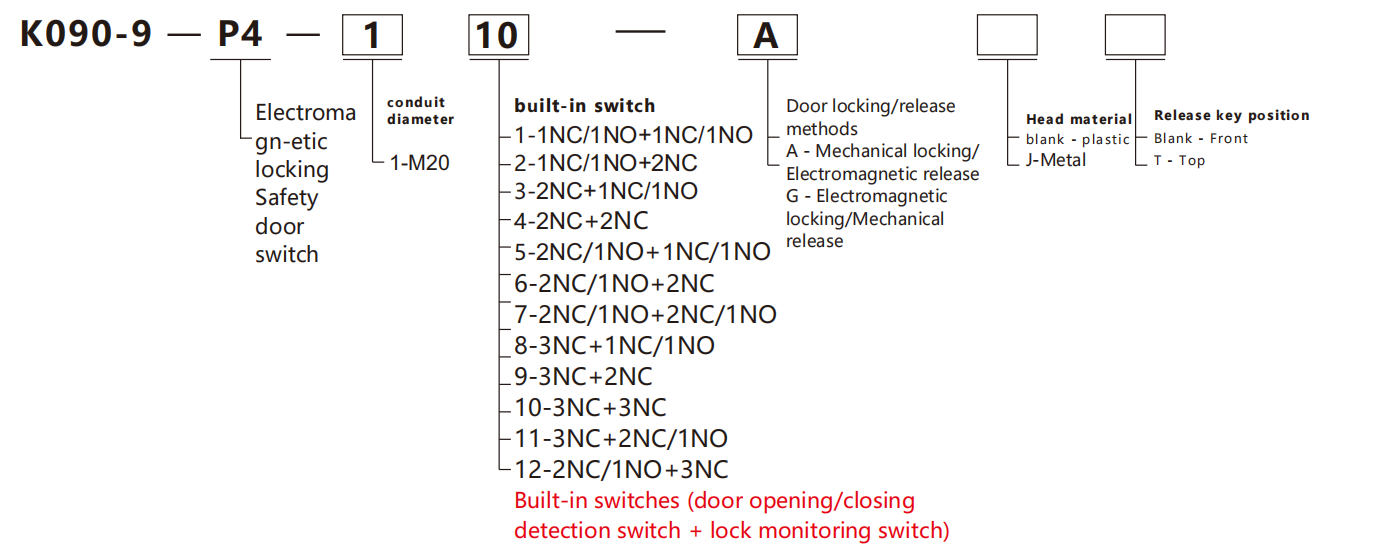

Selection example:K090-9-P4-110-A indicates the K090-9-P4 series, with a conduit diameter of M20, built-in switches 3NC+3NC, mechanical locking/electromagnetic release, plastic head material, and the release key position at the front.
*Operation keys

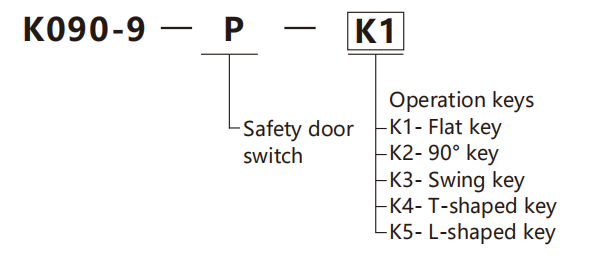

Selection example:K090-9-P-K1 indicates the K090-9-P series, with the operating key being the K1 flat key.
Specifications
| Electromagnetic tube | Rated operating voltage | DC24V |
Power | 4.8W | |
Rated current | ≈200mA | |
Insulation | B级(130°) | |
| LEDindicator | Rated operating voltage | DC24V |
Rated current | ≈1mA | |
Luminous Color(LED) | Green | |
| Type of use | Rated operating voltage(Ue) | AC-15:240V;DC-13:24V |
Ratedoperating current(le) | AC-15:3A;DC-13:2A | |
| Electric gas | Contact resistance | Below 2 5 m Ω |
Ratedopen thermalcurrent(Ith) | 10A | |
Rated insulation voltage(Ui) | 300V | |
Protection level against electricshock | Class Ⅱ(double insulation) | |
Pulse withstand voltage | 2.5KV | |
Insulation resistance | 1 0 0 M Ω and above | |
Short-circuit protection device | 10A, 250V requires a quick-break fuse | |
Vibration resistance | 1 0 ～ 5 5 H z Double amplitude vibration 1 . 5 mm | |
mpact resistance | Durability 1000m/s⊃2;, malfunction 300m/s⊃2; | |
Cond itional short-circuit current | 100A | |
Contact spacing | 2 * 2 m m and above | |
| Action characteristic | Forced breaking force | Minimum 6 0 N |
Forced disconnection of bank pre-travel | 1 0 m m and above | |
Operating speed | 0.1m~0.5m/s | |
Allowable operating frequency | Maximum 30 operations per minute | |
| Strength of drawing force at locking | 1300N | |
| Environment | Degree of pollution (environment of use) | 3 |
| Operating ambient temperature | -10℃～+55℃ No freezing | |
| Ambient humidity | Below 95%RH | |
| Safety level | Protection class | IP67 |
| Material | PA66 inflaming retarding | |
| Mechanical life | More than 1 million times | |
| Mechanical and electrical | More than 150,000 times (AC240V, 3A, resistive load) |
