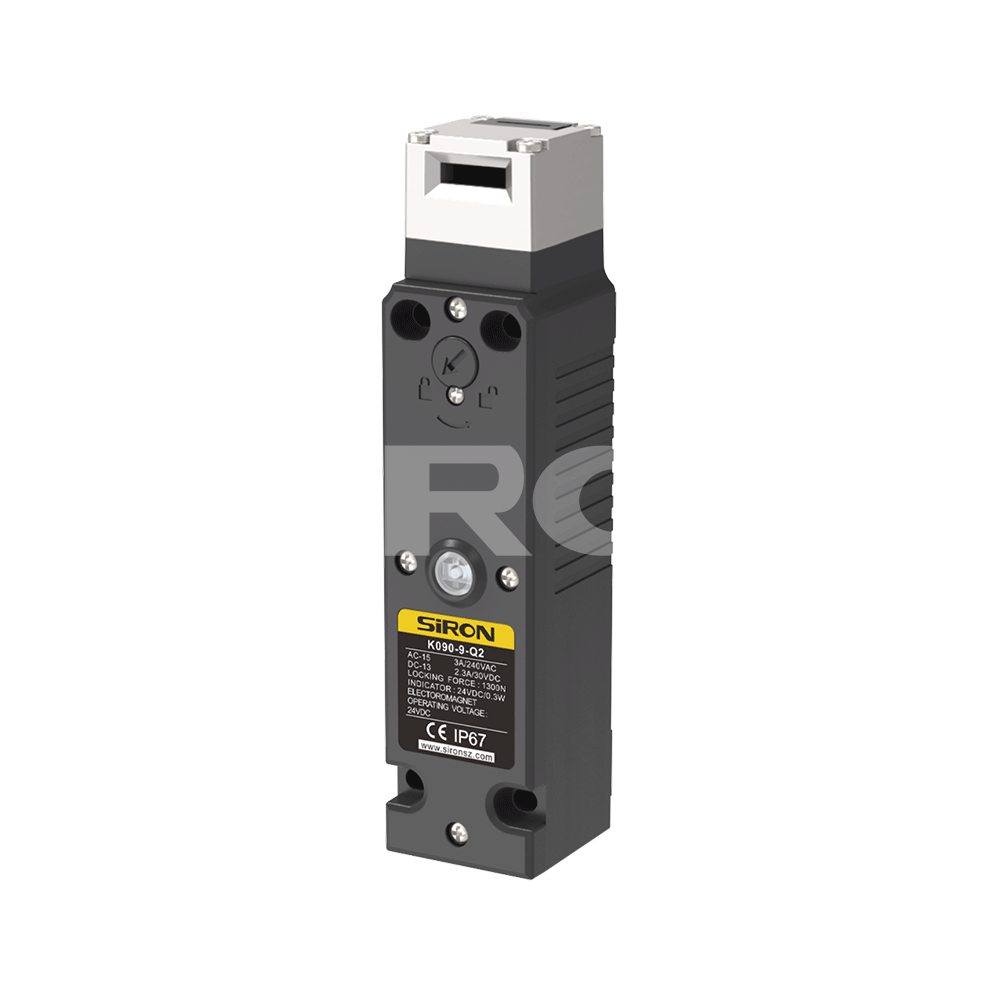

K090-9-Q2 Series
SiRON
9031809090

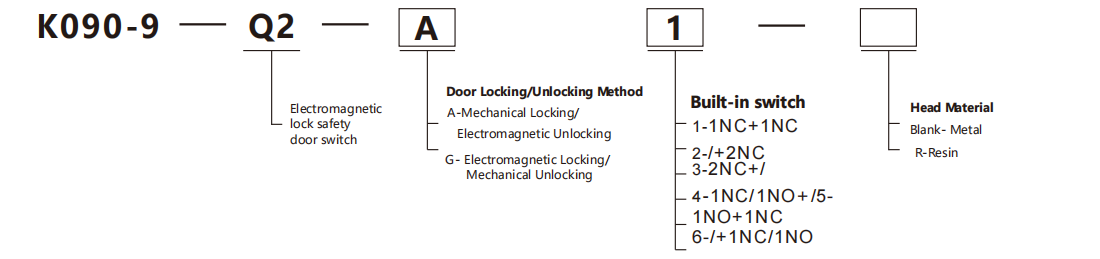

About selection
Built-in Switch (Door Monitoring Contact + Lock Monitoring Contact)

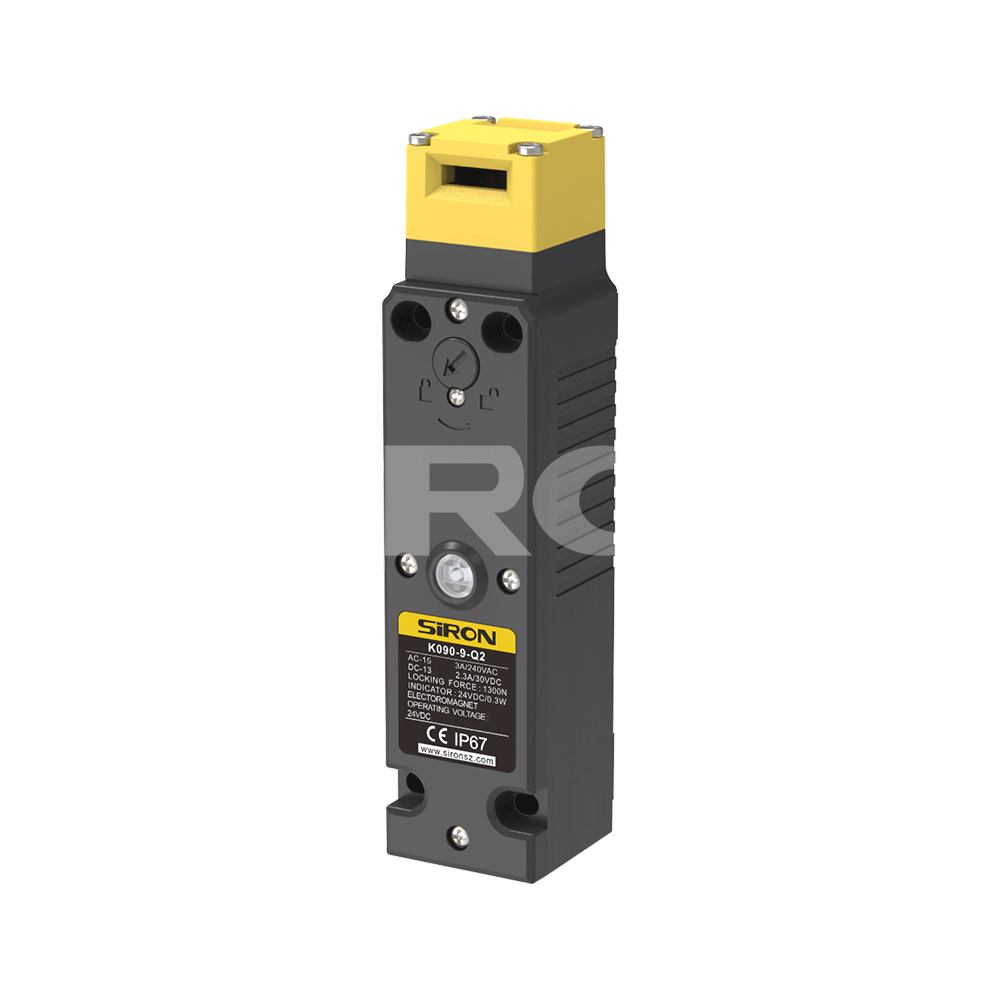

Model selection example: K090-9-Q2-A1-R indicates K090-9-Q2 series, mechanical locking/electromagnetic release, built-in switch 1NC+1NC, head material is resin.
Specifications
| Series | K090-9-Q2 series | ||
| Solenoid characteristic | |||
| Rated operating voltage | DC24V±5% | ||
| Rated current | 200mA (Initial Value) | ||
| Rated power | 4.8W | ||
| Insulation | ClassB(130℃) | ||
| Indicator characteristic | |||
| LED luminous color | Green | ||
| Rated voltage | DC24V | ||
| Rated current | 1mA | ||
| Peculiarity | |||
| Life span | Machine | More than 1,000,000 cycles | |
| Electric | More than 150,000 cycles | ||
| Allowable operating speed | 0.05～0.5m/s | ||
| Allowable operating frequency | Maximum 20 operations per minute | ||
| Forcedbreaking force | ≥60N | ||
| Force disconnect operating distance | ≥10mm | ||
| Drawing strength atlock | 1300N | ||
| Ratedinsulation voltage(Ui) | 300V | ||
| Rated impulse withstand voltage(Uimp) | 2.5kV | ||
| Category of use | AC-15 | DC-13 | |
| Rated operating voltage(Ue) | 240V | 30V | |
| Rated operating current(le) | 3A | 2.3A | |
| Ratedlimitedshort circuit current | 1000A | ||
| Ratedopenthermal current (Ith) | 10A | ||
| Ambienttemperature | -20～60℃(No icing) | ||
| Ambient humidity | Below 85%Rh | ||
| Head mounting direction | Four mounting directions optional (front side as default) | ||
| Pipe diameter | M20 | ||
| Shell material | PA66 Flame-Retardant | ||
| Contact material | Silver Alloy with Gold Plating | ||
| Classofprotection | IP67 (except for the key operation hole) | ||
