SiRON T382-14 L2+Network Management 2 Optical 8 Power Industrial Switch

SiRON T382-14 L2+Network Management 2 Optical 8 Power Industrial Switch

Name: SiRON T382-14 L2+Network Management 2 Optical 8 Power Industrial Switch
Brand: SiRON
Rating: 5.0 (92 reviews)

Features

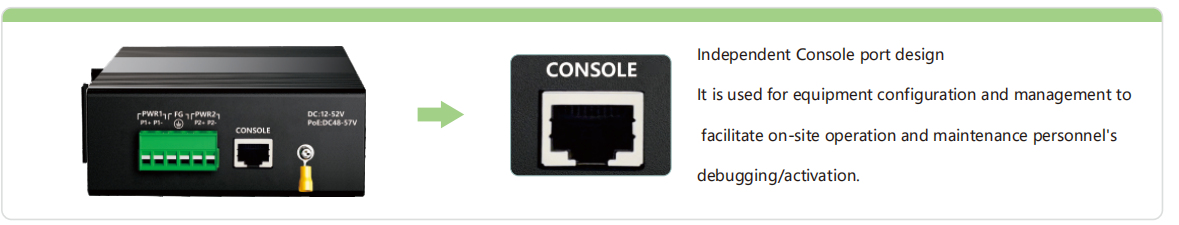

* Provides 8 10/100/1000Mbps lower connected electrical ports to 2 1000Mbps SFP upper connected optical ports +1 console port;
* support ERPS/STP/RSTP/MSTP/QOS/SNMP (V1, V2 and V3);
* SC/LC/FC/ST/SFP optical interface optional, extensible IEEE802.3af(15.4W)/at(30W);
* Support wide temperature design -40℃~85℃ to meet harsh environment application requirements;
* EMC industrial level 4 electromagnetic anti-interference, lightning protection (common mode ±4KV, differential mode ±2KV);
* Support dual power supply redundancy backup, built-in overcurrent 4.0A protection, connected to reverse protection input power supply;
* Support IP40 protection class, fanless design, aluminum alloy metal housing, DIN rail mounting/wall mounting.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T382-14
Brand:
SiRON
Code:
8517621900

L2+based Network Management gigabit industrial switch IP40 industrial switch

Product Description

Selection reference

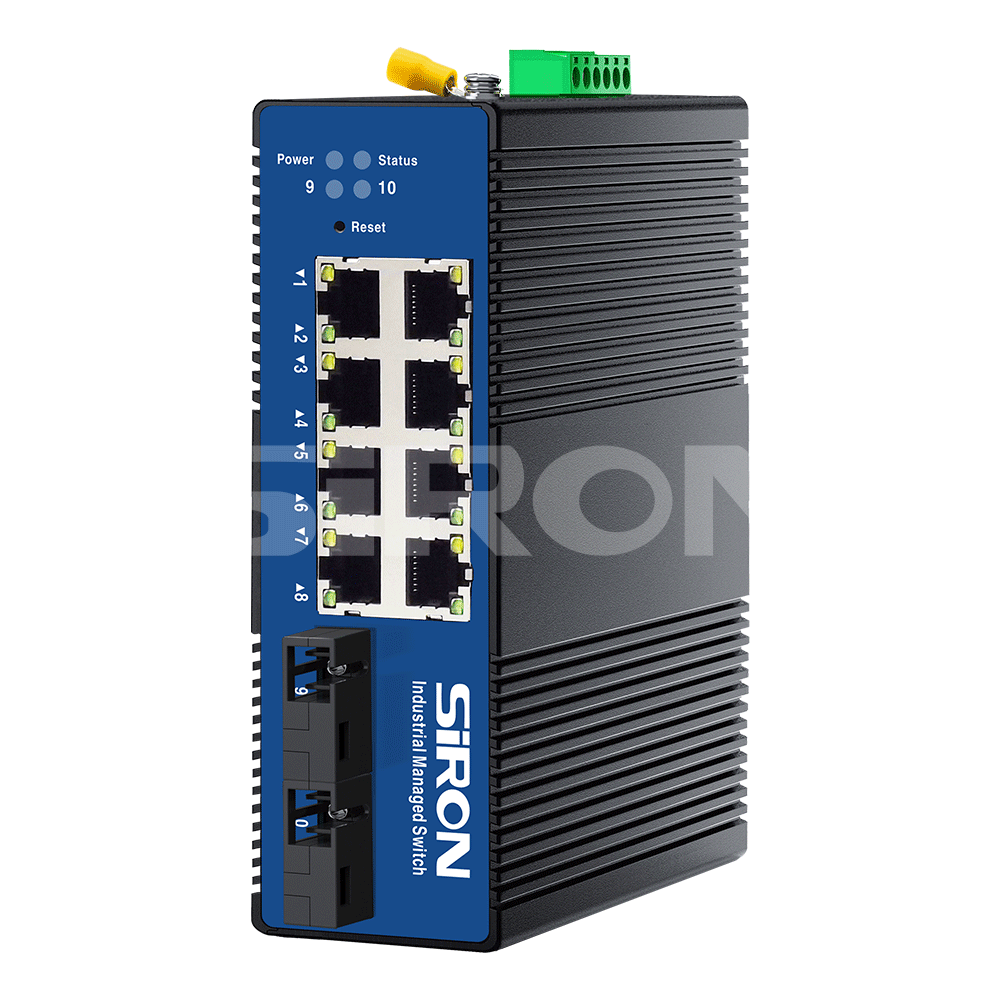

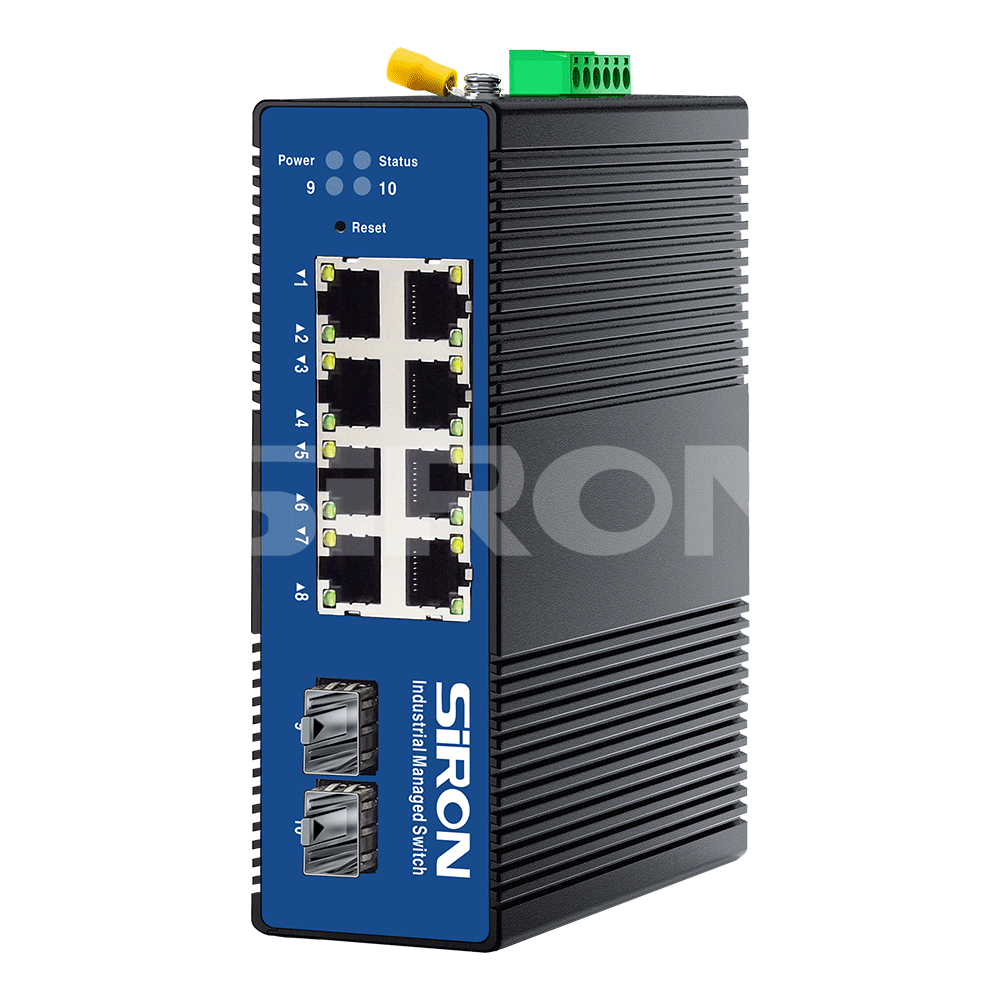

Model	T382-14	T382-14AB	T382-14E	T382-14E-AB
Bectricalinberace	8
Optical port	2
Console port	1
Speed	1000M
Power source	DC12-52V		DC48-57V
Portdescription	8x10/100/1000Mbps RJ45 port， 2x1000Mbps SFP optical port ， 1个console port	8x10/100/1000Mbps RJ45 port，2x1000Mbps SC Fiber Interface(BIDI,20KM, TX1310/RX1550nm), 1个console port	8x10/100/1000Mbps RJ45 POE port， 2x1000Mbps SFP optical port， 1个console port	8x10/100/1000Mbps RJ45 POE port， 2x1000Mbps SC Fiber Interface(BIDI,20KM, TX1310/RX1550nm), 1个console port

Specification

Rj45 port		10/100/1000BaseT (X)automatic detection;Full/half-duplex MDI/MDI-X adaptive
Network protocol		IEEE802.3-CSMA/CD;IEEE802.3i-10Base-T; IEEE802.3u-100Base-TX/FX;IEEE802.3x-flow control; IEEE802.3z - 1000Base-X; IEEE802.3ab - 1000Base-T;
PoE(optional)		PoE standard:Complies with IEEE802.3af/IEEE802.3at; Maximum single port:15.4W(IEEE 802.3af);Maximum single port:30W(IEEE 802.3at); PoE compatibility :IEEE 802.3af/at adaptive PoE port output voltage:DC48-52V; PoE power supply core:1/2+,3/6-(af/at); 1/2/4/5+，3/6/7/8-(bt);

Access terminal		Phoneix
Mean time between failures		300,000 hour

Mechanical characerisfic	Shell	IP40 protection grade, metal outer shell
	Install	DIN card rail type, wall-mounted installation
	Heat dissipation mode	Naturally cold, without a fan
Working environment	Operafing temperature	-40~85℃(-40~185°F)
	Storage temperature	-40~85℃(-40~185°F)
	Relative humidity	5 % ~ 9 5 % ( No condensation )
LEDindex	Powerindicator light	PWR
	Interface indicator	Electrical port, optical port ( L i n k / A C T )
	System light	Status

Industry standard

EMI:
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
IEC(EN)61000-4-2(ESD):±8kV(contact),±15kV(air)
IEC(EN)61000-4-3(RS):10V/m(80~1000MHz)
IEC(EN)61000-4-4(EFT):PowerPort:±4kV;Data Port:±2kV
IEC(EN)61000-4-5(Surge):Power Port:±2kV/DM,±4kV/CM;Data Port:±2kV
IEC61000-4-6(CS):10V(150kHz~80MHz)/IEC(EN)61000-4-16(CM EMI):30V cont.300V,1s
IEC 60068-2-27(Shock)/IEC 60068-2-32(Freefall)/IEC 60068-2-6(Vibration)
