SiRON T330-P Auxiliary module IP20 Plug-in Remote I/O Module

Name: SiRON T330-P Auxiliary module IP20 Plug-in Remote I/O Module
Brand: SiRON
Rating: 5.0 (31 reviews)

Feature

* Supports 16-channel 24V/0V power distribution output;
* The module must be used in conjunction with the T330 series coupler.

The expansion module cannot be used independently

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

About selection

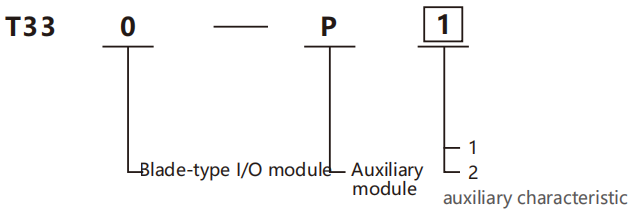

企业微信截图_17775321165840

Selection example: T330-P1 represents the blade-type I/O module series, with a 24V power distribution output module. Auxiliary features

Code	Auxiliary
1	Power 24V Power Distribution Output Module
2	Power OV Power Distribution Output Module

Specifications

Powerparameters
Usysbus input power supply rated voltage	5V DC+20%1-15%(4.25V DC~6V DC)
Usys bus input power supply rated curent	<60mA(Typical value at 5V Dc)
Recommended voltage	T300-P1:24V; T300-P2:0V
Module hot-swappable function	nonsupport

Connection parameters
Connection technology	PUSH-INtype terminal block
Connection type	System/On-site power supply/input
Conductor crimping area	26~16AWG/0.2~1.5mm²
Strip length	10mm
Installation method	DIN-35
Shell material	PC plastic

Environmental conditions
Allowable ambient temperature(during operation)	-40~75℃
Allowable ambient temperature (for storage)	-40~85℃
Protection type	IP20
Pollution grade	2
Operating altitude	0~2000m
Relative humidity(without condensation)	5~95%RH

Auxiliary module parameters

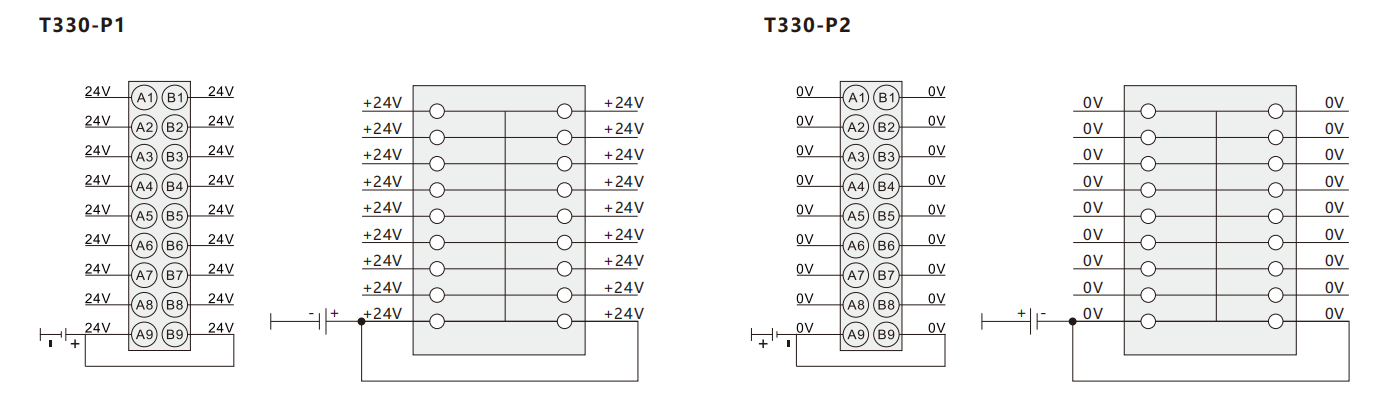

Auxiliary module	T330-P1	T330-P2
Output type	24V	OV
Module type	Equipotential Output
Number of channels	16
Connection type	1-wire system
Current imitation	<8A
Electrical isolation	No isolation between interface channels,isolated between interfaces and internal bus.
