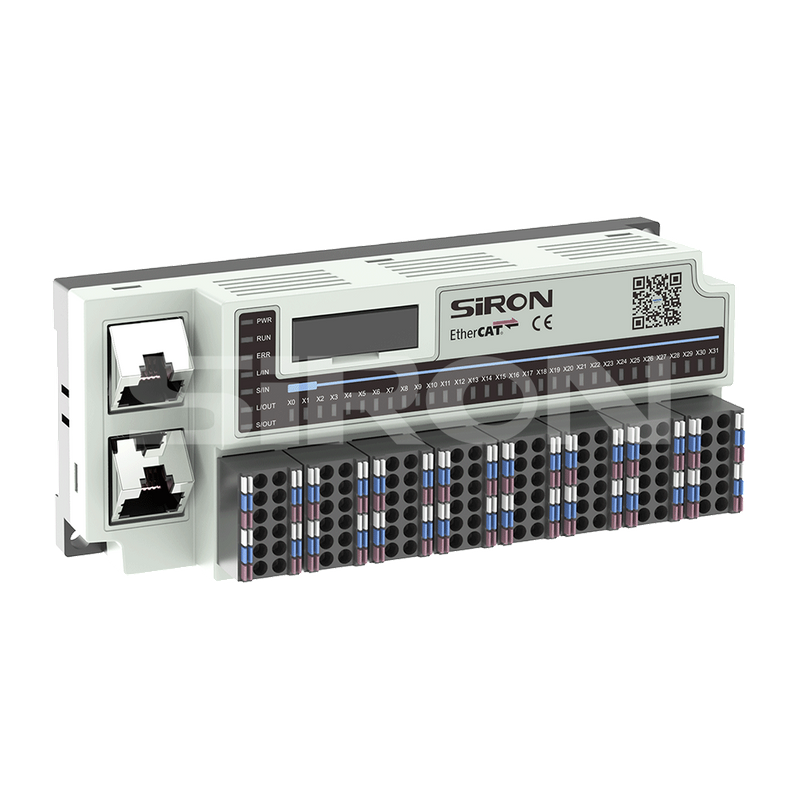

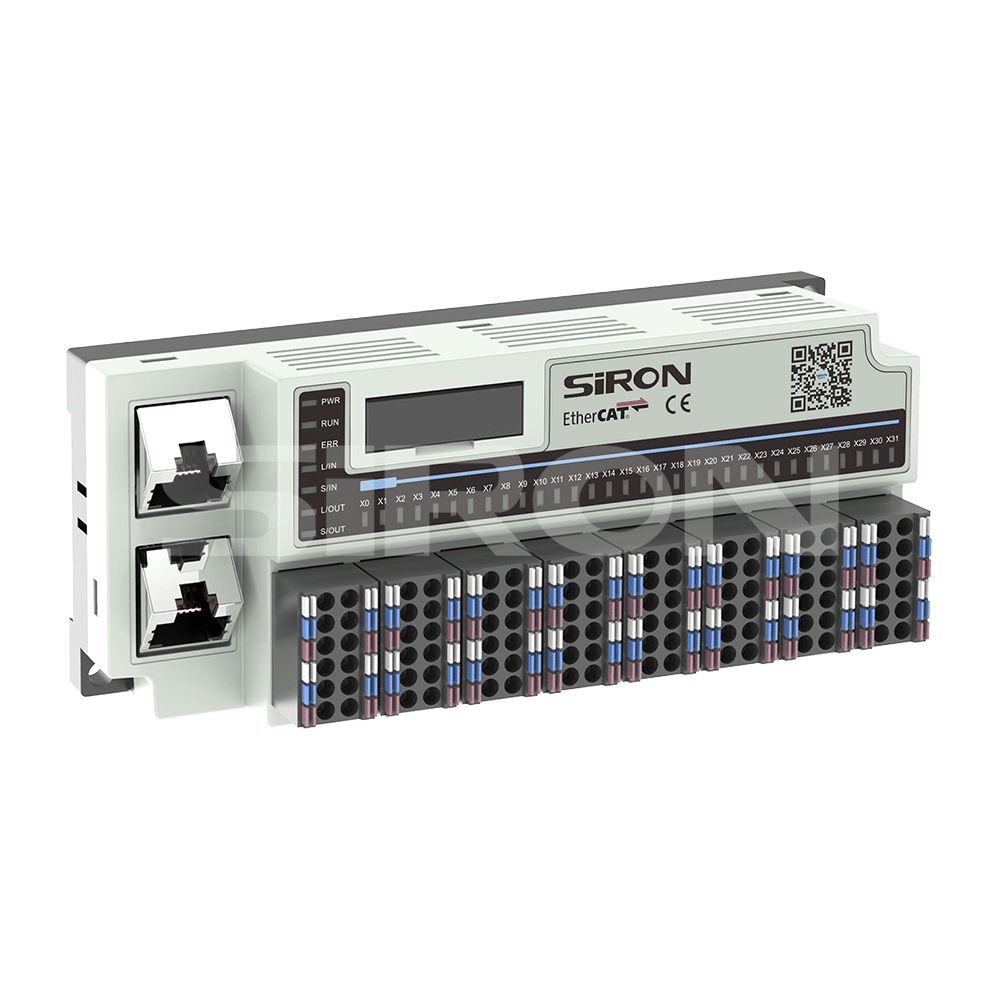

SiRON T321-1 Integrated horizontal IO module IP20 Ethercat

Name: SiRON T321-1 Integrated horizontal IO module IP20 Ethercat
Brand: SiRON
Rating: 5.0 (36 reviews)

Features

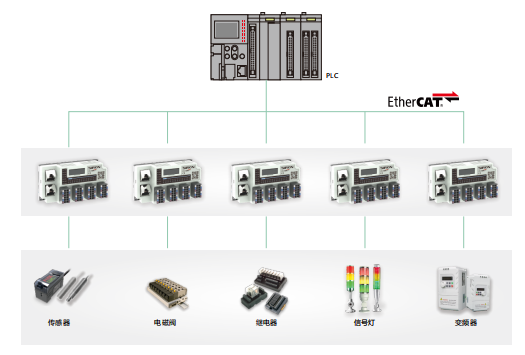

* Support EtherCAT protocol access, new ECON wiring mode and input/output adaptive function;
* Horizontal IO form products, the coupler and IO module integration;
* Easy to debug, each channel has LED status indicator;

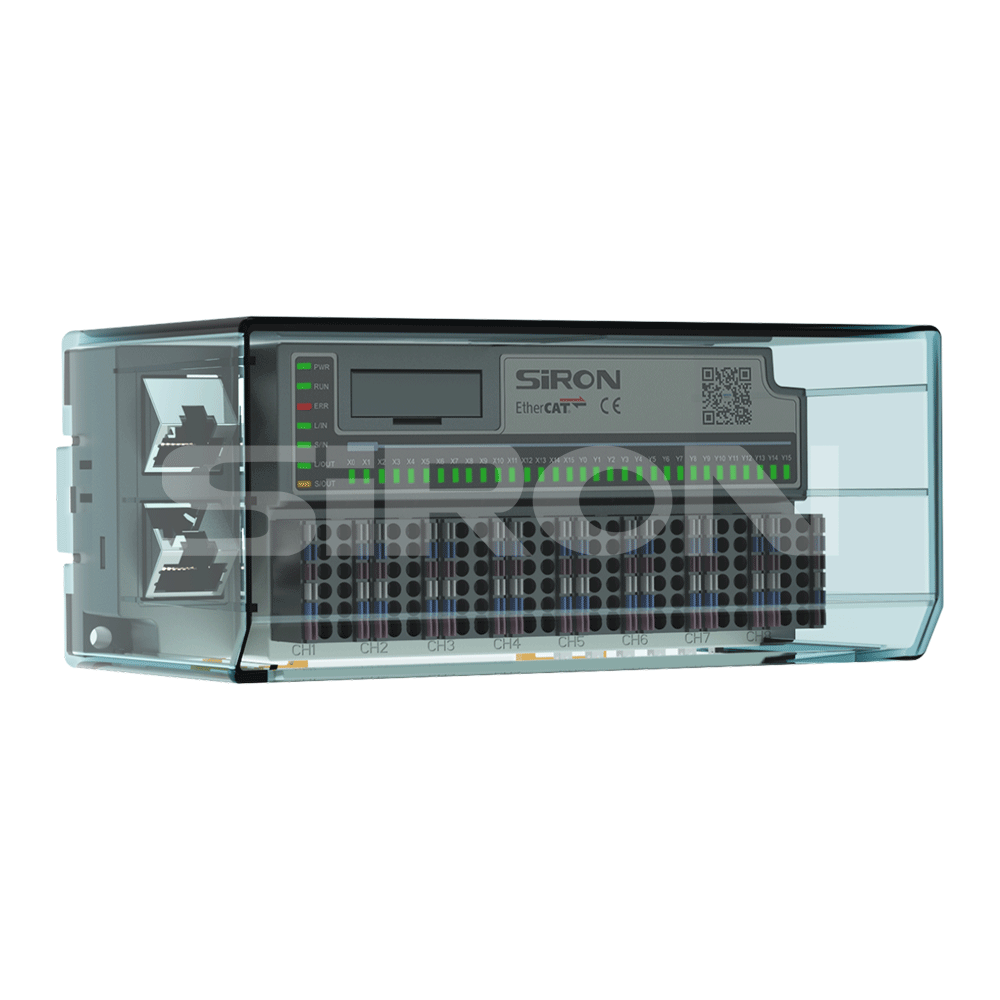

* Light guide hole design can better display the point status, easy to observe and debug

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T321-1
Brand:
SiRON
Code:
8517799000

IP20 EtherCAT DIN rail EtherCAT DC 24V EtherCAT

Product Description

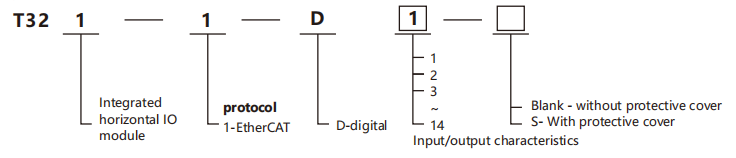

About selection

企业微信截图_17562048765541

Selection example: T321-D1 represents the integrated horizontal IO module series, with the protocol being EtherCAT. It features 16-channel digital input (NPN) and 16-channel digital (transistor) output (NPN).

Input/output characteristics (digital)

Code	Input	Output
1	16 channels digital input(NPN)	16 channels digital(transistor)output(NPN)
2	16 channels digital input(PNP)	16 channels digital(transistor)output(PNP)
3	0 channels digital input	32 channels digital(transistor)output(NPN)
4	0 channels digital input	32 channels digital(transistor)output(PNP)
5	32 channels digital input(NPN)	0 channels digital output
6	32 channels digita input(PNP)	0 channels digital output
7	24 channels digital input(NPN)	8 channels digital(transistor)output(NPN)
8	24 channels digita input(PNP)	8 channels digital(transistor)output(PNP)
9	8 channels digital input(NPN)	8 channels digital(transistor)output(NPN)
10	8 channels digital input(PNP)	8 channels digital(transistor)output(PNP)
11	0 channels digital input	16 channels digital(transistor)output(NPN)
12	0 channels digital input	16 channels digital(transistor)output(PNP)
13	16 channels digital input(NPN)	0 channels digital output
14	16 channels digital input(PNP)	0 channels digital output

Specification

Power source	24VDC(20.4VDC~28.8VDC)-15%,+20%
Maximum communication speed	100MB/s
Bus interface	2*RJ45
Transmission distance	≤100M
Data transmission medium	Ethernet/EtherCAT CAT5 cable
Operating temperature	-20～+60℃
Storage temperature	-25～+75℃
Relative humidity	95%non-condensing
Class of protection	IP20
Size	124×25×77mm

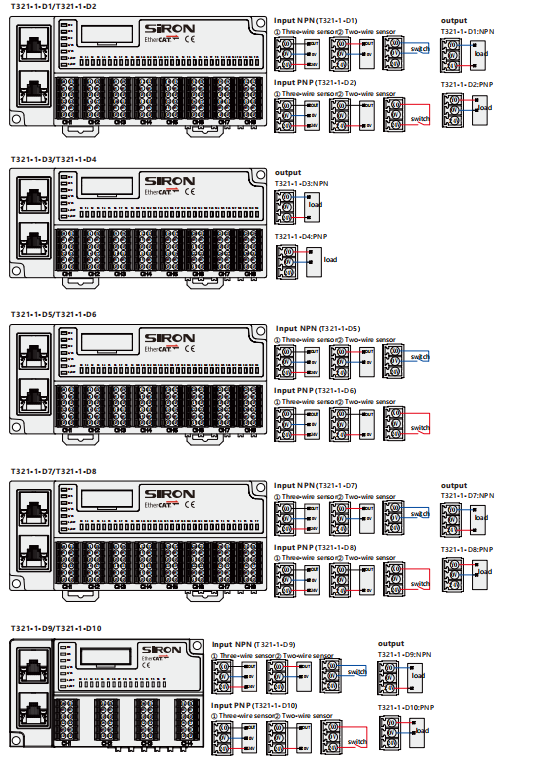

Digital input/output

Model number	T321-1-D1	T321-1-D2	T321-1-D7	T321-1-D8	T321-1-D9	T321-1-D10
Appearance
Type	Optocoupler Input NPN, output NPN	Optocoupler Input PNP, output PNP	Optocoupler Input NPN, output NPN	Optocoupler Input PNP, output PNP	Optocoupler Input NPN, output NPN	Optocoupler Input PNP, output PNP
Points	32		32		16
Curent consumption	128mA		128mA		118mA
Isolate	IO to intermal bus:500V optocoupler isolation
"0"signal voltage	NPN:12~30V;PNP:0~5V
"1"signal oltage	NPN:0~5V;PNP:12~30V
ON/OF response time	Input:1ms;Output:1ms
Loadcapacity	Nominal:300mA,single-channel maximum:500mA,continuous 8-channel maximum:2A
Load type	Resistive load,inductive load,lamp load
Diagnosis and alarm	support

Digital input

Model number	T321-1-D5	T321-1-D6	T321-1-D13	T321-1-D14
Appearance
Type	Optocoupler Input NPN	Optocoupler Input PNP	Optocoupler Input NPN	Optocoupler Input PNP
Points	32		16
Current consumption	100mA		95mA
Isolate	IO to internal bus:Optocoupler isolation500V
”0”signal voltage	NPN:12~30V;PNP:0~5V
"1"signal oltage	NPN:0~5V;PNP:12~30V
ON/OF response time	Input:1ms
Diagnosis and alarm	support

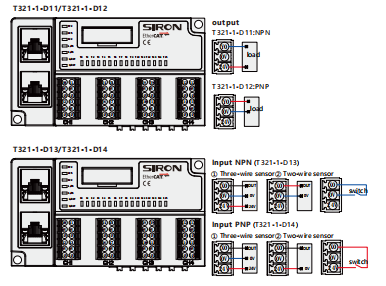

Digital output

Model number	T321-1-D3	T321-1-D4	T321-1-D11	T321-1-D12
Appearance
Type	Input NPN	output PNP	output NPN	output PNP
Points	32		16
Currentconsumption	156mA		138mA
lsolate	IO to internal bus:Optocoupler isolation500V
ONOFresponse fime	Output:1ms
Load capacity	Nominal:300mA,single-channel maximum:500mA,continuous 8-channel maximum:2A
Load type	Resistive load,inductive load,lamp load
Diagnosis and alarm	support
