Name: SiRON T320-5 Integrated horizontal IO module IP20 EtherNet/IP
Brand: SiRON
Rating: 5.0 (66 reviews)

Features

* Protection grade lP30:
* Supports EtherNet/lP protocol access;
* The horizontal l0 form product integrates the coupler and the l0 module;
* Easy to debug, with LED statusindicator lights beside each channel;
* The design of the light guide hole can better display the status of the point position and is easy to observe and debug

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T320-5
Brand:
SiRON
Code:
8517799000

IP20 Ethernet/IP DIN rail CC-Link IE DC 24V Ethernet/IP

Product Description

About selection

企业微信截图_17800324761415

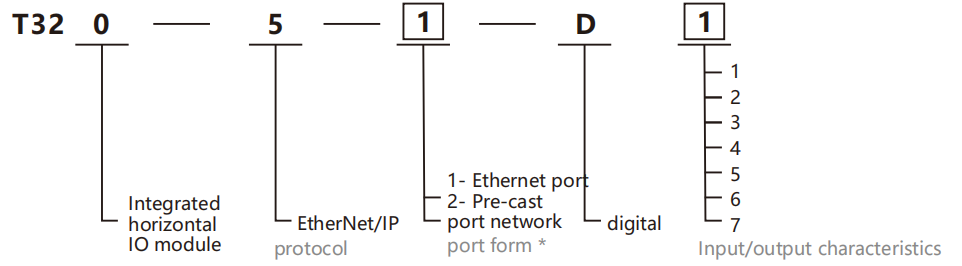

Selection example: T320-5-1-D1 represents the T320 integrated horizontal IO module, with the protocol being EtherNet/IP, and the network port form being an Ethernet port. The digital input/output characteristics are: 16-channel digital input and 16-channel digital output (NPN).

Note * : The network port form of the pre-cast port is still under development and has not yet been launched on the market.

Input/output characteristics (digital)

Code	Input	Output
1	16 channels digital input	16 channels digital output(NPN)
2*	32 channels digital input	0 channels digital output
3*	0 channels digital input	32 channels digital output(NPN)
4*	8 channels digital input	8 channels digital output(NPN)
5*	16 channels digital input	0 channels digital output
6*	0 channels digital input	16 channels digital output(NPN)
7*	8 channels digital input	0 channels digital output

Specification

Rated voltage	24V DC(12～30V)
Current consumption	60mA

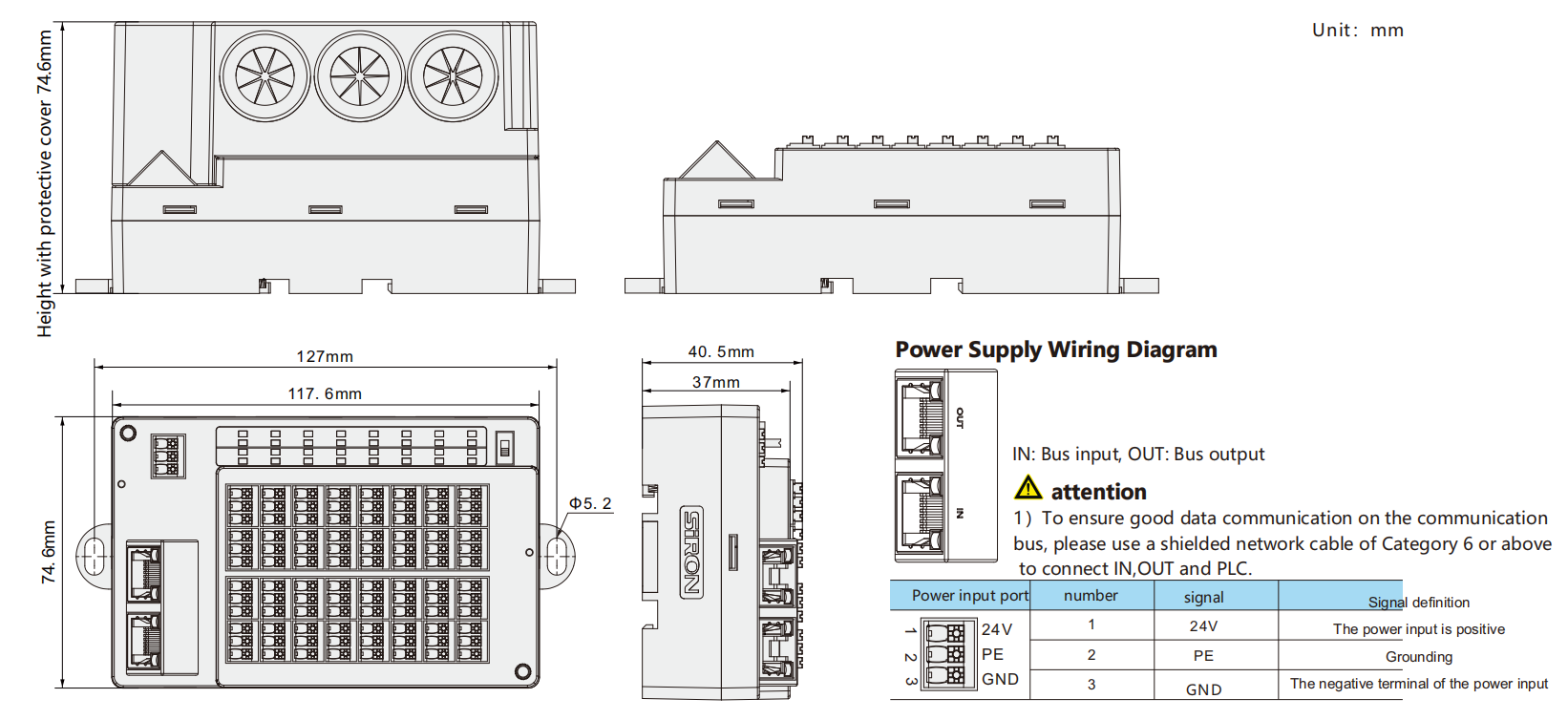

Size	127×74.6×40.5mm
Protecion grade	IP30/IP54(with protective cover)
Working temperature	-20～60℃
Storage temperature	-20～75℃
Relative humidity	95%,no coagulation
Weight	130g

Input channel parameters

Interface parameters	Digital input
Signal type	NPN	PNP
Rated level	OV DC	24V DC
"1"signal level	0~5VDC	15~30VDC
"0"signal level	15~30VDC	0~5VDC
single-channel current	5mA(MAX)	5mA(MAX)
Port protection	Overvoltage impact protection	Overvoltage impact protection
Electrical isolation	Optocoupler isolation	Optocoupler isolation
Isolation voltage	AC 500V	AC 500V
Signal indication	Green LED light	Green LED light

Input the internal electrical block diagram of the module

企业微信截图_17800328695101

Output channel parameters

Interface parameters	Transistor output
Signal type	NPN
Effective signal level	<1.5V
Single-channel	0.7A(MAX)
rrentPort protection	Overvoltage
Electrical isolation	Optocoupler isolation
Isolation voltage	AC 500V
Signal indication	Green LED light
Total load current	9A(MAX)

Output the internal electrical block diagram of the module

企业微信截图_17800340979909

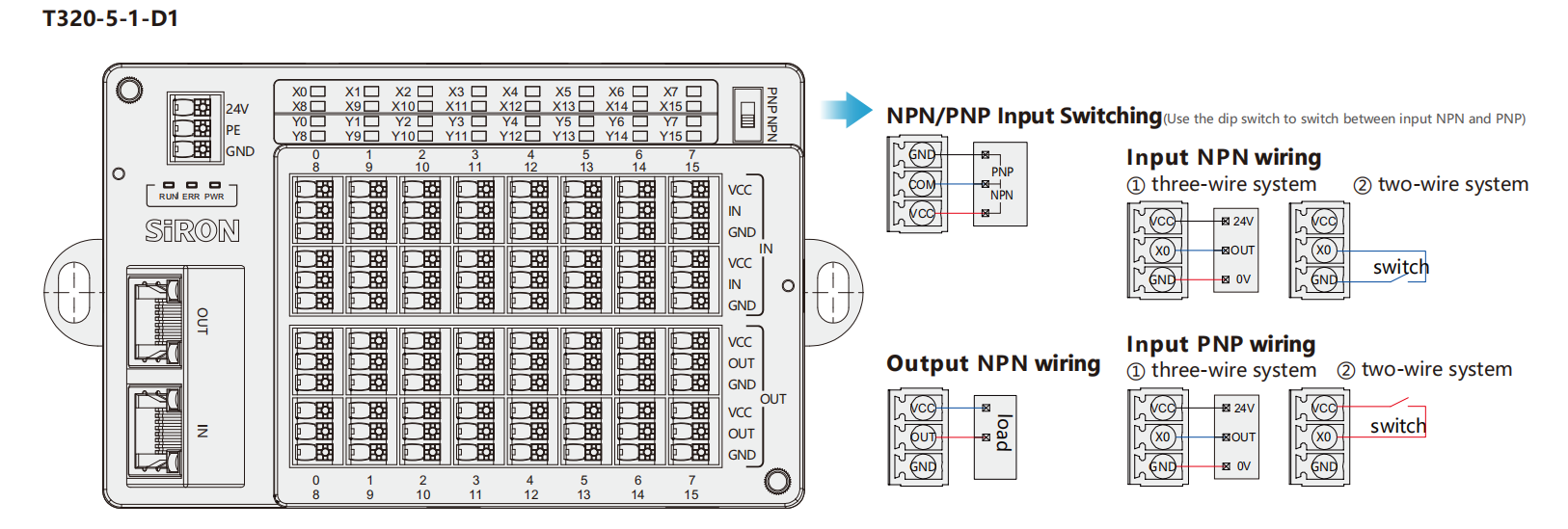

Communication bus interface

EtherNet/PEthernet interface	Interface	Signal	Signal definition
	1	TX+	The positive end of data transmission
	2	TX-	The negative end of data transmission
	3	RX+	The positive end of data transmission
	4	/	/
	5	/	/
	6	RX-	The negative end of data transmission
	7	/	/
	8	/	/
