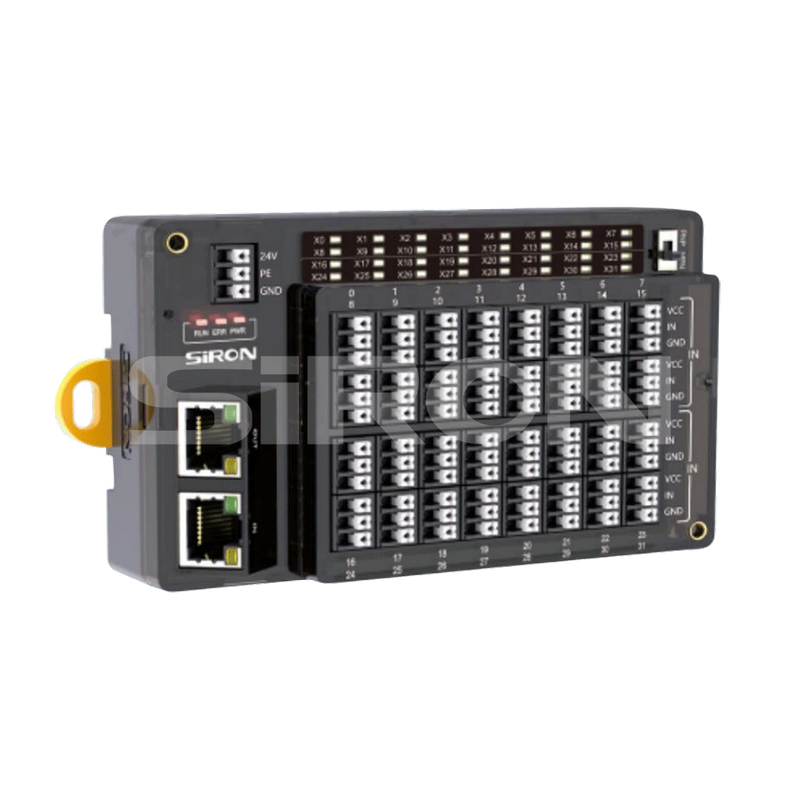

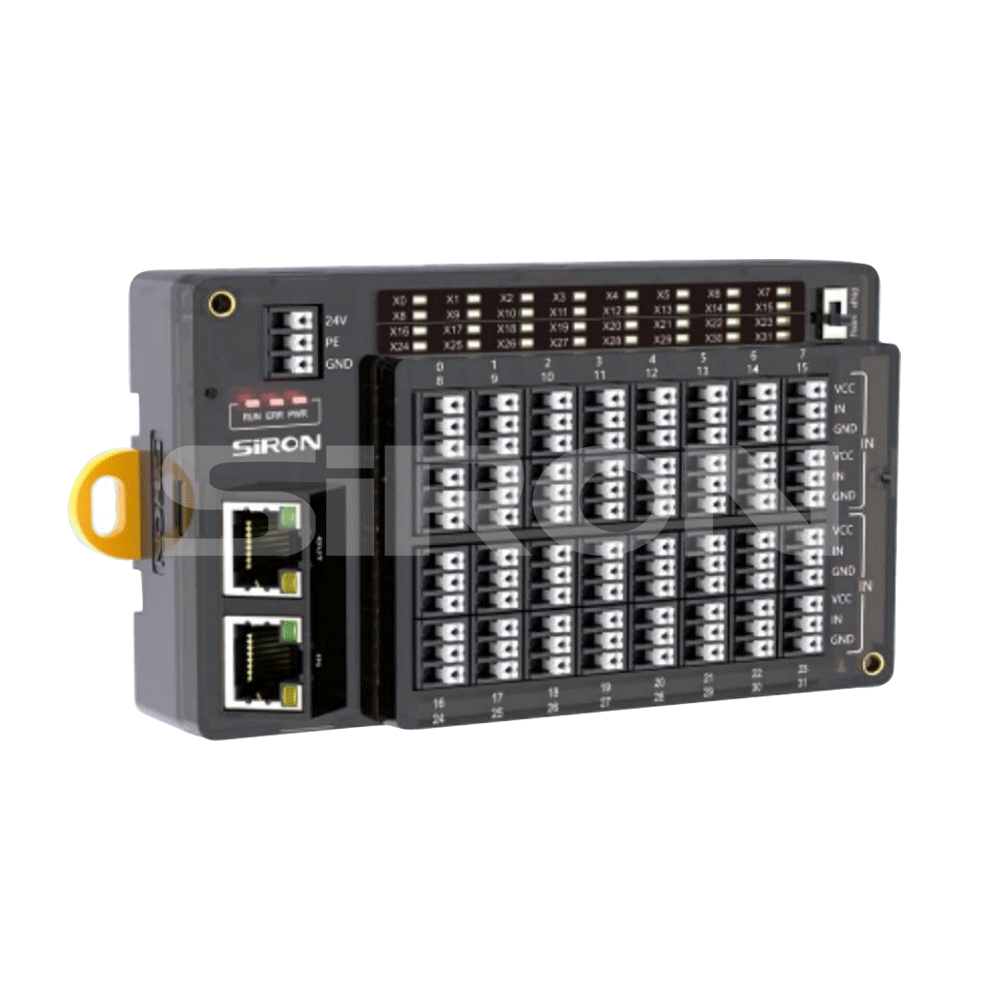

SiRON T320-1 Integrated horizontal IO module IP20 Ethercat

Name: SiRON T320-1 Integrated horizontal IO module IP20 Ethercat
Brand: SiRON
Rating: 5.0 (19 reviews)

Features

Protection grade lP30:
Supports access via EtherCAT protocol;
The horizontal l0 form product integrates the coupler and the l0 module;
Easy to debug, with LED statusindicator lights beside each channel;
The design of the light guide hole can better display the status of the point position and is easy to observe and debug.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T320-1
Brand:
SiRON
Code:
8517799000

IP20 EtherCAT DIN rail EtherCAT DC 24V EtherCAT

Product Description

About selection

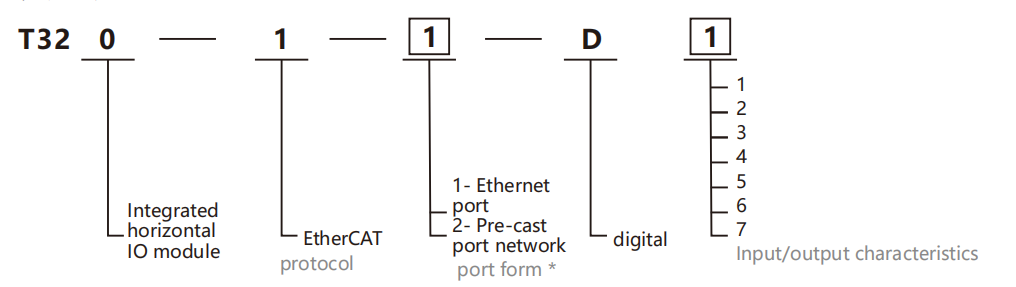

Selection example: T320-1-1-D2 represents the T320 integrated horizontal IO module, with the protocol being EtherCAT, the networ All-in-one I/O k port form being an Ethernet port, digital quantity, and the input/output characteristics are: 32-channel digital quantity input.

Note * : The network port form of the pre-cast port is still under development and has not yet been launched on the market.

Table 1: Input/Output Characteristics

Code	Input	Output
1*	16 channels digital input	16 channels digital output(NPN)
2	32 channels digital input	0 channels digital output
3	0 channels digital input	32 channels digital output(NPN)
4*	8 channels digital input	8 channels digital output(NPN)
5*	16 channels digital input	0 channels digital output
6*	0 channels digital input	16 channels digital output(NPN)
7*	8 channels digital input	0 channels digital output

Note: Belt * is under development, not on the market

Specification

Rated voltage	24V DC(12～30V)
Current consumption	60mA

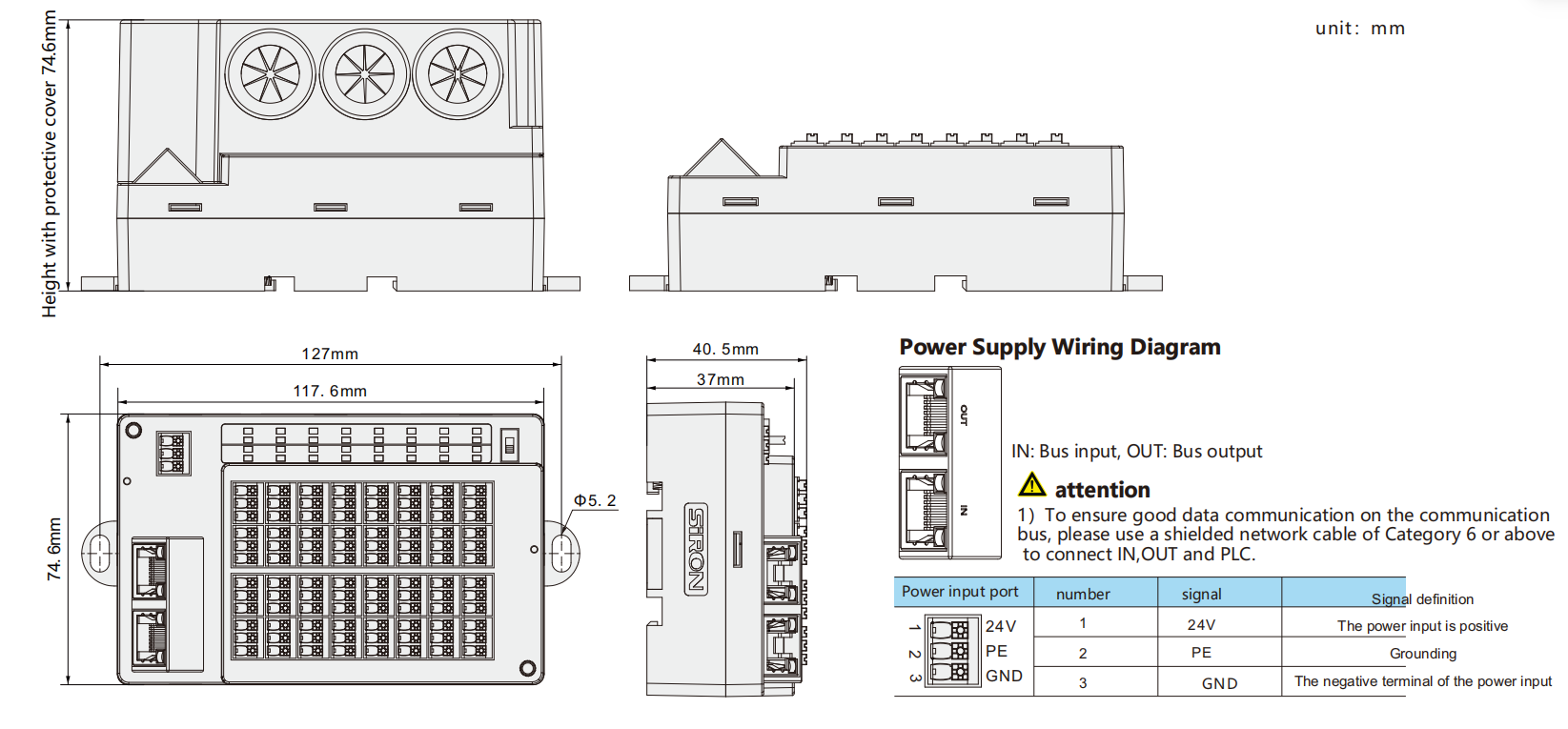

Size	127×74.6×40.5mm
Protection grade	IP30/IP54(with protective cover)
Working temperature	-20～60℃
Storage temperature	-20～75℃
Relative humidity	95%,no congulation
Weight	130g

Input channel parameters

Interface parameters	Digital input
Signal type	NPN	PNP
Rated level	0VDC	24V DC
"1"signal level	0~5VDC	15~30VDC
"0"signal level	15~30VDC	0~5VDC
single-channel current	5mA(MAX)	5mA(MAX)
Port protection	Overvoltage impact protection	Overvoltage impact protection
Electrical isolation	Optocoupler isolation	Optocoupler isolation
Isolation voltage	AC 500V	AC 500V
Signal indication	Green LED light	Green LED light

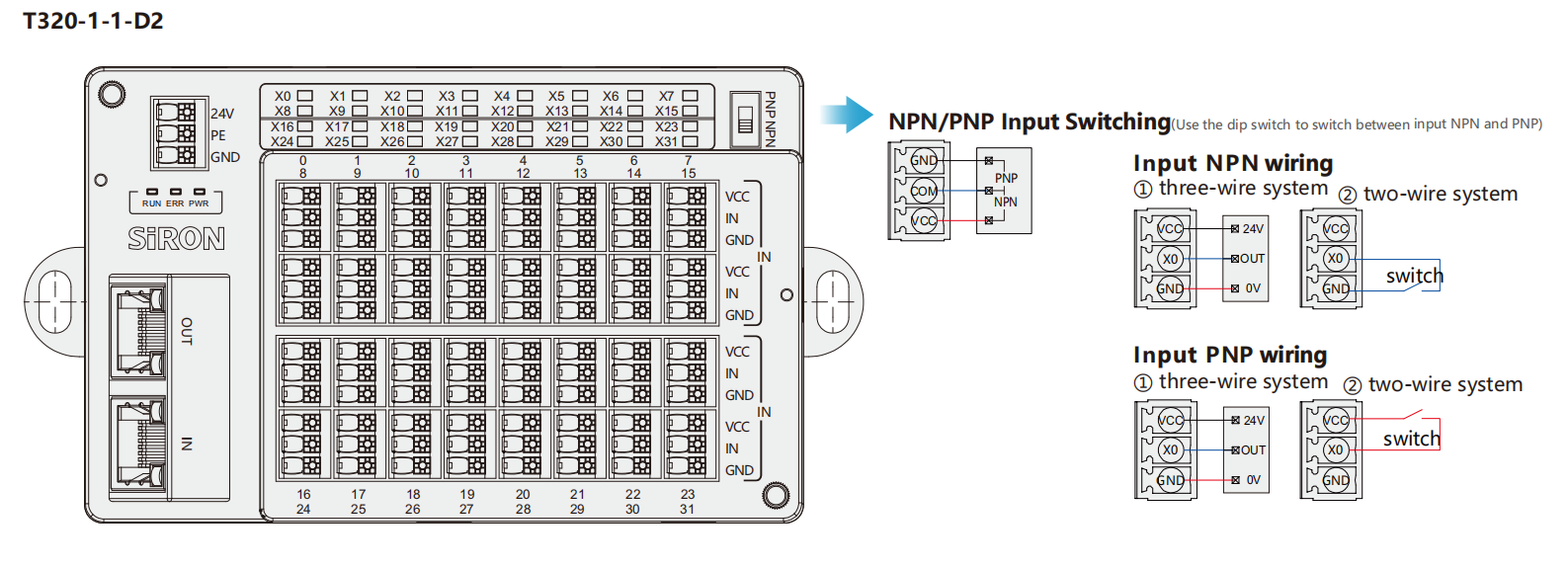

Input the internal electrical block diagram of the module

企业微信截图_178002520122

Output channel parameters

Interface parameters	Transistor output
Signal type	NPN
effective signal level	<1.5V
single-channel current	0.7A(MAX)
Port protection	Overvoltage
Electrical isolation	Optocoupler isolation
Isolation voltage	AC 500V
Signal indication	Green LED light
Total load current	9A(MAX)

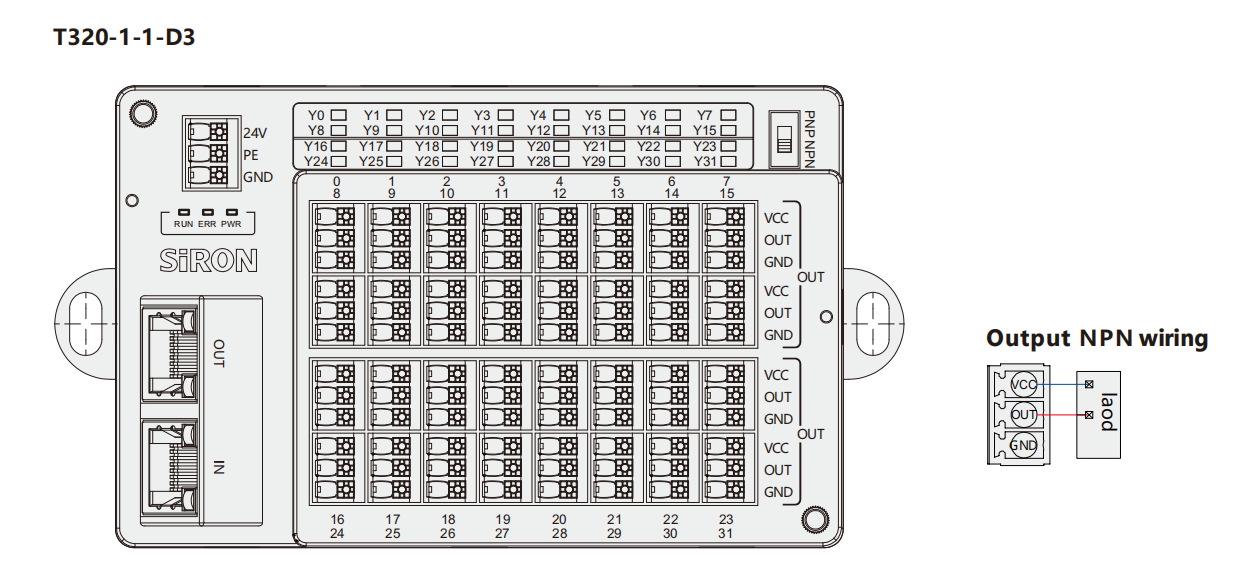

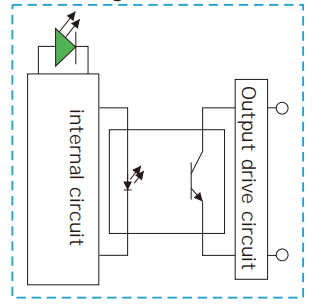

Output the internal electrical block diagram of the module

企业微信截图_17800253434837

Communication bus interface

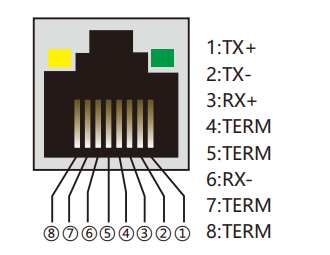

EtherCAT Ethemet interface	Interface	Signal	Signal definition
	1	TX+	The positive end of data transmission
	2	TX-	The negative end of data transmission
	3	RX+	The positive end of data transmission
	4	/	/
	5	/	/
	6	RX-	The negative end of data transmission
	7	/	/
	8	/	/
