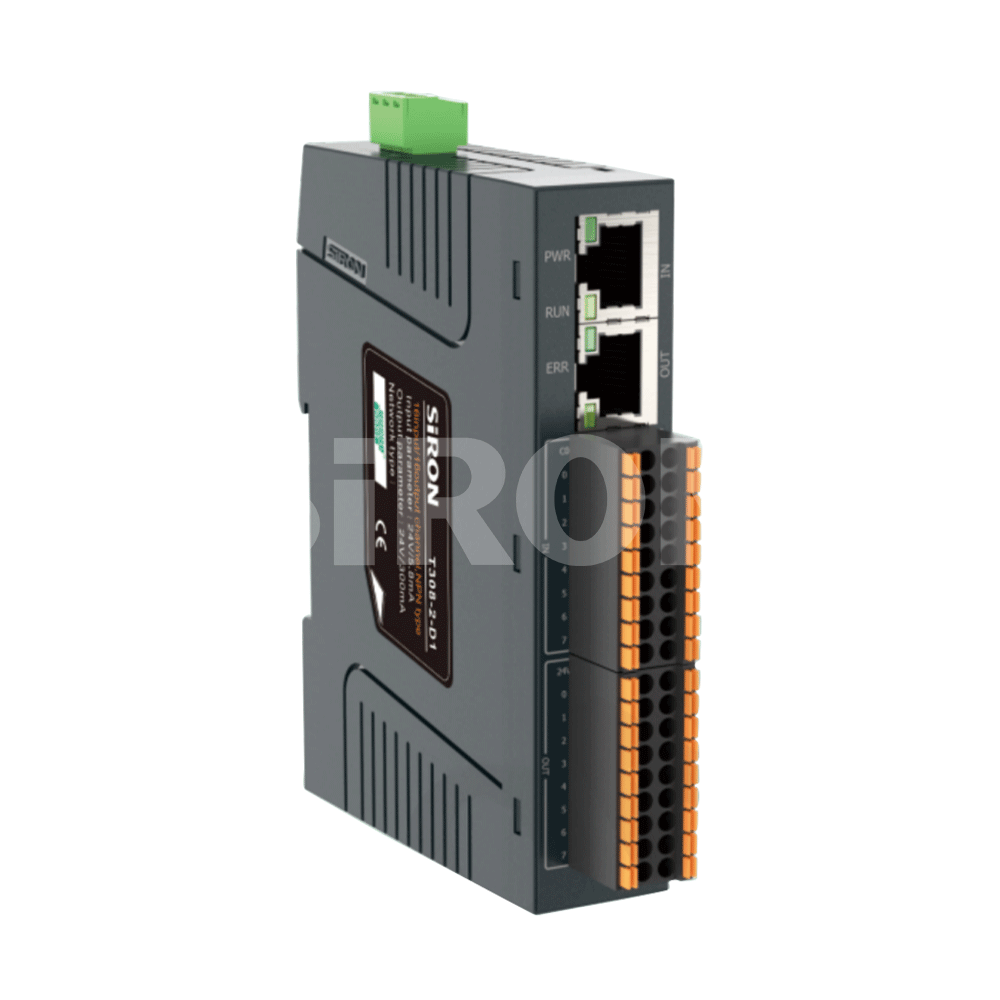

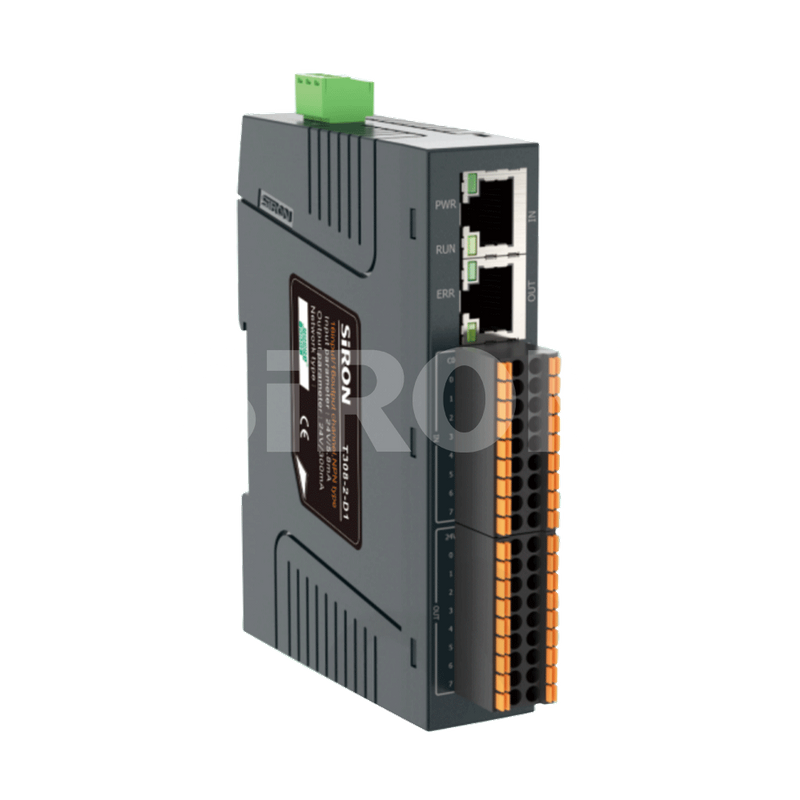

T308-2
SiRON
8517799000

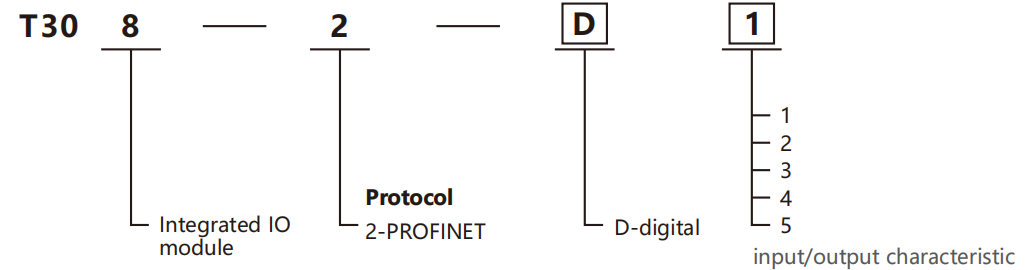

About selection
Selection example: T308-2-D1 represents the integrated IO module series, with the protocol being PROFINET. It features 16-channel switch input and 16-channel switch (transistor) output (NPN).
Input/output characteristics (digital)
| Code | Input | Output |
| 1 | 16 channels digital input | 16 channel digital (transistor)output(NPN) |
| 2* | 16 channels digital input | 16 channel digital (transistor)output(PNP) |
| 3* | 32 channels digital input | 0 channel digital output |
| 4* | 0 channels digital input | 32 channel digital (transistor)output(NPN) |
| 5* | 0 channels digital input | 32 channel digital (transistor)output(PNP) |
Specification
| Powersource | Nominal:24V,allowable range:18-30V,Max:150mA |
| Transmit | It is subject to the protocol |
| Wiring | Cold-pressed wire length of 0.3mm²(22AWG)to 1mm²(17AWG):10mm |
| External connection | Plug-in spring terminal |
| Installation mode | 35mm din rail |
| Weight | ≈136g |
| Dimension | 120×24×93 mm |
| Operating temperature | -10～+55℃ |
| Storage temperature | -25～+70℃ |
| Relative humidity | 5%～95%non-condensing |
| Class of protection | IP20 |
| Useoccasion | Avoid dust,oil mist and corrosive gases |
Digital input/output
| Model number | T308-2-D1 |
Type | Optocoupler input NPN is compatible with PNP, output NPN |
| Current consumption | 128mA |
| Isolate | IO to internal bus:optocoupler isolation 500V |
| "0"signal voltage | NPN:12～30V;PNP:0～5V |
| "1"signal voltage | NPN:0～5V;PNP:12～30V |
| ON/OF response time | Input:30us/10us;Output:12us/40us |
| Load capacity | Nominal:300mA,single channel:up to 500mA, continuous 8-channel:up to 2A |
| Load type | Resistive load,inductive load,lamp load |
| Diagnosis and alarm | support |

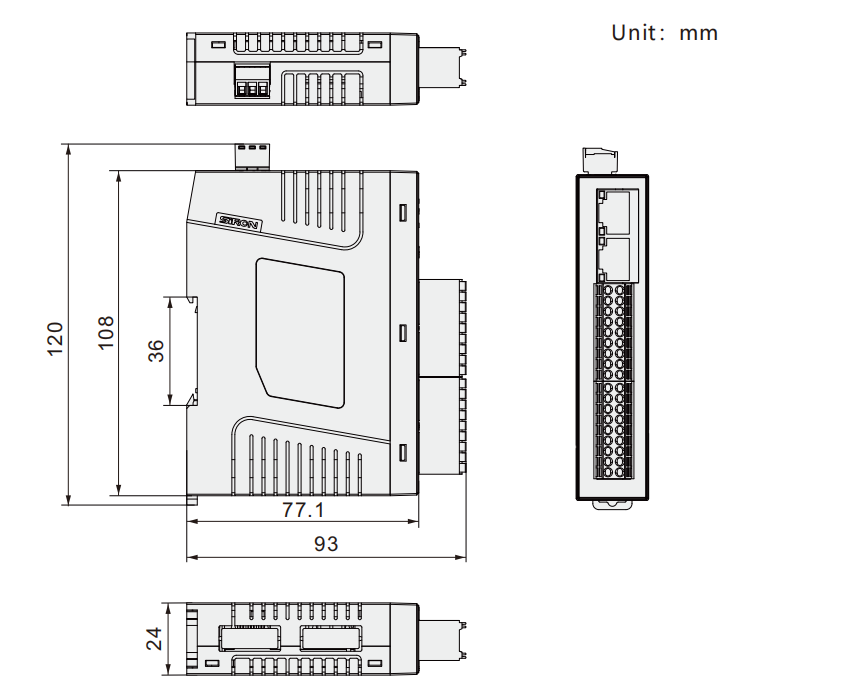

Dimension

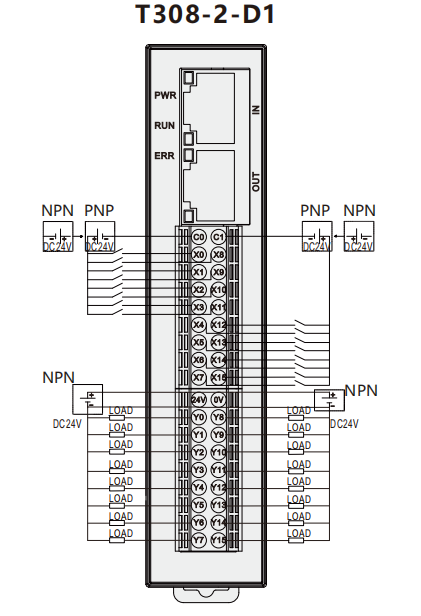

Wiring diagram
