SiRON T302-T IP20 Communication Remote I/O Module

Name: SiRON T302-T IP20 Communication Remote I/O Module
Brand: SiRON
Rating: 5.0 (58 reviews)

Feature

* Remote I/O 2-channel serial communication module;
* The module needs to be used in conjunction with the T302 series coupler. The IO module cannot be used alone.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T302-T
Brand:
SiRON
Code:
8517623990

IP20 Communication Coupler RS485 Communication Coupler RS232 Communication Coupler RS422 Communication Coupler

Product Description

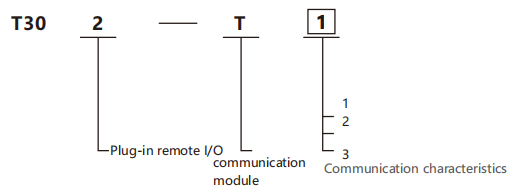

About selection

企业微信截图_17636065268978

Selection example: T302-T1 represents the plug-in remote I/O series, communication module, and 2-channel serial communication module (RS485).

Communication characteristics

Code	lnput
1	2 channels serial communication module(RS485)
2	2 channels serial communication module(RS232)
3	2 channels serial communication module(RS422)

Specifications

Model	T302-T1	T302-T2	T302-T3
System power supply	5V DC(±10%)
Current oonsumpfion	≤160mA
Number of channels	2
Suppors the maximum point limit	32
Interface type	support RS485	support RS232	support RS422
Communicafon protocol	The default Modbus RTU can be configured as a free protocol
Communicafion rate	4800bps~115200bps
lsolation withstand pressure	500V
lsolation method	capacitive isolation
System power indication	support
Communicafion fault dliagnosis	support
Size	100×69×12mm
Temperature	Operating temperature:-25 to+70℃ Storage temperature:-25 to+85℃
Environmental humikdity	95%no condensation
Protecfion grade	IP20

Dimension

Indicator description

PWR power indicator light (green light)	meaning
on	The system power supply is normal
off	The power supply of the system is abnormal
ERR Fault indicator light (red light)	meaning
on	Configuration failure
off	Communication is normal
quick flashing	Invalid parameter configuration
slow flash	communication failure
