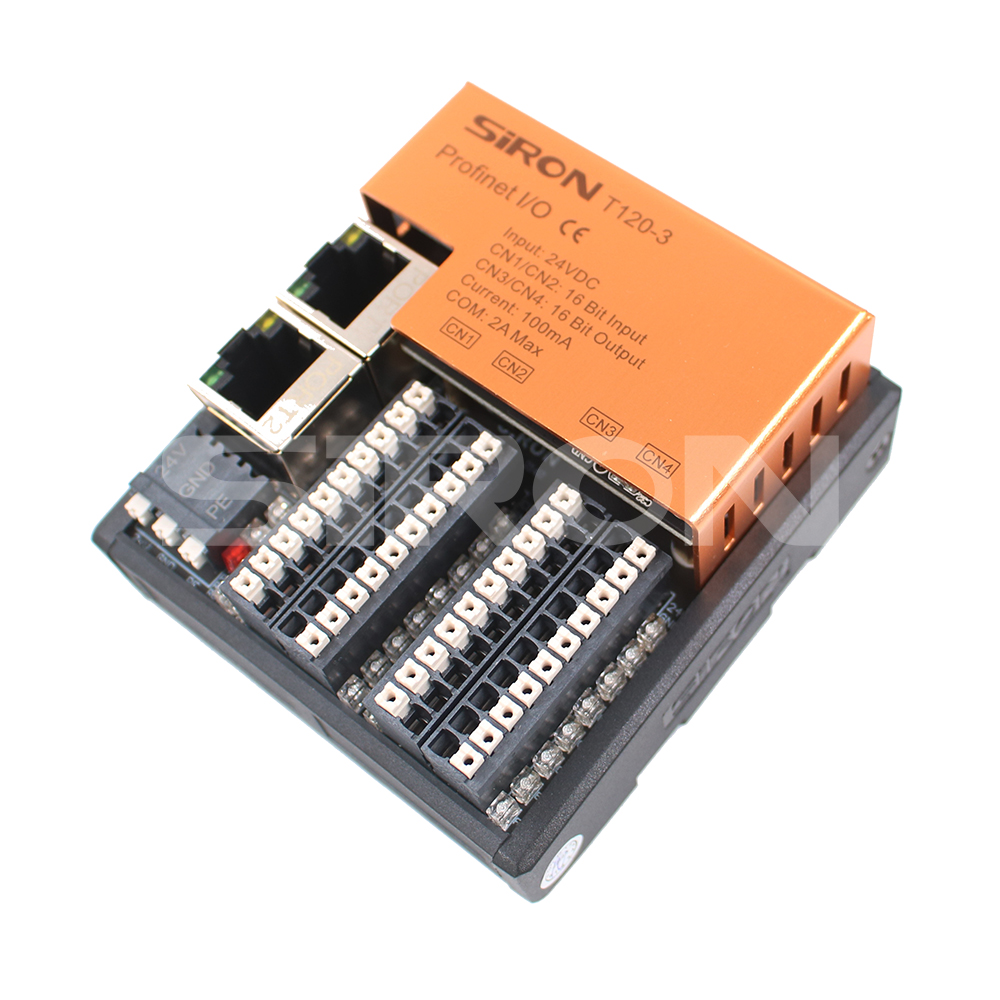

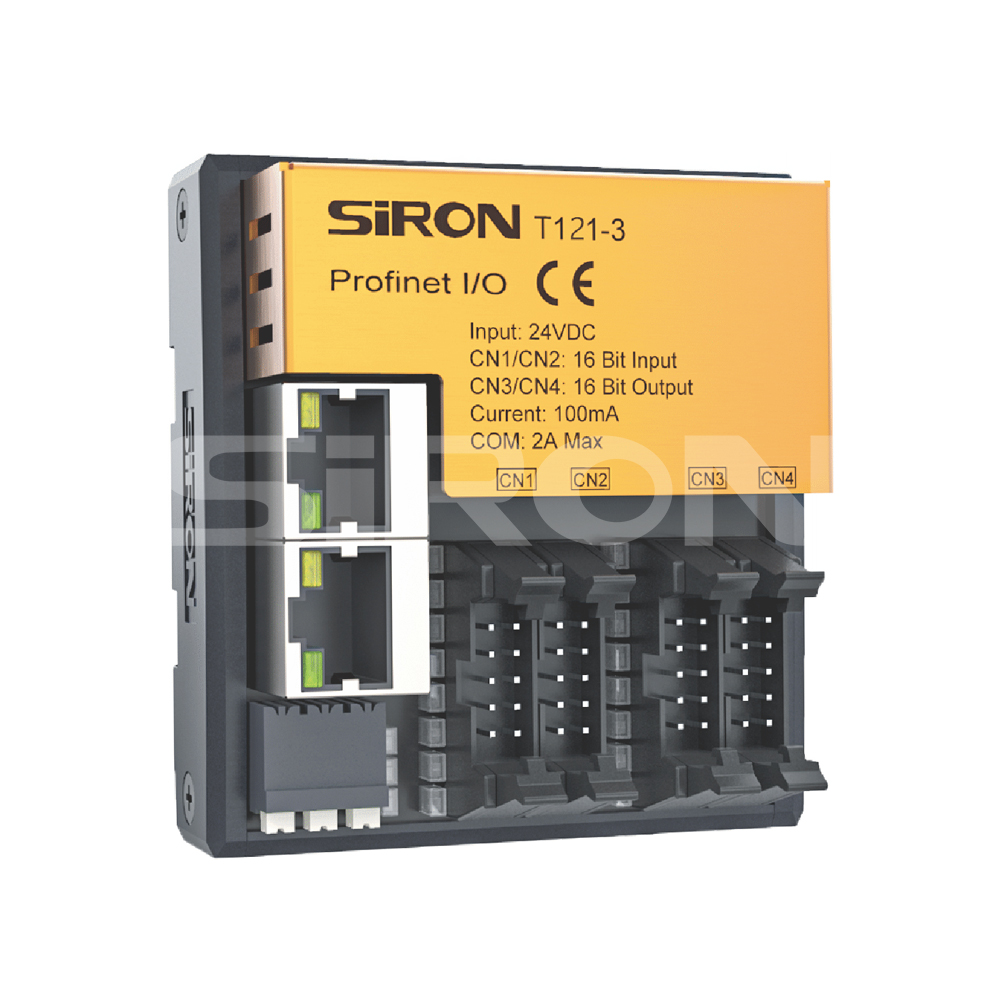

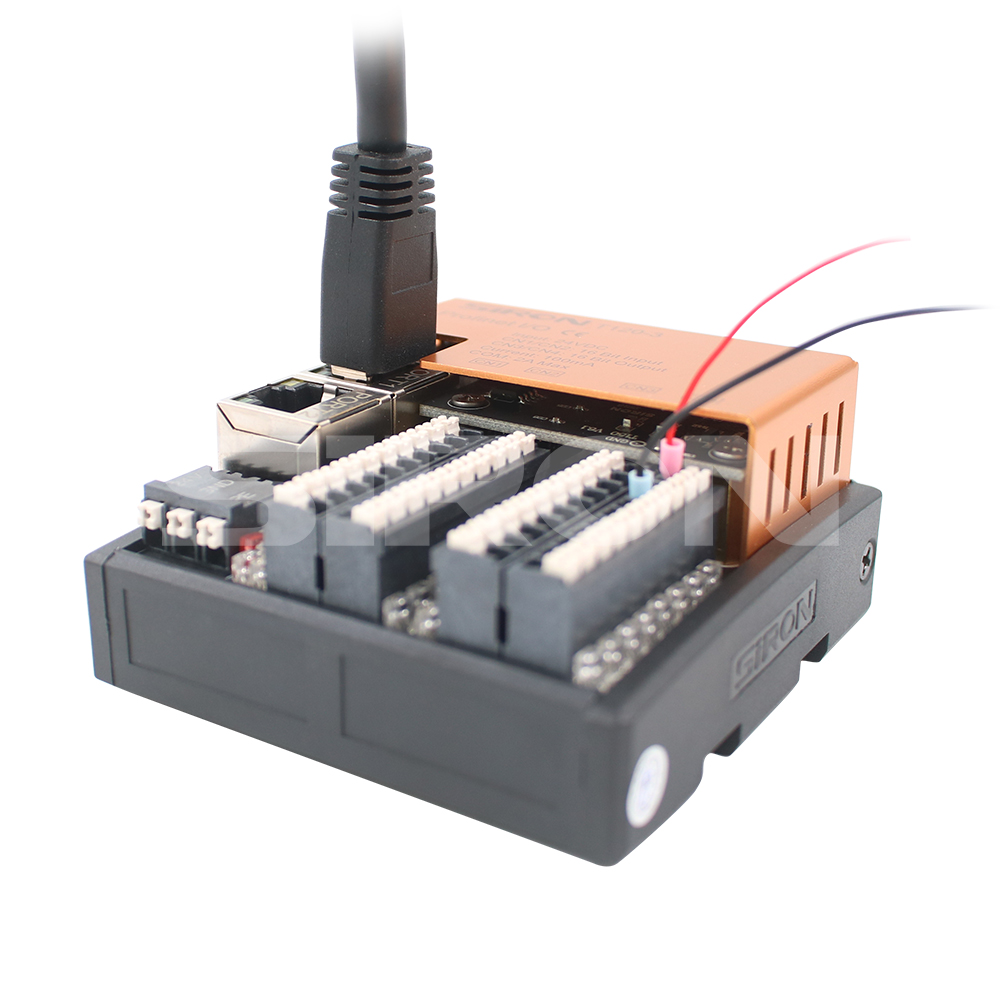

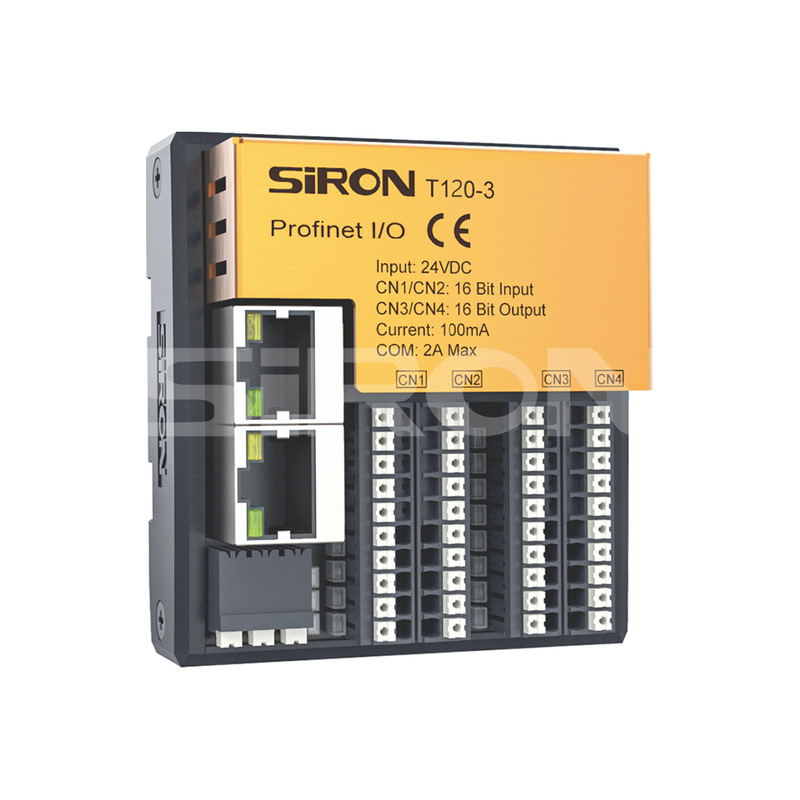

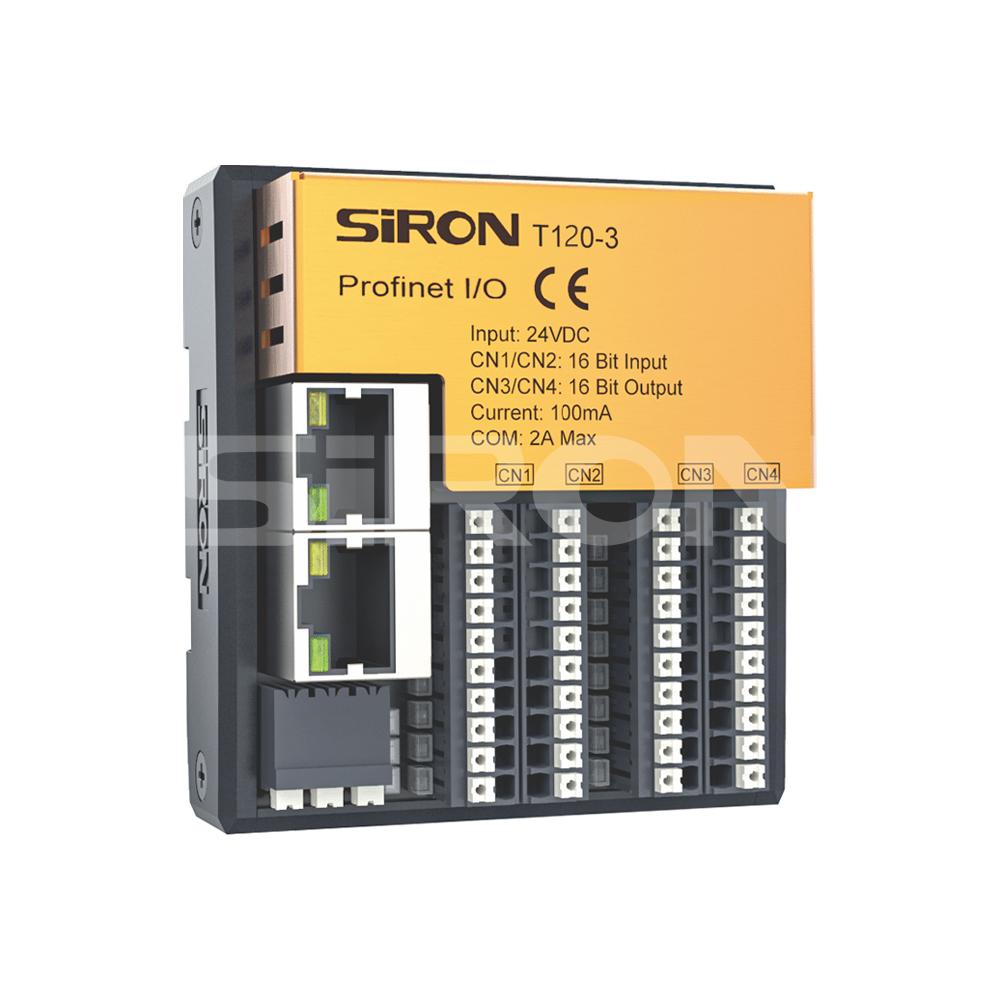

SiRON T12-C IP20 Profinet Bus Module

Name: SiRON T12-C IP20 Profinet Bus Module
Brand: SiRON
Rating: 5.0 (95 reviews)

Features

Protection grade Ip20;
Integrated I/O, Profinet bus, small size 80×75×38mm;
Small footprint, fast speed, fast wiring, pluggable wiring terminals;
Simple configuration, suitable for Siemens, AB and other manufacturers' master stations.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Model:
T12-C
Brand:
SiRON
Code:
8471800000

IP20 Profinet Bus Module spring terminal Profinet Bus Module MIL plug Profinet Bus Module Compact Profinet bus module

Product Description

About selection

企业微信截图_17551480921501

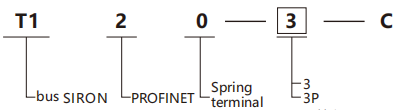

Selection example: T120-3-C represents the T1 second-generation bus module, with the protocol of PROFINET and the connection method of spring terminals. Its input/output characteristics are: 16-channel digital input and 16-channel digital output (NPN).

Note * : The connection method of the plug is still under development and is not on the market.

Table 1: Input/output characteristics

Code	Input	Output
3	16 channels digital input(NPN&PNP)	16 channels digital output(NPN)
3P	16 channels digital input(NPN&PNP)	16 channels digital output(PNP)
4	32 channel digital input(NPN&PNP)	channels digital output
5	0 channel analog input	32 channels analog output(NPN)
5P	0 channel analog input	32 channel analog output(PNP)

Specifications

Rated voltage	24V DC(12～30V)
Current consumption	60mA

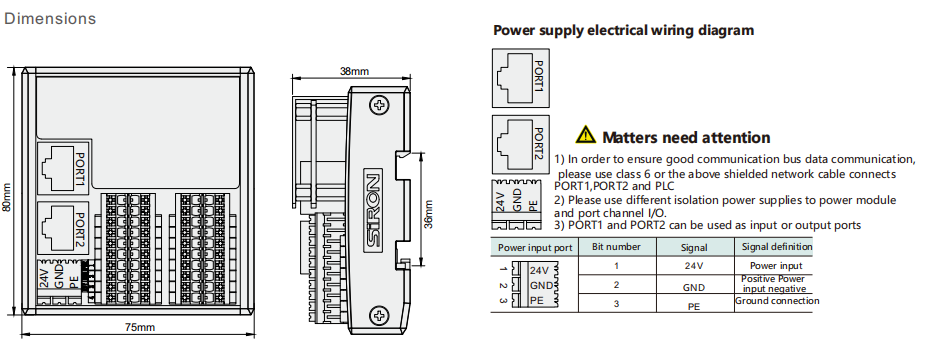

Size	80×75×38mm
Protection grade	IP20
Working temperature	-20～60℃
Storage temperature	-20～75℃
Relative humidity	95%, No condensation
Weight	130g

Digital input and output module

Model	Specification Description
T120-3/T121-3	16 input(NPN&PNP-compatible)and 16 output(NPN)
T120-3P	16 input(NPN&PNP-compatible)and 16 output(PNP)
T120-4/T121-4	32 input(NPN&PNP-compatible)and 0 output
T120-5/T121-5	0 input and 32 output(NPN)
T120-5P	0 input and 32 output (PNP)

Note: When the input common end is connected to a 24V high level, the effective level of the channel input is NPN; When the input common end is connected to GND, the effective level of the channel input is PNP.

Communication bus interface

EtherCAT Ethernet interface	Interface	Signal	Signal definition
	1	TX+	Data sending positive end data
	2	TX-	sending negative end data
	3	RX+	receiving positive end
	4	/	/
	5	/	/
	6	RX-	Data receiving negative end
	7	/	/
	8	/	/
	Connector housing	PE	chassis ground

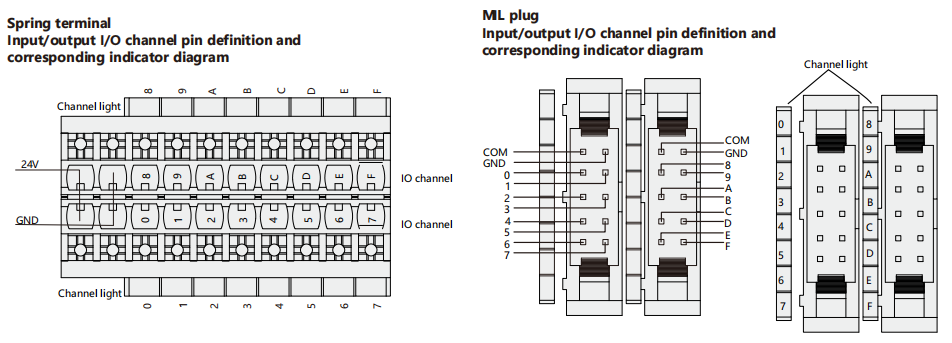

Input module parameters

Interface parameters	Digital input
Signal type	NPN	PNP
Rated level	OV DC	24V DC
1 Signal level	0~5VDC	15~30VDC
0 Signal level	15~30VDC	0~5VDC
Single channel current	5mA(MAX)	5mA(MAX)
Port protection	Overvoltage impact protection	Overvoltage impact protection
Electrical isolation	Optocoupler isolation	Optocoupler isolation
Isolation voltage	AC 500V	AC 500V
Signal indication	Green LED light	Green LED light

Output module parameters

Interface parameters	Transistoroutput
Signal type	NPN	PNP
Effective signal level	<1.5V	15~30VDC
Single channel rated current	Rated:0.1A,MAX:0.15A	Rated:0.1A,MAX:0.15A
Port protection	Overvoltage	Overvoltage
Electrical isolation	Optocoupler isolation	Optocoupler isolation
Isolation voltage	AC 500V	AC 500V
Signal indication	Green LED light	Green LED light
