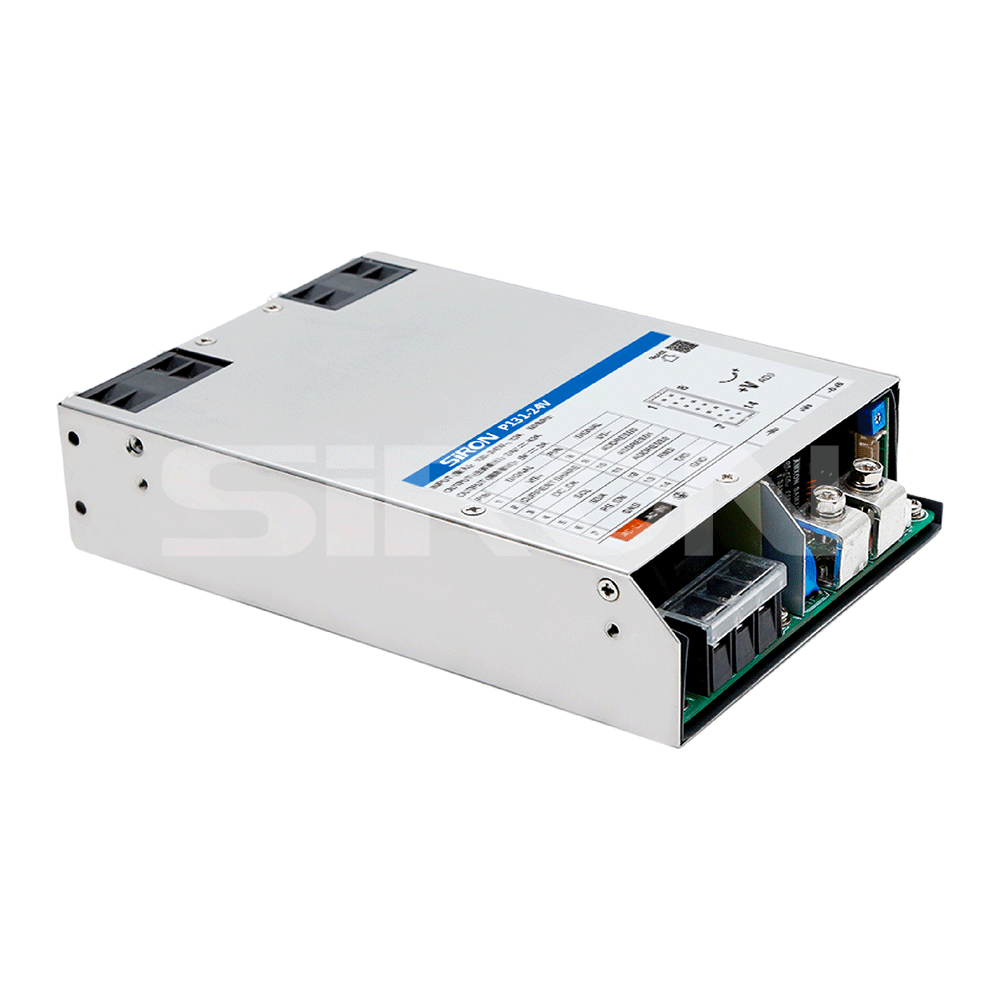

SiRON P131 Series 1000W Chassis with PFCswitching power supply

Name: SiRON P131 Series 1000W Chassis with PFCswitching power supply
Brand: SiRON
Rating: 5.0 (43 reviews)

Features

AC and DC dual purpose (input voltage of the same terminal), the efficiency is as high as 88%, and:he no-load power consumption is less than 0.5W;
4000VAC high isolation voltage, output short circuit, over current, over voltage protection
Overvoltage class lll (according to EN61558), to meet the 5000m altitude application;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Model	Voltage
P131	24V

Selection reference

Model	lnput voltage range	Power		Output voltage/current		Efficiency
Model	lnput voltage range	Main	side	Main	side	Efficiency
P131-12V	90-264VAC/ 120-370VDC	960W	10W	12V/80A	5V/2A	92%
P131-15V		960W	10W	15V/64A	5V/22A	92%
P131-24V		1008W	10W	24V/42A	5V	94%
P131-27V		1007W	10W	27V/37.3A	5V/22A	94%
P131-36V		1008W	10W	36V/28A	5V/2A	94%
P131-48V		1008W	10W	48V/21A	5V/2A	94%
P131-54V		1009W	10W	54V/18.7A	5V/2A	94%

Note: Terminal guard cover series: suffix with -C; Product series with conformal coating: suffix -O

Product Attributes

Model		P131
(@230VAC)Electric shock		cold start40A
Overcurrent Protection		110% - 160%lo,self-recovery
Short circuit protection		Hiccup type, sustainable short circuit, self-healing
Isolation withstand voltage		Input-output: 4kVAC, input-PE: 1.5kVAC, output-PE: 1.5kVAC (Test for 1 minute, leakage current <10mA)
Operating temperature		-40℃to+70℃(non-condensing)
EMC performance	EMI	CISPR32/EN55032 Class B. lEC/EN61000-3-2 Class A, IEC/EN61000-3-3
	EMS	EC/EN61000-4-2 Contact±8Kv,IEC/EN61000-4-310V/m, IEC/EN61000-4-610 Vr.m.s,IEC/EN61000-4-4,5,11
Safety standard		IEC/UL/EN62368-1、IEC/ES/EN60601-1
MTBF		MIL-HDBK-217F@25℃>250000h
Wiring diameter		22-14AWG
Connector torque		M5, 2.3N.m
Dimensions		190×127×40.5
