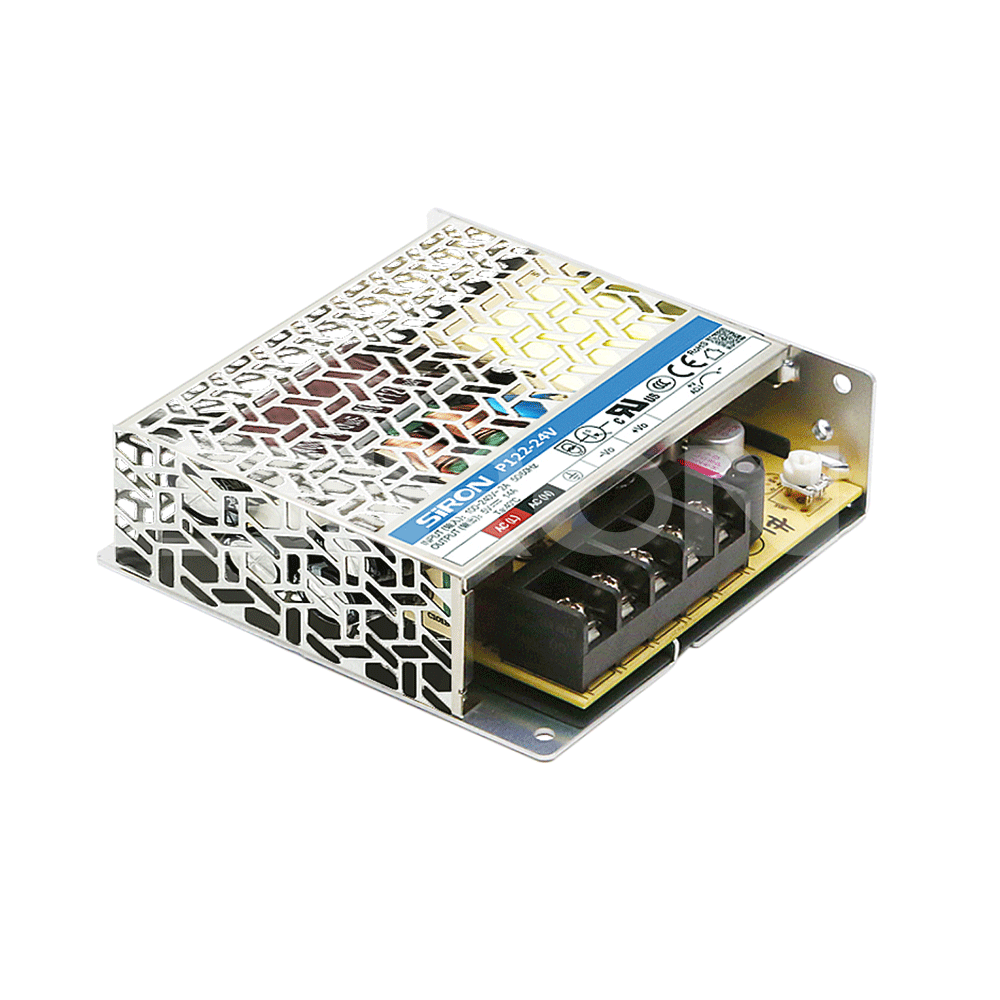

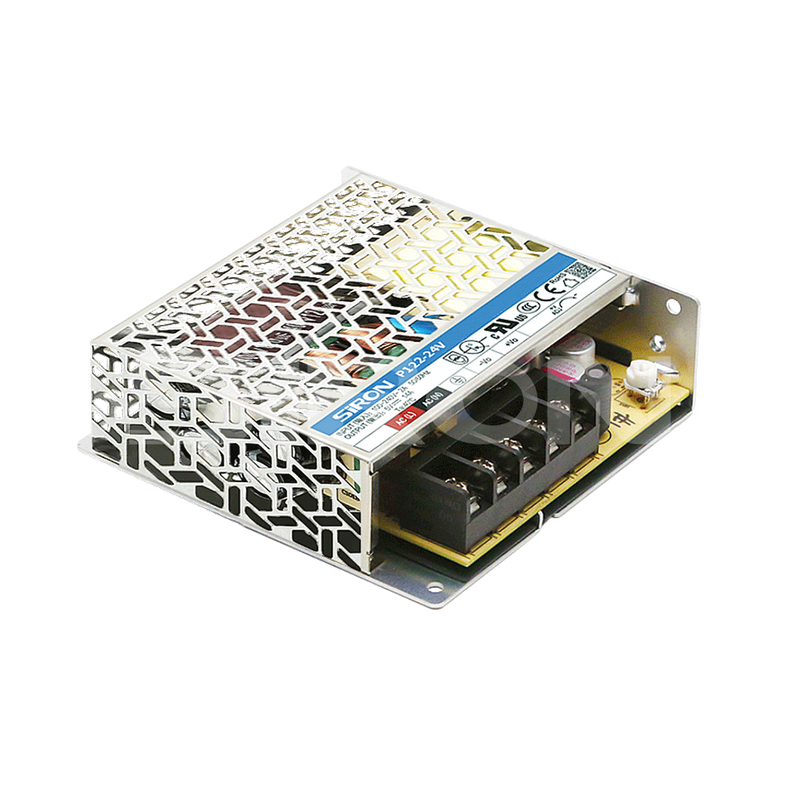

SiRON P122 Series 75W Chassis Switching Power Supply

Name: SiRON P122 Series 75W Chassis Switching Power Supply
Brand: SiRON
Rating: 5.0 (22 reviews)

Features

AC and DC dual-purpose (input voltage of the same terminal), low standby power consumption,igh efficiency,low ripple noise;
4000VAC high isolation voltage, output short circuit, overcurrent, overvoltage protection;
Overvoltage class lll (according to EN61558), to meet the 5000m altitude application;

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

Order

Model	Voltage
P122	24V

Selection reference

Note: Terminal with protective cover series: Suffix with -C; The product comes with a conformal coating series: the suffix is -O

Product Attributes

Model		P122
Electric shock		Cold start,65A
Overcurrent Protection		110%-200%lo
Short circuit protection		Hiccup type,with long-term short-circuit protection and self-recovery
Isolation withstand voltage		Input-output:4kVAC,input-PE:2kVAC,Output-PE:1.25kVAC (Test for 1 minute,leakage current<10mA)
Operating temperature		-30℃to+70℃
performance	EMI	CISPR32/EN55032 Class B,IEC/EN61000-3-2 Class A
	EMS	IEC/EN 61000-4-2Contact±6KV,IEC/EN61000-4-610 Vr.m.s, iEC/EN 61000-4-310V/m,IEC/EN61000-4-4,5,11
Safety standard		IEC/EN/UL62368、EC/EN60335、GB4943、IEC/EN61558
MTBF		MIL-HDBK-217F@25℃>300000h
Wiring diameter		22-12AWG
Connector torque		M3.5,0.8N.m
Dimensions		99×97×30
